3-Car Detached Garage with Vaulted Storage Space Above

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
3

Floor Plan

Plan 62343DJ

Main Level
Main Level
Attic Space
Attic Space

Plan 62343DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 62343DJ: 3-Car Detached Garage with Vaulted Storage Space Above - Floor Plan - Main Level

Attic Space

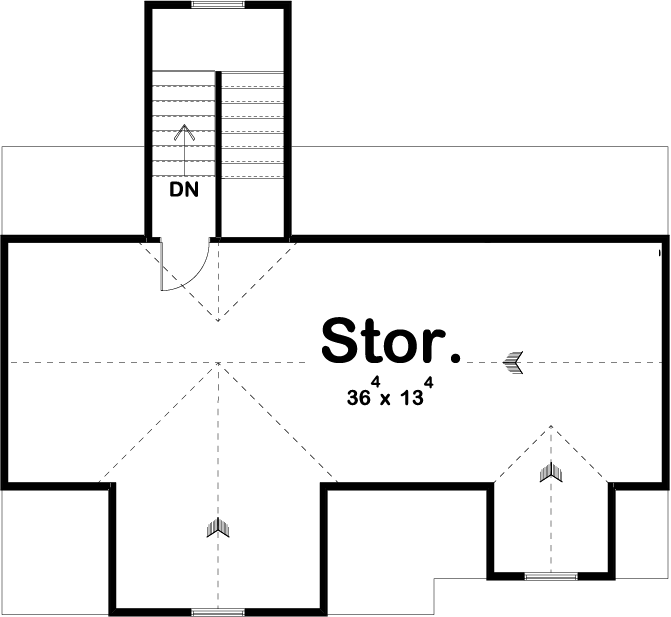

Plan 62343DJ: 3-Car Detached Garage with Vaulted Storage Space Above - Floor Plan - Attic Space

Plan Details

  • This 3-car detached garage plan has 3 garage bays - two proud of the the third one on the right - and a man door in back.
  • Stairs in back of the garage take you to a vaulted storage space with light coming in from the gable and the dormer.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
