3 Car Garage with 3 Dormers

Plan 62472DJ

  • 0

    HEATED S.F.

  • 0

    BEDS

  • 0

    BATHS

  • 1

    FLOORS

  • 3

    CAR GARAGE

About this Plan

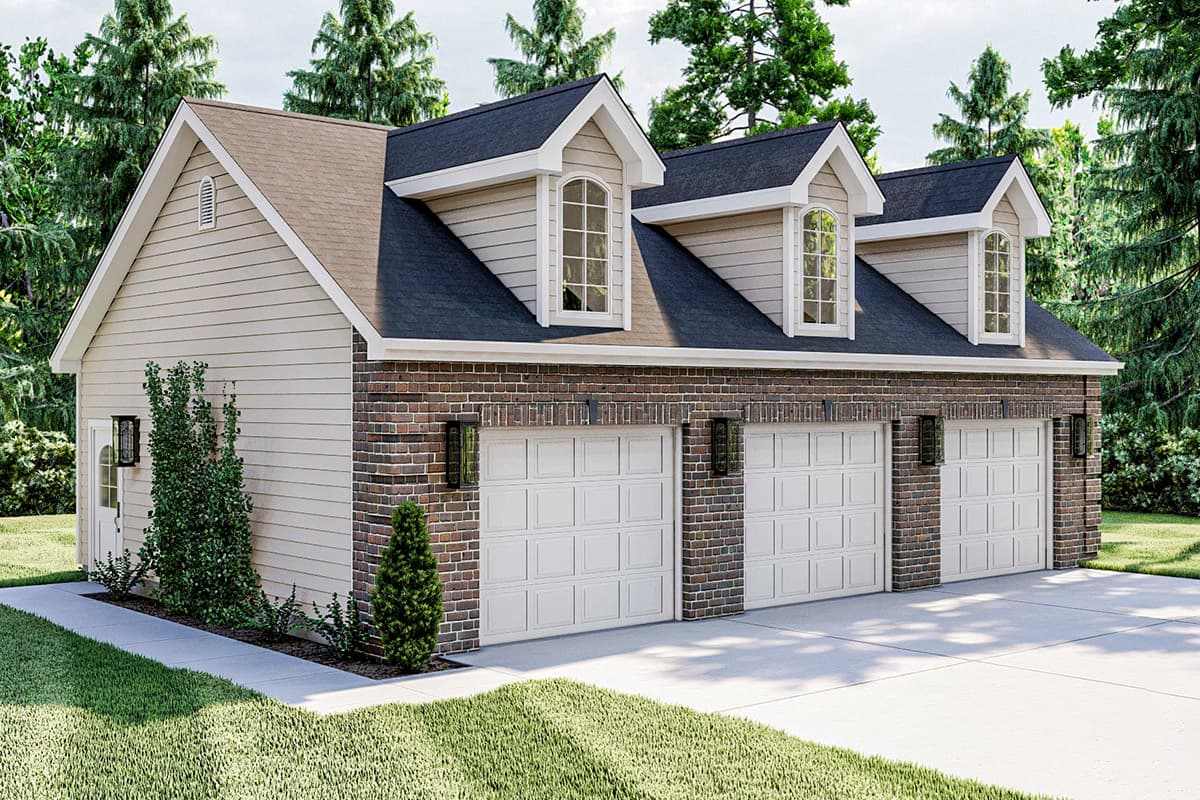

  • A trio of matching dormers dress up the exterior of this 3 car garage.

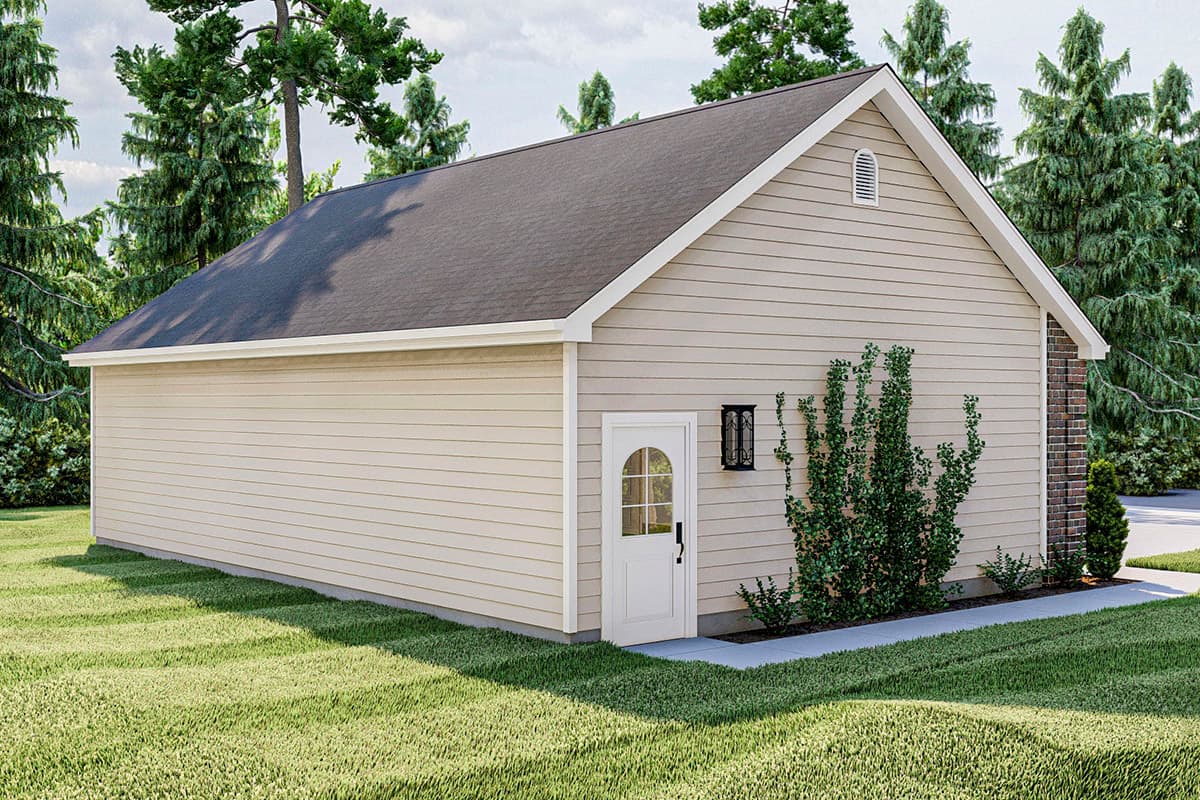

  • A man door gives you access on the side.

See What's Included in this Plan...

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Dimensions

  • Width: 39' 0"
  • Depth: 26' 0"
  • Max ridge height: 18' 10"

Garage

  • Type: Detached
  • Area: 1014 sq. ft.
  • Details: 3 Cars

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick

Special features
