3-Car Mountain Craftsman Garage Plan with RV Bay Garage - 1866 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3

Floor Plan

Plan 135316GRA

Main Level
Main Level

Plan 135316GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

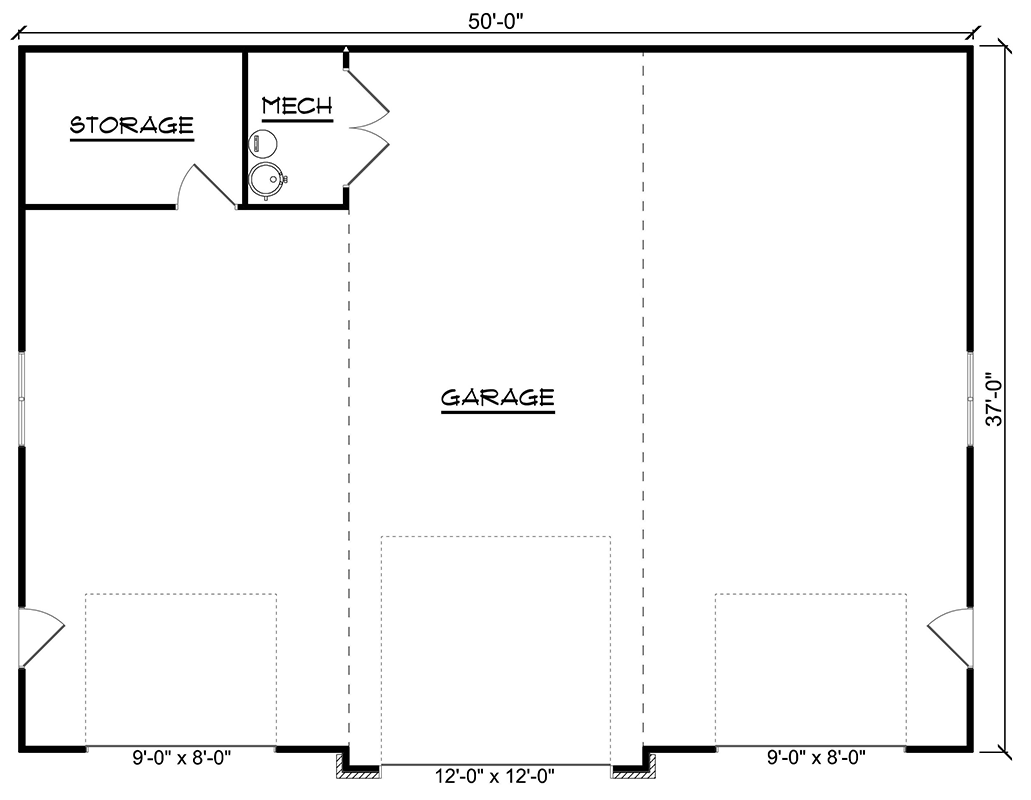

Plan 135316GRA: 3-Car Mountain Craftsman Garage Plan with RV Bay Garage - 1866 Sq Ft - Floor Plan - Main Level - Craftsman, Mountain, Transitional

Plan Details

  • This detached 1866 sq. ft. three-car RV garage plan is designed in a harmonious Craftsman-Mountain style, offering expansive utility and robust appeal.
  • This substantial garage features an impressive 10-foot ceiling height throughout, providing a spacious environment for vehicle storage and various projects.
  • The central bay is specifically designed to accommodate an RV with its taller 12-foot wide by 12-foot high door, flanked by two standard 9-foot wide by 8-foot high bays, offering flexible parking and storage solutions for multiple vehicles.
  • A dedicated workshop area is intelligently integrated within the plan, offering ample space for projects and hobbies, supported by an adjacent mechanical room for utility access.
  • An enclosed storage room provides a secure and organized area for tools, seasonal items, or recreational gear, helping to keep the main garage floor clear and functional.
  • The exterior showcases a striking blend of dark siding and stone accents under a robust metal roof, presenting a durable and aesthetically pleasing addition to any property.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

38' 0"

Max Ridge Height

22' 11"

Garage

Type

Detached, RV Garage

Area

1866 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Craftsman

Mountain

Transitional

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

38' 0"

Max Ridge Height

22' 11"

Garage

Type

Detached, RV Garage

Area

1866 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Craftsman

Mountain

Transitional

Special Features

Workshop
