Plan 135275GRA

3-Car Oversized Barndominium Garage Plan - 2400 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3

Floor Plan

Plan 135275GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135275GRA

M-F 9am-5pm EST |

1-203-761-8500

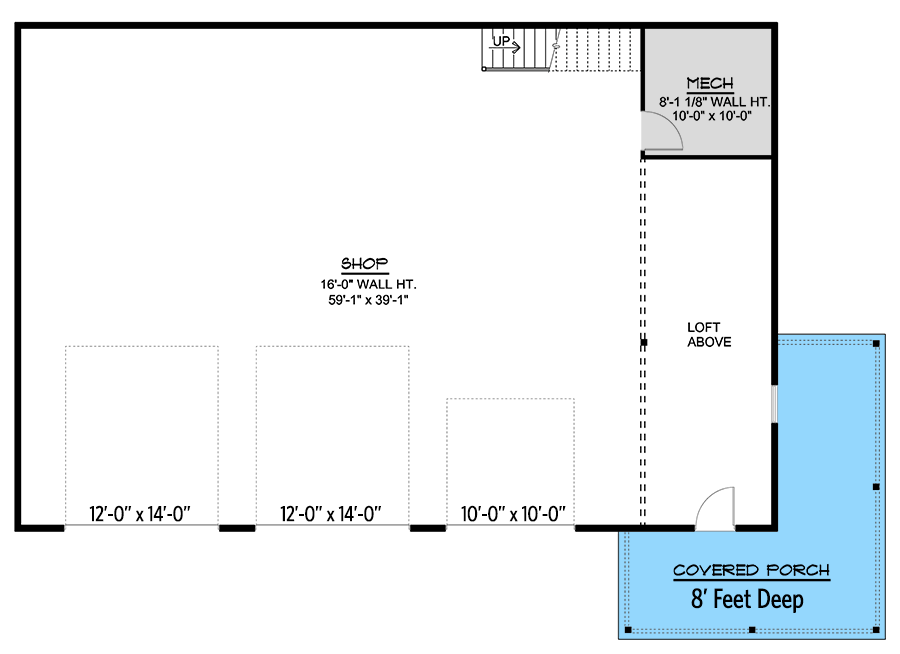

Main Level

Plan 135275GRA: 3-Car Oversized Barndominium Garage Plan - 2400 Sq Ft - Floor Plan - Main Level - Barndominium, Country

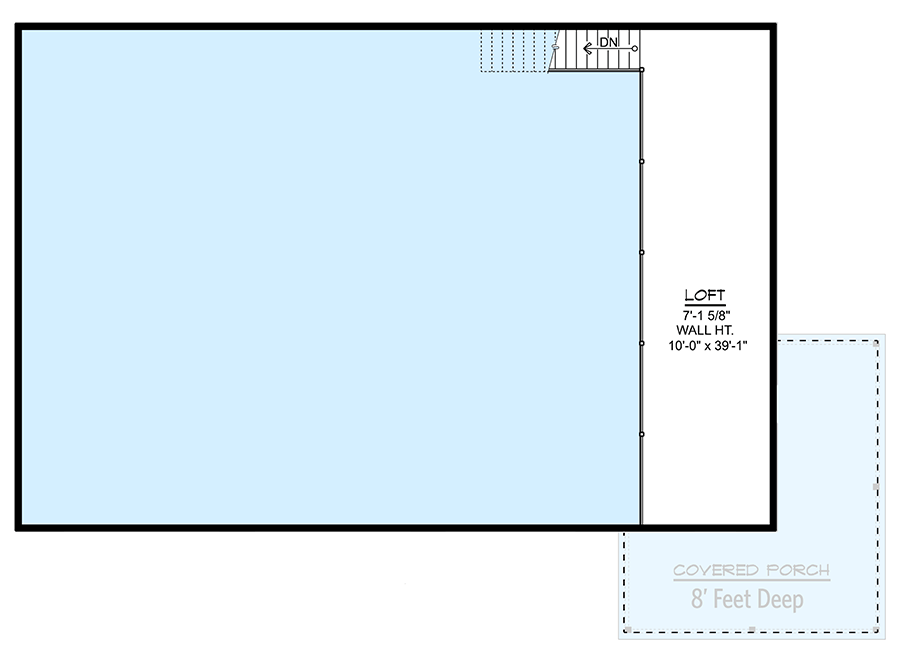

2nd Floor

Plan 135275GRA: 3-Car Oversized Barndominium Garage Plan - 2400 Sq Ft - Floor Plan - 2nd Floor - Barndominium, Country

Plan Details

  • This structure features a generous 2,400 sq ft, 3-car detached garage and workshop space, designed in a classic Country Barndominium style.
  • Upon entering the main pedestrian door from the covered porch, you are greeted by an expansive workshop area with an impressive 16-foot ceiling height, offering ample vertical space for equipment and projects.
  • The ground floor is primarily dedicated to a large shop, accessible via three front-facing garage bays – two at 12'x14' and one at 10'x10' – accommodating a variety of vehicles and machinery. A dedicated mechanical room provides convenient utility access.
  • Above a portion of the workshop, a functional loft area provides additional storage or a flexible workspace, accessible via an internal staircase, offering a unique vantage point over the main shop floor.
  • A charming 280 sq ft covered porch extends from the side, providing a sheltered outdoor area perfect for relaxing after a day in the shop or enjoying morning coffee.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Combined

280 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

48' 0"

Max Ridge Height

23' 4"

Garage

Type

Detached

Area

2400 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

16'

Roof Details

Framing Type

Truss

Architectural Style

Barndominium

Country

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Combined

280 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

48' 0"

Max Ridge Height

23' 4"

Garage

Type

Detached

Area

2400 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

16'

Roof Details

Framing Type

Truss

Architectural Style

Barndominium

Country

Special Features

Workshop
