Plan 60512ND

3 Elevations for Price of 1

Heated S.F.
1,734
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 60512ND

Main Level
Main Level
Optional
Optional

Plan 60512ND

M-F 9am-5pm EST |

1-203-761-8500

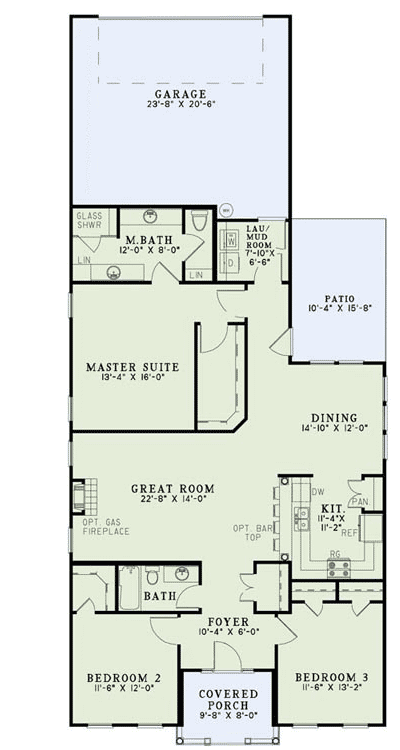

Main Level

Plan 60512ND: 3 Elevations for Price of 1 - Floor Plan - Main Level - Traditional

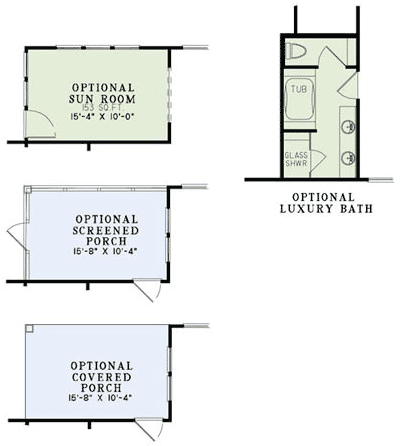

Optional

Plan 60512ND: 3 Elevations for Price of 1 - Floor Plan - Optional - Traditional

Plan Details

  • This house plan is part of our Affordable Collection and it includes a package of three elevations as well as all the floor plan options shown here.
  • This house plan is great for a builder looking to get the most out of their plan purchase.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,734 sq. ft.

1st Floor

1,734 sq. ft.

Porch, Combined

243 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 8"

Depth

80' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

519 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
