3 (or 4) Bed Beauty with Fun-Filled Lower Level

Plan 24362TW

  • 2,839

    Heated s.f.

  • 3-4

    Beds

  • 2 - 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • Vaulted and tray ceilings plus lots of built-ins and an optional finished lower level give you an exciting house plan that's a pleasure to live in.
  • 16' high walls add drama to the foyer and bedroom 2 while the great room and gallery hallway have 12' flat ceilings.

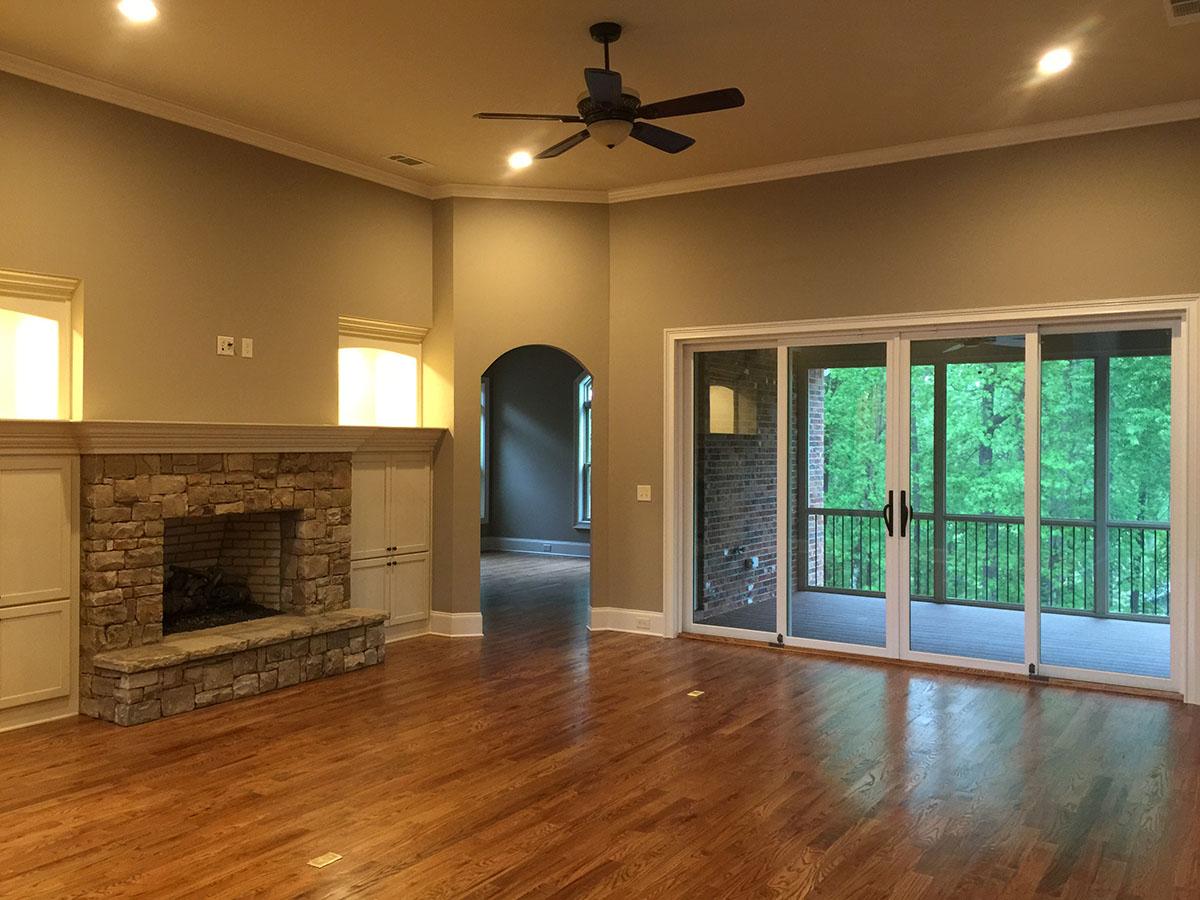

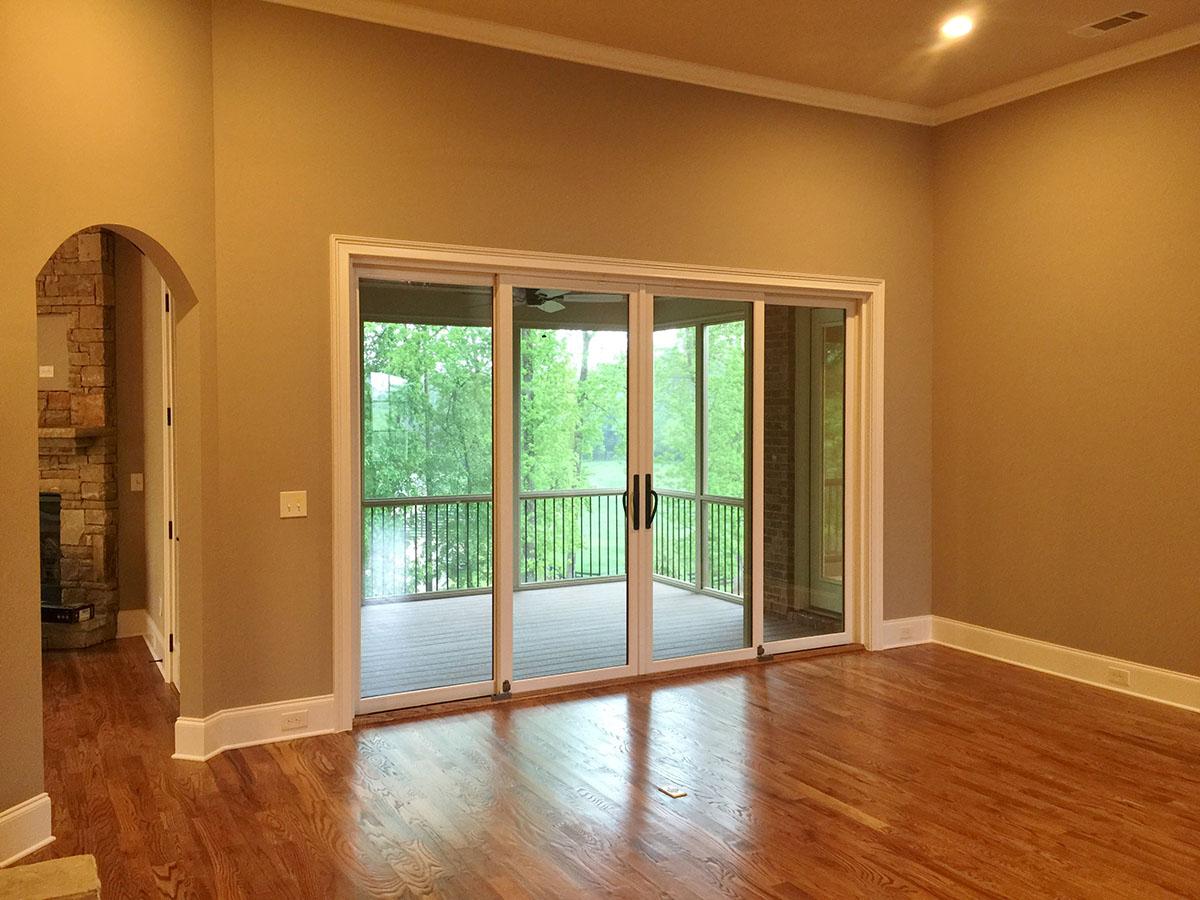

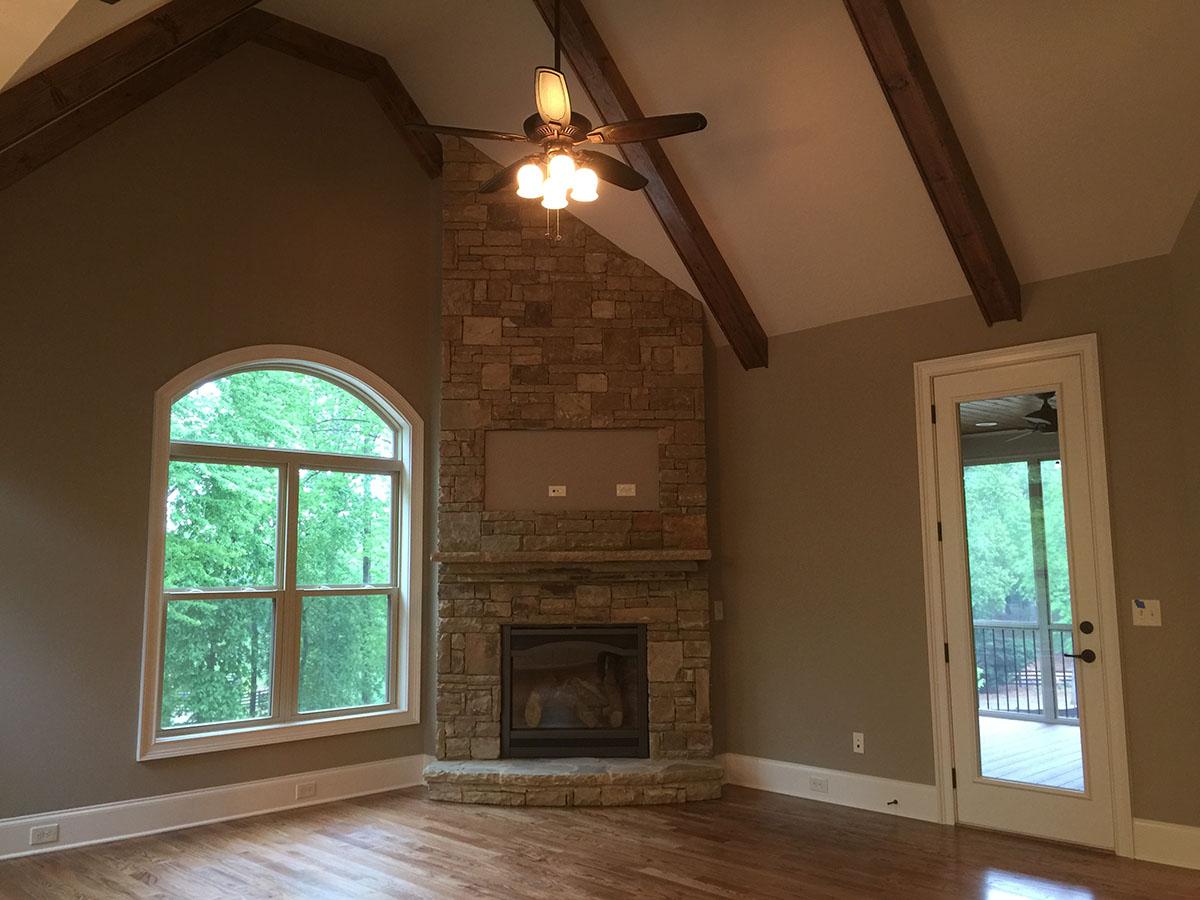

  • The big fireplace and wall of windows enhance the great room that is just steps away from the screened porch.

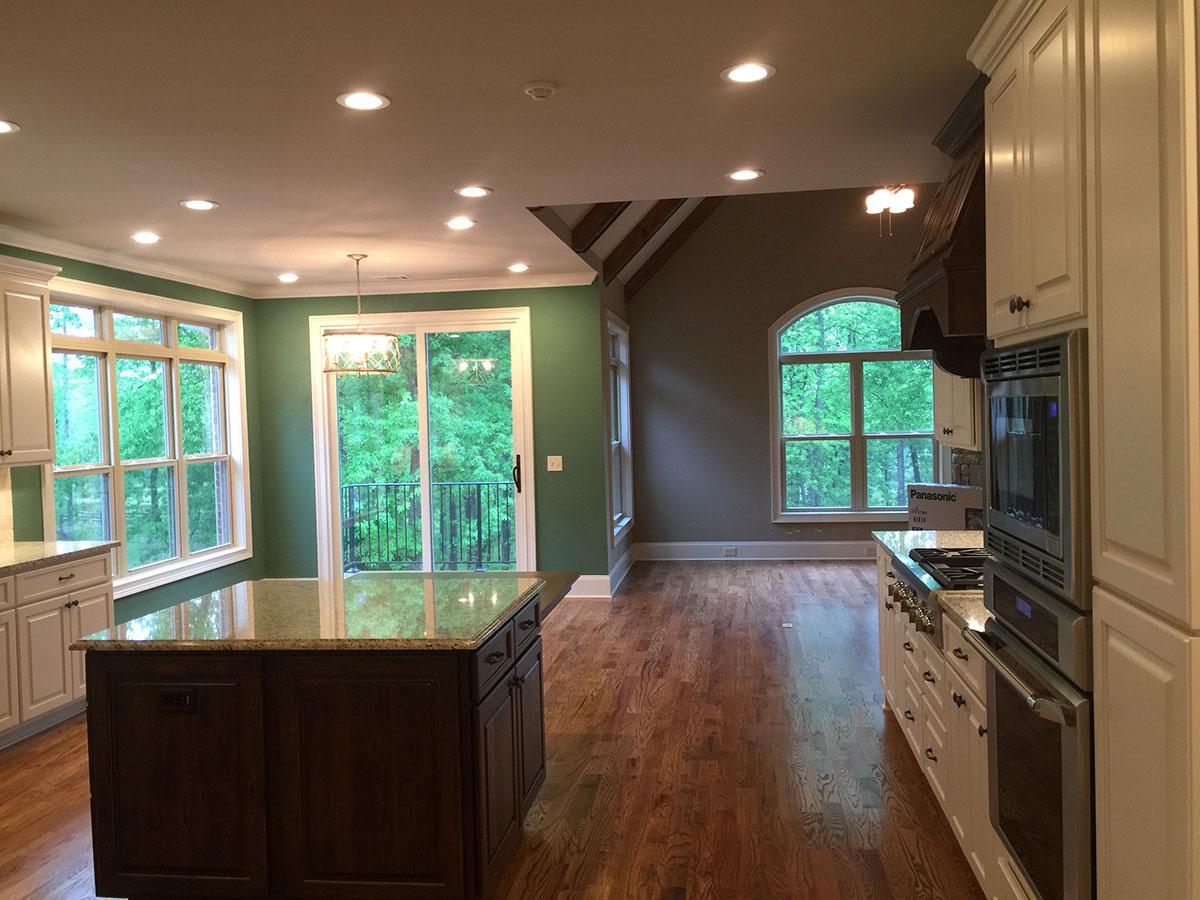

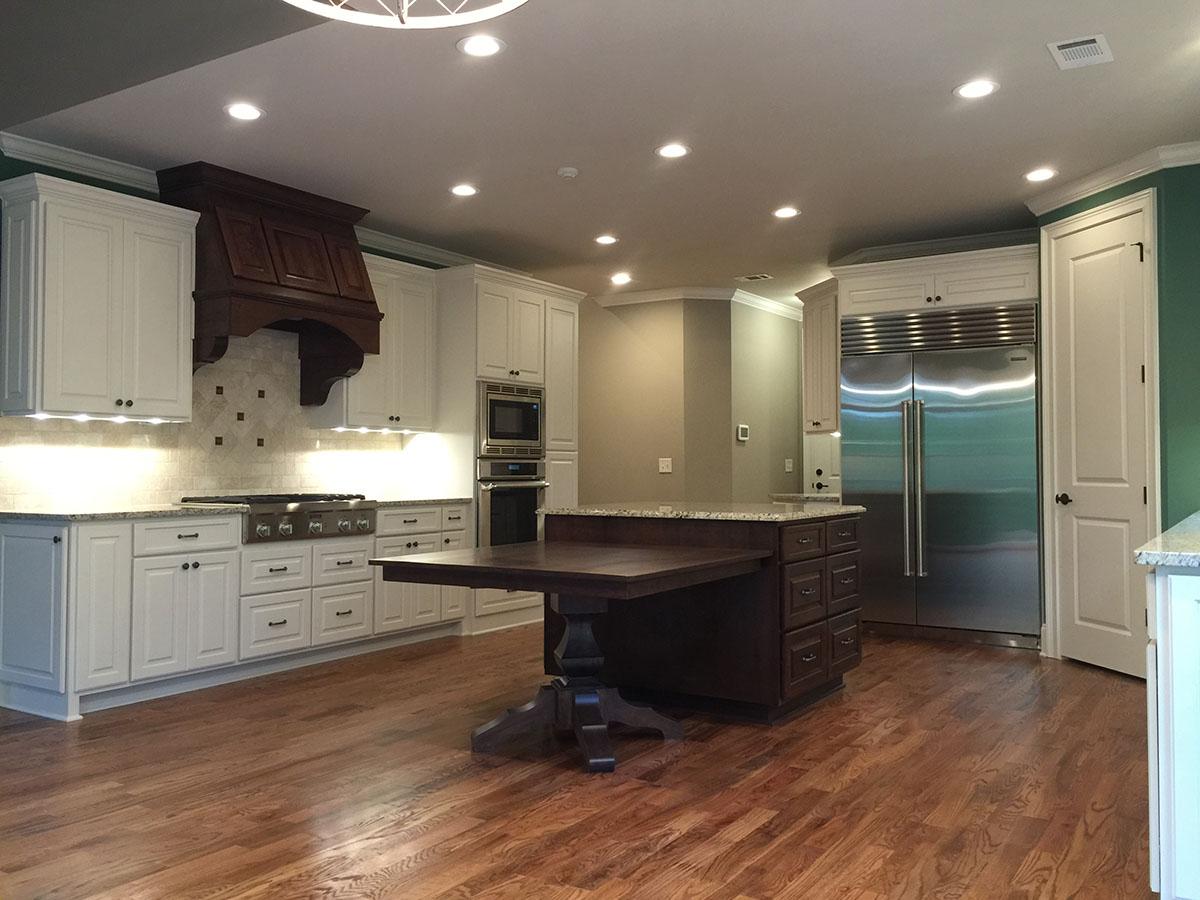

  • In the informal area, the views sweep around from the kitchen to the dining room to the vaulted keeping room that also enjoys a fireplace.

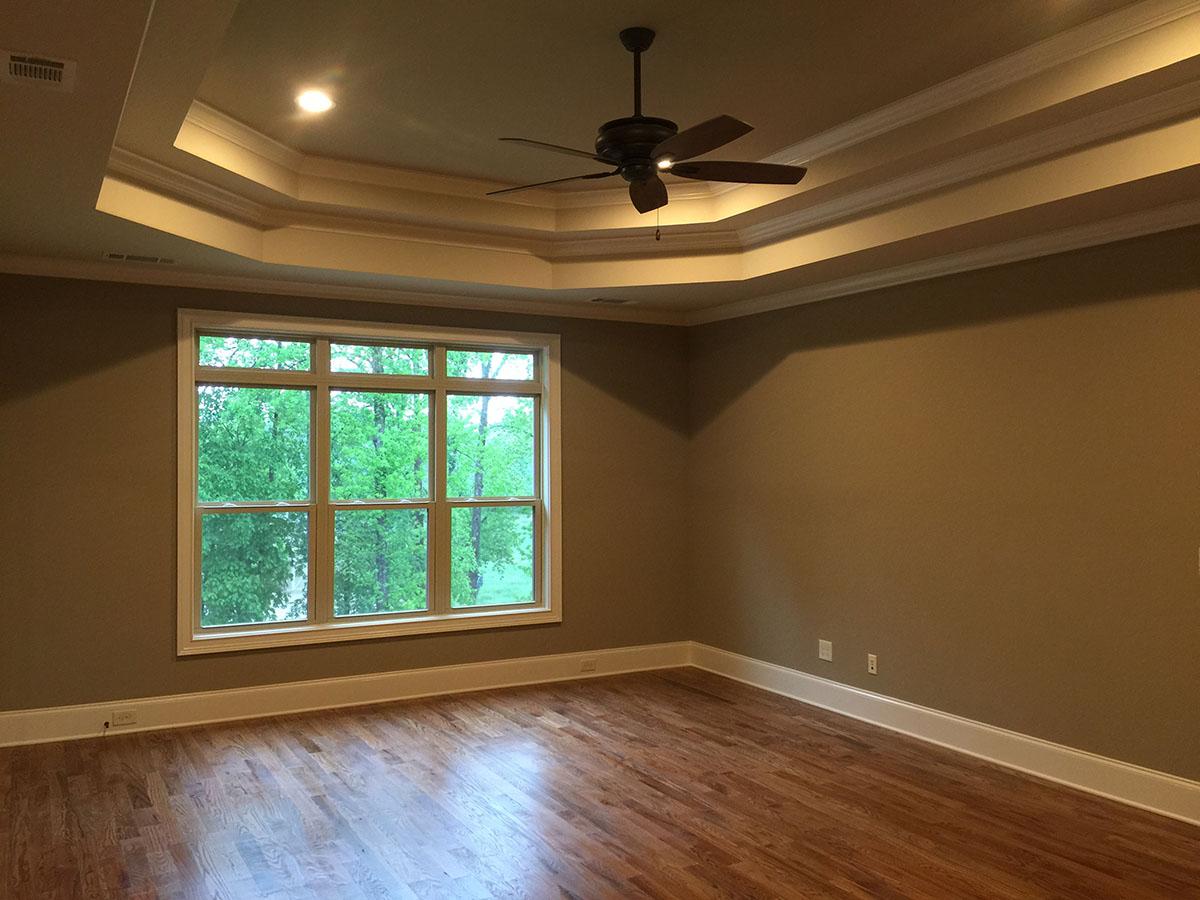

  • At the end of a long day, retire to the lovely master suite with its double tray ceiling, huge walk-in closet with an island and a spacious spa bathroom with a corner soaking tub.

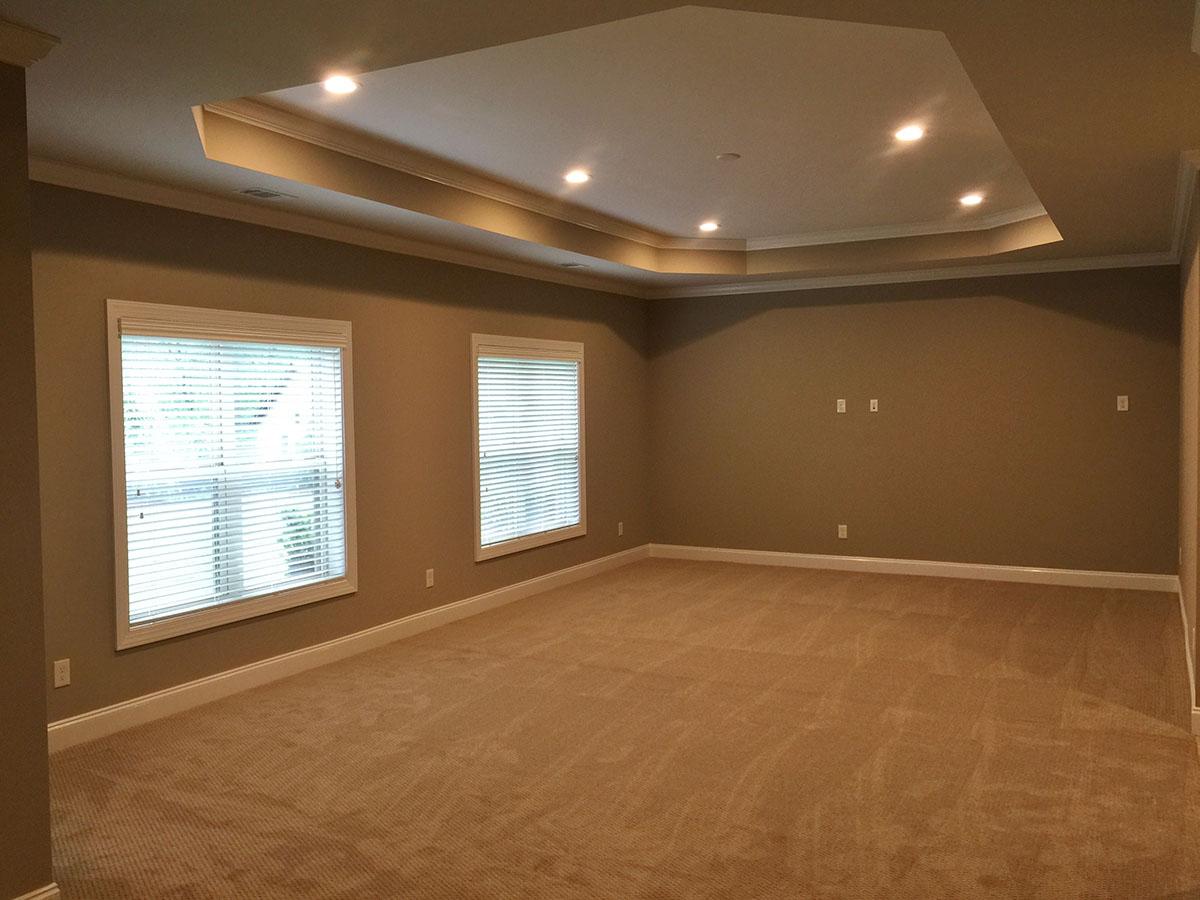

  • Finish the lower level and gain 1,931 extra square feet, loaded with media, game and rec rooms plus an extra bedroom and bathroom.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

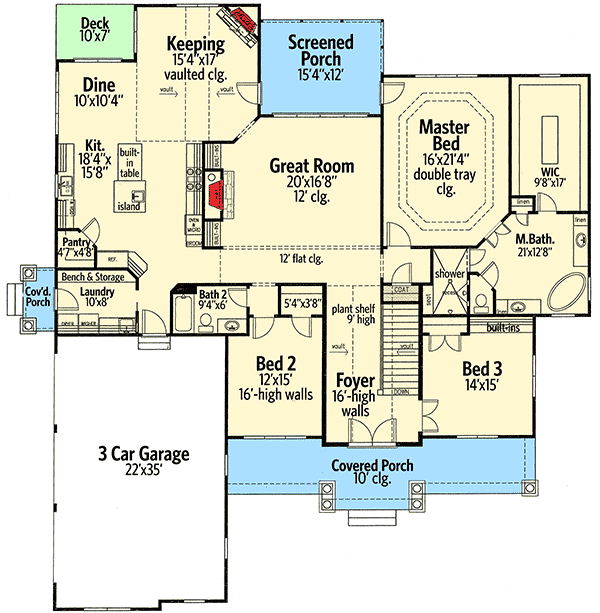

3 (or 4) Bed Beauty with Fun-Filled Lower Level - 24362TW floor plan - Main Level

Optional Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

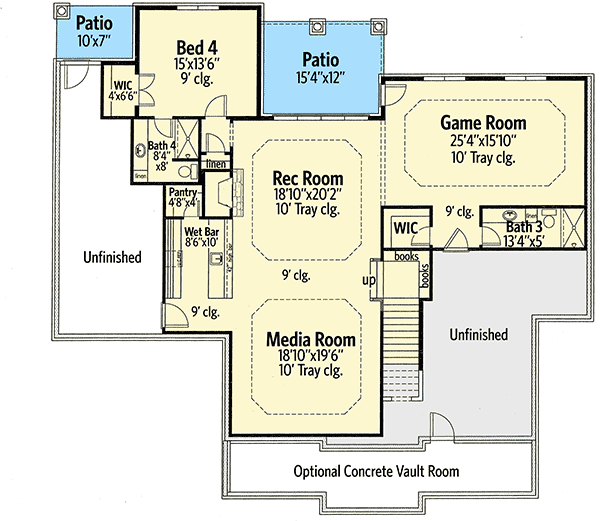

3 (or 4) Bed Beauty with Fun-Filled Lower Level - 24362TW floor plan - Optional Finished Lower Level
