3 or 4 Bedroom with Split Layout

Plan 11756HZ

This plan plants 3 trees

1,750
Heated s.f.
3-4
Beds
2
Baths
1
Stories
2
Cars

Four spacious bedrooms, one of which could be used as an office.

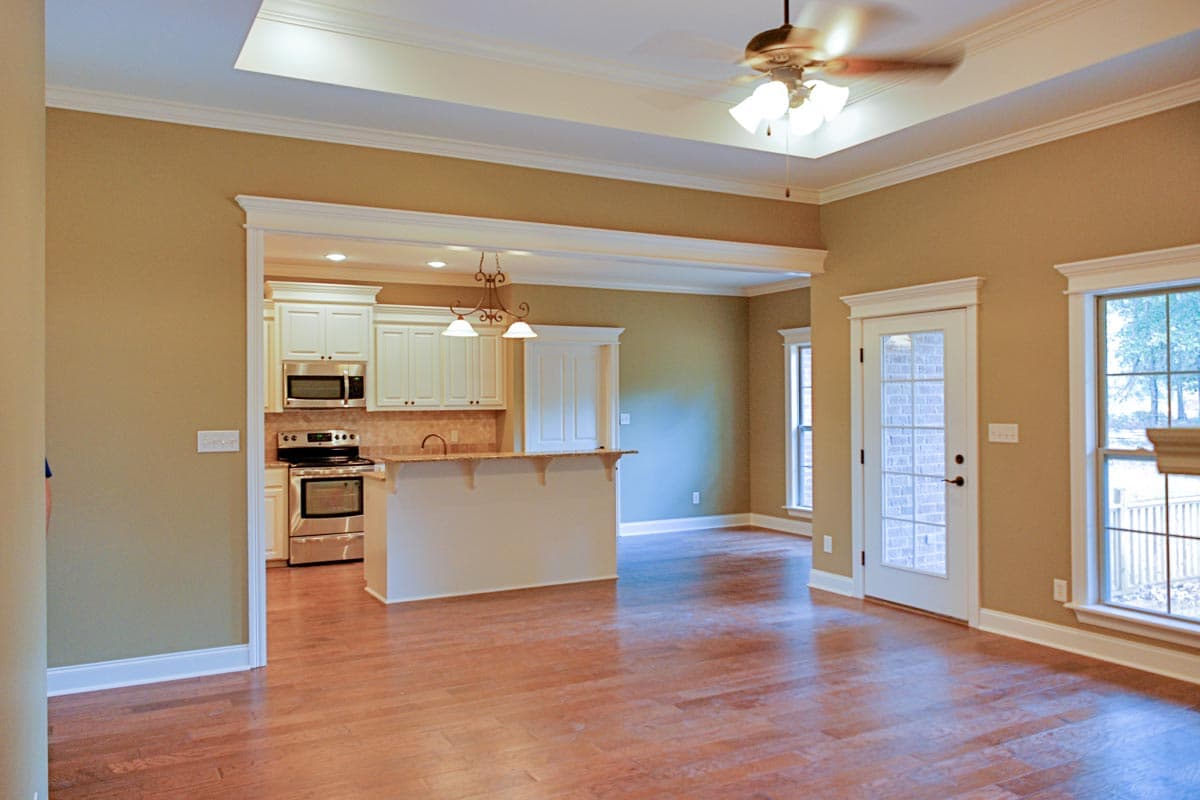

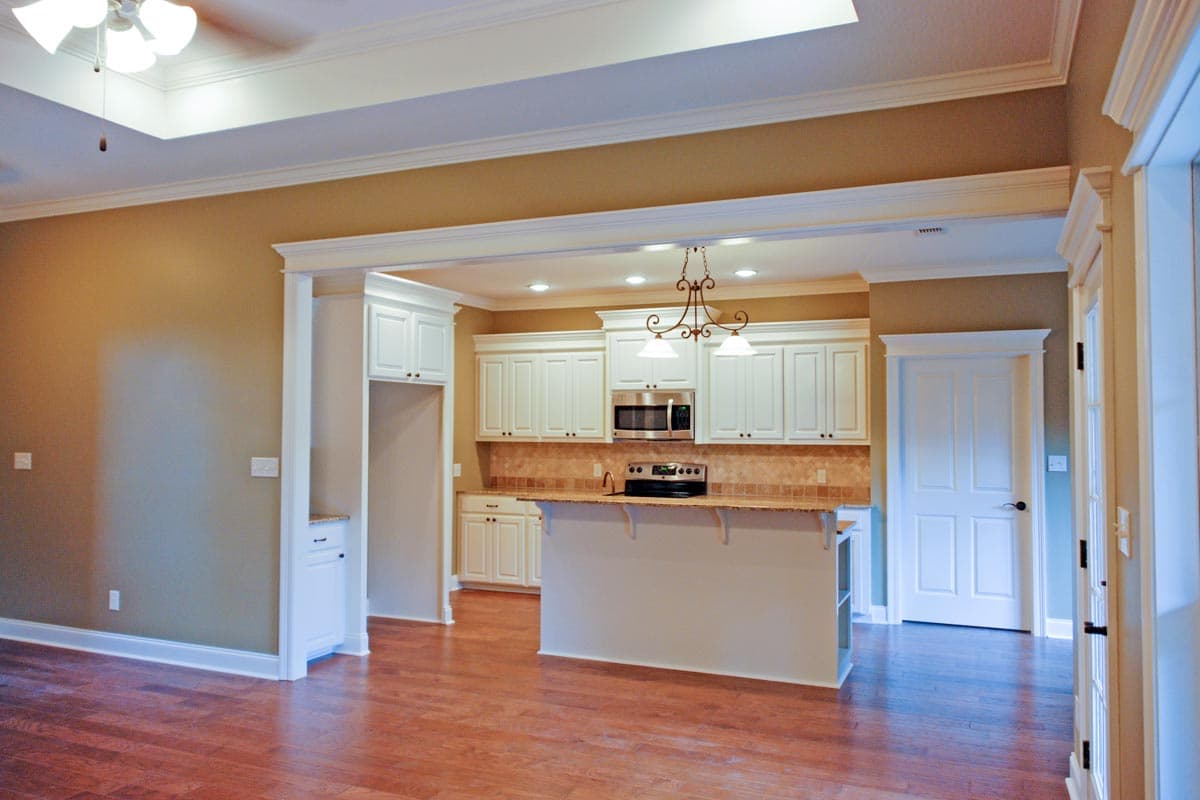

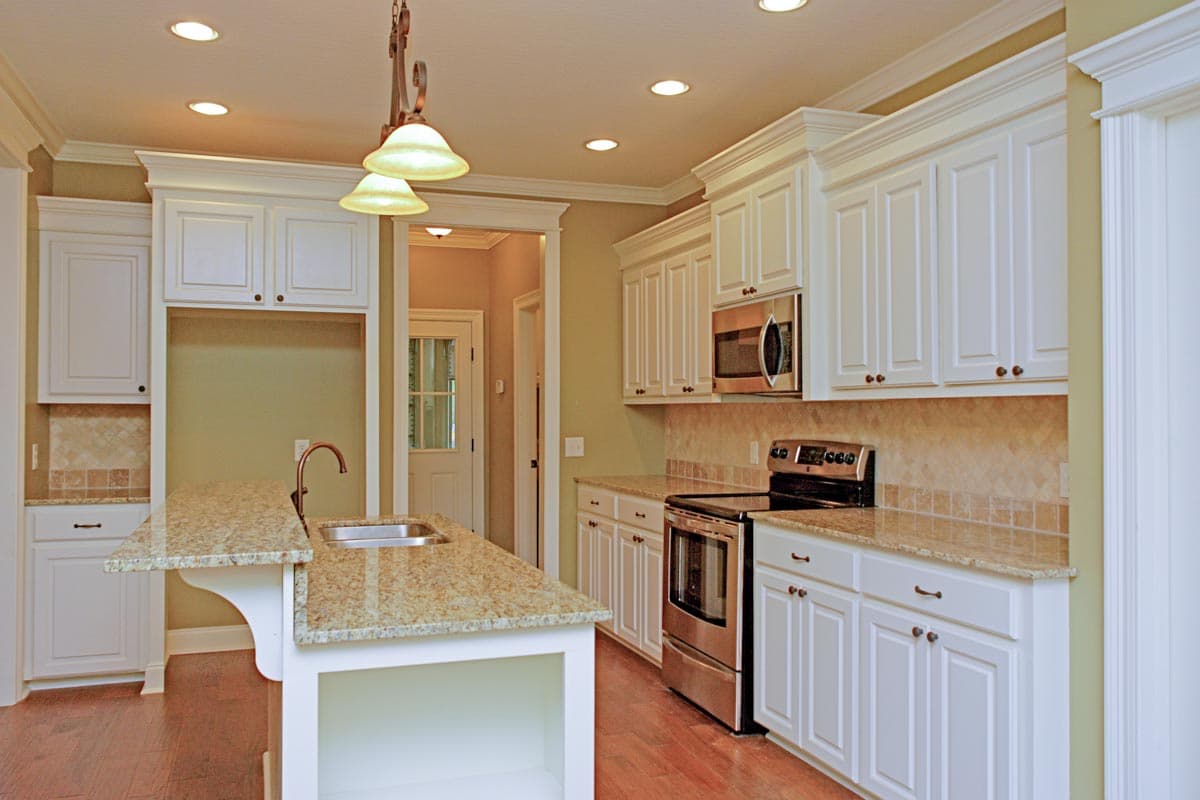

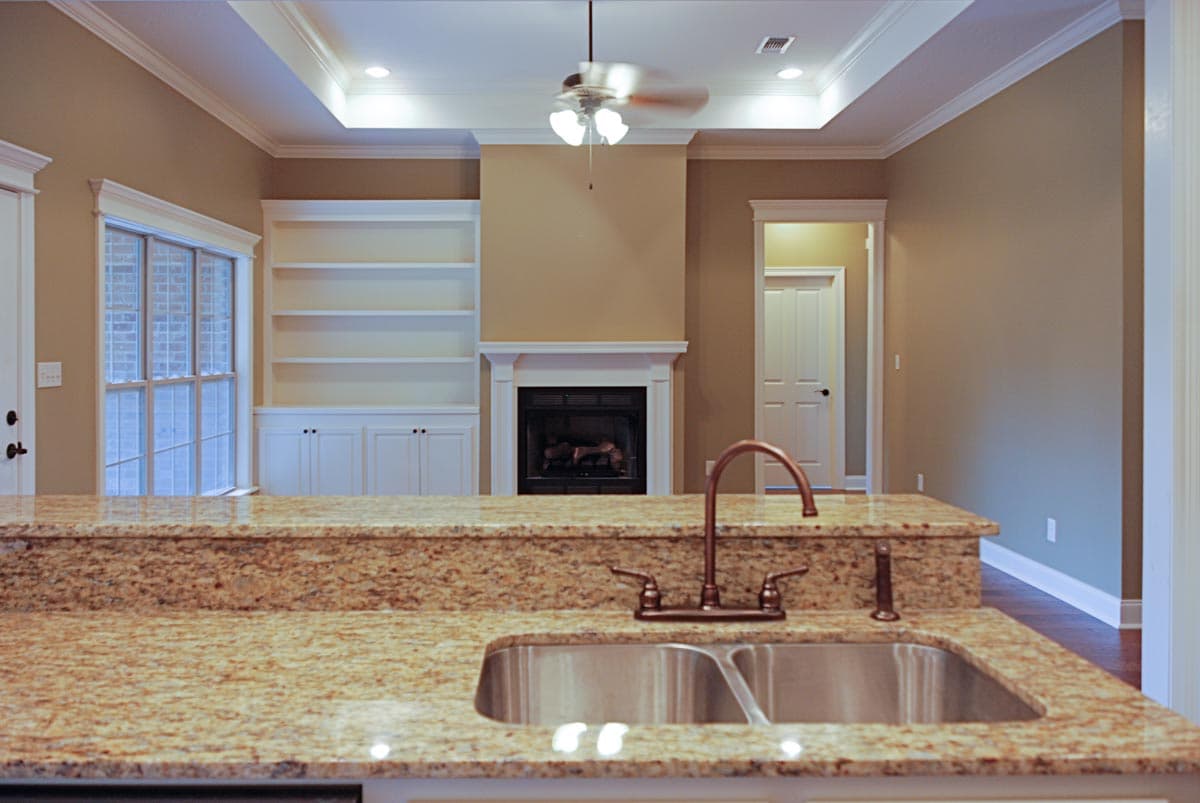

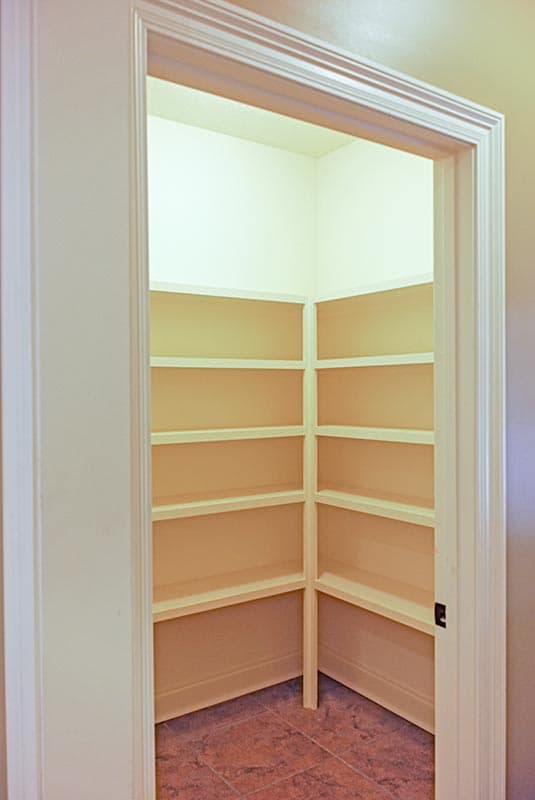

Open living area with large kitchen with walk-in pantry, and volume ceilings.

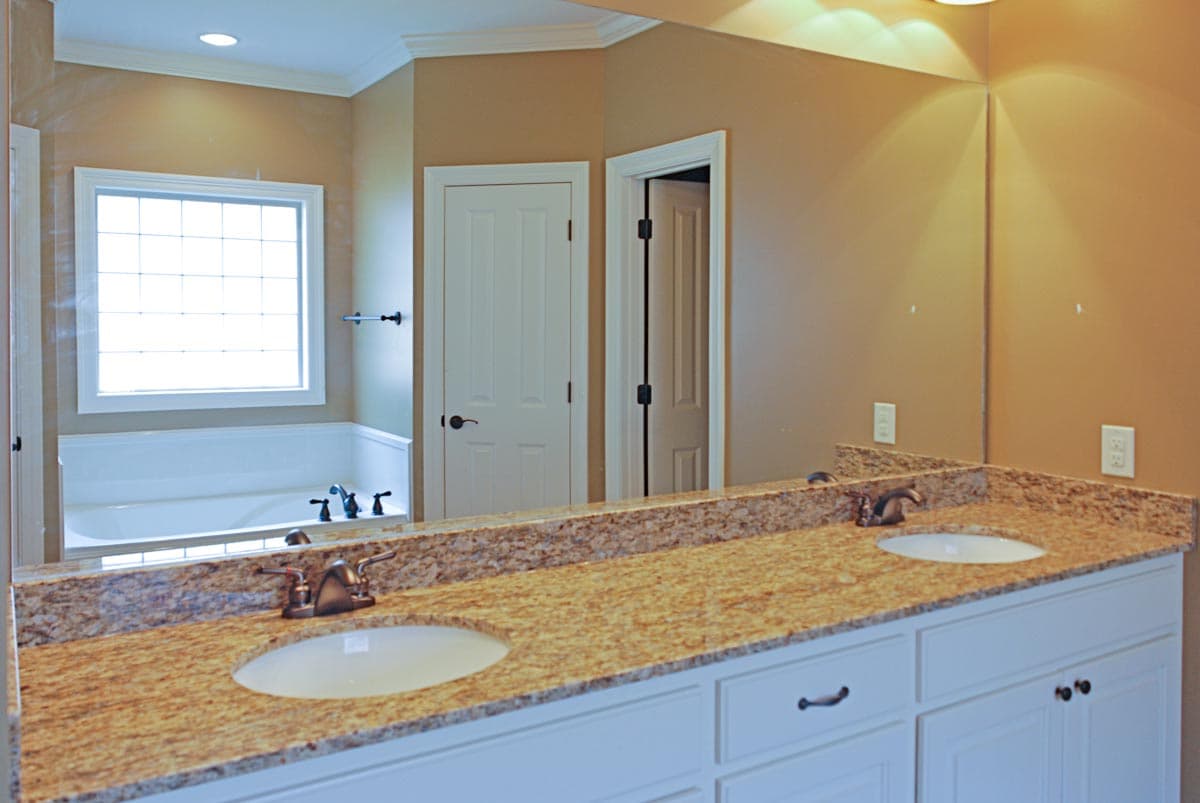

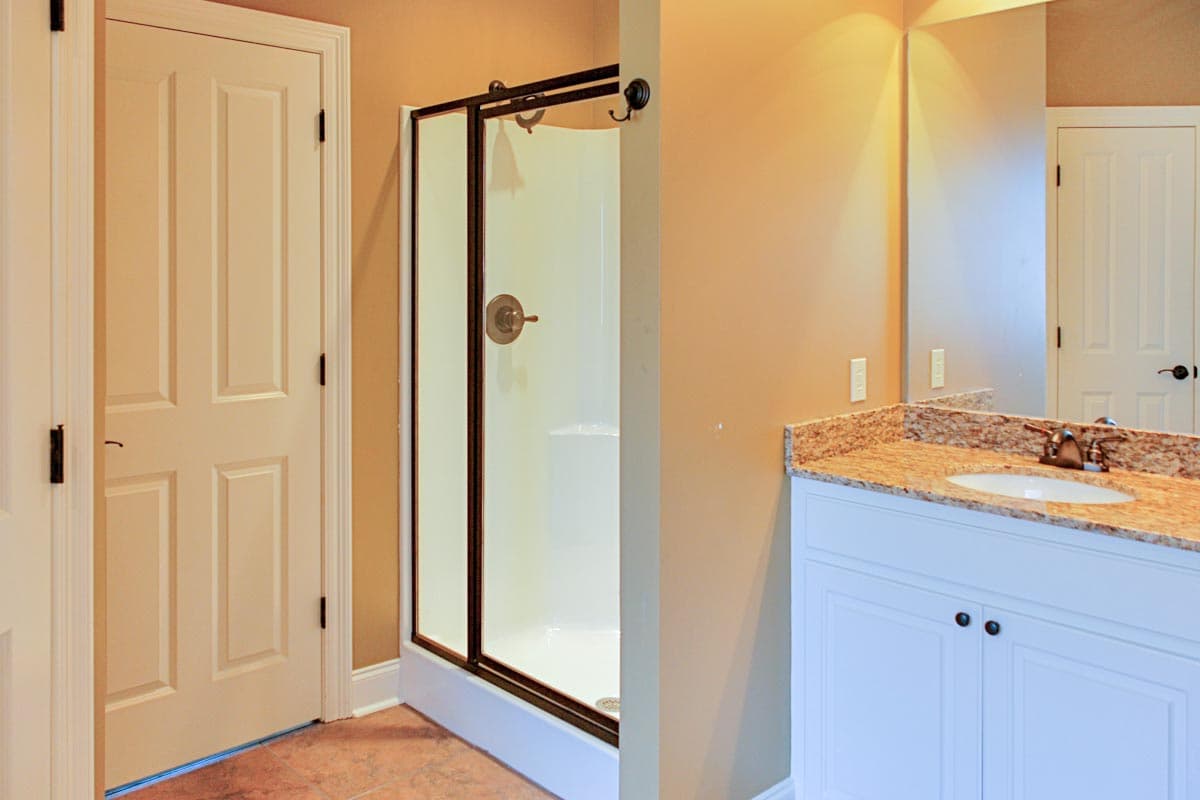

The master suite has separate vanity areas, a large shower, jet tub, and two large walk-in closets.
The roof is stick and has an 8:12 pitch
Related Plans: Get an alternate exterior with house plans 51892HZ. 51787HZ, 51703HZ, 11767HZ and 11768HZ.

This designer's plans include the following details:

Cover Sheet with abbreviations, rendering, sheet index
Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

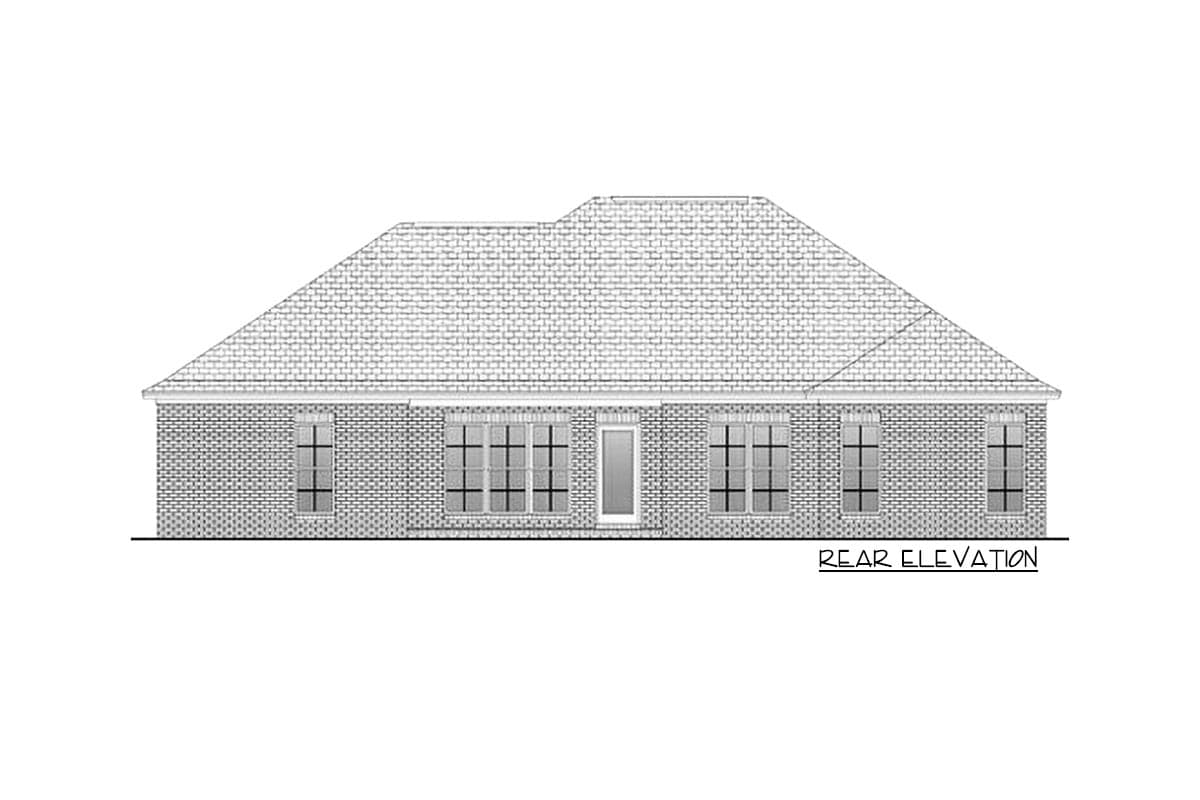

Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Kitchen cabinet views
Electrical plan
Span charts and other misc details

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

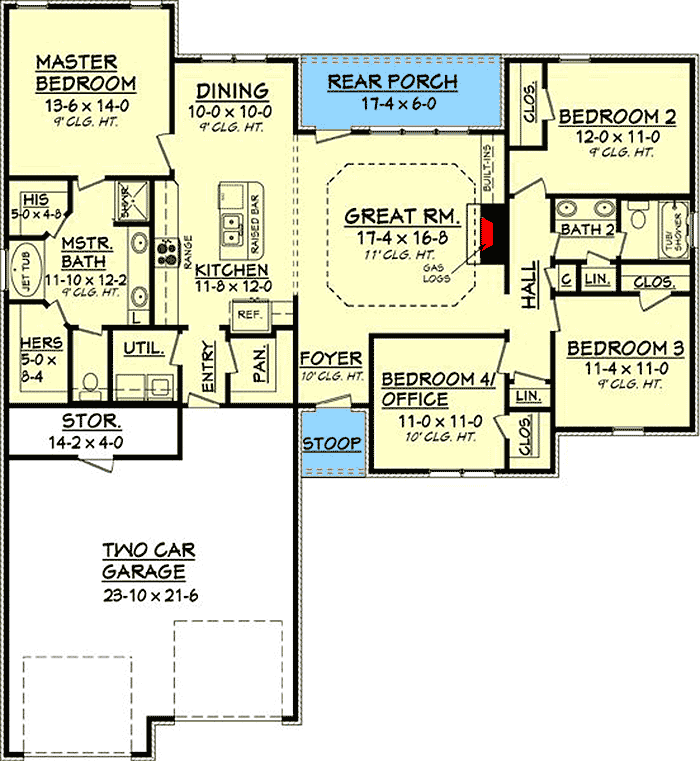

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

3 or 4 Bedroom with Split Layout - 11756HZ floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,750 sq. ft.
1st Floor: 1,750 sq. ft.

Storage: 64 sq. ft.
Porch, Rear: 137 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 2

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 57' 8"
Depth: 62' 10"
Max ridge height: 21' 5"

Garage

Type: Attached
Area: 614 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Room Details	Ceiling Type	Width	Depth	Height
Great Room				11' 0"
Foyer				10' 0"
Office				10' 0"

Roof Details

Primary Pitch: 8 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections
