Plan 461044DNN

Exclusive

3-Story Quadplex Multi-Family Beach House Plan with Four 1-Bed Units

Heated S.F.
3,200
Units
4
Width
Depth

Floor Plan

Plan 461044DNN

2nd Floor
2nd Floor
3rd Floor
3rd Floor
Ground Level Parking
Ground Level Parking

Plan 461044DNN

M-F 9am-5pm EST |

1-203-761-8500

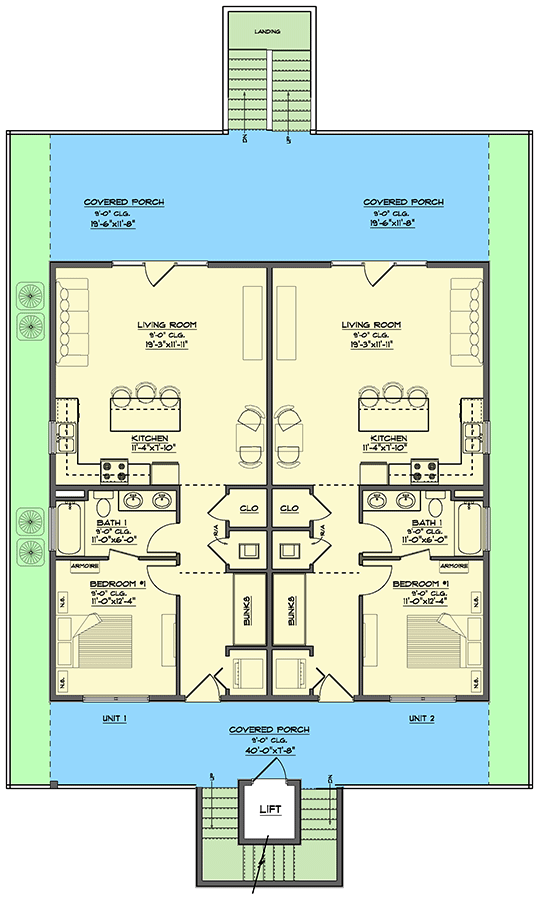

2nd Floor

Plan 461044DNN: 3-Story Quadplex Multi-Family Beach House Plan with Four 1-Bed Units - Floor Plan - 2nd Floor

3rd Floor

Plan 461044DNN: 3-Story Quadplex Multi-Family Beach House Plan with Four 1-Bed Units - Floor Plan - 3rd Floor

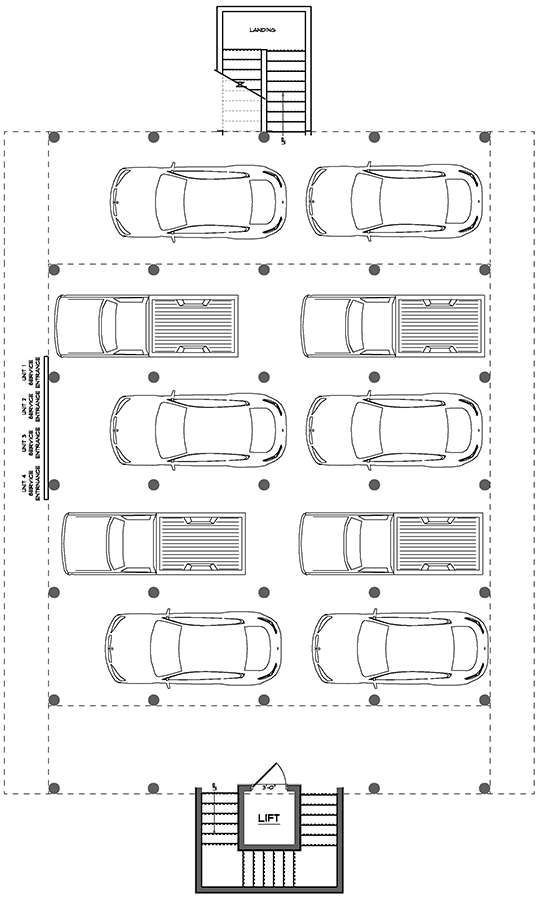

Ground Level Parking

Plan 461044DNN: 3-Story Quadplex Multi-Family Beach House Plan with Four 1-Bed Units - Floor Plan - Ground Level Parking

Plan Details

  • This coastal-style four unit quadplex multi-family home plan gives you matching 1 bed, 1 bath units, each with 800 square feet of heated living space. This plan is perfect for developing an investment property of small vacation rentals.
  • There are two units each on the second and third floors, with the ground level used for parking with two parking spaces per unit, plus two additional spaces for storage or maintenance vehicles.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
800Sq. Ft.
800 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
20'width
70'depth
50'height
Unfinished Areas
80 Sq. Ft. Porch, Front
60 Sq. Ft. Porch, Rear
Unit B
Heated Area
800Sq. Ft.
800 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
20'width
70'depth
50'height
Unfinished Areas
80 Sq. Ft. Porch, Front
60 Sq. Ft. Porch, Rear
Unit C
Heated Area
800Sq. Ft.
800 Sq. Ft. 2nd
Beds
1Beds
Baths
1Full Bath
Dimensions
20'width
70'depth
50'height
Unfinished Areas
60 Sq. Ft. Porch, Rear
80 Sq. Ft. Porch, Front
Unit D
Heated Area
800Sq. Ft.
800 Sq. Ft. 2nd
Beds
1Beds
Baths
1Full Bath
Dimensions
20'width
70'depth
50'height
Unfinished Areas
80 Sq. Ft. Porch, Front
60 Sq. Ft. Porch, Rear

What's Included

  • Foundation Plan
  • Fully Dimensioned Floor Plans
  • All Elevations
  • Birds Eye Roof Plan
  • Suggested Electrical Layout - This is part of the floor plan page(s)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,200 sq. ft.

2nd Floor

1,600 sq. ft.

3rd Floor

1,600 sq. ft.

Porch, Front

320 sq. ft.

Porch, Rear

480 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Piling

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

70' 0"

Max Ridge Height

50' 0"

Garage

Type

Drive Under

Count

8 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Special Features

Multiple Stairs

Wrap Around Porch

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,200 sq. ft.

2nd Floor

1,600 sq. ft.

3rd Floor

1,600 sq. ft.

Porch, Front

320 sq. ft.

Porch, Rear

480 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Piling

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

70' 0"

Max Ridge Height

50' 0"

Garage

Type

Drive Under

Count

8 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Special Features

Multiple Stairs

Wrap Around Porch

Plan Collections

Exclusive

Photo Gallery
