Plan 490017NAH
3-to-4 Bed Country Farmhouse with 3-Car Side Garage
Heated S.F.
2,977
Beds
3 - 4
Baths
3.5 - 4.5
Stories
2
Cars
3
Floor Plan

Plan 490017NAH

Main Level
slide image 0
2nd Floor
slide image 1
Optionally Finished Lower Level
slide image 2

Plan 490017NAH

1-800-854-7852

1-262-521-4596

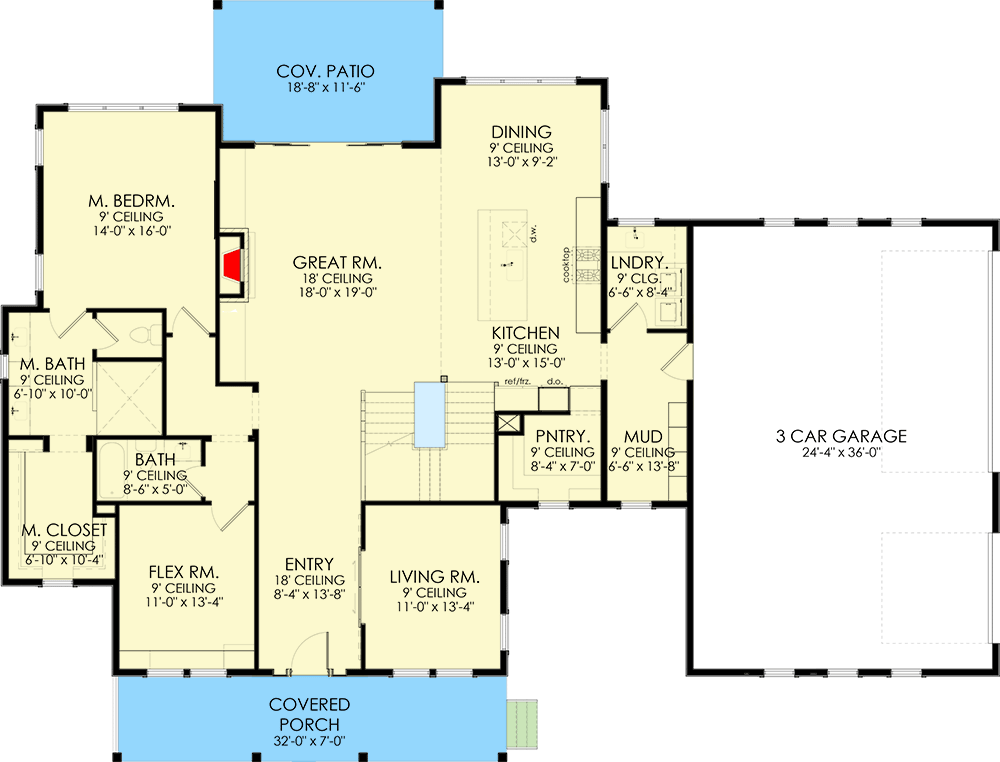

Main Level
floor plan image Main Level

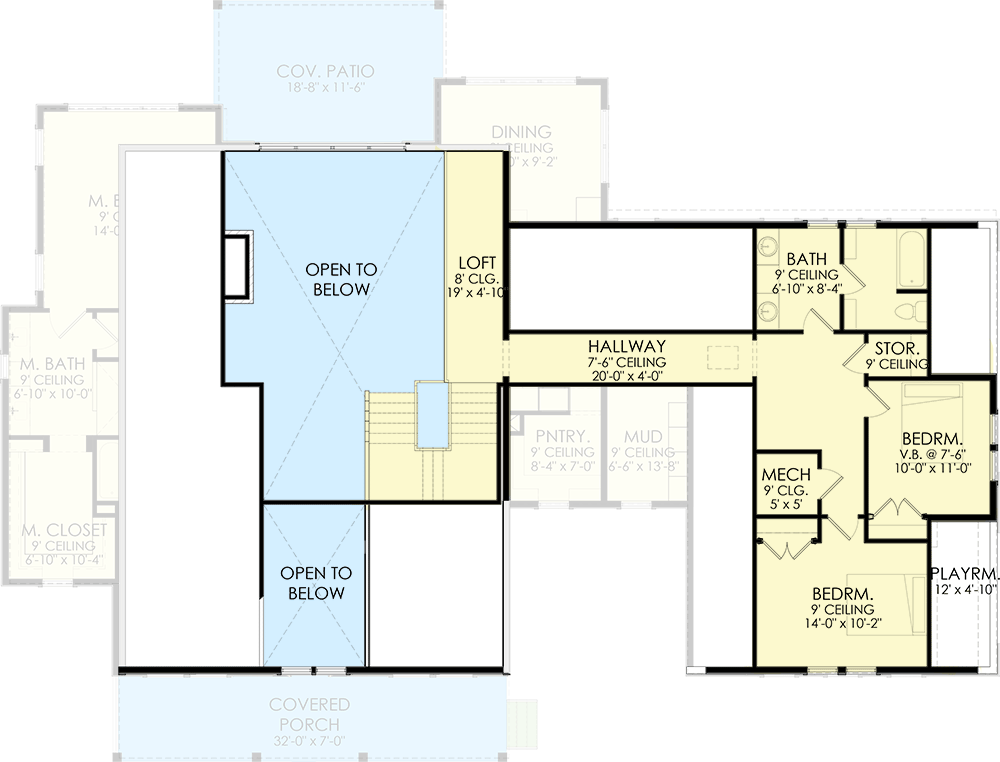

2nd Floor
floor plan image 2nd Floor

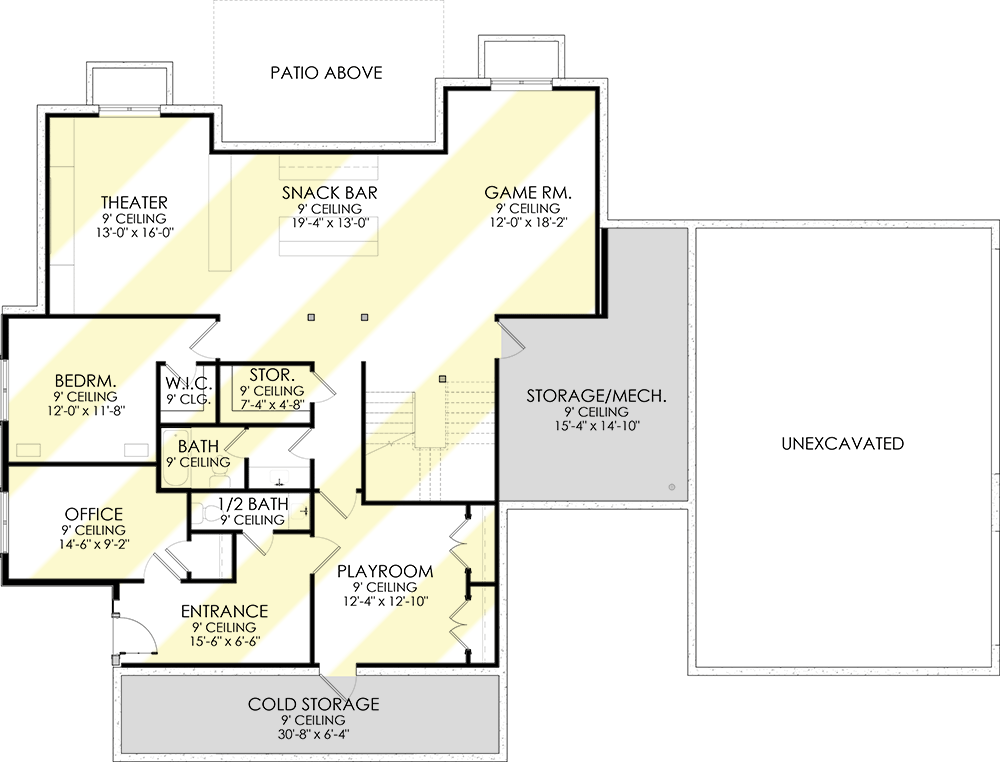

Optionally Finished Lower Level
floor plan image Optionally Finished Lower Level
Plan Details
  • This rambler farmhouse-style house plan offers covered patios in the front and rear, with metal roofs and dormers that stand out with the house.
  • Upon entering, you'll be welcomed with vaulted ceilings in the entry and the great room. The great room has a brick fireplace with cabinetry on either side and a glass sliding door to the backyard.
  • Off the entry, you'll find the master bedroom, with it's accompanying bathroom and walk-in closet, with standing shower, double vanities, and cabinets with shelfing above.
  • Upstairs, you are met by the loft that overlooks the great room below. A hallway leads off to 2 more bedrooms with accompanying bathrooms and walk-in closets, and a playroom built into the roof.
  • This home is decorated in wood siding and vertical siding, with a brick chimney. Wood beams surround the covered patios, offering open ceilings in these areas, along with beam work around the 3-car garage.
  • This home offers basement expansion (when finished as shown, you get an additional 1,805 square feet of heated living area) with a theater, snack bar, game room, recreation room, and another bedroom.
  • Related Plan: Get an alternate exterior and second floor layout with house plan 490016NAH.
