Plan 777057MTL

3000 Sq Ft Barndominium Style House Plan with 2-Story Great Room and 1550 Sq Ft Garage

Heated S.F.
3,033
Beds
5
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 777057MTL

Main Level
Main Level
2nd Floor
2nd Floor
Wall Framing Section
Wall Framing Section

Plan 777057MTL

M-F 9am-5pm EST |

1-203-761-8500

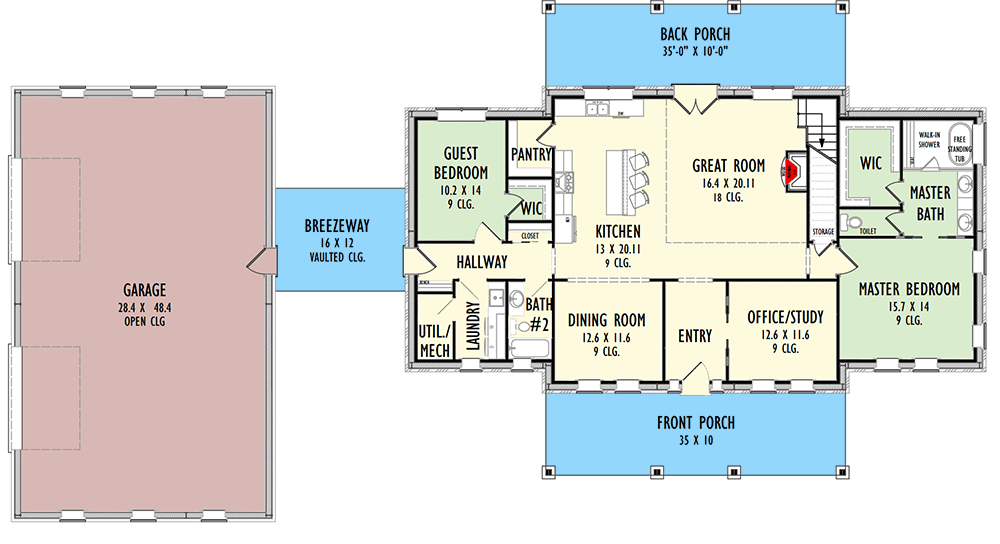

Main Level

Plan 777057MTL: 3000 Sq Ft Barndominium Style House Plan with 2-Story Great Room and 1550 Sq Ft Garage - Floor Plan - Main Level - Barndominium, Country, Farmhouse, Modern Farmhouse, Traditional

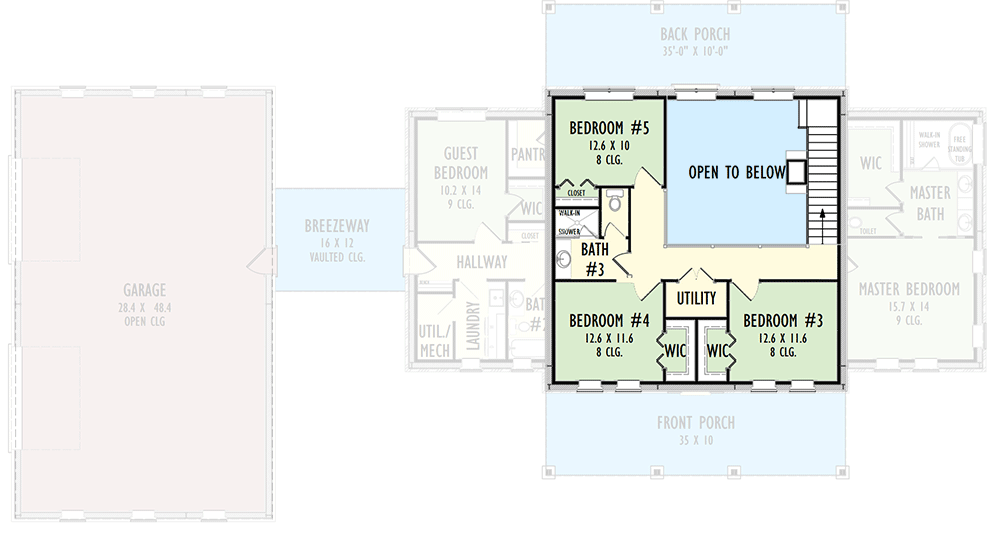

2nd Floor

Plan 777057MTL: 3000 Sq Ft Barndominium Style House Plan with 2-Story Great Room and 1550 Sq Ft Garage - Floor Plan - 2nd Floor - Barndominium, Country, Farmhouse, Modern Farmhouse, Traditional

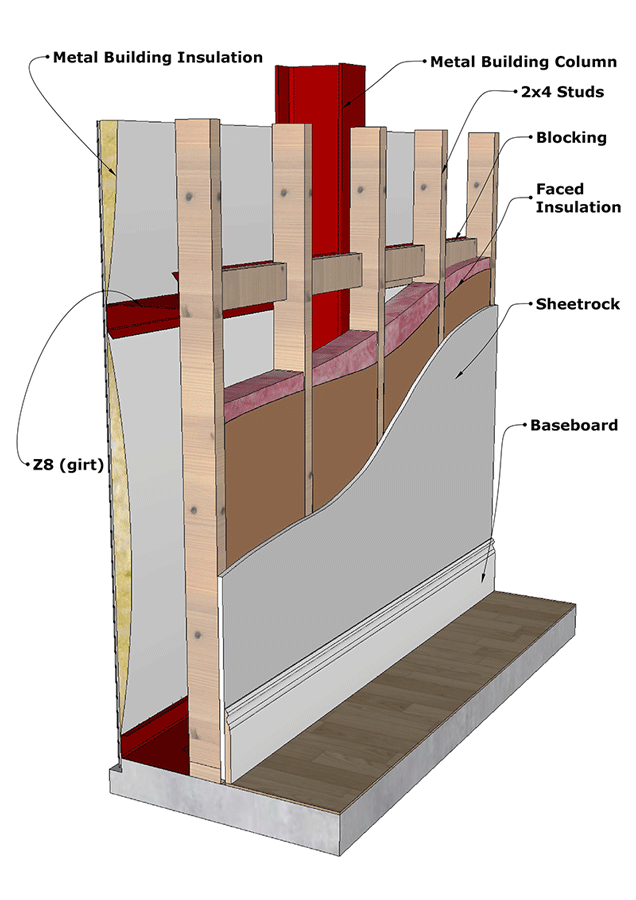

Wall Framing Section

Plan 777057MTL: 3000 Sq Ft Barndominium Style House Plan with 2-Story Great Room and 1550 Sq Ft Garage - Floor Plan - Wall Framing Section - Barndominium, Country, Farmhouse, Modern Farmhouse, Traditional

Plan Details

  • This 5 bed, 3 bath barndominium style house plan gives you 3,033 square feet of heated living space and a 1500 square foot 2-car garage shop attached to the home by an enclosed breezeway.
  • The great room - visible from he entry with an office behind pocket doors on the right - has a two-story ceiling and is open to the kitchen. A pair of French doors takes you to the 10'-deep back porch.
  • The master suite occupies the entire right side of the home and has a walk-in closet and a 5-fixture bath. Across the home, the guest bedroom with walk-in closet uses the bathroom across the hall. Upstairs, three bedrooms share the third bath.
  • This house plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.

What's Included

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,033 sq. ft.

1st Floor

2,185 sq. ft.

2nd Floor

848 sq. ft.

Porch, Front

350 sq. ft.

Porch, Rear

350 sq. ft.

Porch, Combined

700 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

113' 0"

Depth

60' 0"

Max Ridge Height

27' 6"

Garage

Type

Detached

Area

1500 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 5

Secondary Pitch

12 on 2

Framing Type

PEMB and Stick

Architectural Style

Barndominium

Country

Farmhouse

Modern Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

3,033 sq. ft.

1st Floor

2,185 sq. ft.

2nd Floor

848 sq. ft.

Porch, Front

350 sq. ft.

Porch, Rear

350 sq. ft.

Porch, Combined

700 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

113' 0"

Depth

60' 0"

Max Ridge Height

27' 6"

Garage

Type

Detached

Area

1500 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 5

Secondary Pitch

12 on 2

Framing Type

PEMB and Stick

Architectural Style

Barndominium

Country

Farmhouse

Modern Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Home Office
