4-Bay Detached Garage with Attractive Central Gable

Plan 61413UT

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 4

    Cars

  • This 4-car detached garage plan has a brick exterior with board and batten in the center gable.
  • Four matching bays each have 10' by 9' overhead garage doors.
  • A pair of doors on each side gets you access to the garage.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

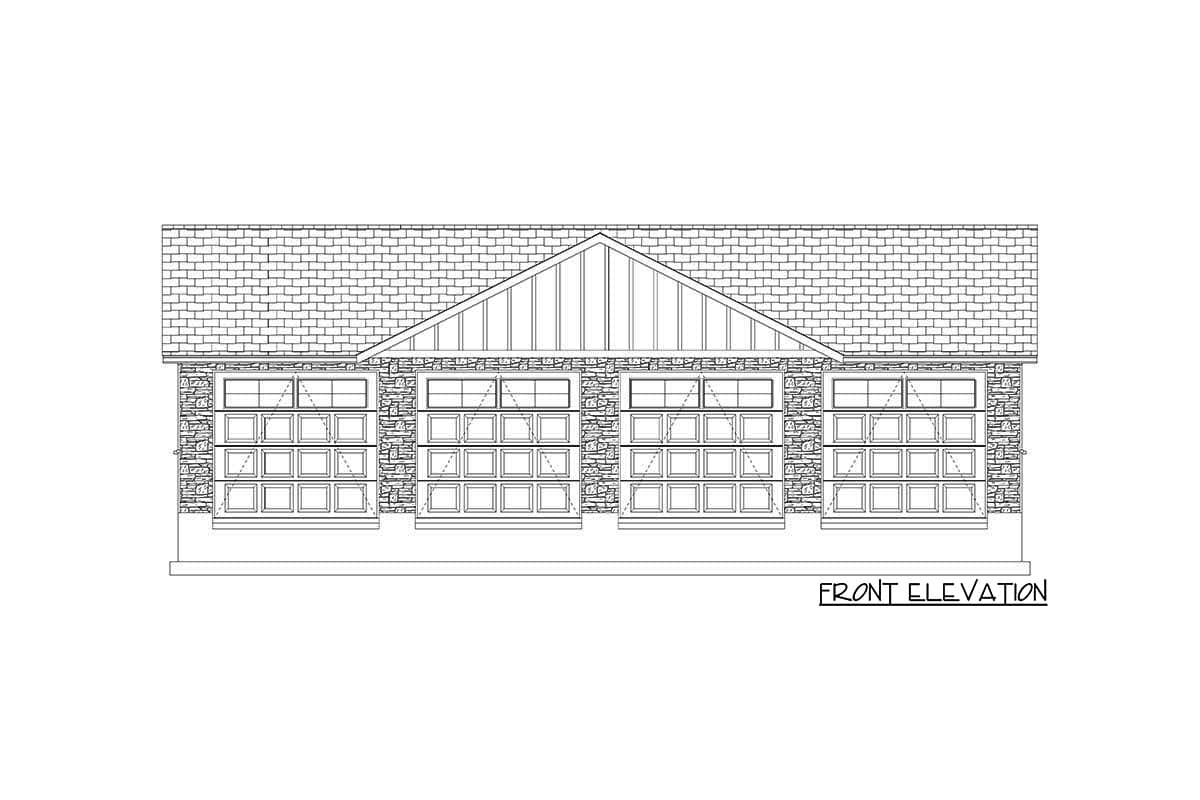

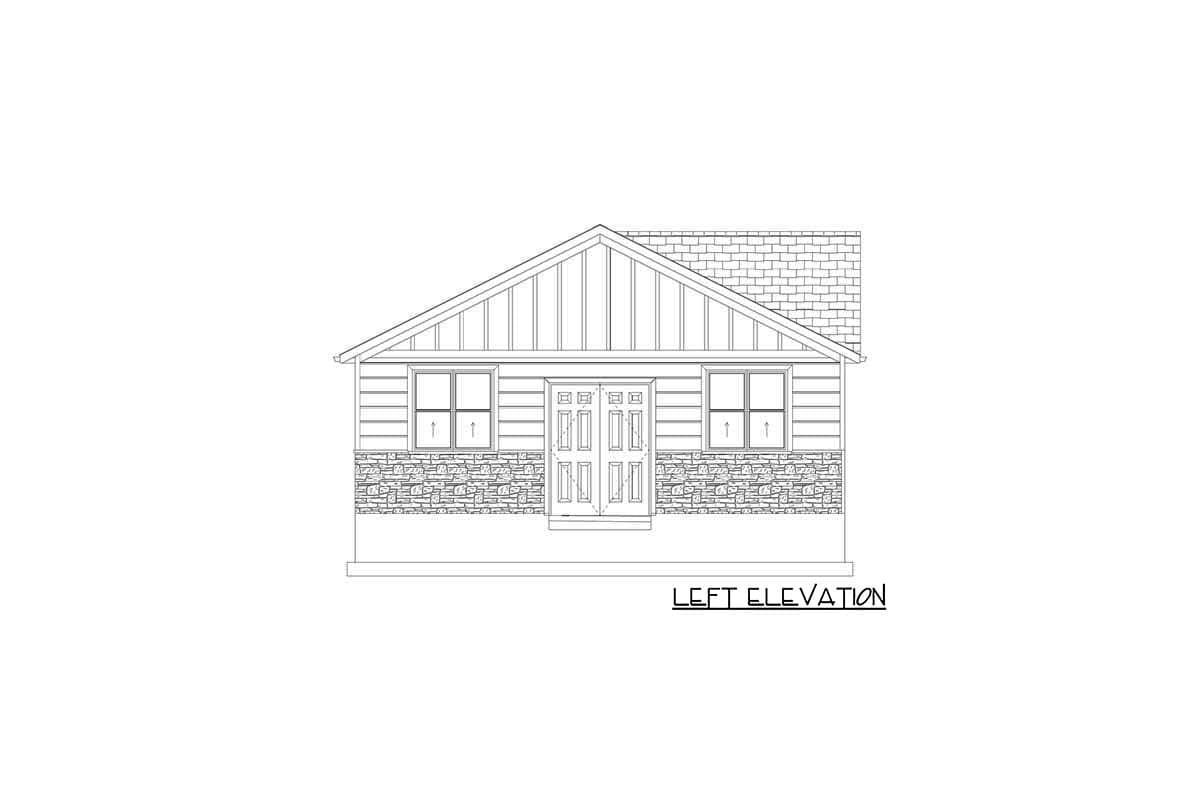

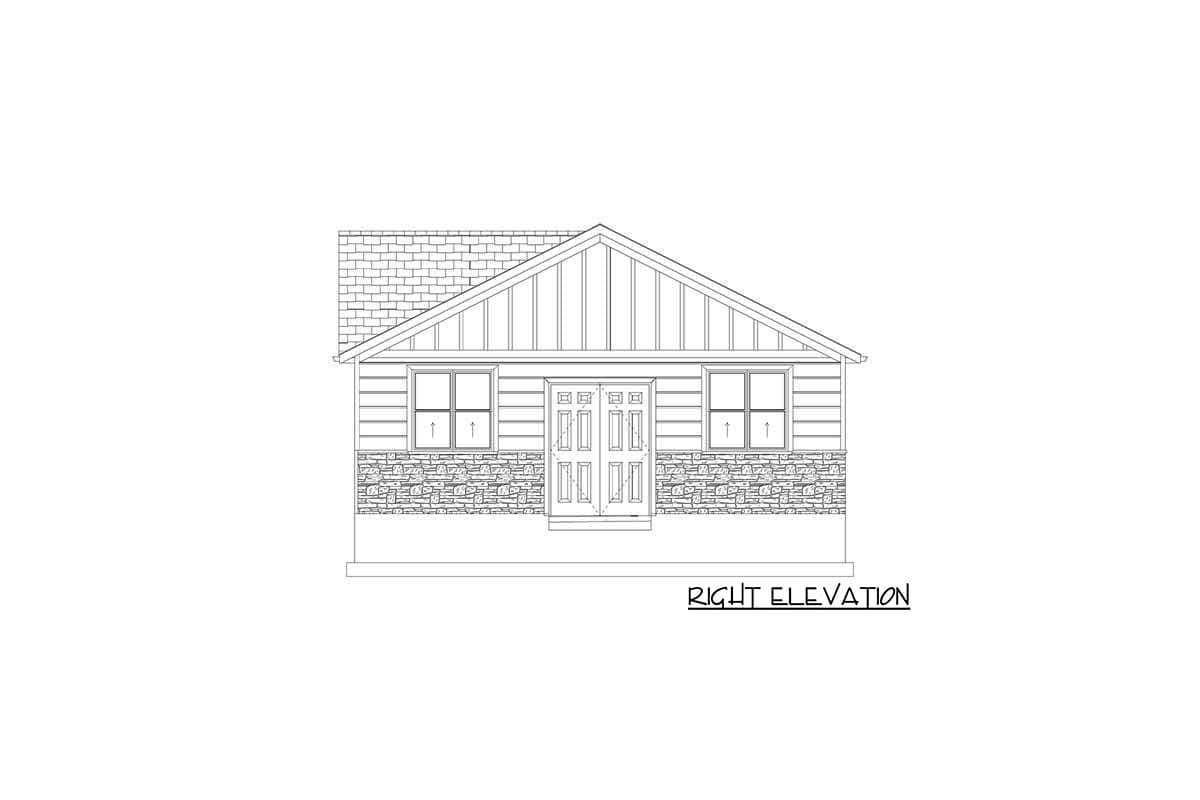

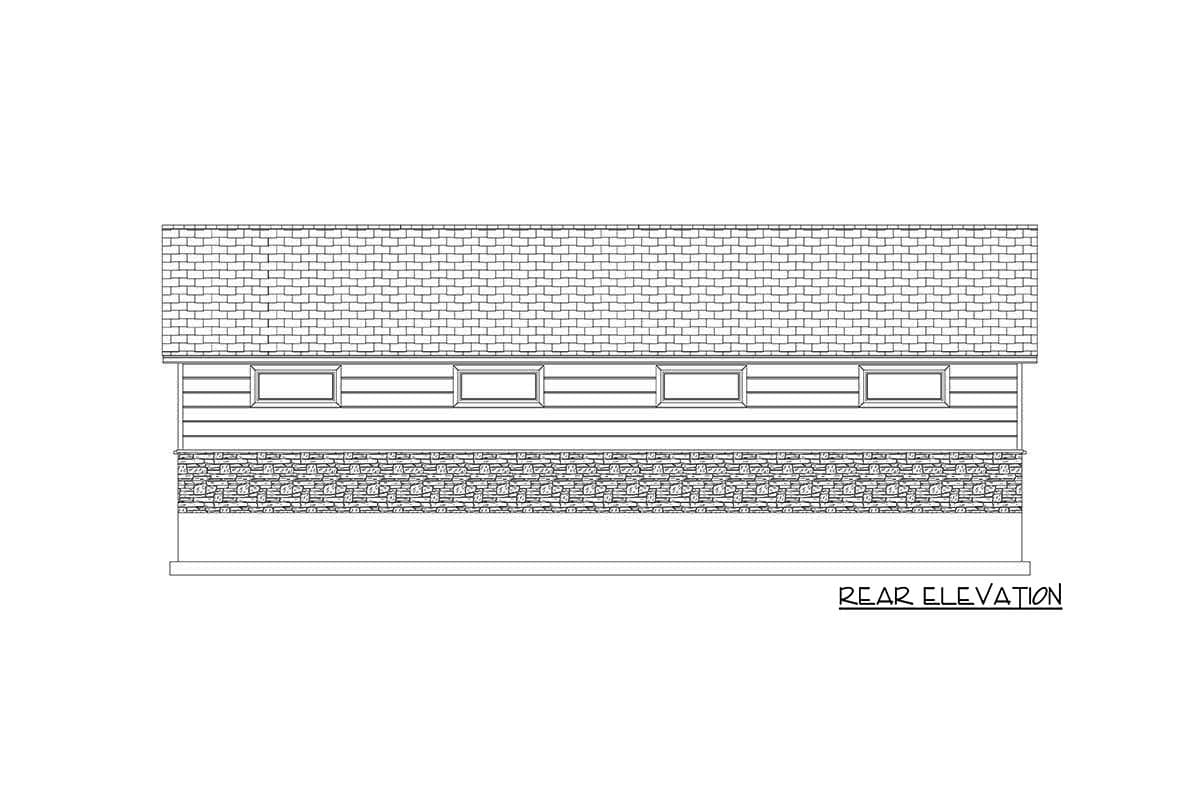

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

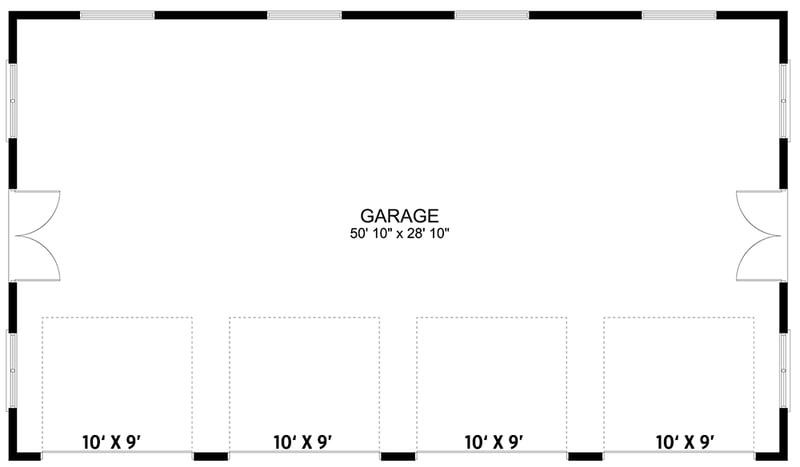

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

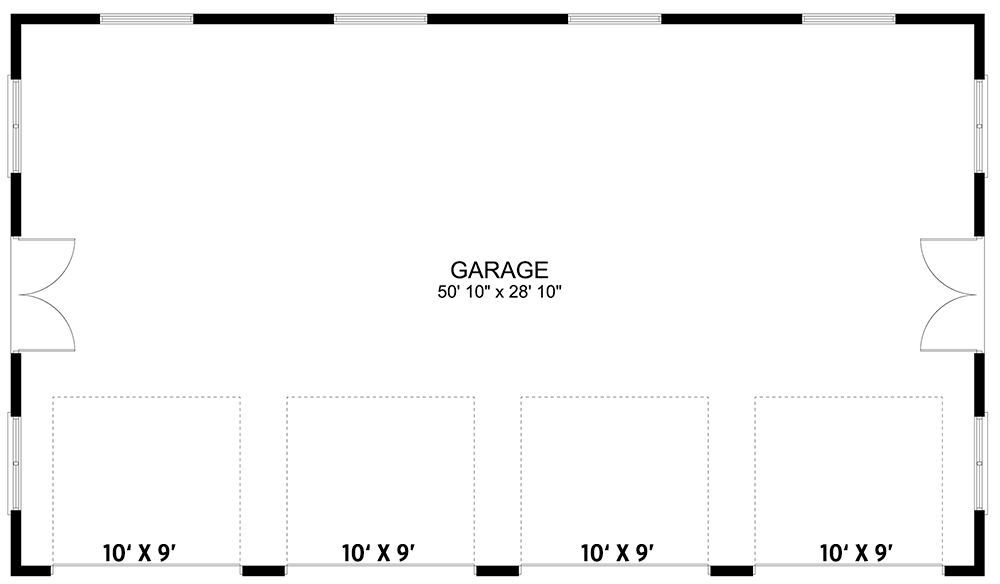

4-Bay Detached Garage with Attractive Central Gable - 61413UT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 30' 0"
  • Max ridge height: 17' 8"

Garage

  • Type: Detached
  • Area: 1560 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

4-Bay Detached Garage with Attractive Central Gable

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $575
  • PDF - Unlimited Build $725
  • 5 Sets + PDF $925
  • CAD - Single-Build $1,050
  • CAD Unlimited + PDF $1,175
  • View all purchase option online

About This Plan

  • This 4-car detached garage plan has a brick exterior with board and batten in the center gable.
  • Four matching bays each have 10' by 9' overhead garage doors.
  • A pair of doors on each side gets you access to the garage.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 30' 0"
  • Max ridge height: 17' 8"

Garage

  • Type: Detached
  • Area: 1560 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 61413UT
View this and more for this plan by visiting www.architechtecturaldesigns.com/61413UT
|
Need Help? 800-854-7852
|
