Plan 510245WDY
4-Bed Acadian Home Plan with Large Rear Porch
Heated S.F.
2,556
Beds
4
Baths
3
Stories
1
Cars
3
What's Included
Plan Details
  • Enjoy the benefits of one-level living in this 4-bedroom Acadian home plan that features a 3-car garage, private master bedroom, and spacious great room that extends onto a generous rear porch.
  • A defined, yet open, dining room sits to the left of the foyer, with views into the vaulted great room, where a fireplace serves as the backdrop for holidays and family gatherings.
  • The fully equipped kitchen delivers a prep island, double ovens, loads of workspace, and a pantry in the nearby mud hall.
  • A tray ceiling crowns the master bedroom and the deluxe ensuite features a freestanding tub, toilet room, and oversized closet. Three additional bedrooms are dotted throughout the plan; two share a Jack-and-Jill bathroom.
  • Plenty of storage in each room is an added bonus, including a storage room in the garage, cabinetry in the laundry room, and built-in lockers in the mudroom.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed Acadian Home Plan with Large Rear Porch

  • 2,556

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

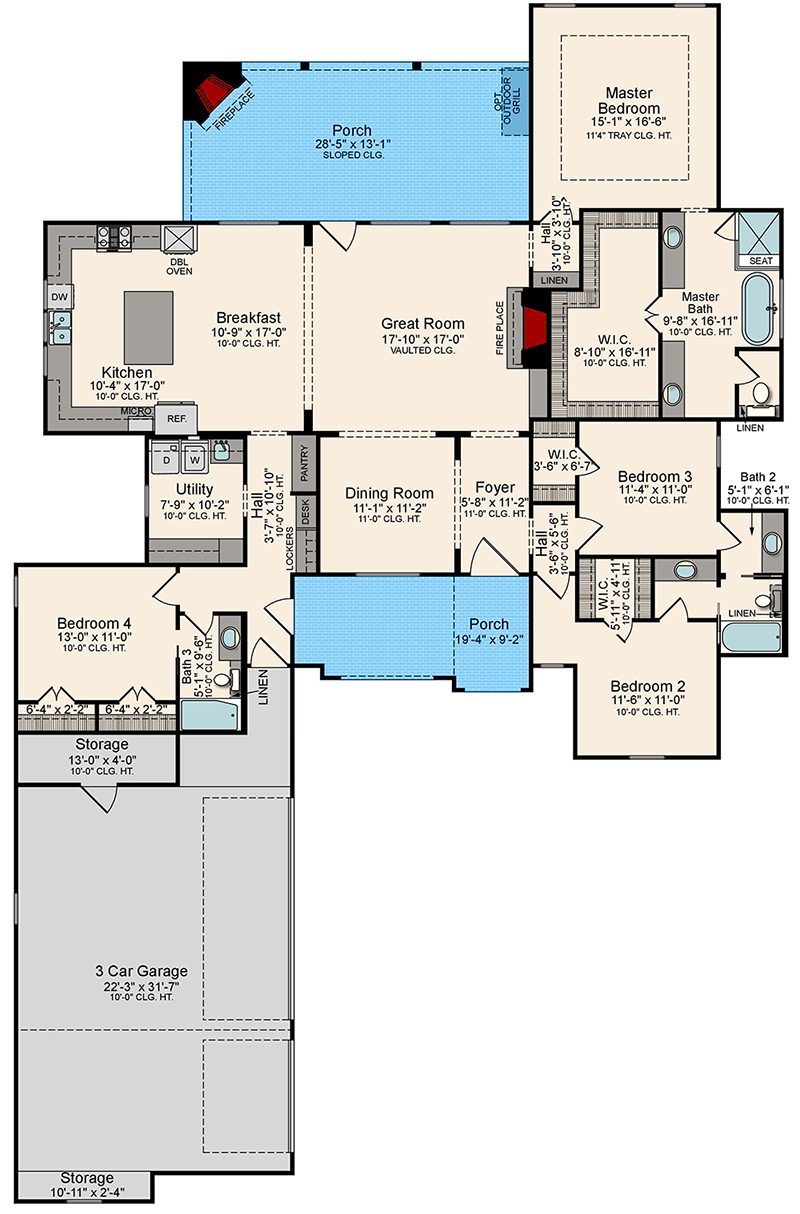

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,556 sq. ft.
  • 1st Floor: 2,465 sq. ft.

Dimensions

  • Width: 64' 5"
  • Depth: 99' 6"
  • Max ridge height: 28' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 881 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
