4-Bed Craftsman House Plan with Walk-out Basement

Plan 24389TW

This plan plants 3 trees

4,202
Heated s.f.
3-4
Beds
4
Baths
1
Stories
2-4
Cars

This thoughtful craftsman home plan features a welcoming vaulted front entry with columns and garage space for up to four vehicles.
Just off the foyer, a versatile bedroom with a walk-in closet and access to a full bath doubles as a quiet office space.
A vaulted great room with a fireplace is open to the airy dining area and kitchen. A large kitchen island with seating makes entertaining a delight. A generously sized pantry lends convenience. Enjoy outdoor living in comfort on your large vaulted screened porch with a fireplace, adjacent covered porch, or expansive lower-level patio.
The main-level master suite features an elegant vaulted ceiling, roomy 5-piece bath, and two walk-in closets.
On the lower level, discover a spacious walk-out rec room with a wet bar and tray ceiling, enclosed media room, convenient wine storage, and a guest suite with a full bath, and an additional bedroom.

The plans include the following:

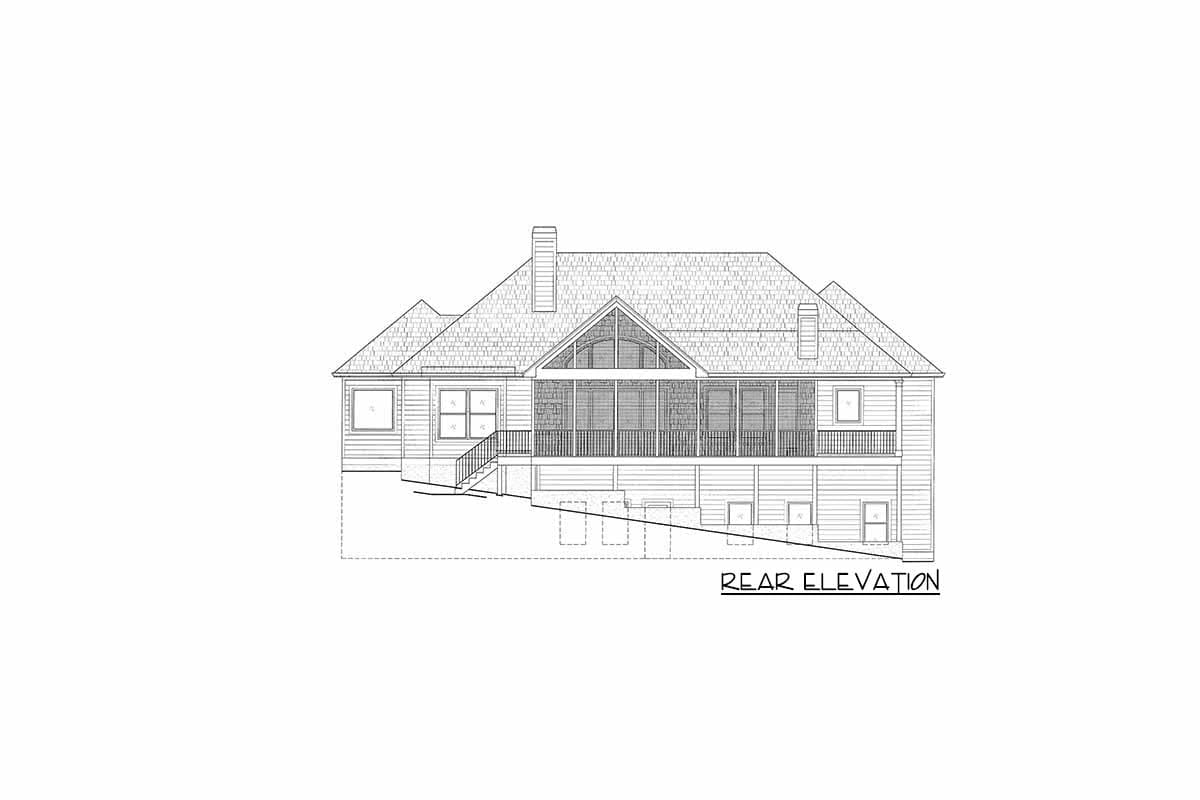

Four elevations (front, rear, right & left) with finish details
Fully dimensioned floor plans which include window and door sizes
Foundation plan with footing details
Roof plan with cornice details
General framing details
Floor joists layout
Electrical layout

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

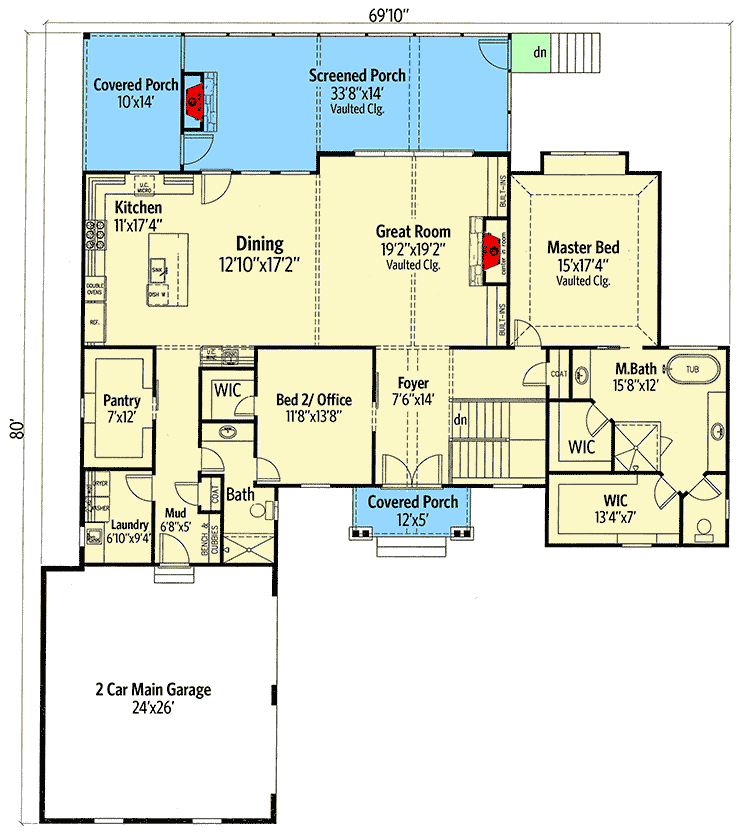

4-Bed Craftsman House Plan with Walk-out Basement - 24389TW floor plan - Main Level

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

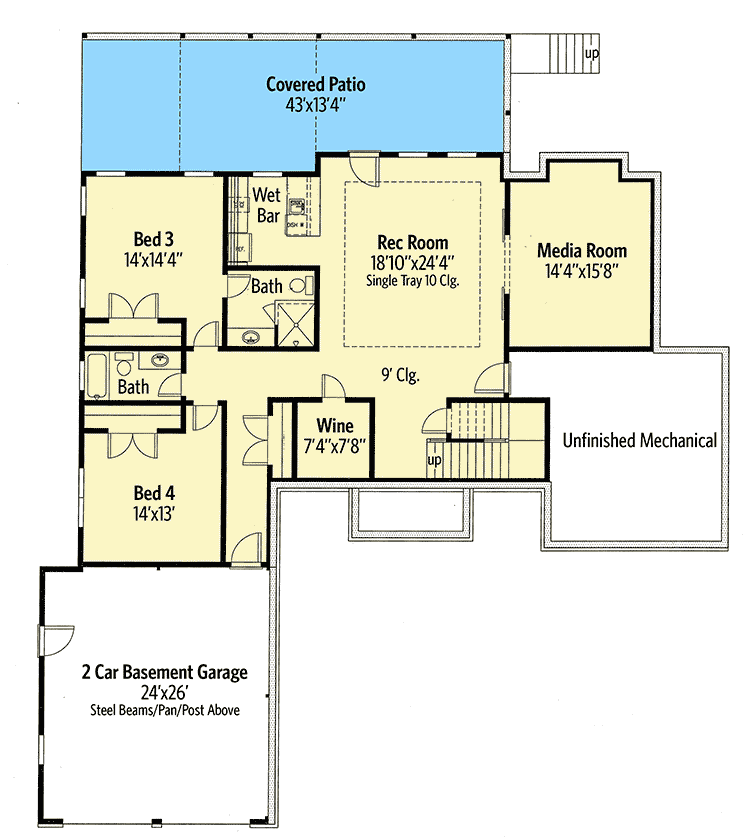

4-Bed Craftsman House Plan with Walk-out Basement - 24389TW floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 4,202 sq. ft.
Lower Level: 1,883 sq. ft.
1st Floor: 2,319 sq. ft.

Screened Porch: 432 sq. ft.
Porch, Rear: 140 sq. ft.
Porch, Front: 60 sq. ft.
Basement Unfinished: 436 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 4

Foundation Type

Standard Foundations: Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 69' 10"
Depth: 80' 0"
Max ridge height: 24' 0"

Garage

Type: Drive Under, Attached
Area: 1348 sq. ft.
Count: 2, 3, or 4 Cars
Entry Location: Courtyard, Front

Ceiling Heights

Floor / Height: First Floor / 10' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 3 on 12

Framing Type: Stick And Truss

Architectural Style
