4 Bed Craftsman with Open Concept Living Space and Bonus Room

Plan 51750HZ

  • 2,329

    Heated s.f.

  • 4-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This 4 bedroom house plan has open concept living spaces and a flexible bonus room over the garage as well.  The main living spaces also offer raised ceilings and large windows which offer great views to the exterior.

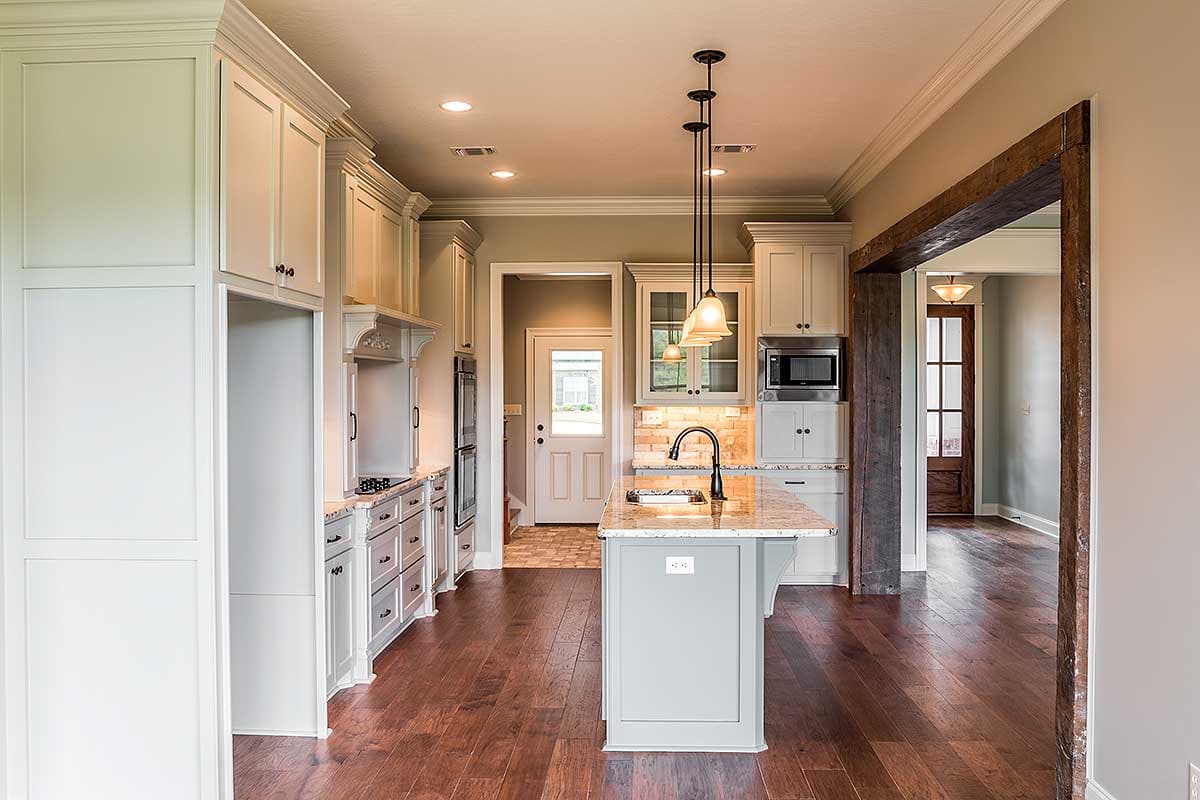

  • The well-equipped kitchen is roomy and has views to the great room, rear porch and dining room. A large island and eating bar give you added flexibility for casual meal prep and snacks.

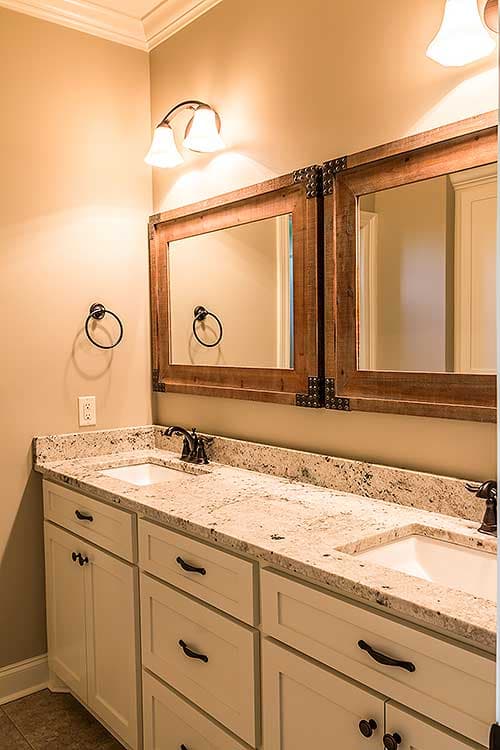

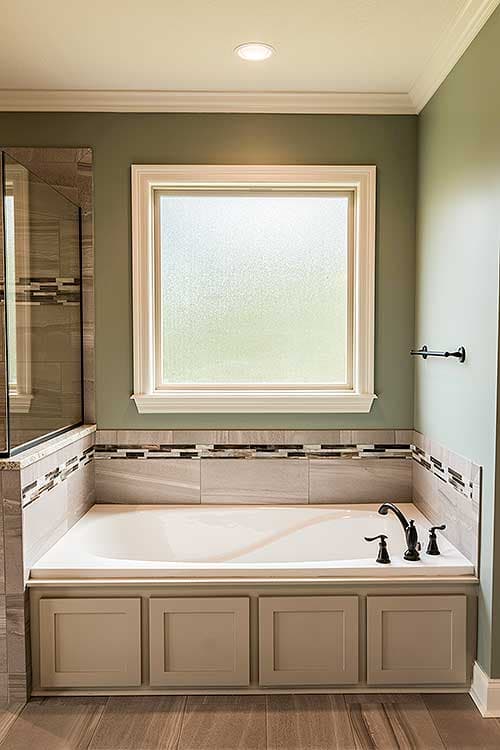

  • The bedrooms are all well sized and the master suite features dual vanities, large shower, and huge walk-in closet.

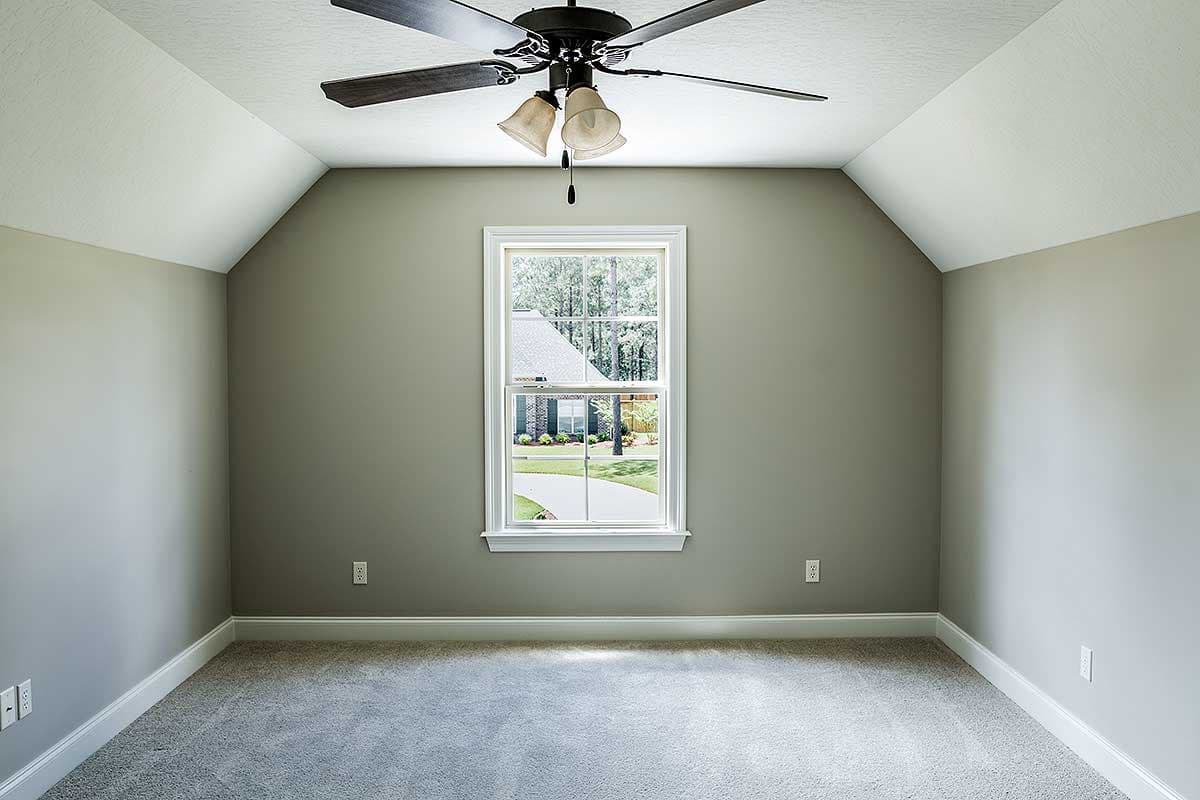

  • The bonus space above also adds more flexibility to the design and can be used as an extra bedroom, media room, or office space.
  • Related Plan: Get an alternate exterior in reverse layout with house plan 51749HZ.
  • Note: Please note that orders including special options may result in a delay. Call us for details.

This plan set includes the following:
  • Page 1  Cover Page
  • Page 2  Foundation Plan and Details
  • Page 3  Floor Plans & Notes
  • Page 4  Exterior Elevations & Wall Sections
  • Page 5  Exterior Elevations & Wall Sections
  • Page 6  Cross Sections & Cabinet Elevations
  • Page 7  Roof Plan & Span Charts
  • Page 8  Electrical Plans & Notes

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

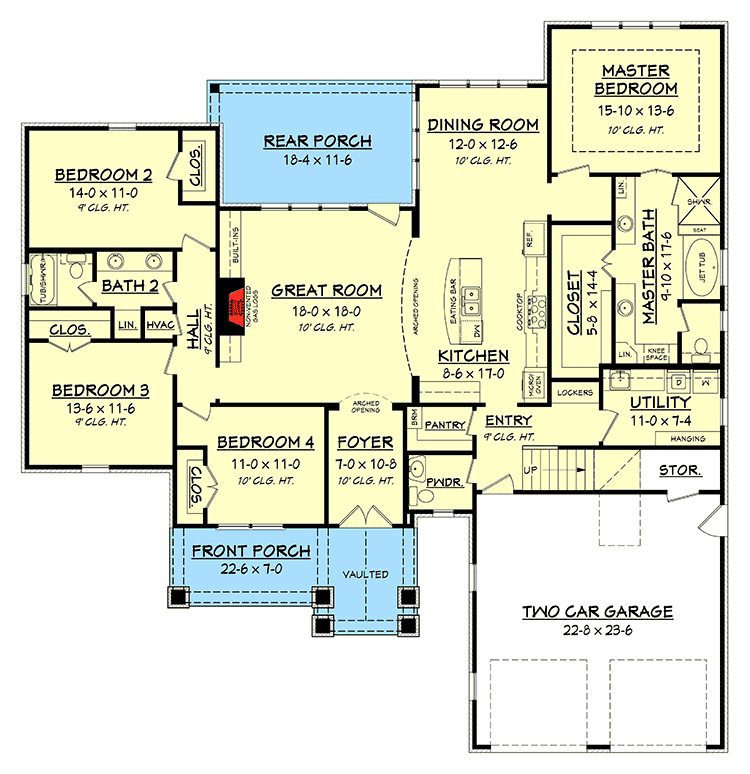

4 Bed Craftsman with Open Concept Living Space and Bonus Room - 51750HZ floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

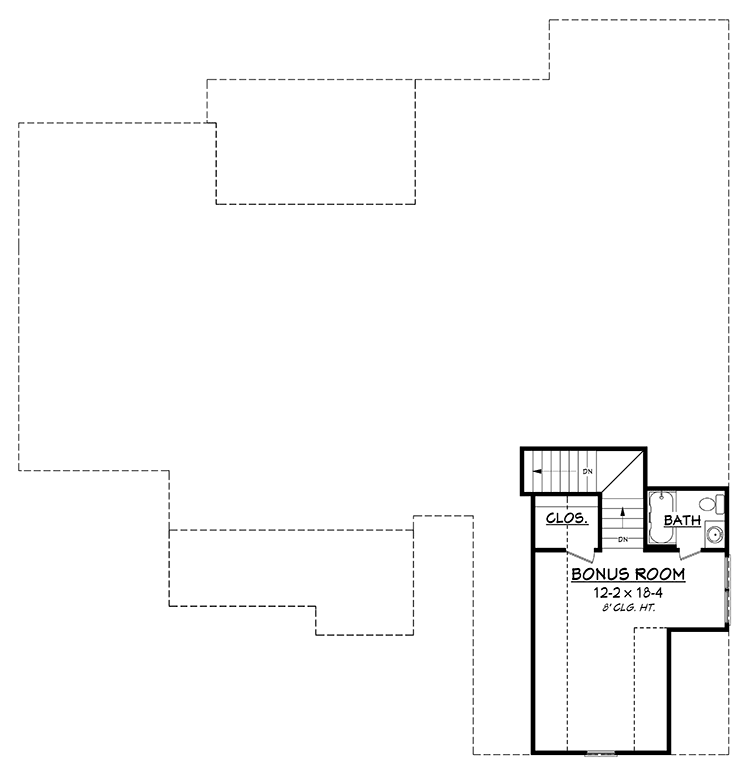

4 Bed Craftsman with Open Concept Living Space and Bonus Room - 51750HZ floor plan - Bonus

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

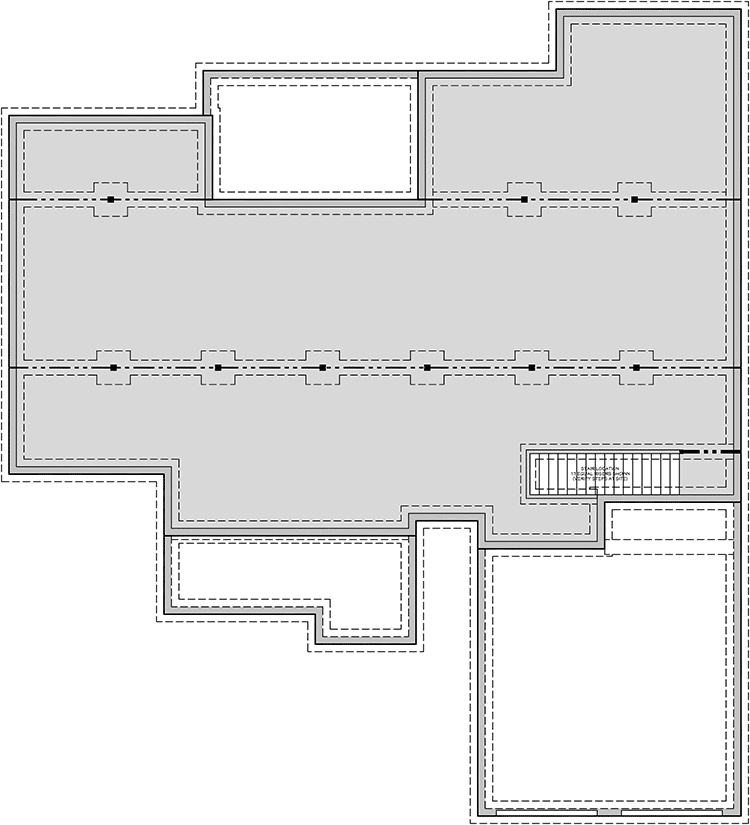

4 Bed Craftsman with Open Concept Living Space and Bonus Room - 51750HZ floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,329 sq. ft.
  • 1st Floor: 2,329 sq. ft.
  • Storage: 32 sq. ft.
  • Porch, Rear: 214 sq. ft.
  • Porch, Front: 182 sq. ft.
  • Bonus: 382 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 4"
  • Depth: 67' 8"

Garage

  • Type: Attached
  • Area: 559 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Foyer Flat 10' 0"
Great Room Flat 10' 0"
Dining Room Flat 10' 0"
Kitchen Flat 10' 0"
Master Bedroom Tray 10' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4 Bed Craftsman with Open Concept Living Space and Bonus Room

  • 2,329

    Heated s.f.

  • 4-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets +PDF Single-Build $1,545
  • PDF - Unlimited Build $1,995
  • CAD + PDF - Unlimited Build $2,295
  • View all purchase option online

About This Plan

  • This 4 bedroom house plan has open concept living spaces and a flexible bonus room over the garage as well.  The main living spaces also offer raised ceilings and large windows which offer great views to the exterior.
  • The well-equipped kitchen is roomy and has views to the great room, rear porch and dining room. A large island and eating bar give you added flexibility for casual meal prep and snacks.
  • The bedrooms are all well sized and the master suite features dual vanities, large shower, and huge walk-in closet.
  • The bonus space above also adds more flexibility to the design and can be used as an extra bedroom, media room, or office space.
  • Related Plan: Get an alternate exterior in reverse layout with house plan 51749HZ.
  • Note: Please note that orders including special options may result in a delay. Call us for details.

Floor Plans

  • Main Level

  • Bonus

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,329 sq. ft.
  • 1st Floor: 2,329 sq. ft.
  • Storage: 32 sq. ft.
  • Porch, Rear: 214 sq. ft.
  • Porch, Front: 182 sq. ft.
  • Bonus: 382 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 4"
  • Depth: 67' 8"

Garage

  • Type: Attached
  • Area: 559 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
Plan 51750HZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/51750HZ
|
Need Help? 800-854-7852
|
