Plan 36120TX 4-Bed European Transitional Home Plan with Rear-access Garage

2,941 4 4 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed European Transitional Home Plan with Rear-access Garage

Plan 36120TX

  • 2,941

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • At nearly 3,000 square feet of living space, this European inspired home plan features a free flowing design that merges the family, dining, and kitchen areas into one.
  • A vaulted ceiling lends a cohesive element to the dining and family room, anchored by a fireplace on the rear wall.
  • The owner's suite takes over the right wing of this home and boasts his and hers closets and an oversized shower in the 5-fixture bathroom.
  • Access the garage from the rear elevation and discover the laundry room just inside.
  • Two secondary bedrooms, each with access to a full bath, complete the main level. Bedroom suite 4 shares the upstairs with a generous game room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

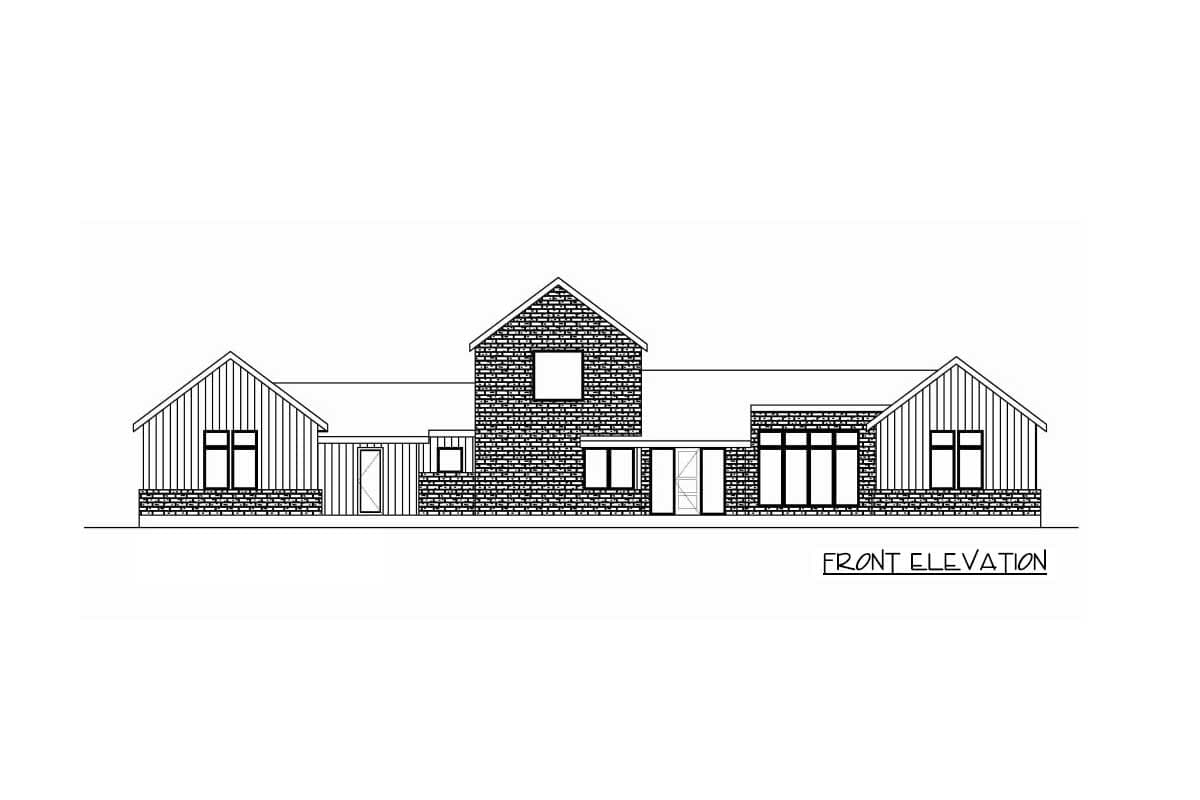

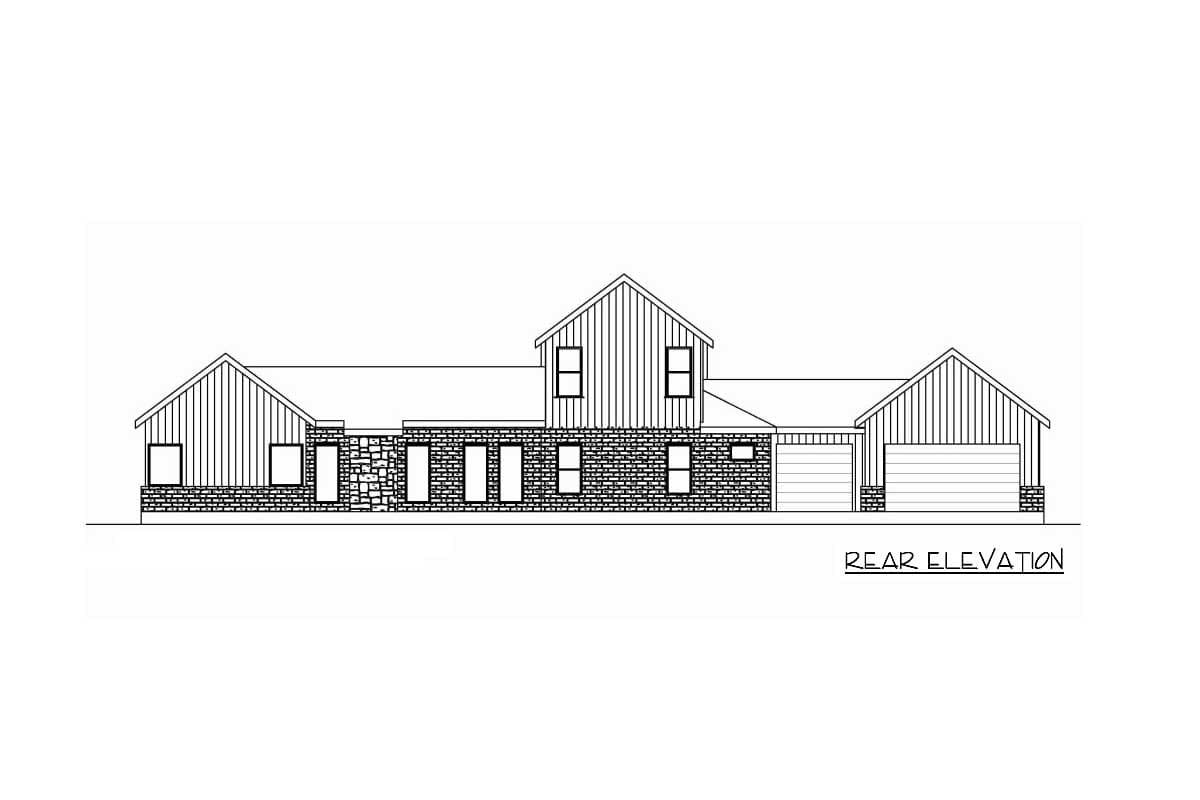

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

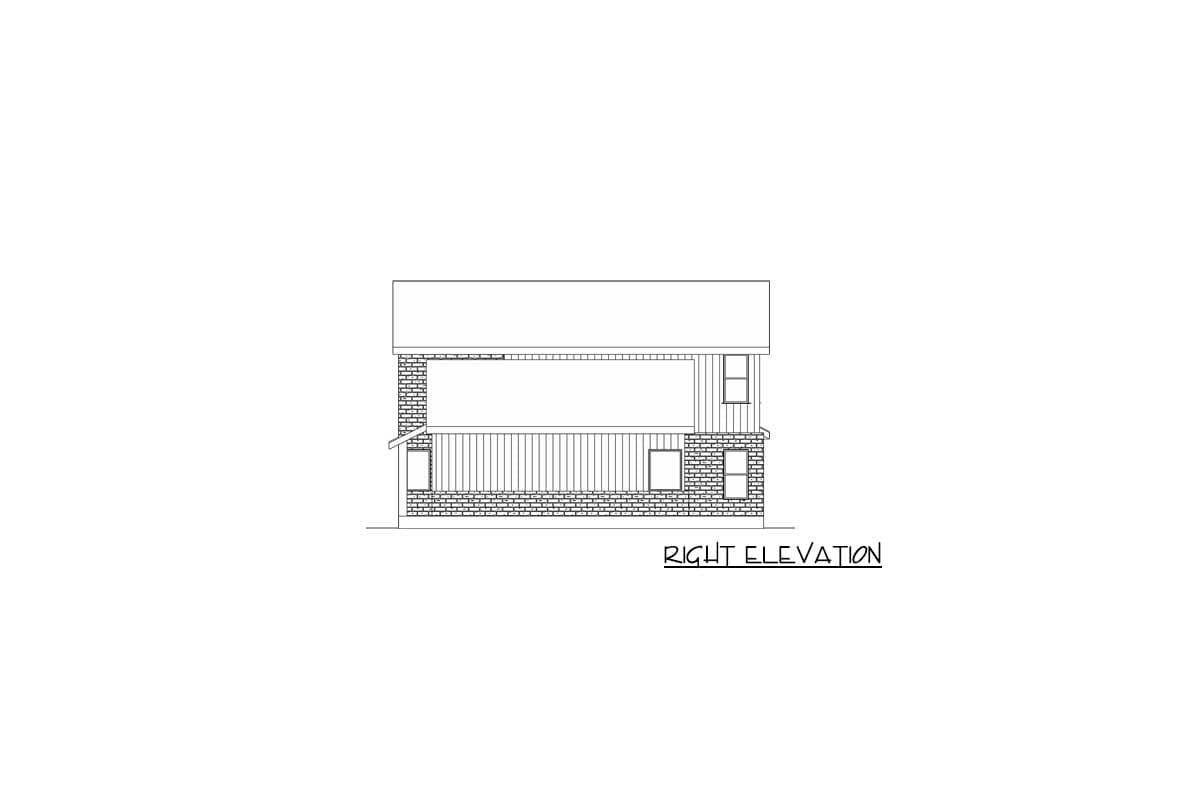

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

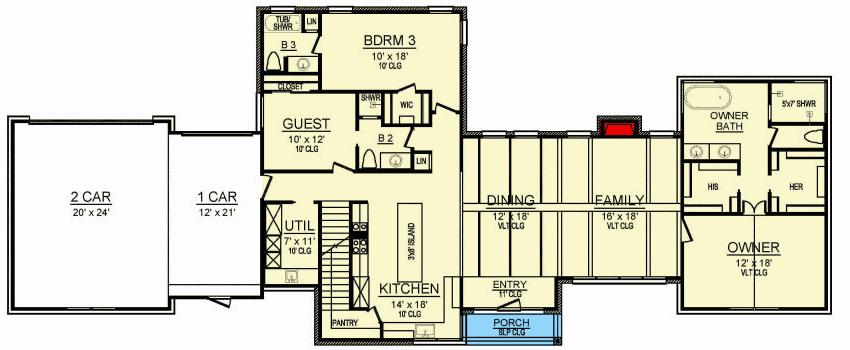

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed European Transitional Home Plan with Rear-access Garage - 36120TX floor plan - Main Level

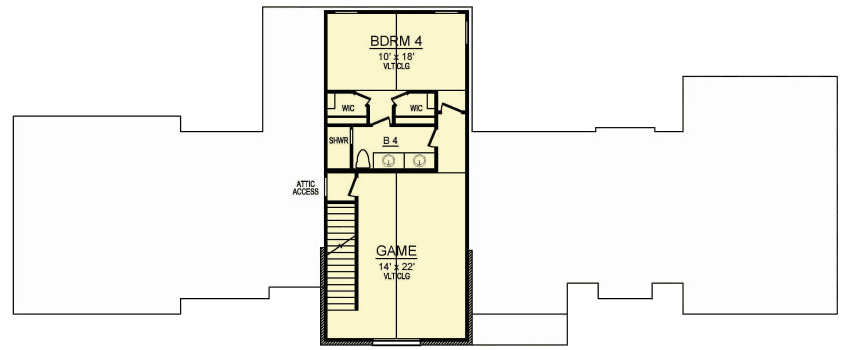

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed European Transitional Home Plan with Rear-access Garage - 36120TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,941 sq. ft.
  • 1st Floor: 2,213 sq. ft.
  • 2nd Floor: 728 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 107' 0"
  • Depth: 44' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 763 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 13' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

Special features

4-Bed European Transitional Home Plan with Rear-access Garage

  • 2,941

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,075
  • 5 Sets $1,275
  • CAD + PDF - Single Build $1,620
  • View all purchase option online

About This Plan

  • At nearly 3,000 square feet of living space, this European inspired home plan features a free flowing design that merges the family, dining, and kitchen areas into one.
  • A vaulted ceiling lends a cohesive element to the dining and family room, anchored by a fireplace on the rear wall.
  • The owner's suite takes over the right wing of this home and boasts his and hers closets and an oversized shower in the 5-fixture bathroom.
  • Access the garage from the rear elevation and discover the laundry room just inside.
  • Two secondary bedrooms, each with access to a full bath, complete the main level. Bedroom suite 4 shares the upstairs with a generous game room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,941 sq. ft.
  • 1st Floor: 2,213 sq. ft.
  • 2nd Floor: 728 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 107' 0"
  • Depth: 44' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 763 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 13' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
