4-Bed Farmhouse-Inspired Barndominium with Drive-Through RV Bay

Plan 135173GRA

  • 2,779

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 4

    Cars

  • The right half of this Farmhouse-inspired Barndominium-style house plan features a 2,100 square foot garage / workshop with front and rear overhead doors. The right bay has 12' by 14' doors front and back giving you drive-through ability for your RV.
  • A staircase in the garage leads to an upstairs bedroom suite complete with a walk-in closet and bath with two vanities.
  • From the wraparound porch, French doors open into a combined great room, kitchen with large island and pantry, and dining area which opens to the great room with fireplace.
  • Two spacious bedrooms line the left side, across from a full bath and laundry room with garage access.
  • The master bedroom is tucked into the rear of the design and includes a 5-fixture bathroom with a linen closet and a walk-in closet.
  • The exterior finish is spec'd for corrugated metal siding.
  • Related Plans: Get a larger version with house plan 135196GRA and a smaller version with house plan 135072GRA and 135199GRA. Get a version with an apartment in addition to the main home with house plan 135209GRA.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

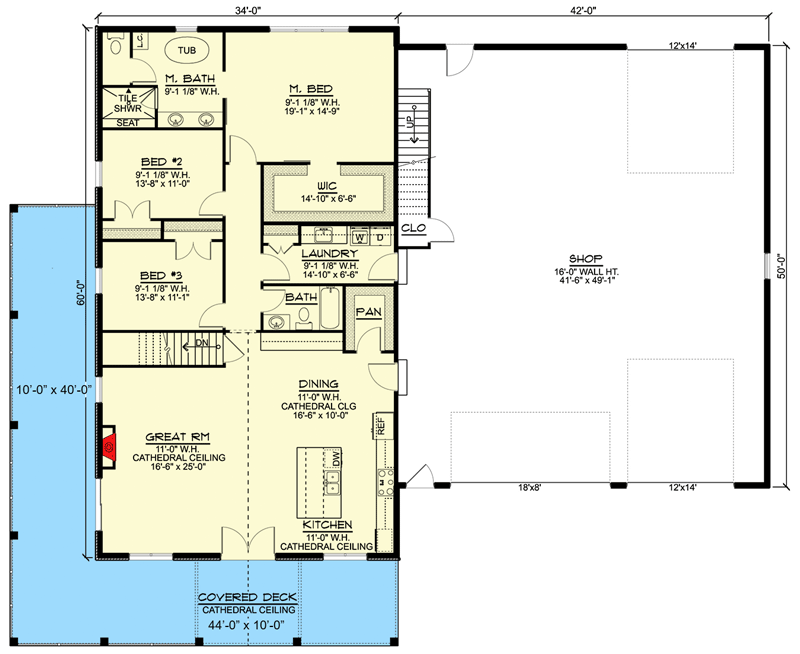

4-Bed Farmhouse-Inspired Barndominium with Drive-Through RV Bay - 135173GRA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

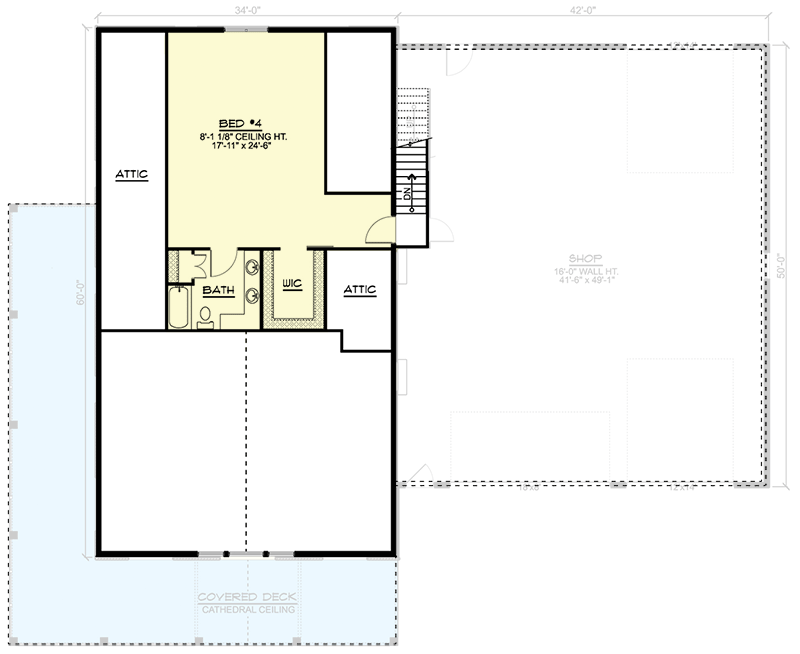

4-Bed Farmhouse-Inspired Barndominium with Drive-Through RV Bay - 135173GRA floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

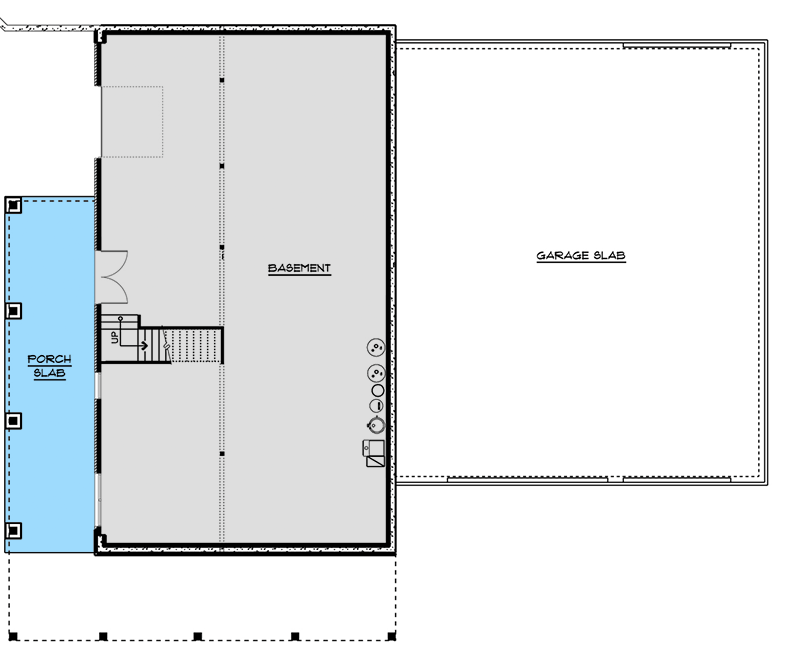

4-Bed Farmhouse-Inspired Barndominium with Drive-Through RV Bay - 135173GRA floor plan - Lower Level

4-Bed Farmhouse-Inspired Barndominium with Drive-Through RV Bay

  • 2,779

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,779 sq. ft.
  • 1st Floor: 2,031 sq. ft.
  • 2nd Floor: 748 sq. ft.

Dimensions

  • Width: 86' 0"
  • Depth: 70' 0"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: RV Garage, Attached
  • Area: 2100 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Optional Foundations: Slab, Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
