Plan 59801ND

4-Bed Home Plan with Private Master Wing

Heated S.F.
2,394
Beds
4
Baths
2.5 - 3.5
Stories
1
Cars
1

Floor Plan

Plan 59801ND

Main Level
Main Level
Bonus
Bonus

Plan 59801ND

M-F 9am-5pm EST |

1-203-761-8500

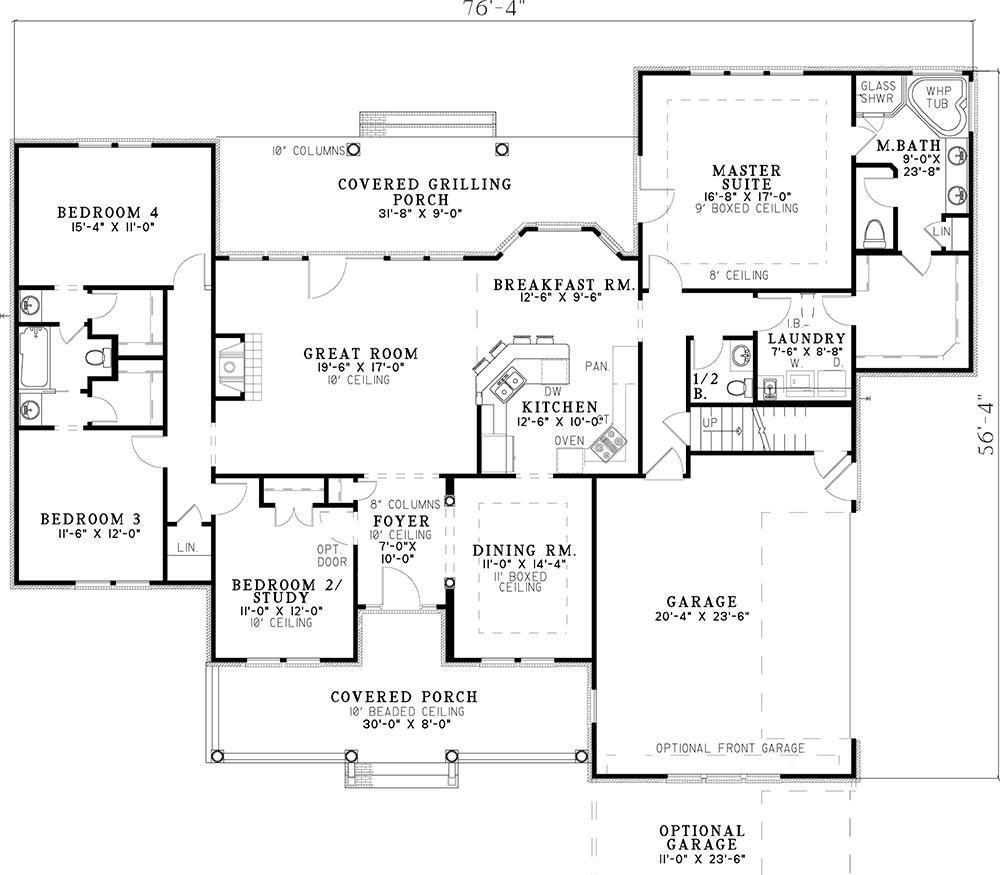

Main Level

Plan 59801ND: 4-Bed Home Plan with Private Master Wing - Floor Plan - Main Level - Country

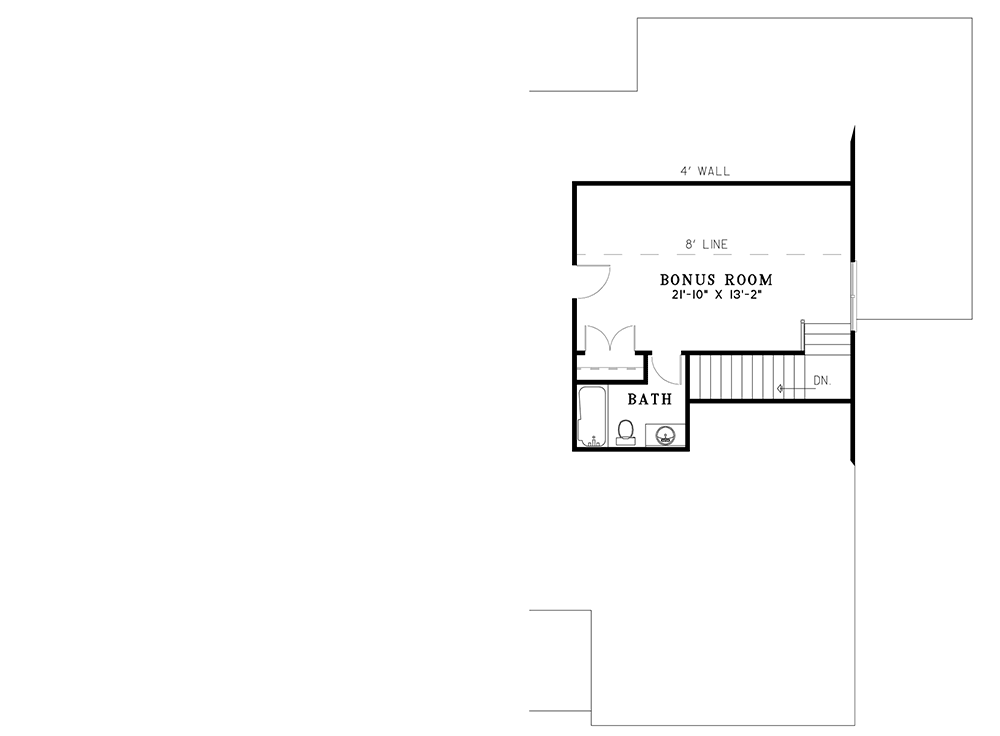

Bonus

Plan 59801ND: 4-Bed Home Plan with Private Master Wing - Floor Plan - Bonus - Country

Plan Details

  • You’ll have a tough time deciding where to entertain with two impressive covered porches and a delightful great room with a cozy fireplace.
  • The center foyer opens the elegant dining room with boxed ceiling and an optional study.
  • This master suite includes amenities such as a nine foot boxed ceiling in the bedroom, a huge walk-in closet, and a corner whirlpool tub in the master bath.
  • An upper bonus room option truly allows you to make this home your own.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,394 sq. ft.

1st Floor

2,394 sq. ft.

Bonus

367 sq. ft.

Porch, Combined

553 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 4"

Depth

56' 4"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

521 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Country

Special Features

Bedrooms - Split

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

2,394 sq. ft.

1st Floor

2,394 sq. ft.

Bonus

367 sq. ft.

Porch, Combined

553 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 4"

Depth

56' 4"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

521 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Country

Special Features

Bedrooms - Split

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room
