4-Bed House Plan with 2-Story Family Room and Bonus Over Garage

Plan 48263FM

  • 2,996

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 4-bed house plan has a European flavor - and a touch of Tudor - on its curb-friendly exterior.
  • Inside, the 2-story family room and the master bedroom both have access to the rear patio.
  • Upstairs, three bedrooms and two bathrooms - plus expansion space over garage - complete the home.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

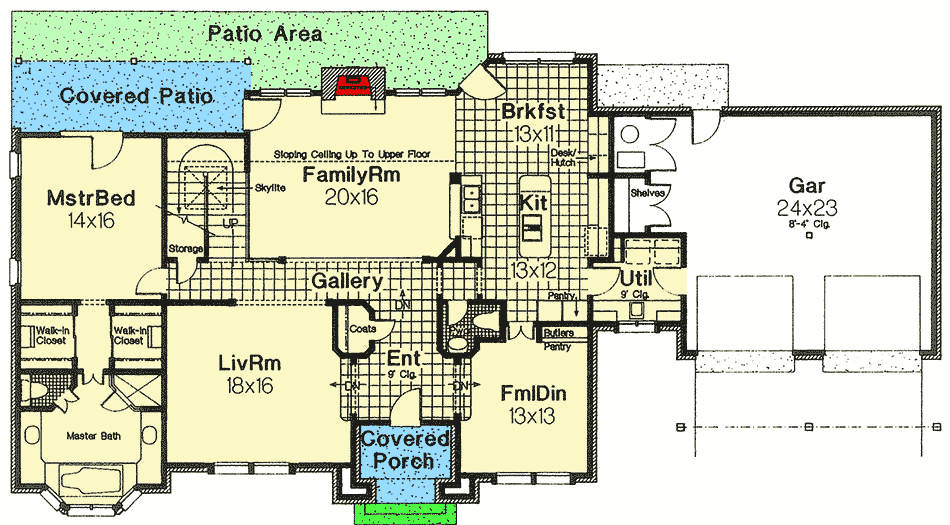

4-Bed House Plan with 2-Story Family Room and Bonus Over Garage - 48263FM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

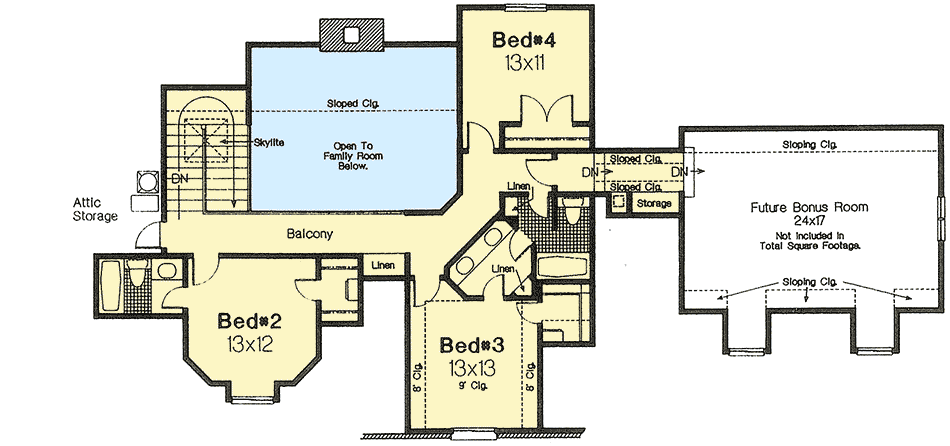

4-Bed House Plan with 2-Story Family Room and Bonus Over Garage - 48263FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,996 sq. ft.
  • 1st Floor: 2,072 sq. ft.
  • 2nd Floor: 924 sq. ft.
  • Bonus: 515 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 88' 1"
  • Depth: 43' 4"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

4-Bed House Plan with 2-Story Family Room and Bonus Over Garage

  • 2,996

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,195
  • 8 Sets $1,335
  • PDF - Single-Build $1,485
  • PDF - Unlimited Build $1,985
  • View all purchase option online

About This Plan

  • This 4-bed house plan has a European flavor - and a touch of Tudor - on its curb-friendly exterior.
  • Inside, the 2-story family room and the master bedroom both have access to the rear patio.
  • Upstairs, three bedrooms and two bathrooms - plus expansion space over garage - complete the home.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,996 sq. ft.
  • 1st Floor: 2,072 sq. ft.
  • 2nd Floor: 924 sq. ft.
  • Bonus: 515 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 88' 1"
  • Depth: 43' 4"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
