Plan 710334BTZ

4-Bed House Plan with Fantastic First Floor Master Suite

Pageloader

4-Bed House Plan with Fantastic First Floor Master Suite

Plan 710334BTZ

  • 2,858

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • The high-beamed tray ceiling of the master suite gives the lucky homeowners a fantastic retreat.
  • A rear deck off the kitchen makes entertaining fun and convenient.
  • A suite on the main level offers guests access to a private bath and a walk-in closet.
  • Three additional bedrooms and an optional bonus room complete the second floor.

The plans include the following:

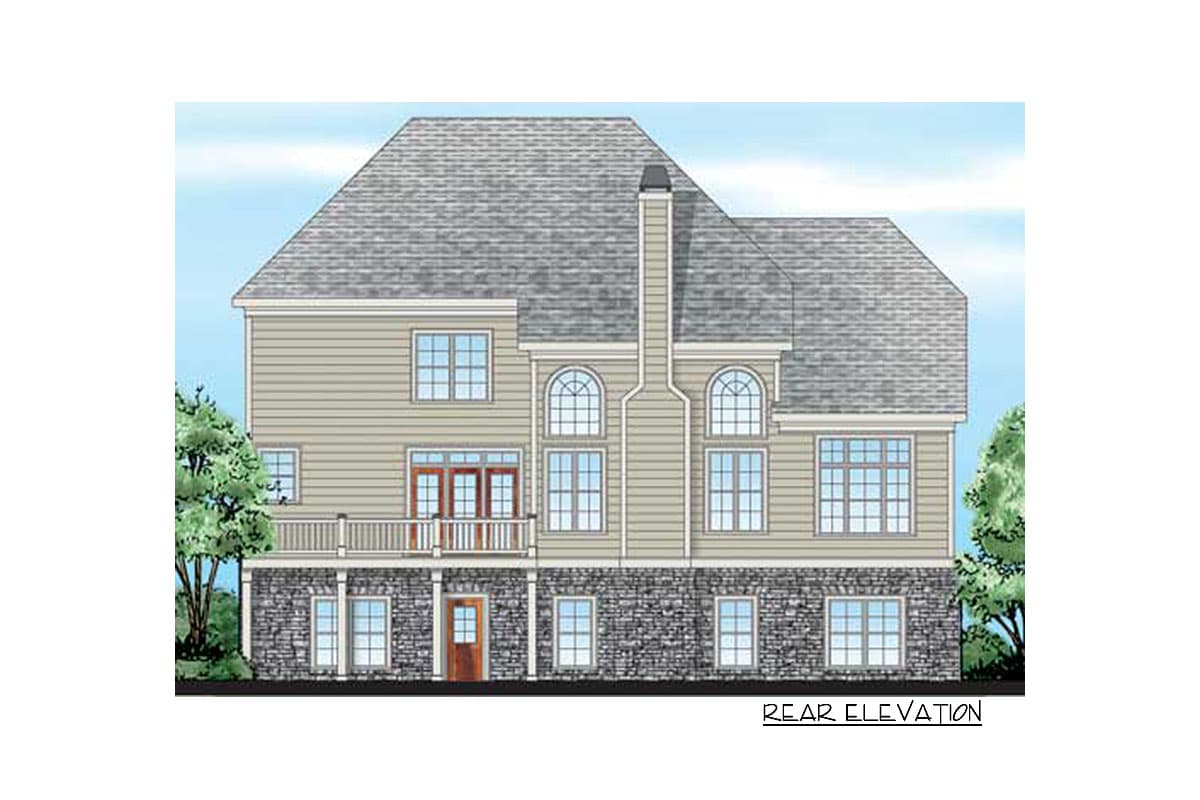

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



4-Bed House Plan with Fantastic First Floor Master Suite

  • 2,858

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,280
  • 8 Sets $1,380
  • PDF - multi-use $1,490
  • Reproducible Set $1,565
  • CAD - multi-use $2,850
  • View all purchase option online

About This Plan

  • The high-beamed tray ceiling of the master suite gives the lucky homeowners a fantastic retreat.
  • A rear deck off the kitchen makes entertaining fun and convenient.
  • A suite on the main level offers guests access to a private bath and a walk-in closet.
  • Three additional bedrooms and an optional bonus room complete the second floor.

Floor Plans

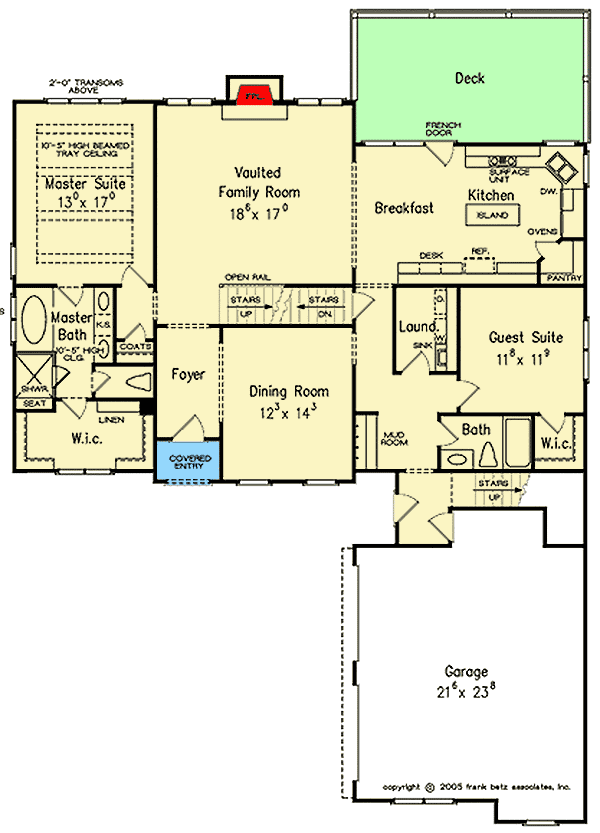

  • Main Level

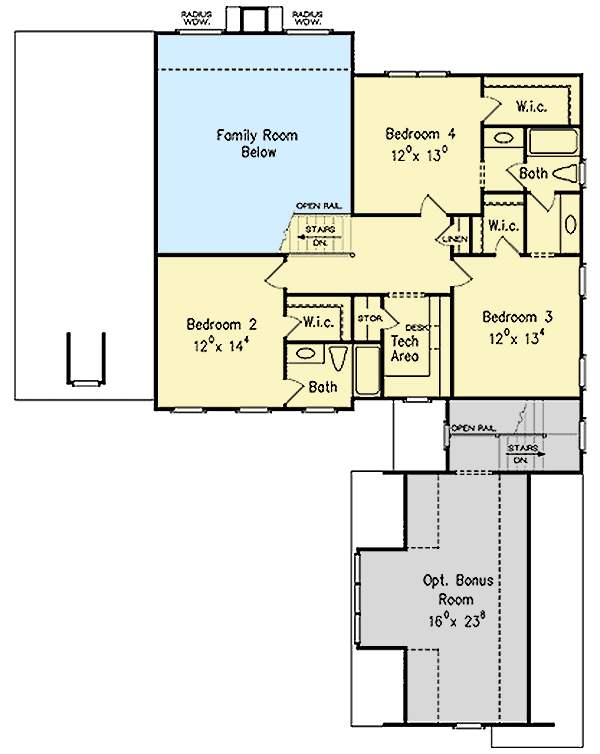

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,858 sq. ft.
  • 1st Floor: 1,895 sq. ft.
  • 2nd Floor: 963 sq. ft.
  • Bonus: 352 sq. ft.
  • Basement Unfinished: 1,895 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 54' 0"
  • Depth: 70' 4"
  • Max ridge height: 33' 6"

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Roof

  • Framing Type: Stick
