Plan 33153ZRX
4-Bed House Plan with Formal Dining and Large Rear Covered Porch - 2999 Sq Ft
Heated S.F.
2,999
Beds
4
Baths
4
Stories
1
Cars
2
Floor Plan

Plan 33153ZRX

Main Level
slide image 0

Plan 33153ZRX

1-800-854-7852

1-262-521-4596

Main Level

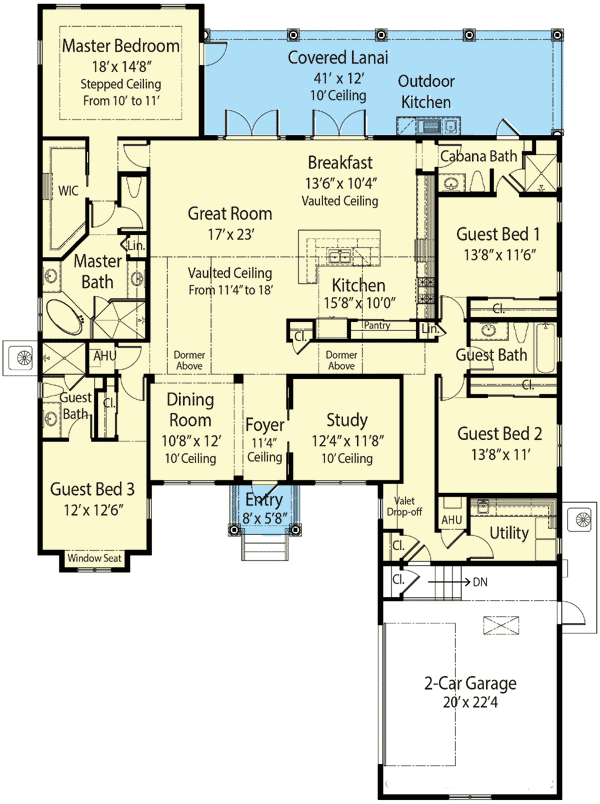

floor plan image Main Level
Plan Details
  • A covered entry porch graces the front of this 4 bedroom house plan. The foyer gives you views that extend to the back of the house where a large covered lanai acts as your own outdoor living room. A kitchen there makes it a destination for al fresco dining.
  • The kitchen has views to the great room and lanai and has a large island giving you casual seating and great counter space.
  • The master is privately-located and has lanai access To more bedrooms across the home share a bath and an ensuite guest bedroom is at the front.
  • Related Plans: Get alternate exteriors with house plans 33151ZRX and 33152ZRX.
What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,999 sq. ft.

1st Floor

2,999 sq. ft.

Porch, Front

142 sq. ft.

Porch, Rear

492 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

91' 0"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

450 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

2,999 sq. ft.

1st Floor

2,999 sq. ft.

Porch, Front

142 sq. ft.

Porch, Rear

492 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

91' 0"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

450 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen
