Plan 59806ND 4-Bed House Plan with Generous Great Room

4-Bed House Plan with Generous Great Room

Plan 59806ND

  • 4,300

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Welcome your guests into the generous great room for conversation by the fireplace. If you love to cook, this kitchen was made for you. Lots of counter space and additional bar seating lend convenience, and the island cook top area features bookshelves for all your cookbooks.
  • Two bedrooms and the master suite can be found on one side of this home. On the other side you will find the ultimate suite for your guests. The upper floor of this home has endless possibilities. Use the main area with nearby bath as a home theater or office. Also included is a huge bonus room option above the garage.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

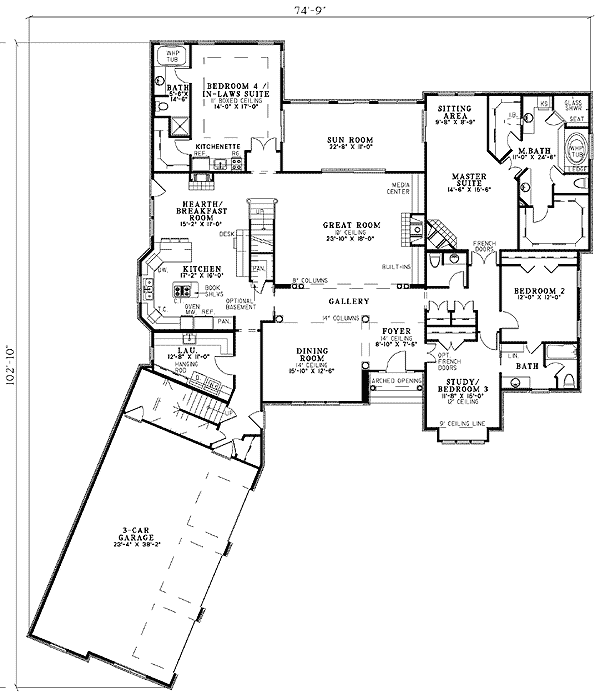

4-Bed House Plan with Generous Great Room - 59806ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

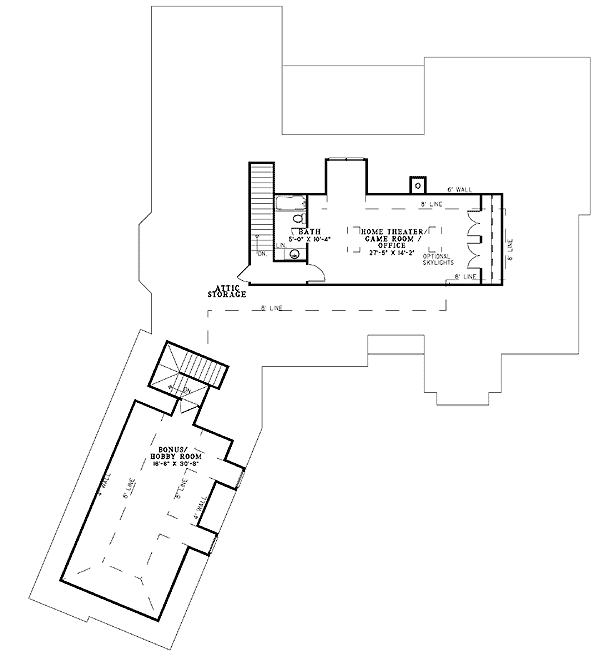

4-Bed House Plan with Generous Great Room - 59806ND floor plan - 2nd Floor

Plan details

4-Bed House Plan with Generous Great Room

  • 4,300

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,550
  • 5 Sets $1,650
  • 5 Sets + PDF $1,900
  • CAD - Single-Build $3,100
  • View all purchase option online

About This Plan

  • Welcome your guests into the generous great room for conversation by the fireplace. If you love to cook, this kitchen was made for you. Lots of counter space and additional bar seating lend convenience, and the island cook top area features bookshelves for all your cookbooks.
  • Two bedrooms and the master suite can be found on one side of this home. On the other side you will find the ultimate suite for your guests. The upper floor of this home has endless possibilities. Use the main area with nearby bath as a home theater or office. Also included is a huge bonus room option above the garage.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,300 sq. ft.
  • 1st Floor: 3,688 sq. ft.
  • 2nd Floor: 612 sq. ft.
  • Entry: 27 sq. ft.
  • Bonus: 578 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 9"
  • Depth: 103' 10"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 948 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
