4-Bed House Plan with Tudor Inspiration

Plan 710094BTZ

  • 2,413

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Brick and board and batten siding grace the exterior of this 4-bed Tudor-inspired house plan. Swooped fascia and a half round vent add to the home's curb appeal.
  • Double doors invite you inside where you're greeted with a formal and informal spaces.
  • The vaulted family room is centrally located on the main floor to be the center of activity for the occupants and their guests.
  • The master suite is situated on the rear for privacy and to take advantage of any view in the rear. The master bath is complete with a long double vanity, separate tub and shower and walk-in-closet. Across the home, bedroom four is perfectly located to be used as a home office or house an elderly parent.
  • The upper floor provides two secondary bedrooms each with large closet space and access to a compartmentalized bath. The bonus room can be a recreation space or storage area.
  • Related Plans: Get alternate exteriors with house plans 710092BTZ, 710093BTZ and 710310BTZ

The plans include the following:

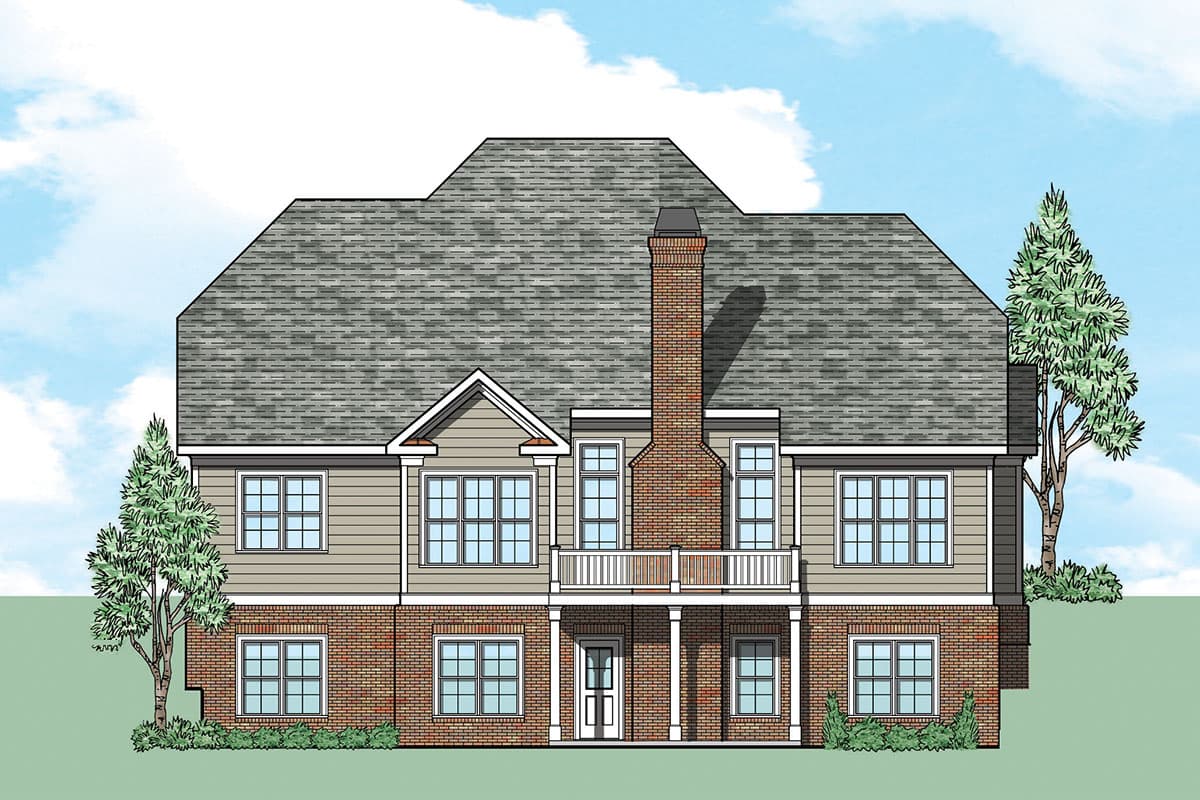

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

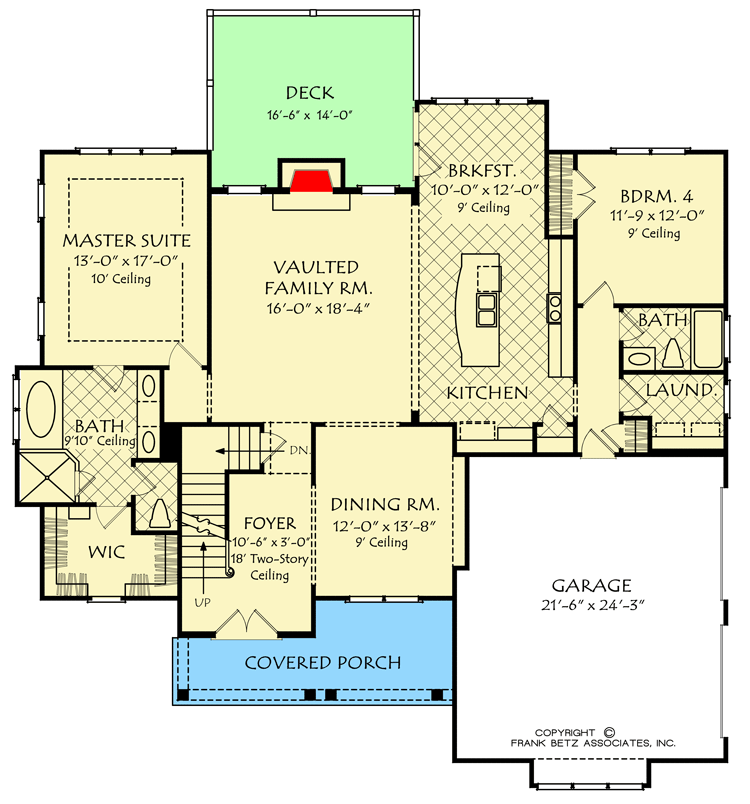

4-Bed House Plan with Tudor Inspiration - 710094BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

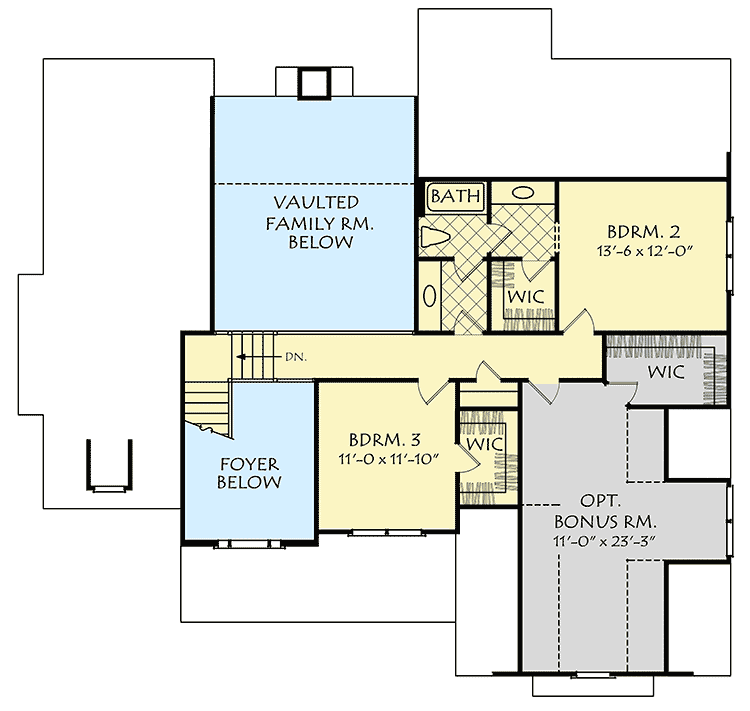

4-Bed House Plan with Tudor Inspiration - 710094BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,413 sq. ft.
  • 1st Floor: 1,789 sq. ft.
  • 2nd Floor: 624 sq. ft.
  • Bonus: 357 sq. ft.
  • Basement Unfinished: 1,789 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 57' 0"
  • Depth: 55' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 571 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4-Bed House Plan with Tudor Inspiration

  • 2,413

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,695
  • 5 Sets + PDF $1,975
  • PDF - Unlimited Build $1,995
  • PDF - Unlimited Build + 5-Sets $2,275
  • CAD - Unlimited Build $3,295
  • View all purchase option online

About This Plan

  • Brick and board and batten siding grace the exterior of this 4-bed Tudor-inspired house plan. Swooped fascia and a half round vent add to the home's curb appeal.
  • Double doors invite you inside where you're greeted with a formal and informal spaces.
  • The vaulted family room is centrally located on the main floor to be the center of activity for the occupants and their guests.
  • The master suite is situated on the rear for privacy and to take advantage of any view in the rear. The master bath is complete with a long double vanity, separate tub and shower and walk-in-closet. Across the home, bedroom four is perfectly located to be used as a home office or house an elderly parent.
  • The upper floor provides two secondary bedrooms each with large closet space and access to a compartmentalized bath. The bonus room can be a recreation space or storage area.
  • Related Plans: Get alternate exteriors with house plans 710092BTZ, 710093BTZ and 710310BTZ

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,413 sq. ft.
  • 1st Floor: 1,789 sq. ft.
  • 2nd Floor: 624 sq. ft.
  • Bonus: 357 sq. ft.
  • Basement Unfinished: 1,789 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 57' 0"
  • Depth: 55' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 571 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 710094BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710094BTZ
|
