4-Bed House Plan with Vaulted Grand Room

Heated S.F.
2,587
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 710148BTZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 710148BTZ

M-F 9am-5pm EST |

1-203-761-8500

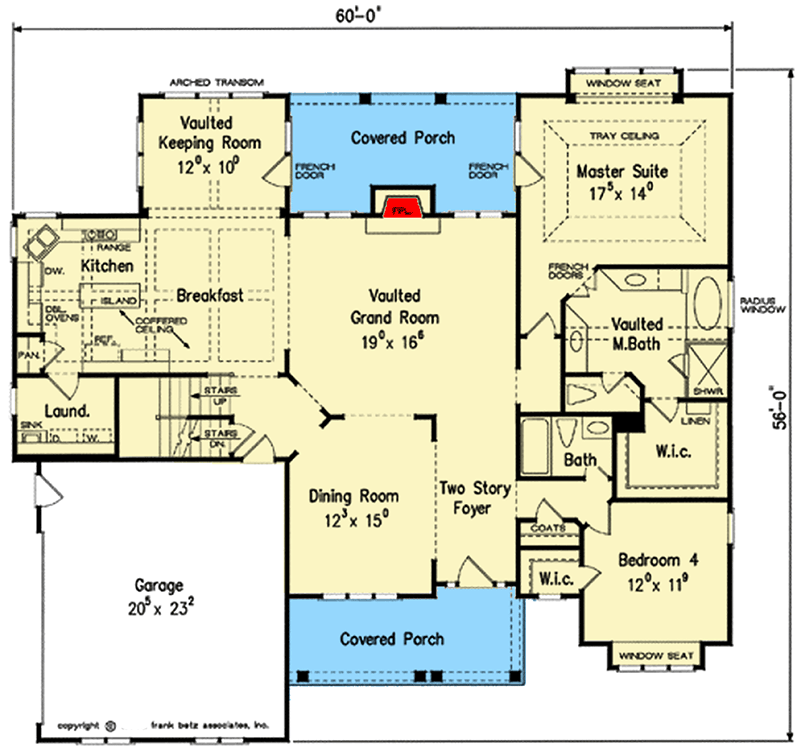

Main Level

Plan 710148BTZ: 4-Bed House Plan with Vaulted Grand Room - Floor Plan - Main Level - Southern, Traditional

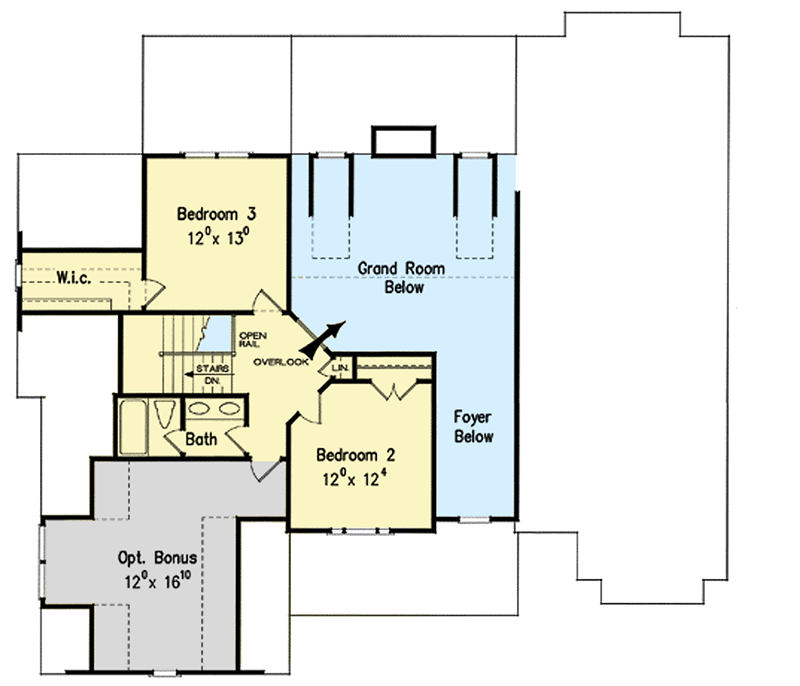

2nd Floor

Plan 710148BTZ: 4-Bed House Plan with Vaulted Grand Room - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • Vertical siding lends a rural influence to this stately brick façade, with rustic shutters and copper-seam roofs that further the sense of informality.
  • An open arrangement of the foyer, dining room and vaulted grand room define the public realm, designed to take advantage of the views and natural light brought in by tall rear windows.
  • Coffered ceilings add texture to the kitchen and breakfast area, which is open to a vaulted keeping room.
  • Arched transoms and access to the rear covered porch enliven this casual space and help to create an inviting retreat for the family.
  • A vaulted bath, a window seat and private access to the porch enhance the master suite.

What's Included

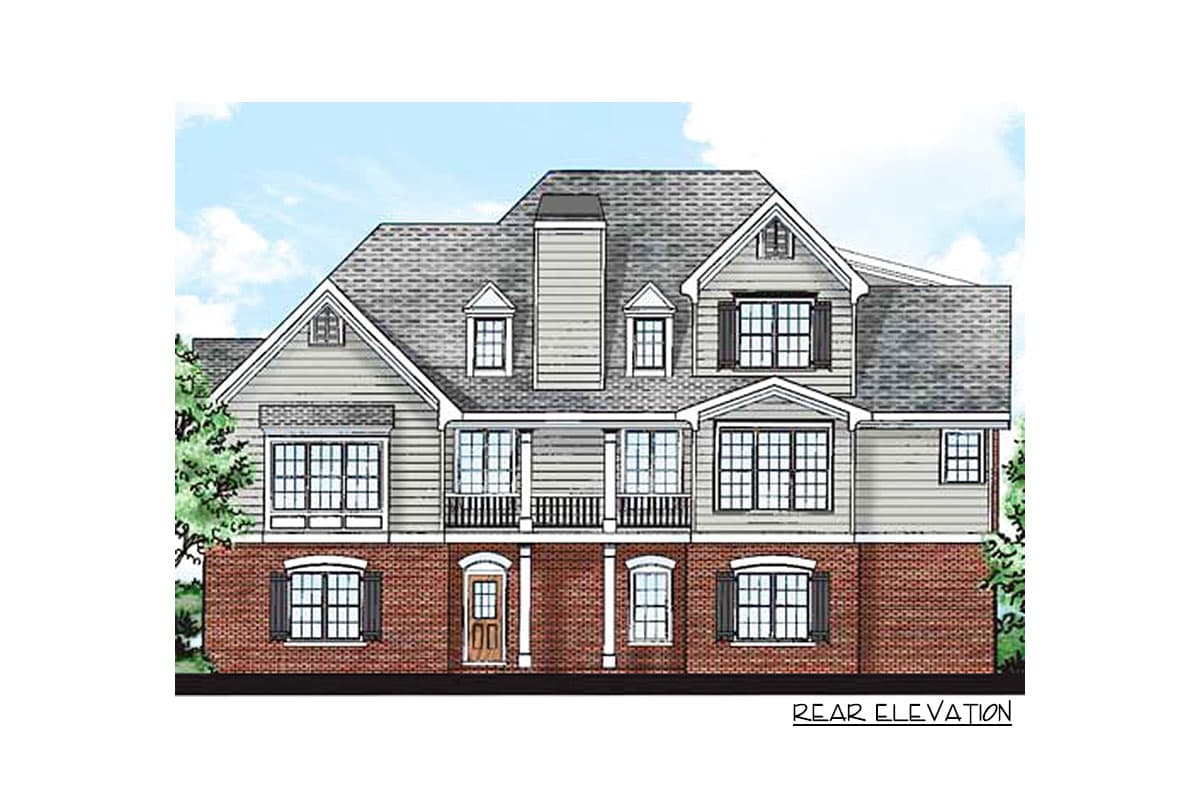

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

  • Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

2,587 sq. ft.

1st Floor

2,047 sq. ft.

2nd Floor

540 sq. ft.

Basement Unfinished

2,047 sq. ft.

Bonus

278 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

56' 0"

Max Ridge Height

27' 9"

Garage

Type

Attached

Area

488 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

Unlimited Build License

Square Footage Breakdown

Total Heated Area

2,587 sq. ft.

1st Floor

2,047 sq. ft.

2nd Floor

540 sq. ft.

Basement Unfinished

2,047 sq. ft.

Bonus

278 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

56' 0"

Max Ridge Height

27' 9"

Garage

Type

Attached

Area

488 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

Unlimited Build License
