Plan 710115BTZ

4-Bed House Plan with Vaulted Keeping Room

3,356 4 4 - 5 2 2
Print
Compare
...

4-Bed House Plan with Vaulted Keeping Room

Plan 710115BTZ

  • 3,356

    Heated s.f.

  • 4

    Beds

  • 4 - 5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Delicate details belie a grand interior with open spaces and interesting ceilings.
  • The dining room is off the foyer, then enter the vaulted grand room with built-in cabinets and a fireplace. This opens to the breakfast nook and island kitchen where family can gather.
  • Relax in the vaulted keeping room with a fireplace and access to the rear deck through French doors.
  • A guest suite is adjacent to the kitchen, but the master suite is privately located at the left of the home.
  • Two bedrooms and baths are located on the second floor.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Main Level

Reverse Floor Plan

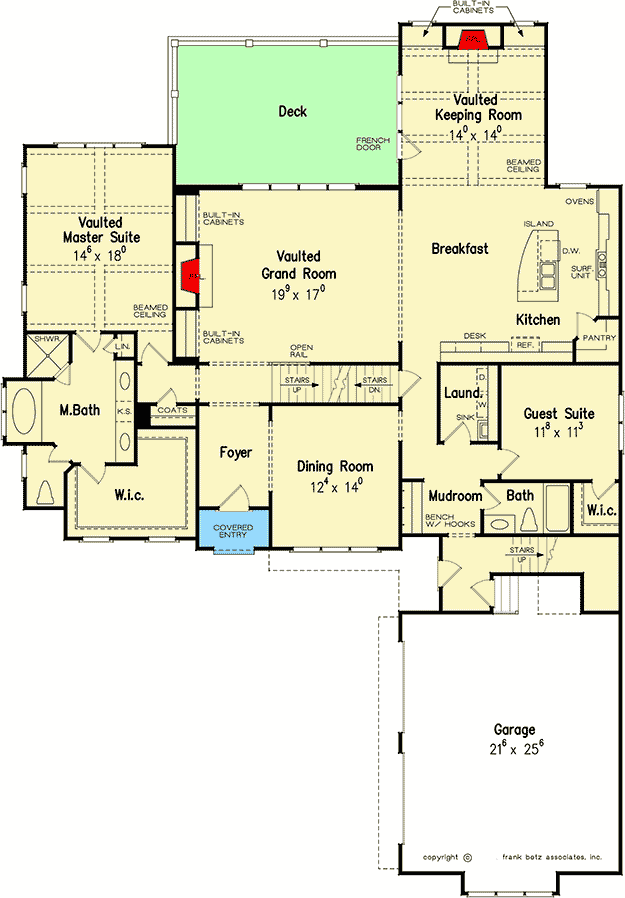

4-Bed House Plan with Vaulted Keeping Room - 710115BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan

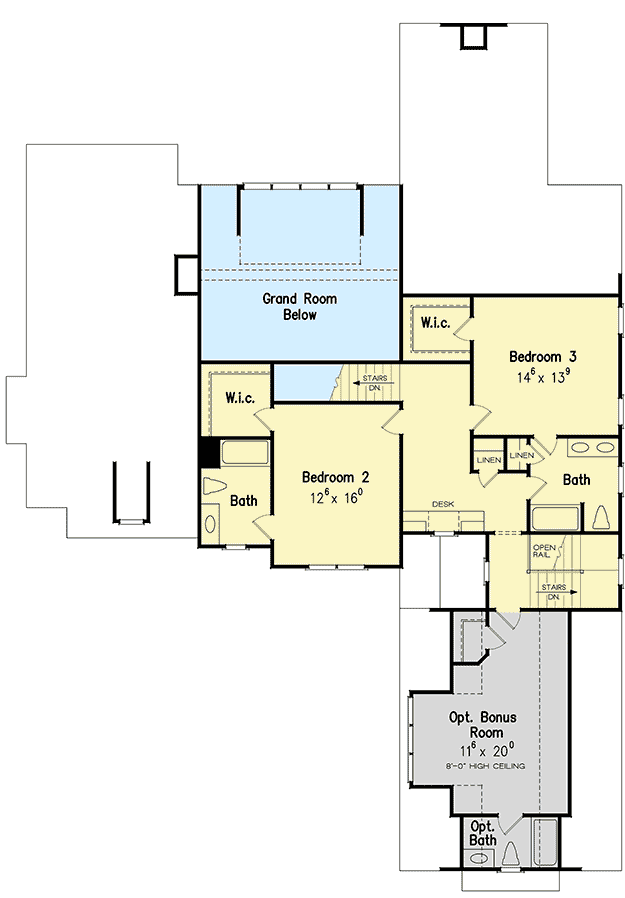

4-Bed House Plan with Vaulted Keeping Room - 710115BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,356 sq. ft.
  • 1st Floor: 2,451 sq. ft.
  • 2nd Floor: 905 sq. ft.
  • Bonus: 339 sq. ft.
  • Basement Unfinished: 2,451 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4 or 5

Foundation Type

  • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 0"
  • Depth: 86' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 619 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features



4-Bed House Plan with Vaulted Keeping Room

  • 3,356

    Heated s.f.

  • 4

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - multi-use $1,620
  • Reproducible Set $1,700
  • CAD - multi-use $3,090
  • View all purchase option online

About This Plan

  • Delicate details belie a grand interior with open spaces and interesting ceilings.
  • The dining room is off the foyer, then enter the vaulted grand room with built-in cabinets and a fireplace. This opens to the breakfast nook and island kitchen where family can gather.
  • Relax in the vaulted keeping room with a fireplace and access to the rear deck through French doors.
  • A guest suite is adjacent to the kitchen, but the master suite is privately located at the left of the home.
  • Two bedrooms and baths are located on the second floor.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,356 sq. ft.
  • 1st Floor: 2,451 sq. ft.
  • 2nd Floor: 905 sq. ft.
  • Bonus: 339 sq. ft.
  • Basement Unfinished: 2,451 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4 or 5

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 0"
  • Depth: 86' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 619 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
