Plan 55180BR
4 Bed House Plan with Wraparound Porch
Heated S.F.
1,977
Beds
4
Baths
2.5
Stories
2
What's Included
Plan Details
  • Ultra compact, this 4 bed house plan gives you lots of living space within a small footprint measuring just 57' by 57'.
  • The large wraparound rocking chair porch gives you views in three directions.
  • Inside, you get all kinds of amenities including large walk-in closets in most bed rooms, a private study area , a plush master bath complete with dual lavatories, separate shower, spa tub, private toilet and quick access to the porte cochere and utility room.
  • The kitchen contains more cabinets and storage than usually found in a home this size. It overlooks the dining and living rooms. A large butlers pantry is conveniently tucked away under the stairwell saving space while giving you storage.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4 Bed House Plan with Wraparound Porch

  • 1,977

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

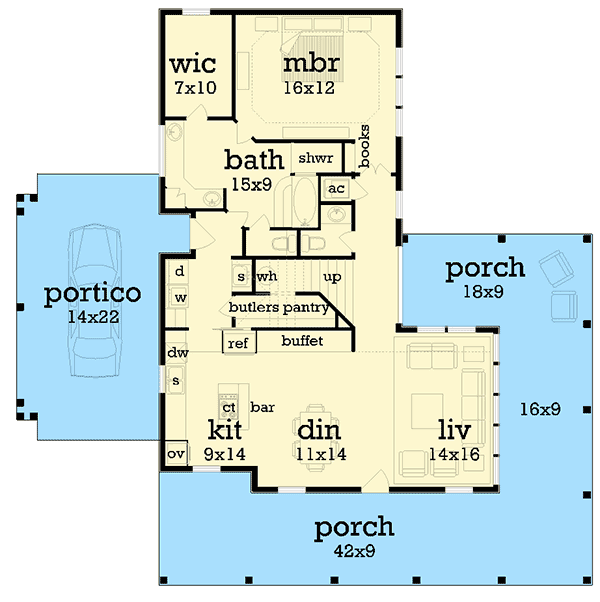

  • Main Level

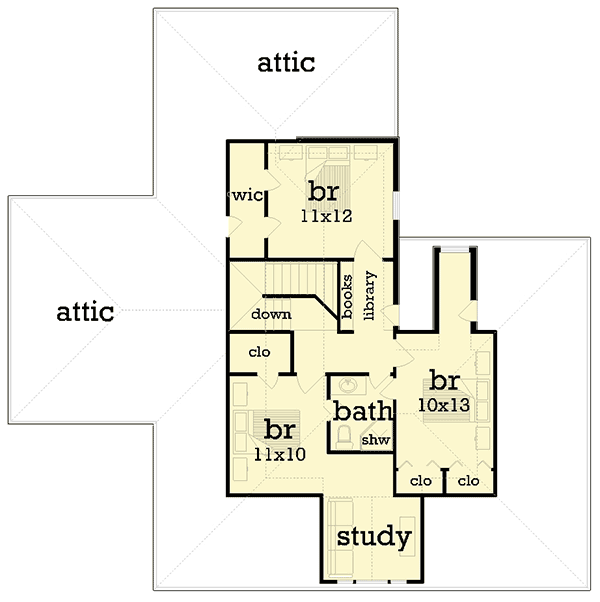

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,977 sq. ft.
  • 1st Floor: 1,226 sq. ft.
  • 2nd Floor: 751 sq. ft.

Dimensions

  • Width: 57' 0"
  • Depth: 57' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
