4-Bed Lake House Plan for Rear Sloped Lot

Plan 86392HH

This plan plants 3 trees

2,802
Heated s.f.
4
Beds
4.5
Baths
1
Stories
2
Cars

A carport with attached storage extends from the front of this 4-bedroom Lake House plan that is ideal for rear sloping lots due to its walkout basement.
The center of the main level is open with exposed beams defining the family room, and the expansive screen porch measures 39'8" by 15' to maximize outdoor living space.
A cooktop island anchors the kitchen with a breakfast bar providing a great spot for light meals.
Bedrooms frame the living space with the largest reserved for the master bedroom. The master bathroom boasts a zero-threshold shower, dual-sink vanity, and walk-in closet.
Downstairs, a game room separates bedrooms 3 and 4, while each room provides access to a covered porch. A dedicated storage room with exterior access provides a spot for lawn supplies and larger outdoor toys.
Related Plan: Convert the screened porch to a covered porch with plan 86393HH.

Cover Sheet

Foundation plans

Elevations - complete with dimensions, ridge heights and special notes

Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes

Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions

Rafter Plan

Details

Interior Elevations - include applicable cabinetry, electrical and special construction notes

Floor Joist Plan - complete with spans, sizes and direction (if applicable)

Ceiling Joist - complete with spans, sizes and direction

Sections - complete with dimensions, notes and specifications

Electrical plan - complete wit layout, light fixtures, outlets and legend

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

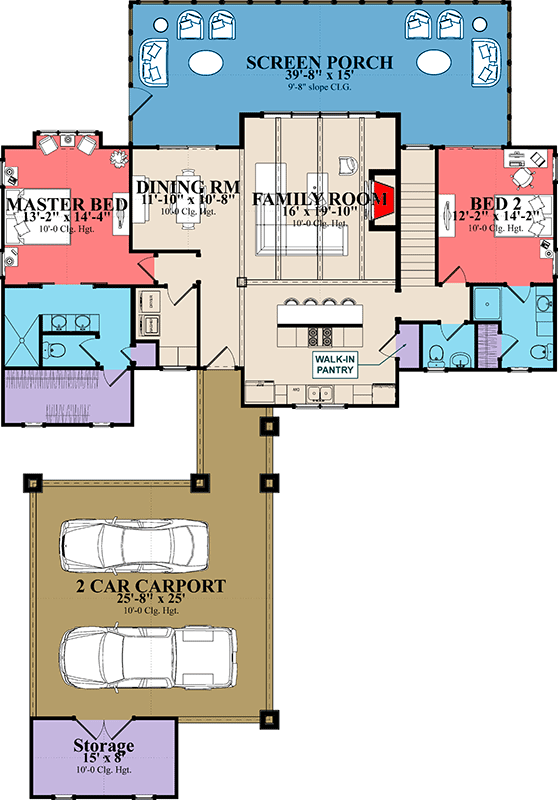

4-Bed Lake House Plan for Rear Sloped Lot - 86392HH floor plan - Main Level

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

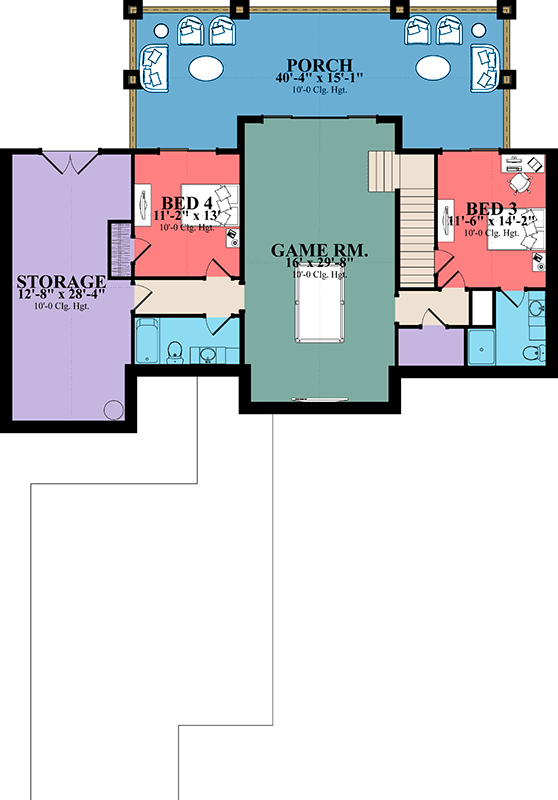

4-Bed Lake House Plan for Rear Sloped Lot - 86392HH floor plan - Lower Level
