4-Bed Master-On-Main House Plan with Gazebo-Style Bay

Plan 710013BTZ

  • 2,072

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

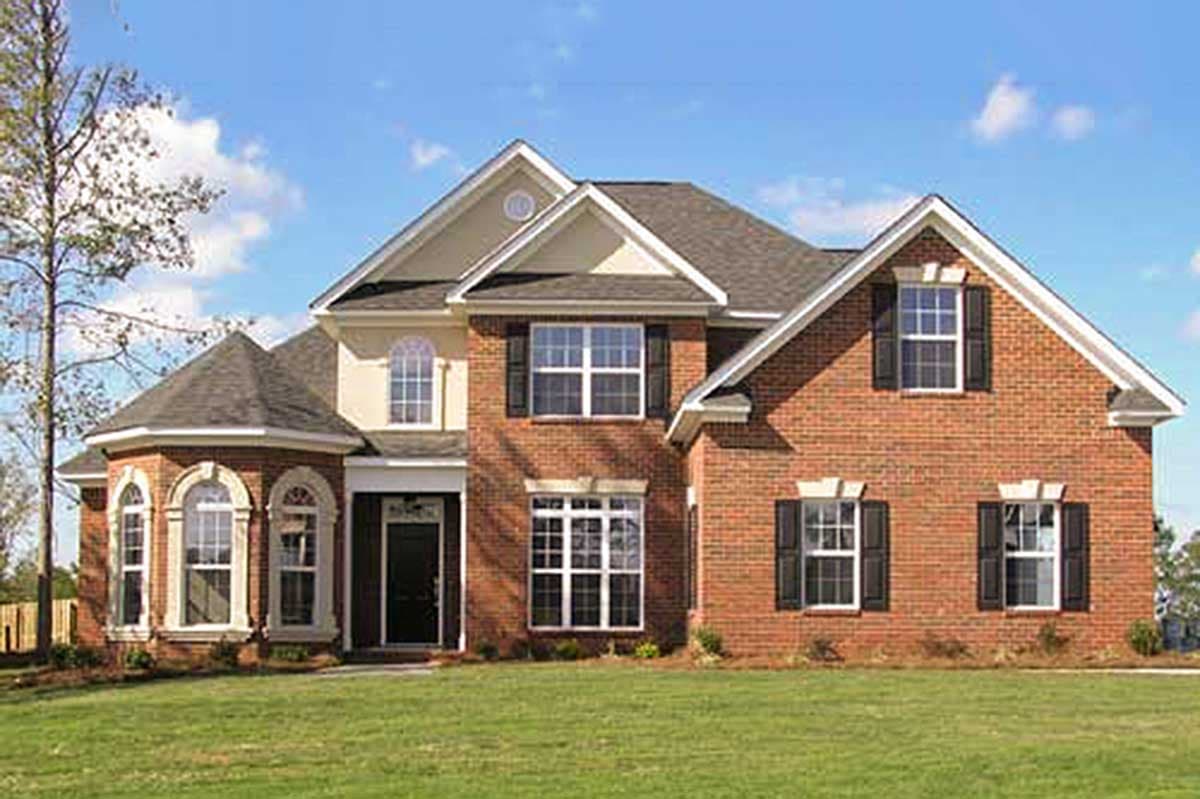

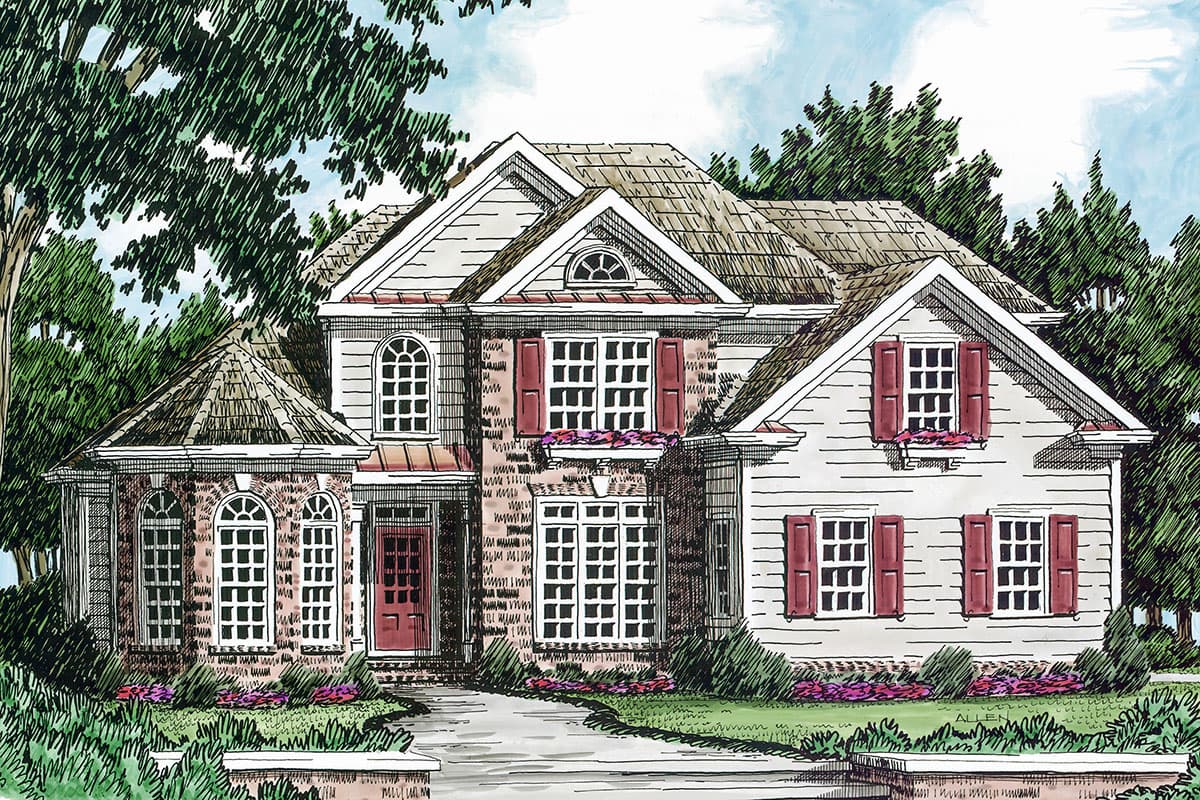

  • A lovely blend of brick and siding and mixed traditions create a pleasing facade to this 4-bed, master-on-main house plan.
  • Step into the 2-story foyer and you'll see the vaulted great room ahead. A fireplace anchors the back wall and windows on either side look out to the back.
  • The kitchen is open to both the breakfast room (with a door taking you out back) and the formal dining room.
  • A guest bedroom is located across the home from the master and has bath and convenient laundry access.
  • The decorative gazebo-style bay for this plan holds the master suite sitting room. The master wing occupies the left side of the home and includes a tray ceiling above the bedroom, dual walk-in closets and a vaulted master bath. Two family bedrooms and a bonus room are on the second floor.
  • Related Plan: Get an alternate exterior with house plan 710021GLV.

The plans include the following:

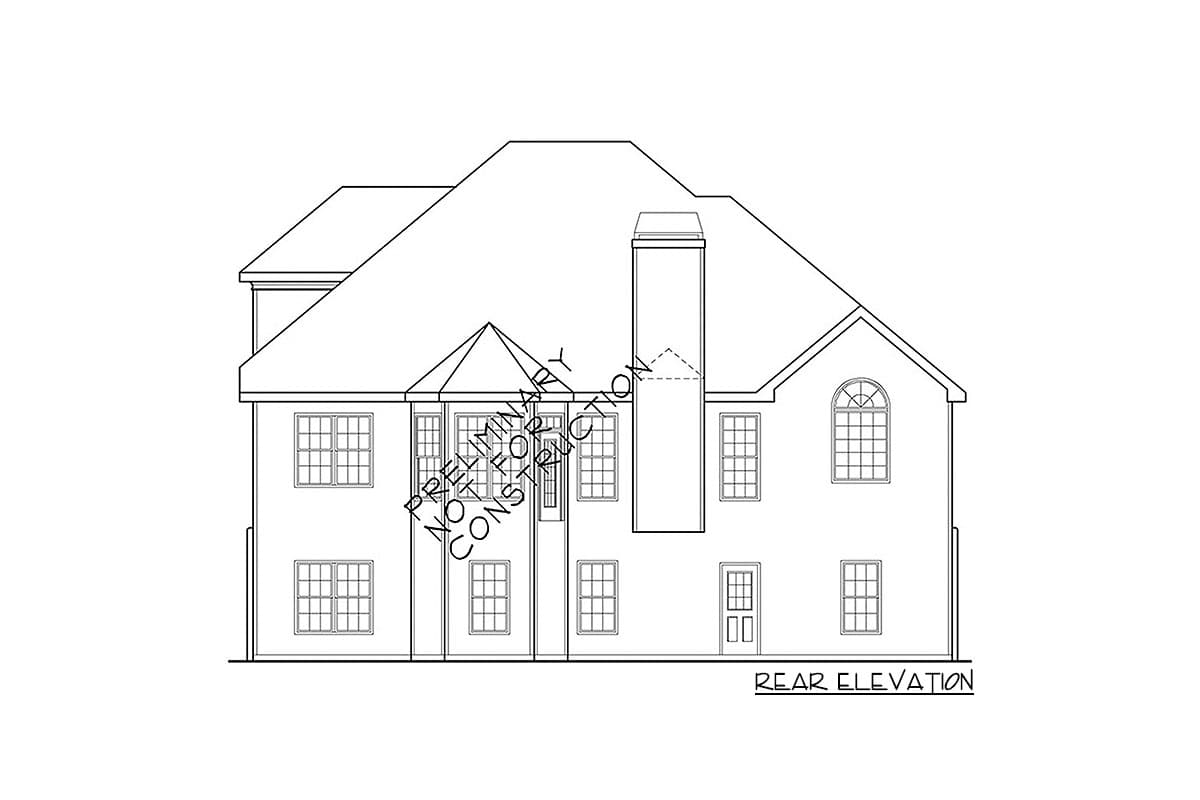

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details

Architectural Style

Plan Collections



4-Bed Master-On-Main House Plan with Gazebo-Style Bay

  • 2,072

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - multi-use $1,620
  • Reproducible Set $1,700
  • CAD - multi-use $3,090
  • View all purchase option online

About This Plan

  • A lovely blend of brick and siding and mixed traditions create a pleasing facade to this 4-bed, master-on-main house plan.
  • Step into the 2-story foyer and you'll see the vaulted great room ahead. A fireplace anchors the back wall and windows on either side look out to the back.
  • The kitchen is open to both the breakfast room (with a door taking you out back) and the formal dining room.
  • A guest bedroom is located across the home from the master and has bath and convenient laundry access.
  • The decorative gazebo-style bay for this plan holds the master suite sitting room. The master wing occupies the left side of the home and includes a tray ceiling above the bedroom, dual walk-in closets and a vaulted master bath. Two family bedrooms and a bonus room are on the second floor.
  • Related Plan: Get an alternate exterior with house plan 710021GLV.

Floor Plans

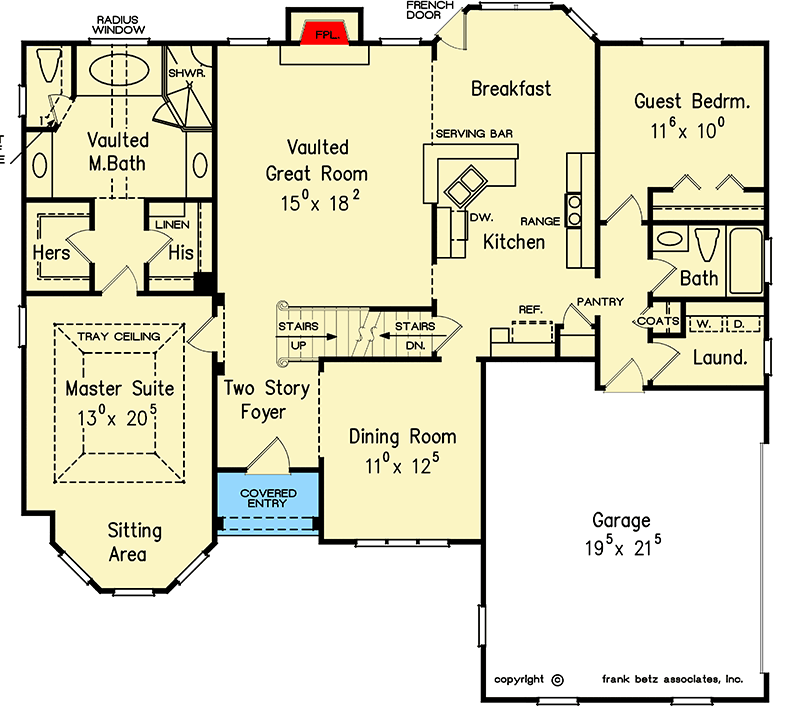

  • Main Level

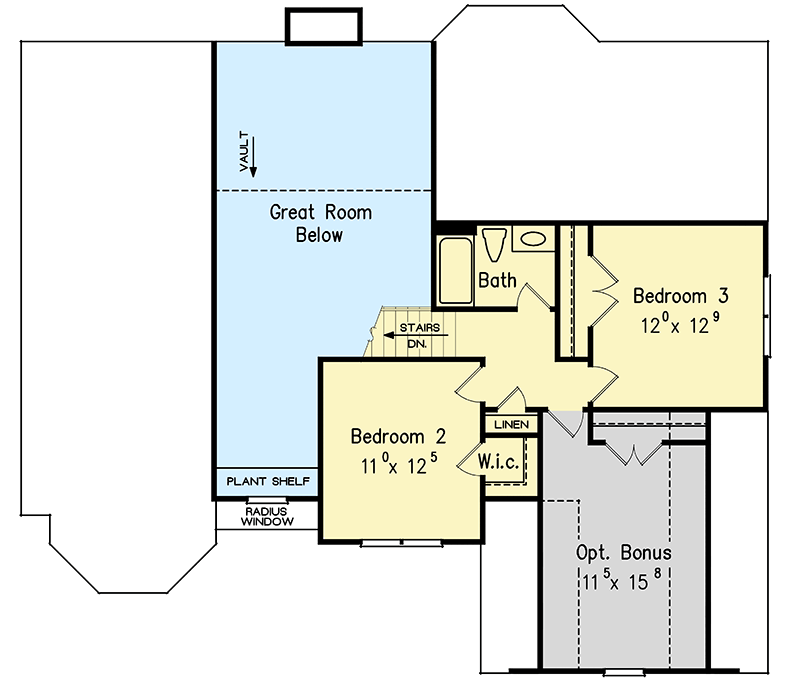

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,072 sq. ft.
  • 1st Floor: 1,605 sq. ft.
  • 2nd Floor: 467 sq. ft.
  • Bonus: 241 sq. ft.
  • Basement Unfinished: 1,605 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 52' 0"
  • Depth: 48' 6"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 446 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
