Plan 70775MK 4 Bed Modern Cottage with 2-story Great Room and L-shaped Back Porch

4 Bed Modern Cottage with 2-story Great Room and L-shaped Back Porch

Plan 70775MK

  • 2,006

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This 4 bedroom 3 bath house plan offers an open floor plan layout just over 2000 square feet.
  • A spacious great room offers tons of gathering opportunity for your growing family. A large eat-at bar top opens up the kitchen to the dining and two-story great room.
  • The back of the dining opens to an L-shaped, 10'-deep back porch, a great place to eat al fresco and to enjoy the fresh air.
  • The master suite offers boxed ceilings, great natural lighting, and tons of space in the master bathroom.
  • Bedrooms two and three can be found on the main level, sharing a bathroom in between.
  • Head upstairs to find the 4th bedroom, with it's own bathroom and views of the great room below.
  • Related Plans: Get alternate versions with house plan 60536ND and 59776ND.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

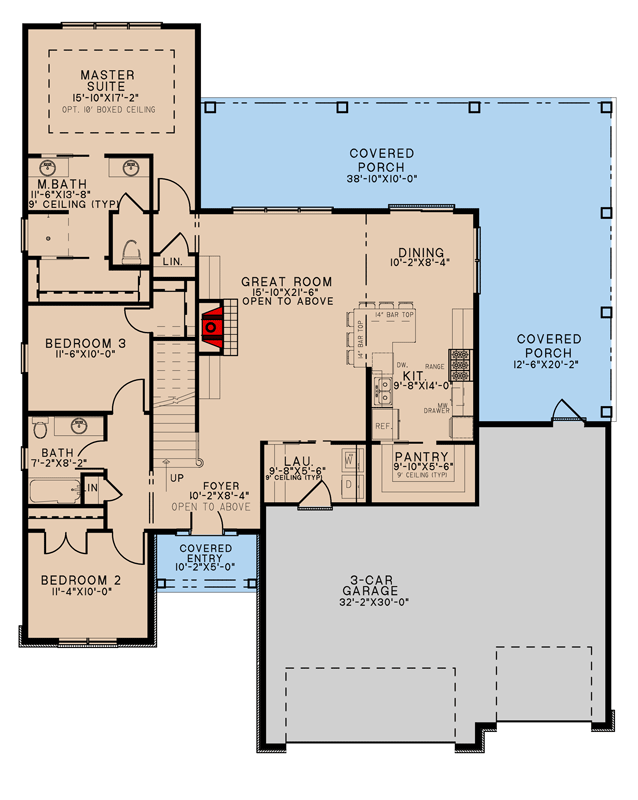

4 Bed Modern Cottage with 2-story Great Room and L-shaped Back Porch - 70775MK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

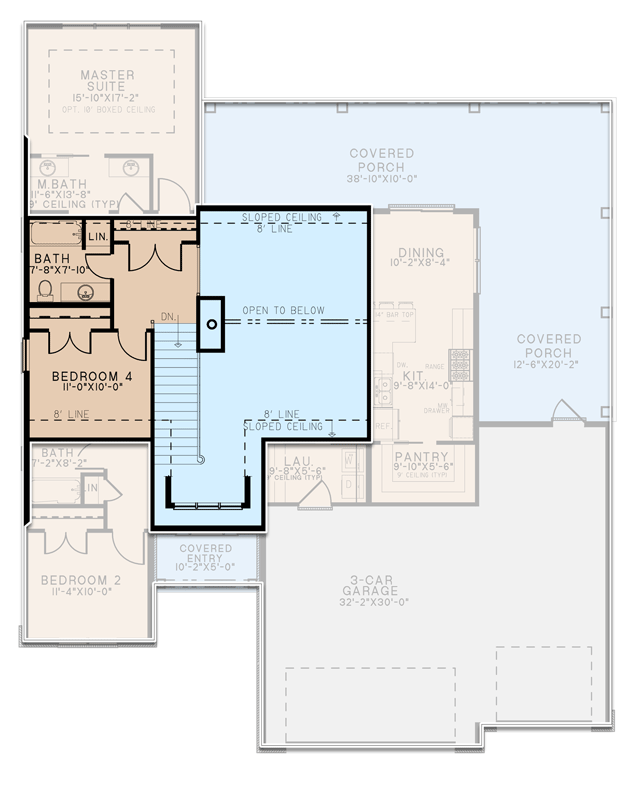

4 Bed Modern Cottage with 2-story Great Room and L-shaped Back Porch - 70775MK floor plan - 2nd Floor

Plan details

4 Bed Modern Cottage with 2-story Great Room and L-shaped Back Porch

  • 2,006

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,700
  • CAD Unlimited + PDF $2,000
  • View all purchase option online

About This Plan

  • This 4 bedroom 3 bath house plan offers an open floor plan layout just over 2000 square feet.
  • A spacious great room offers tons of gathering opportunity for your growing family. A large eat-at bar top opens up the kitchen to the dining and two-story great room.
  • The back of the dining opens to an L-shaped, 10'-deep back porch, a great place to eat al fresco and to enjoy the fresh air.
  • The master suite offers boxed ceilings, great natural lighting, and tons of space in the master bathroom.
  • Bedrooms two and three can be found on the main level, sharing a bathroom in between.
  • Head upstairs to find the 4th bedroom, with it's own bathroom and views of the great room below.
  • Related Plans: Get alternate versions with house plan 60536ND and 59776ND.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,006 sq. ft.
  • 1st Floor: 1,699 sq. ft.
  • 2nd Floor: 307 sq. ft.
  • Porch, Combined: 691 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 8"
  • Depth: 68' 8"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 837 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
