4-Bed Mountain Craftsman House Plan

Plan 9525RW

  • 4,749

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Designed for a sloping lot, this luxury house plan gives you a lower level made for fun. A rec room with bar and a separate space for billiards just gets you started. There are also two guest suites, storage (and vault) plus access to a patio.
  • An open floor plan greets you on the main floor where you'll enjoy front-to-back views from the foyer.
  • The great room is vaulted and has a large fireplace and access to the huge deck area which is partially covered and partially open to the sky.
  • The dining room is also vaulted and has easy deck access.
  • A split bedroom layout maximizes privacy. In the master you'll find deck access, a roomy bath with spa tub and split vanities plus a large walk-in closet.
  • Off the foyer an angled office is a gerat quiet retreat.

  • Cover Page

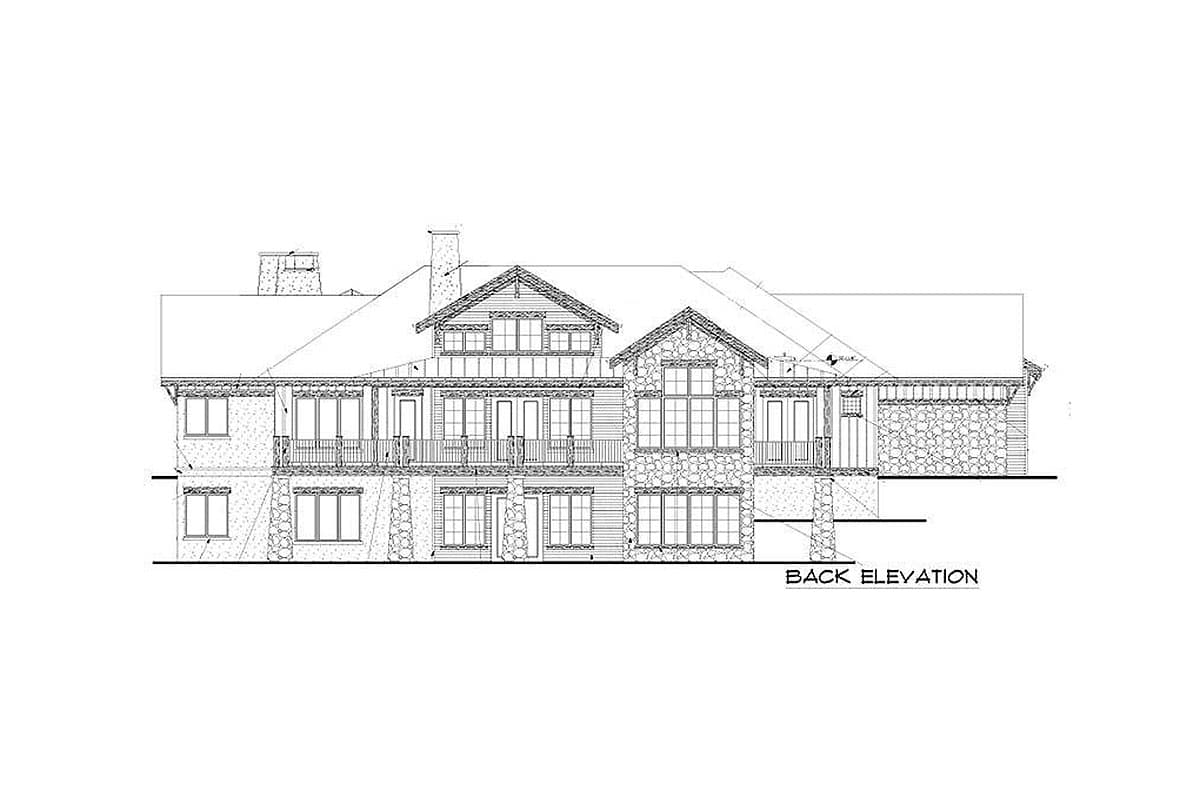

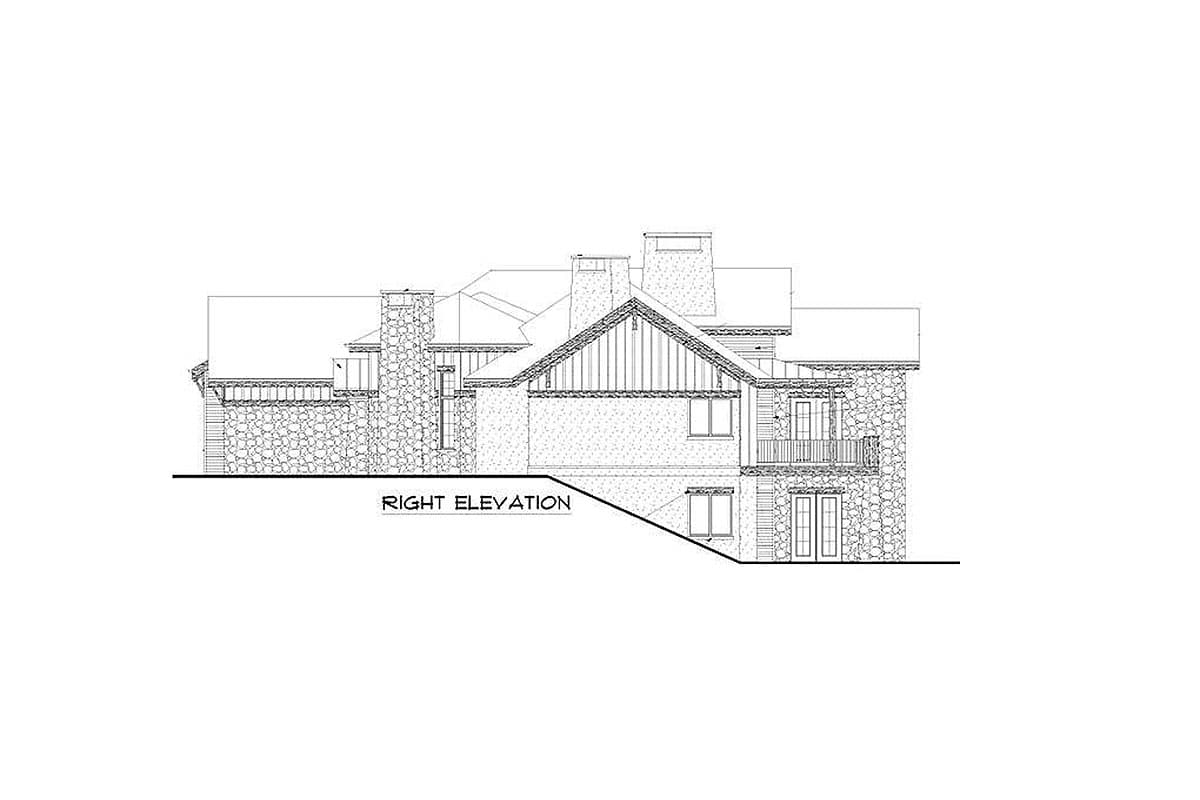

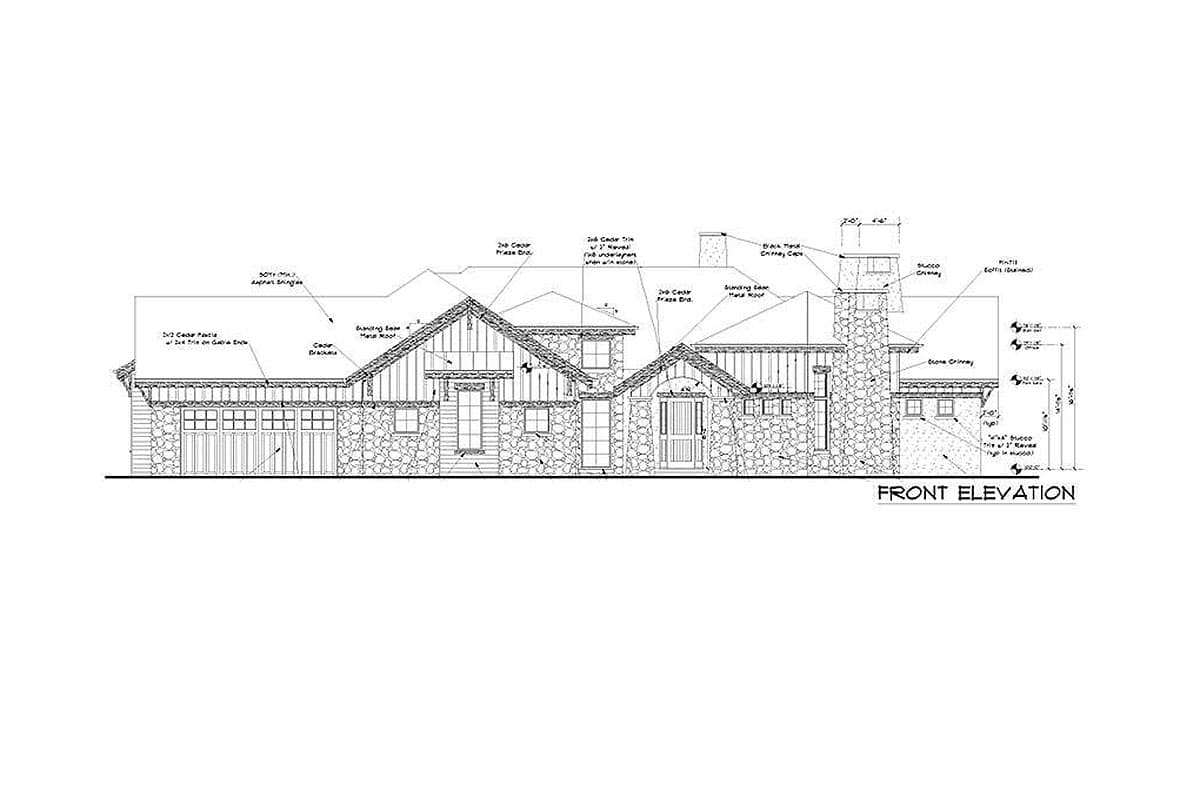

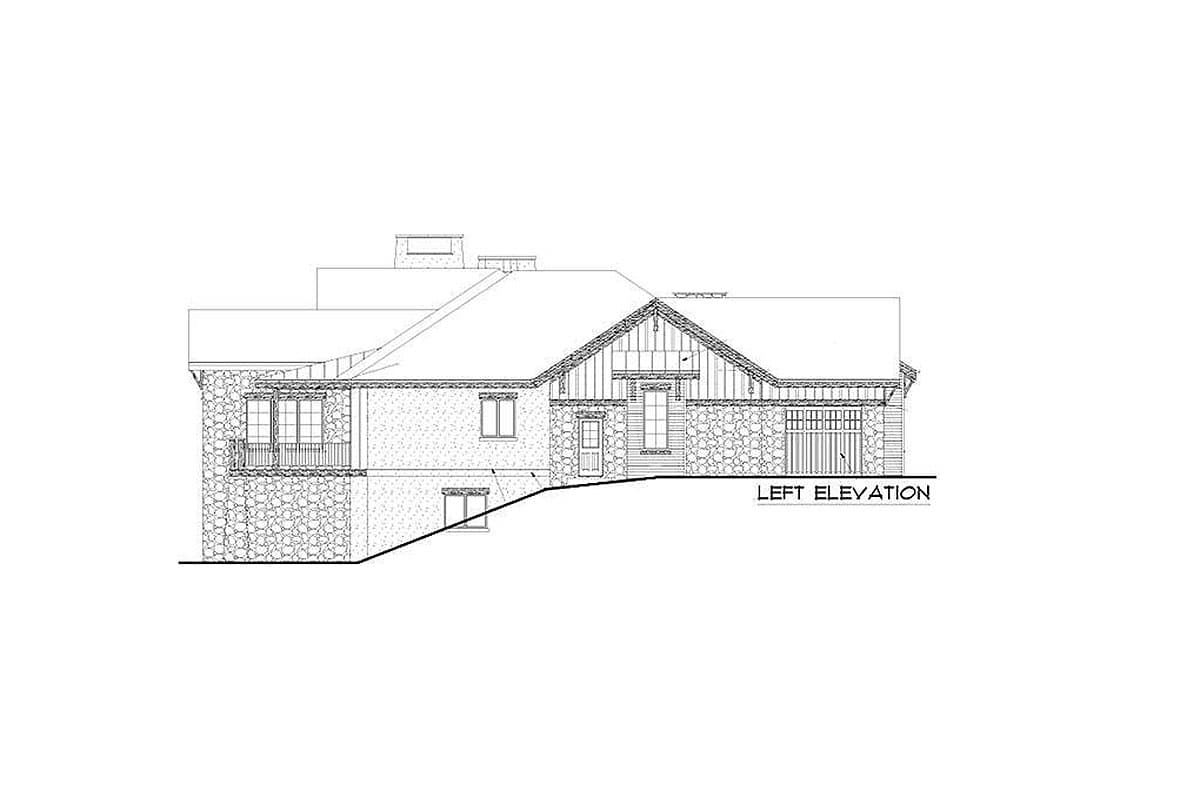

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan

What is NOT included:

  • Architectural or Engineering stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

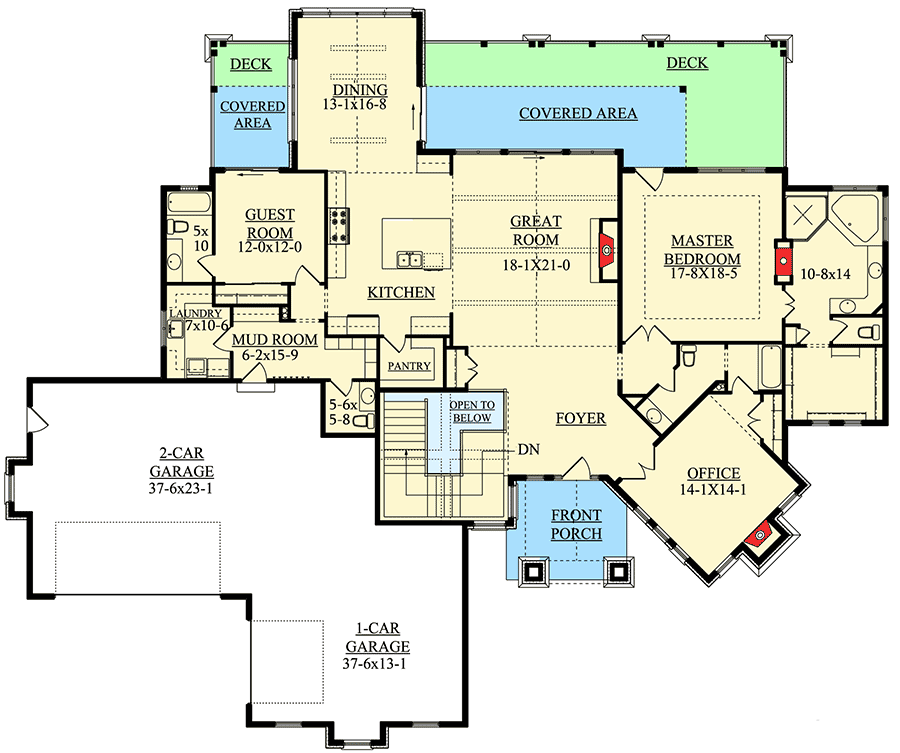

4-Bed Mountain Craftsman House Plan - 9525RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

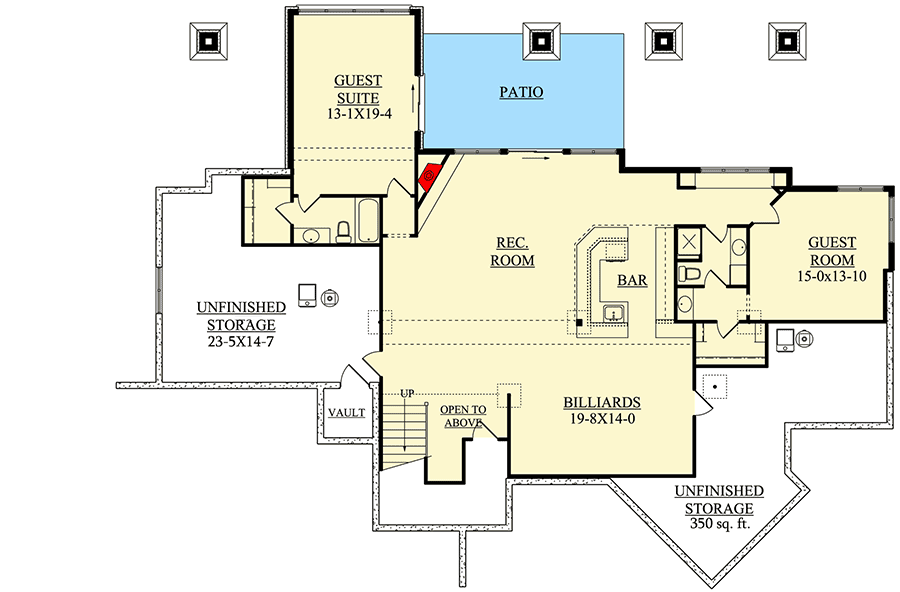

4-Bed Mountain Craftsman House Plan - 9525RW floor plan - Basement

Plan details

4-Bed Mountain Craftsman House Plan

  • 4,749

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • CAD - Single-Build $3,000
  • View all purchase option online

About This Plan

  • Designed for a sloping lot, this luxury house plan gives you a lower level made for fun. A rec room with bar and a separate space for billiards just gets you started. There are also two guest suites, storage (and vault) plus access to a patio.
  • An open floor plan greets you on the main floor where you'll enjoy front-to-back views from the foyer.
  • The great room is vaulted and has a large fireplace and access to the huge deck area which is partially covered and partially open to the sky.
  • The dining room is also vaulted and has easy deck access.
  • A split bedroom layout maximizes privacy. In the master you'll find deck access, a roomy bath with spa tub and split vanities plus a large walk-in closet.
  • Off the foyer an angled office is a gerat quiet retreat.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,749 sq. ft.
  • Lower Level: 1,862 sq. ft.
  • 1st Floor: 2,887 sq. ft.
  • Deck: 774 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 96' 0"
  • Depth: 80' 0"
  • Max ridge height: 23' 9"

Garage

  • Type: Attached
  • Area: 1299 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
