4-Bed Mountain Craftsman with Basement Option

Plan 444166GDN

  • 2,950

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

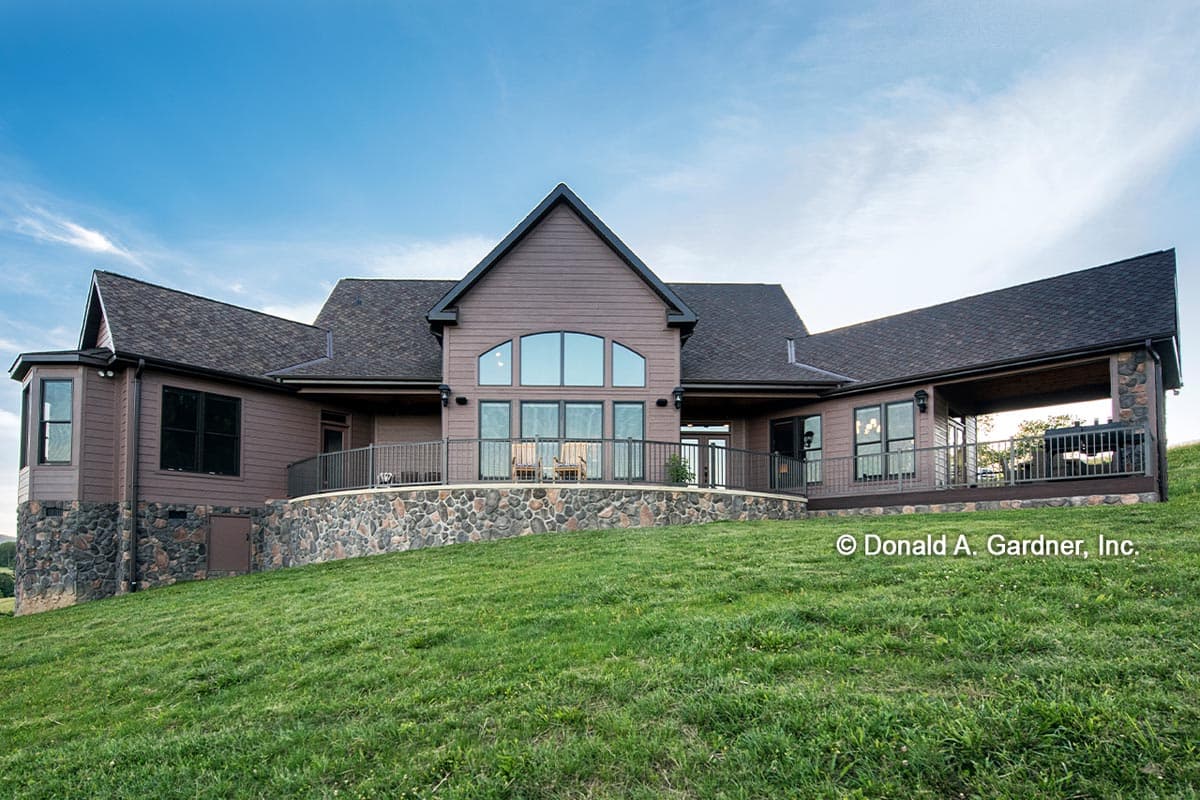

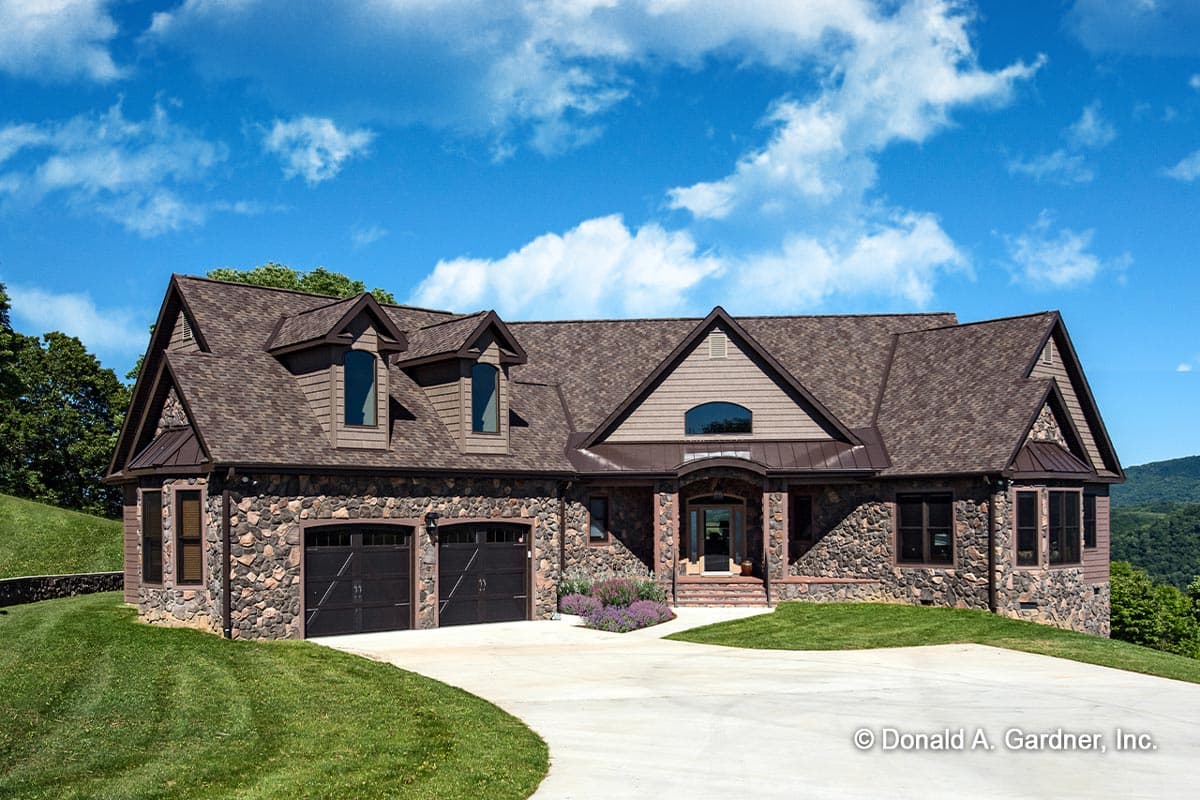

  • Stone and horizontal siding encase this 4-bedroom, Mountain Craftsman home plan; a total of 2,940 square feet of living space.

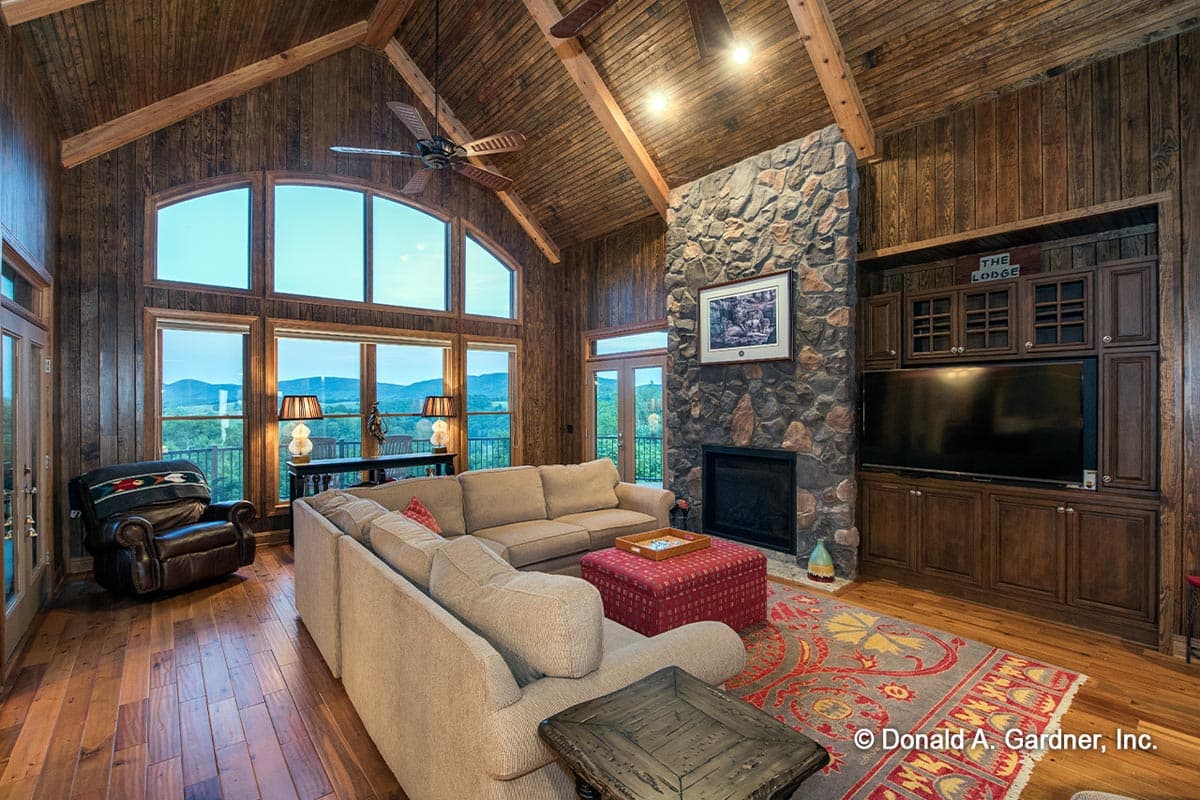

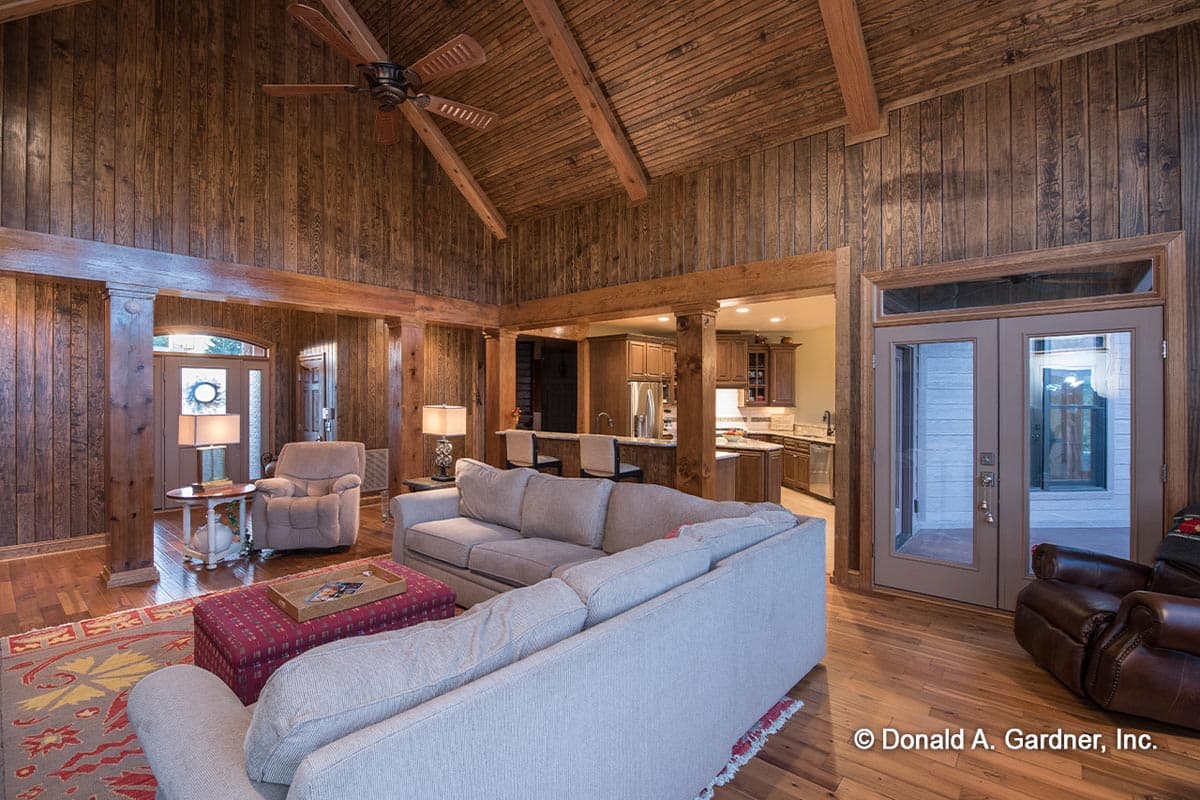

  • The x-shaped footprint offers secluded spaces for family and guests to spread out, or come together in the open, central great room.

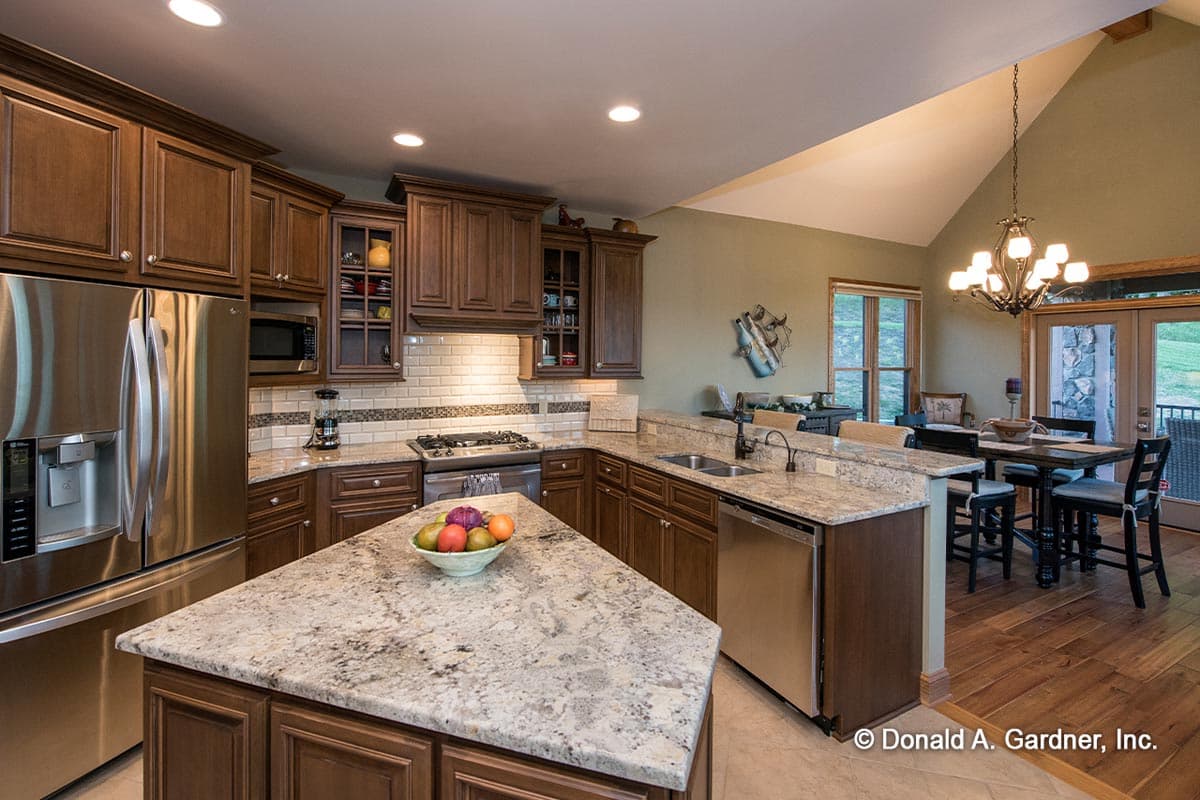

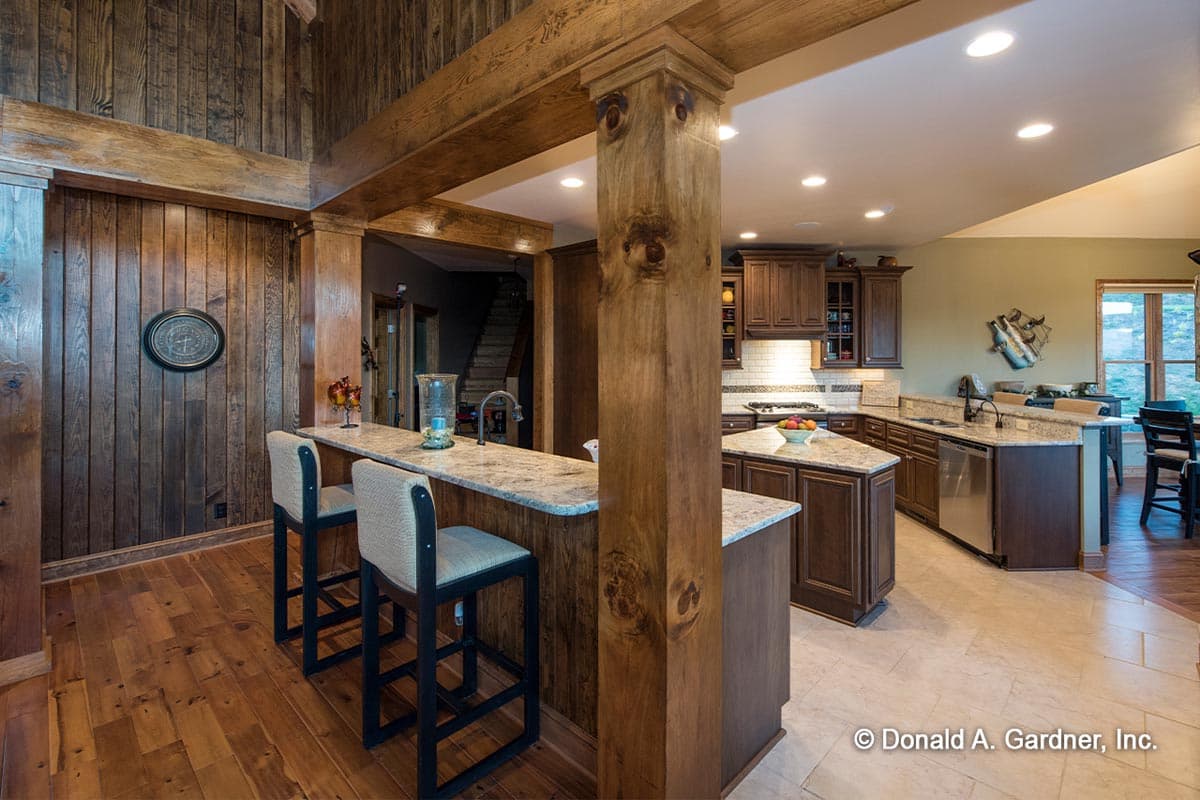

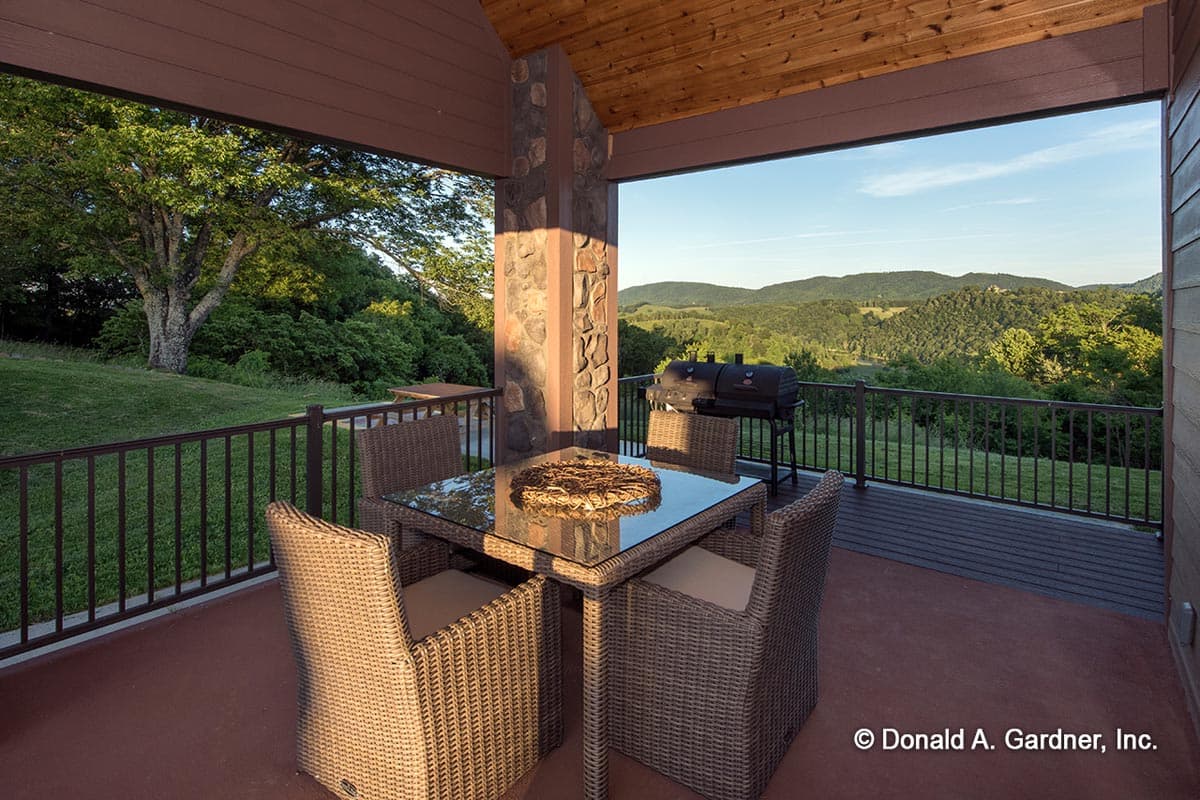

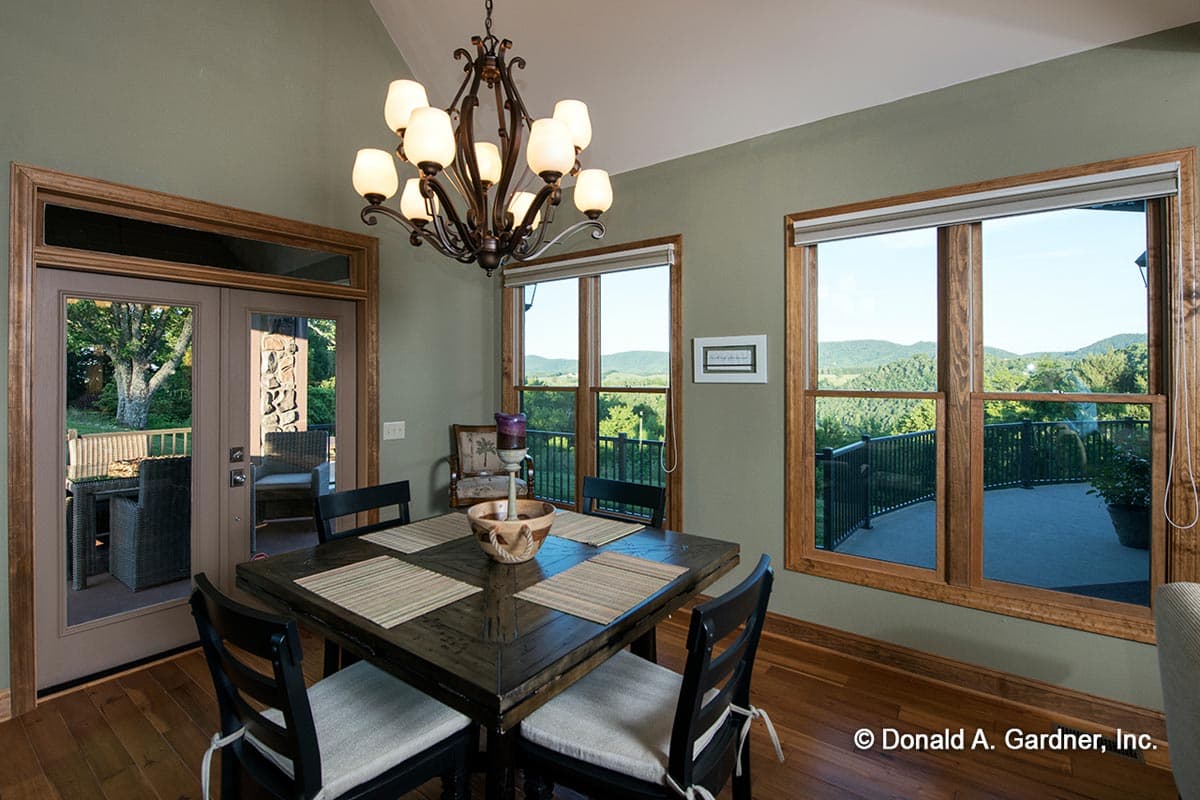

  • The spacious kitchen provides a prep island and eating bar that connects with the dining area, and the attached screened porch includes a fireplace and skylights.

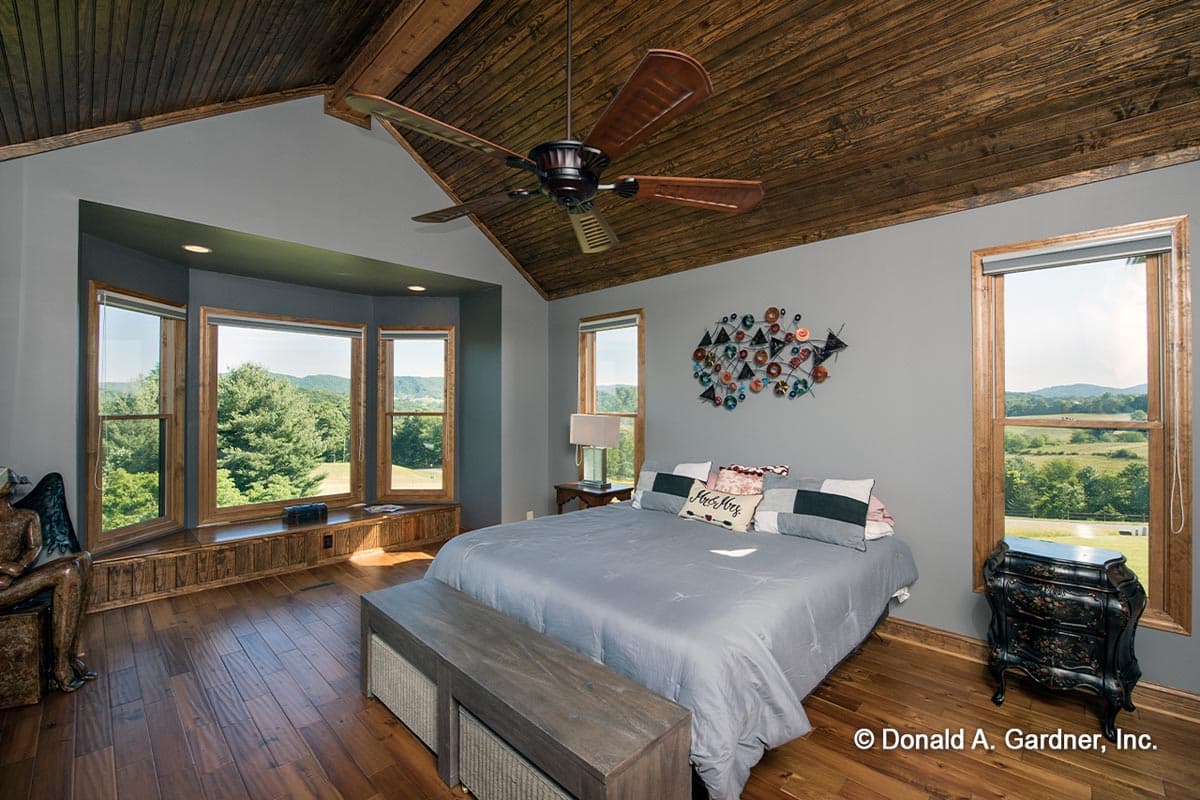

  • The master bedroom wing features its own foyer with an art niche, along with a study (or fourth bedroom).
  • Two family bedrooms are located just inside from the double garage, and a sizable bonus room offers a versatile space, complete with skylights and two dormer windows.
  • Please allow 15 to 20 days for delivery if it includes 2x6 upgrade.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

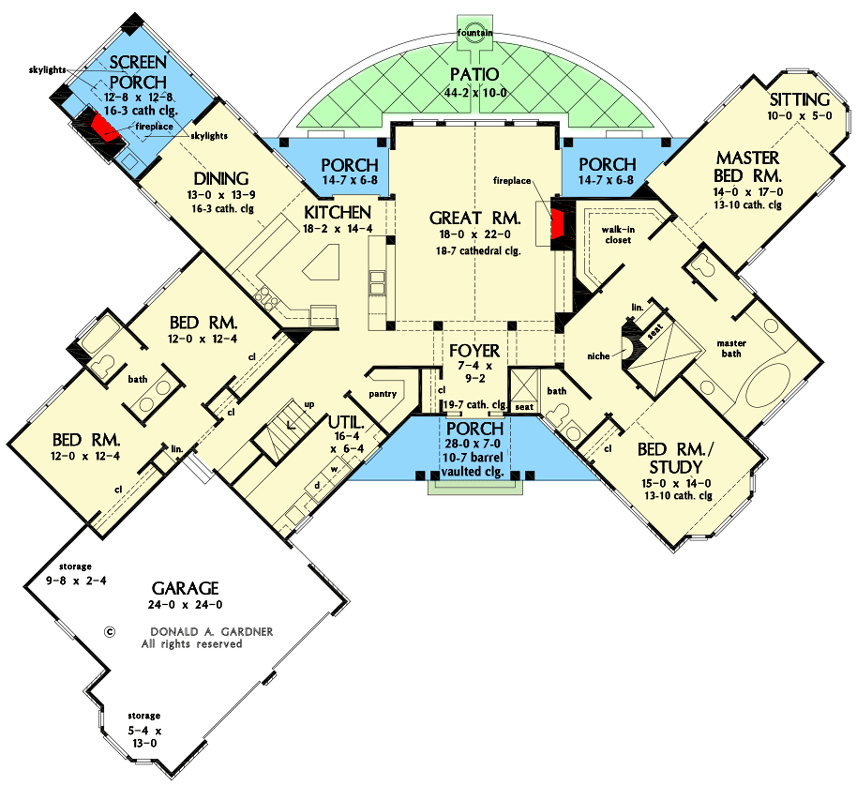

4-Bed Mountain Craftsman with Basement Option - 444166GDN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

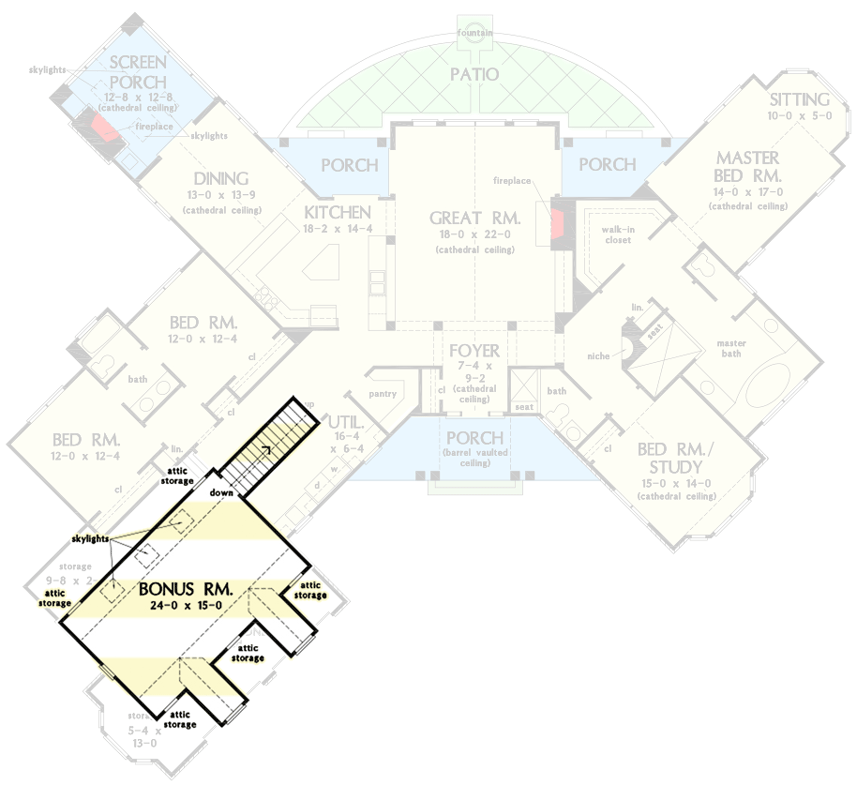

4-Bed Mountain Craftsman with Basement Option - 444166GDN floor plan - Bonus Room

Basement Stair Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

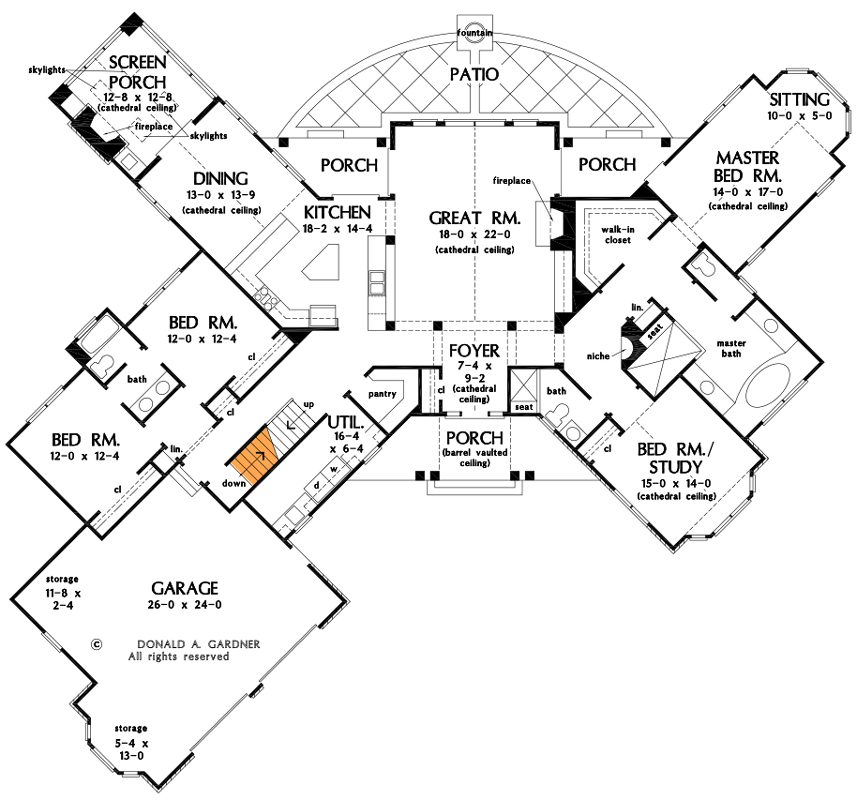

4-Bed Mountain Craftsman with Basement Option - 444166GDN floor plan - Basement Stair Location

4-Bed Mountain Craftsman with Basement Option

  • 2,950

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus Room

  • Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total: 2,950 sq. ft.
  • 1st Floor: 2,950 sq. ft.

Dimensions

  • Width: 94' 11"
  • Depth: 86' 2"
  • Max ridge height: 28' 1"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 681 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
