Plan 35231GH

4-Bed Mountain Home Plan with a Lower Level

Heated S.F.
4,022
Beds
4
Baths
3.5
Stories
1

Floor Plan

Plan 35231GH

Main Level
Main Level
Basement
Basement

Plan 35231GH

M-F 9am-5pm EST |

1-203-761-8500

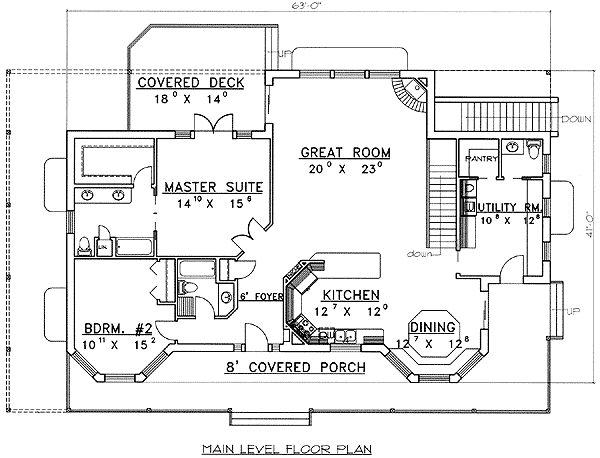

Main Level

Plan 35231GH: 4-Bed Mountain Home Plan with a Lower Level - Floor Plan - Main Level - Country, Mountain

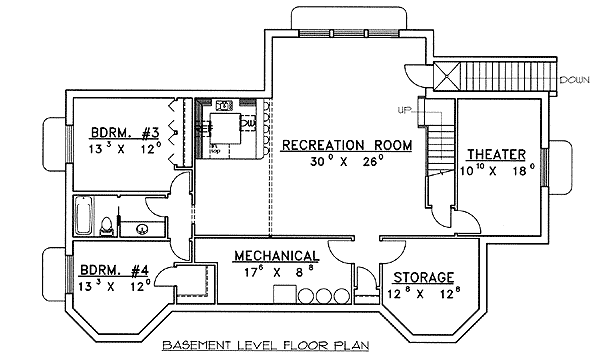

Basement

Plan 35231GH: 4-Bed Mountain Home Plan with a Lower Level - Floor Plan - Basement - Country, Mountain

Plan Details

  • This 4-bed mountain home plan gives you 4022 square feet of heated living and is designed with a finished lower level.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

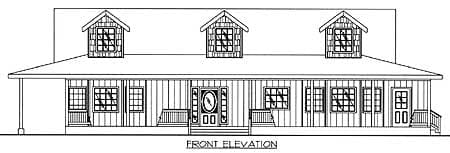

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,022 sq. ft.

Lower Level

2,011 sq. ft.

1st Floor

2,011 sq. ft.

Porch, Front

743 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

ICF

Dimensions

Width

63' 0"

Depth

41' 0"

Max Ridge Height

22' 0"

Ceiling Heights

Lower Level

9' 8"

First Floor

9'

Roof Details

Primary Pitch

N on N

Secondary Pitch

9 on 12

Architectural Style

Country

Mountain

Special Features

Bedrooms - Clustered

Breakfast Nook

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar

Wraparound Porch

Plan Collections

Metric

Square Footage Breakdown

Total Heated Area

4,022 sq. ft.

Lower Level

2,011 sq. ft.

1st Floor

2,011 sq. ft.

Porch, Front

743 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

ICF

Dimensions

Width

63' 0"

Depth

41' 0"

Max Ridge Height

22' 0"

Ceiling Heights

Lower Level

9' 8"

First Floor

9'

Roof Details

Primary Pitch

N on N

Secondary Pitch

9 on 12

Architectural Style

Country

Mountain

Special Features

Bedrooms - Clustered

Breakfast Nook

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar

Wraparound Porch

Plan Collections

Metric
