Plan 710430BTZ
4-Bed New American Farmhouse with 3-Car Garage - 3335 Sq Ft
Heated S.F.
3,335
Beds
4
Baths
4
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS

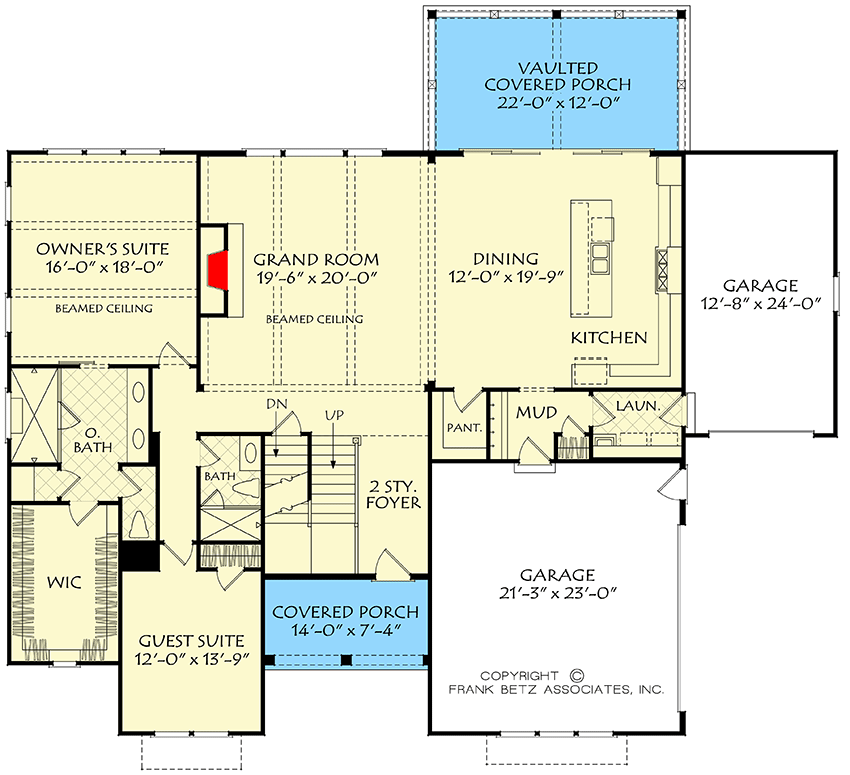

Main Level
Reverse Floor Plan
4-Bed New American Farmhouse with 3-Car Garage - 3335 Sq Ft - 710430BTZ floor plan - Main Level

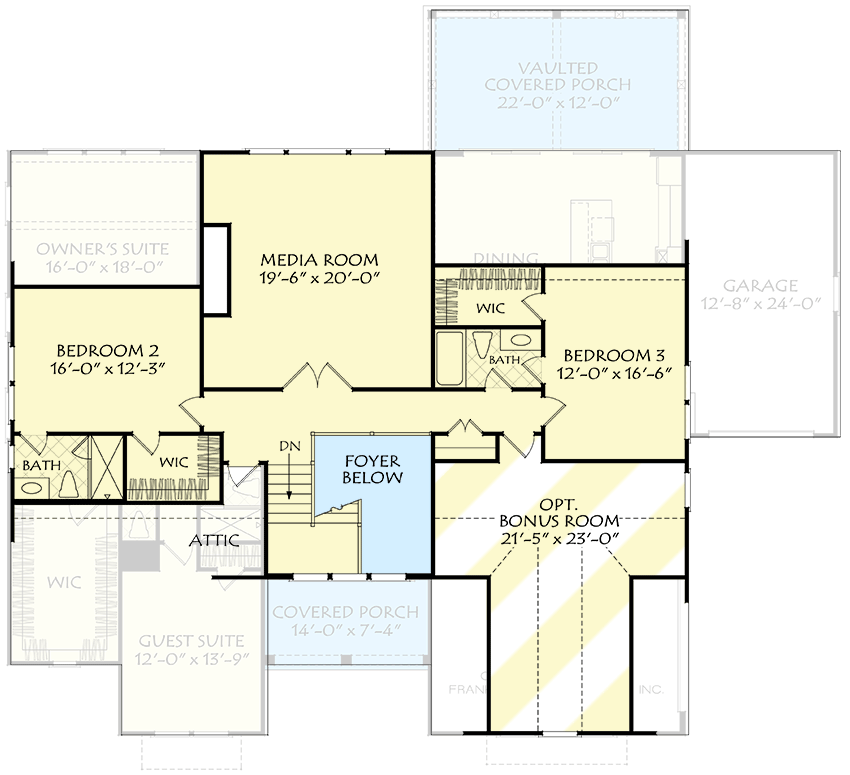

2nd Floor
Reverse Floor Plan
4-Bed New American Farmhouse with 3-Car Garage - 3335 Sq Ft - 710430BTZ floor plan - 2nd Floor

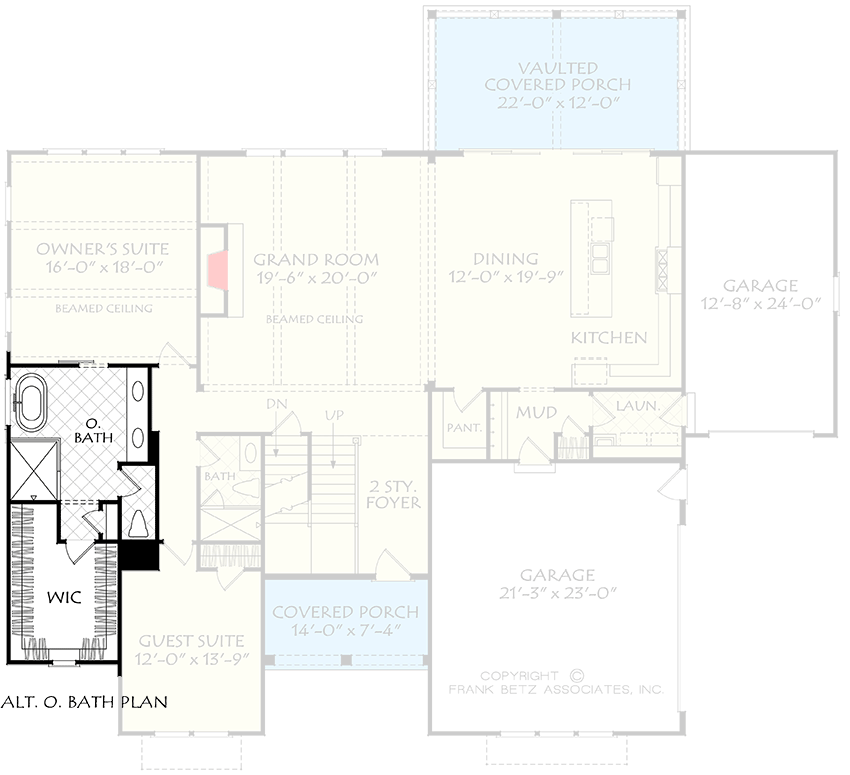

Optional Main Level Layout
Reverse Floor Plan
4-Bed New American Farmhouse with 3-Car Garage - 3335 Sq Ft - 710430BTZ floor plan - Optional Main Level Layout
Plan Details
  • This 4 bed, 4 bath house plan gives you 3335 square feet of heated living space and has an attractive exterior with fieldstone along with clapboard siding with an decorative shed dormer above the entry porch. Metal roofing accents and timber columns blend very well with this farmhouse style exterior.
  • The main level of this New American house plan is open concept and filled with natural light and has great outdoor views due to large, well-placed door and window groupings. The grand room has a beamed ceiling and a fireplace in which to gather and enjoy the space. The kitchen and dining spaces are adjacent to fully utilize the common area.
  • The owner's suite has a detailed ceiling and is sized to accommodate all the desired furnishings. The owner's bath has two options, one with a large shower only and two with a soaking tub and shower. There is also a guest suite on the lower level, perfect for an elderly parent or a work from home locale.
  • The upper level has two additional bedrooms with attached baths and walk-in-closets. The media room is perfectly located for all to enjoy and provides additional living space. The optional bonus room can be added for additional square footage (it adds 394 square feet of living space when finished) and can be put to many uses.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed New American Farmhouse with 3-Car Garage - 3335 Sq Ft

  • 3,335

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Main Level Layout

Plan Details

Square Footage Breakdown

  • Total: 3,335 sq. ft.
  • 1st Floor: 2,147 sq. ft.
  • 2nd Floor: 1,188 sq. ft.

Dimensions

  • Width: 71' 0"
  • Depth: 62' 0"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 510 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
