4-Bed New American House Plan with Main-Level Master
Heated S.F.
2,224
Beds
4
Baths
2.5
Stories
2
Cars
2
Photos
What's Included
Plan Details
  • Four beams support the wrap-around porch, while metal roof accents atop the rain awnings and porch provide a modern twist to this New American house plan.
  • Once past the threshold, the heart of the home greets you with an open floor plan. The fireplace in the great room offers a sense of warmth, and sliding doors in the dining room lead to the porch.
  • Retreat to the serene master bedroom on the main level, which features a 4-fixture bath and walk-in closet.
  • Discover three additional bedrooms on the second level, which share a full bath. A spacious bonus room - factored into the 1,900 sq. ft. total living area figure - atop the 2-car garage offers a space for the kids to enjoy.
  • The double garage leads into a mud / laundry room with a coat closet.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed New American House Plan with Main-Level Master

  • 2,224

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

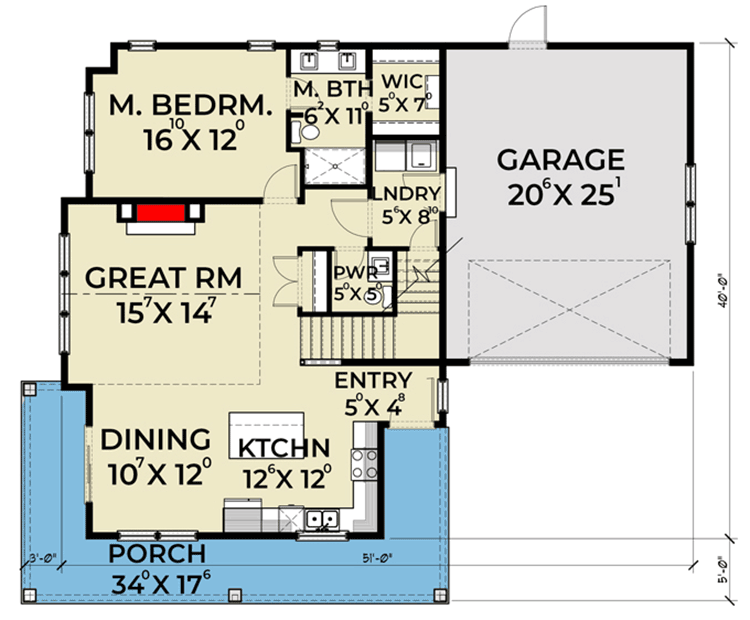

  • Main Level

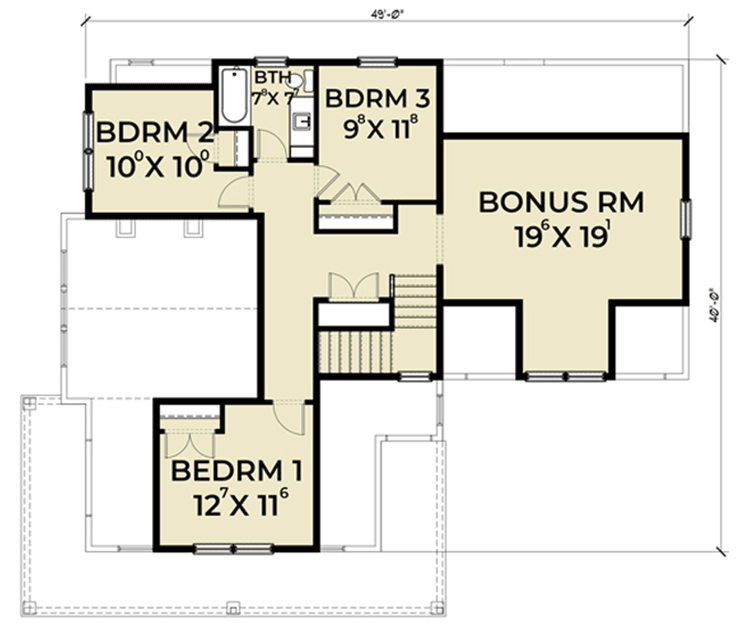

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,224 sq. ft.
  • 1st Floor: 1,173 sq. ft.
  • 2nd Floor: 669 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 40' 0"
  • Max ridge height: 28' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 598 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

4-Bed New American House Plan with Main-Level Master

  • 2,224

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

4-Bed New American House Plan with Main-Level Master

  • 2,224

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,224 sq. ft.
  • 1st Floor: 1,173 sq. ft.
  • 2nd Floor: 669 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 40' 0"
  • Max ridge height: 28' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 598 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor
