Plan 24128BG 4-Bed Rugged Craftsman Home Plan for the Rear-sloping Waterfront or Mountain Lot

4-Bed Rugged Craftsman Home Plan for the Rear-sloping Waterfront or Mountain Lot

Plan 24128BG

  • 3,884

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Designed for your rear-sloping lot, one with great mountain or water views, this 4-bed house plan has a rugged Craftsman exterior with a blend of shingles, board and batten and clapboard siding, with a touch of stone and timbers. A vaulted entry porch leads you to a pair of French doors that welcome you inside.
  • A vaulted foyer leads to a vaulted great room with tremendous views to the back. A fireplace on the left can be seen from the dining room.
  • The kitchen has a large island with seating at the counter. Pantry storage is conveniently located to the kitchen and the garage making unloading groceries a breeze.
  • The covered balcony is accessible from both bedrooms on the main floor as well as the great room and dining room. There's an outdoor fireplace and kitchen on the right side and stairs that take you down to the back yard.
  • The master suite has vaulted ceilings and a pair of French doors that open to the covered balcony. There are two walk-in closets, two vanities and a huge walk-in shower in the bathroom.
  • Downstairs, you'll find a game room with bar and a bedroom to each side with access to the covered deck. There is also storage, a safe room, mechanical room and an exercise space - great for a treadmill or Peleton - so you can stay fit if the weather is crummy.
  • Stairs in the 2-car garage go to a storage space above.
  • NOTE: This plan cannot be built in Fannin County, Georgia

Plans include the following:

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan

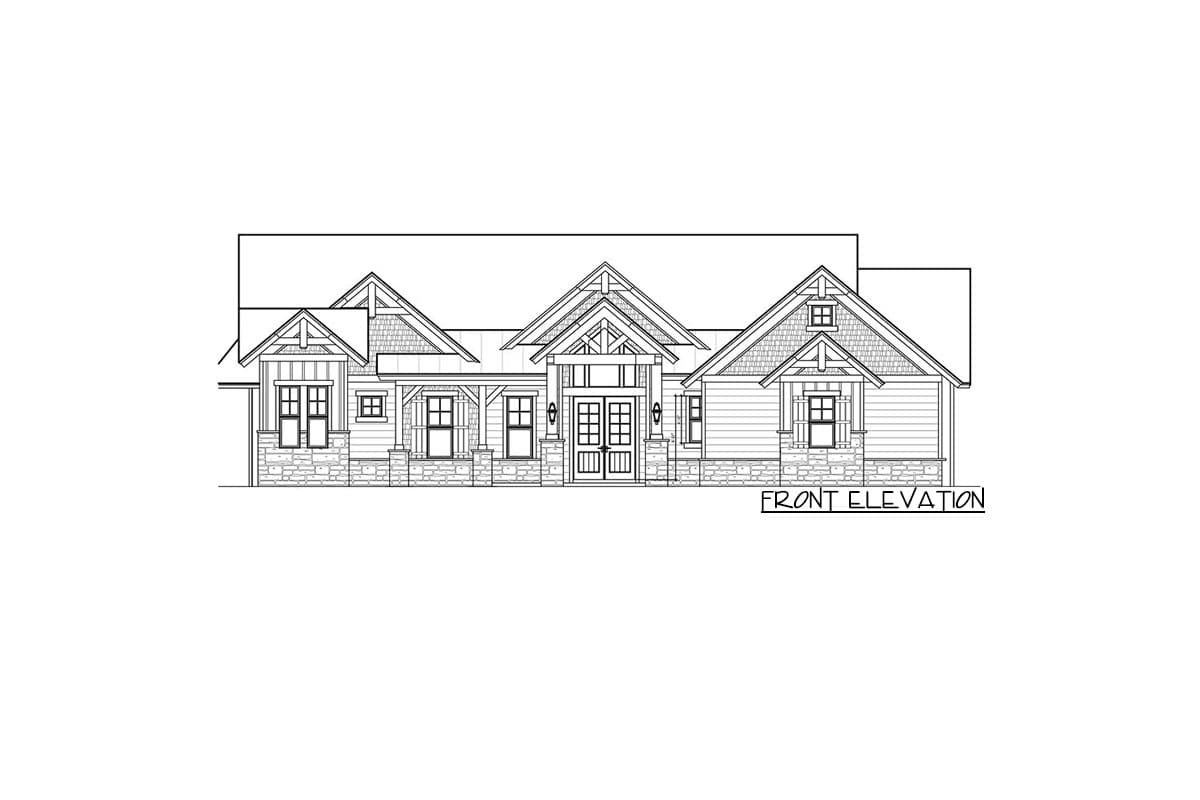

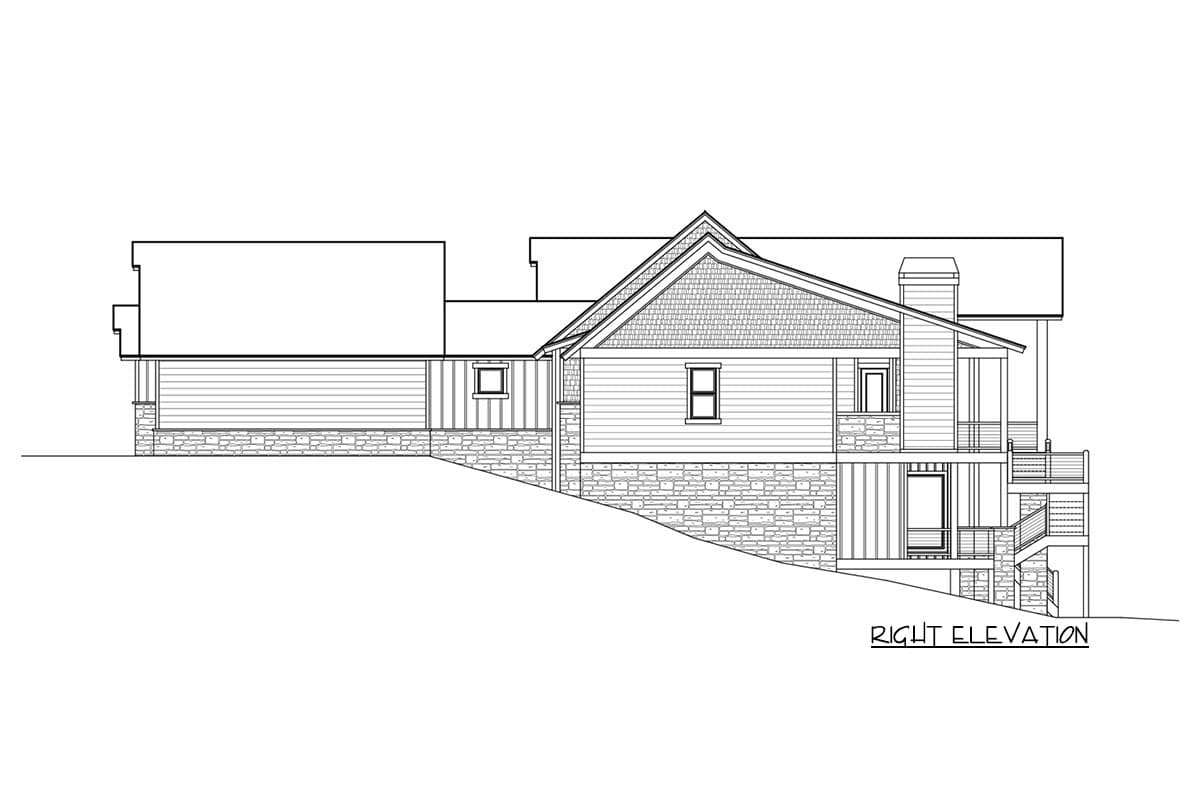

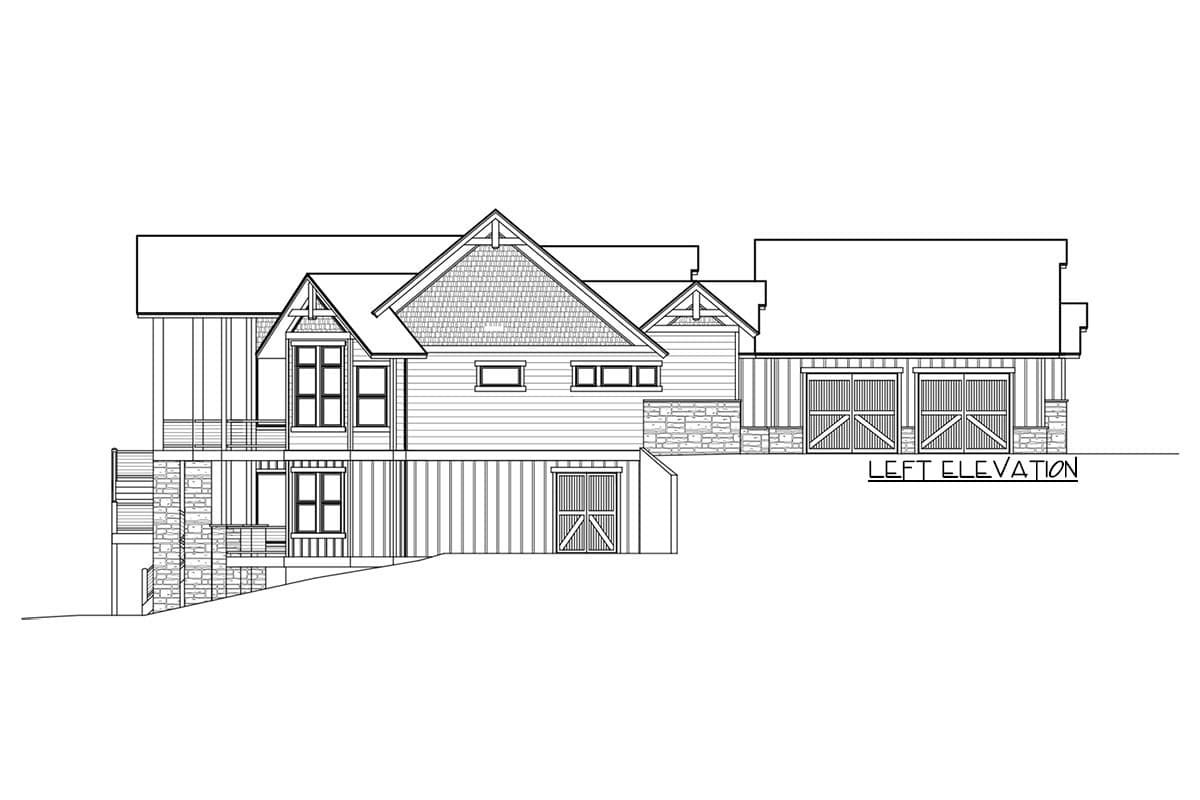

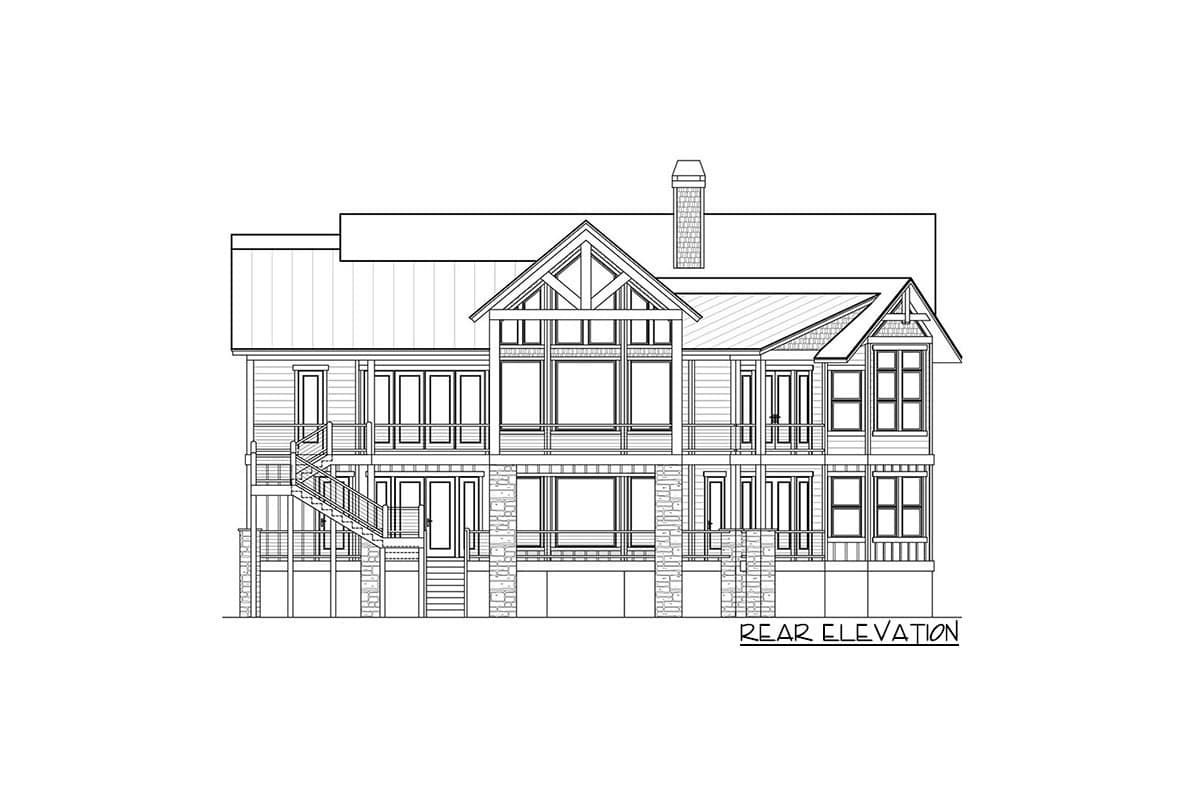

  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

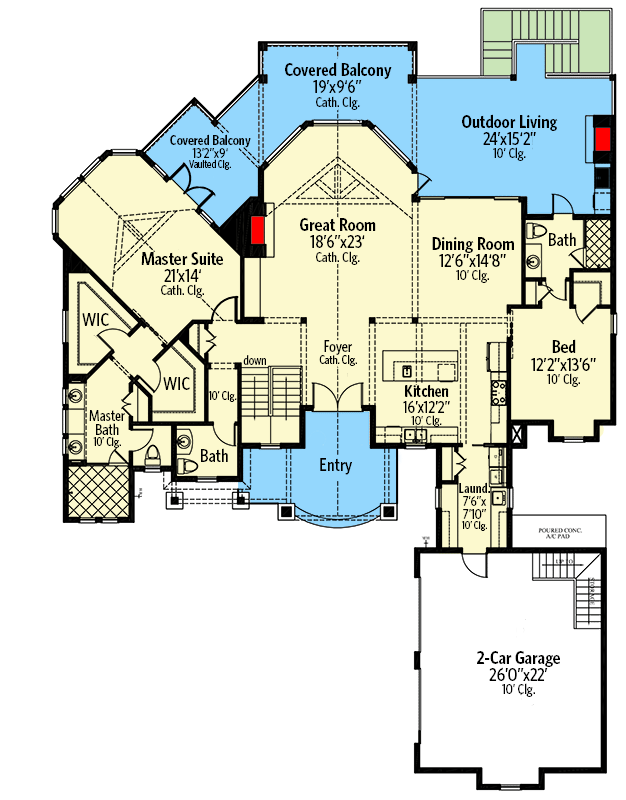

4-Bed Rugged Craftsman Home Plan for the Rear-sloping Waterfront or Mountain Lot - 24128BG floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

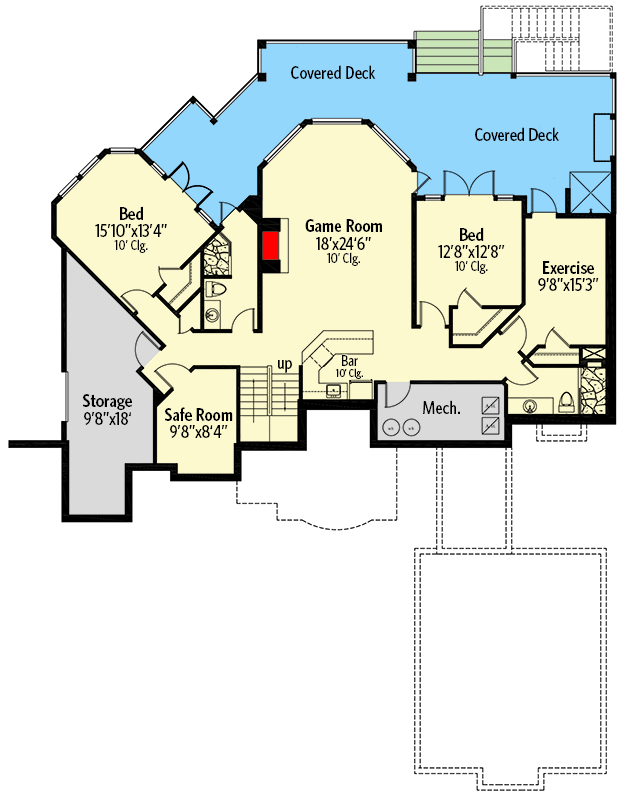

4-Bed Rugged Craftsman Home Plan for the Rear-sloping Waterfront or Mountain Lot - 24128BG floor plan - Lower Level

Plan details

4-Bed Rugged Craftsman Home Plan for the Rear-sloping Waterfront or Mountain Lot

  • 3,884

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD - Single-Build $2,695
  • View all purchase option online

About This Plan

  • Designed for your rear-sloping lot, one with great mountain or water views, this 4-bed house plan has a rugged Craftsman exterior with a blend of shingles, board and batten and clapboard siding, with a touch of stone and timbers. A vaulted entry porch leads you to a pair of French doors that welcome you inside.
  • A vaulted foyer leads to a vaulted great room with tremendous views to the back. A fireplace on the left can be seen from the dining room.
  • The kitchen has a large island with seating at the counter. Pantry storage is conveniently located to the kitchen and the garage making unloading groceries a breeze.
  • The covered balcony is accessible from both bedrooms on the main floor as well as the great room and dining room. There's an outdoor fireplace and kitchen on the right side and stairs that take you down to the back yard.
  • The master suite has vaulted ceilings and a pair of French doors that open to the covered balcony. There are two walk-in closets, two vanities and a huge walk-in shower in the bathroom.
  • Downstairs, you'll find a game room with bar and a bedroom to each side with access to the covered deck. There is also storage, a safe room, mechanical room and an exercise space - great for a treadmill or Peleton - so you can stay fit if the weather is crummy.
  • Stairs in the 2-car garage go to a storage space above.
  • NOTE: This plan cannot be built in Fannin County, Georgia

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,884 sq. ft.
  • Lower Level: 1,547 sq. ft.
  • 1st Floor: 2,337 sq. ft.
  • Deck: 732 sq. ft.
  • Porch, Front: 192 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 8"
  • Depth: 90' 0"
  • Max ridge height: 21' 0"

Garage

  • Type: Detached
  • Area: 584 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
