Plan 710109BTZ 4-Bed Timeless Classic with Bonus Over The Garage

4-Bed Timeless Classic with Bonus Over The Garage

Plan 710109BTZ

  • 3,125

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • With vertical siding, cedar shakes, stone and brick this 4-bed house plan embodies all the elements of a truly classic home.
  • The foyer boasts decorative columns to frame the entryway.
  • The open floor plan allows an easy flow from room to room, making entertaining a breeze.
  • A vaulted covered porch and deck allow homeowners to enjoy the outdoors regardless of the weather.
  • The master occupies the entire left side of the home. A second bedroom is located across the home and makes a great guest room. Upstairs you'll find two more bedrooms plus a large bonus room over the garage.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Plan details



4-Bed Timeless Classic with Bonus Over The Garage

  • 3,125

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,490
  • 8 Sets $1,580
  • PDF - Unlimited Build $1,730
  • CAD - Unlimited Build $3,300
  • View all purchase option online

About This Plan

  • With vertical siding, cedar shakes, stone and brick this 4-bed house plan embodies all the elements of a truly classic home.
  • The foyer boasts decorative columns to frame the entryway.
  • The open floor plan allows an easy flow from room to room, making entertaining a breeze.
  • A vaulted covered porch and deck allow homeowners to enjoy the outdoors regardless of the weather.
  • The master occupies the entire left side of the home. A second bedroom is located across the home and makes a great guest room. Upstairs you'll find two more bedrooms plus a large bonus room over the garage.

Floor Plans

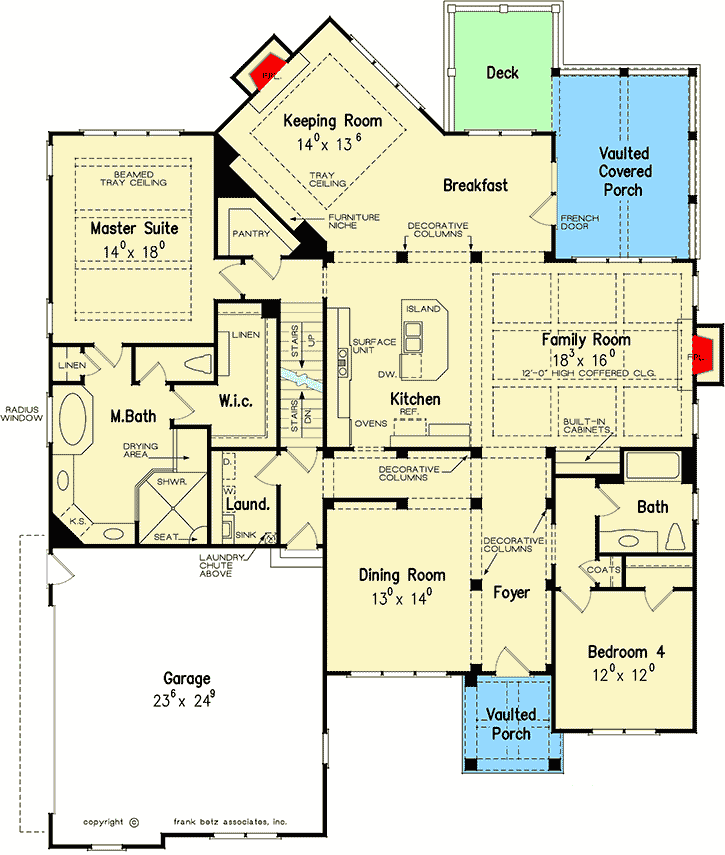

  • Main Level

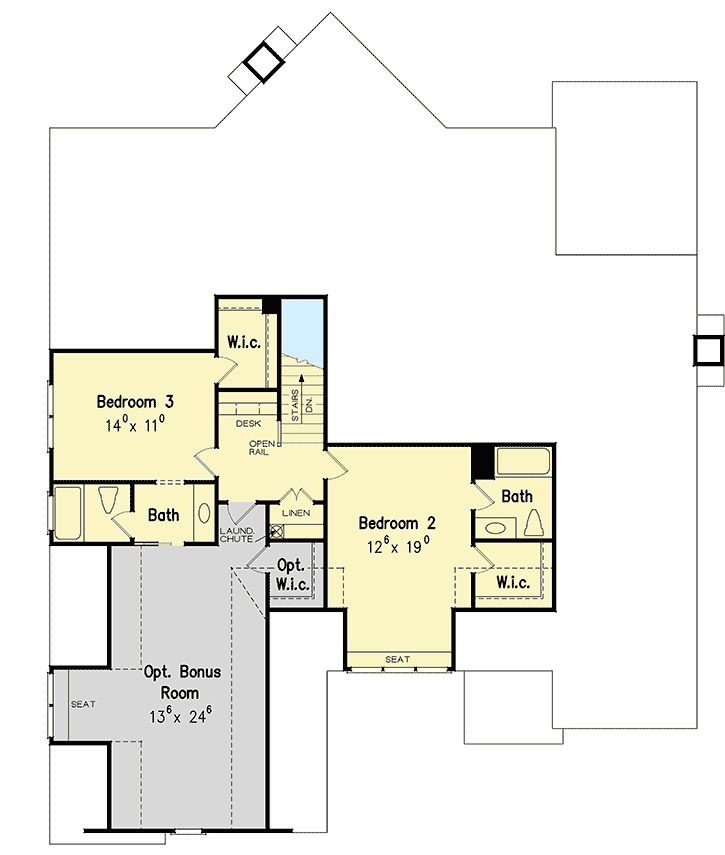

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,125 sq. ft.
  • 1st Floor: 2,399 sq. ft.
  • 2nd Floor: 726 sq. ft.
  • Bonus: 425 sq. ft.
  • Basement Unfinished: 2,399 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 58' 4"
  • Depth: 72' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 607 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
