Plan 59902ND

4-Bed Traditional House Plan with Bonus Room

Heated S.F.
2,135
Beds
4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59902ND

Main Level
Main Level
Bonus
Bonus

Plan 59902ND

M-F 9am-5pm EST |

1-203-761-8500

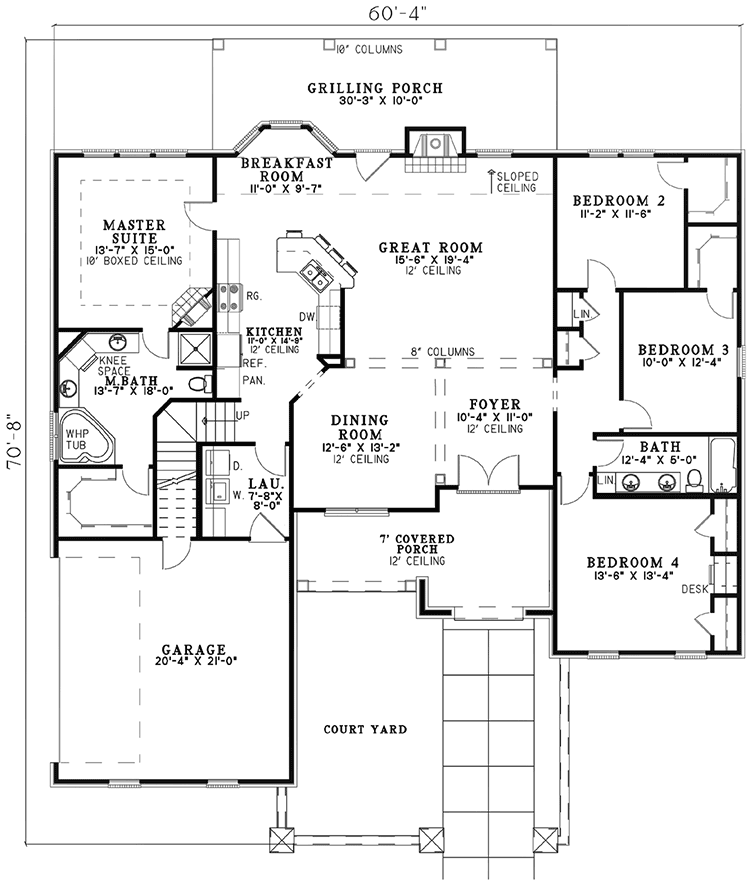

Main Level

Plan 59902ND: 4-Bed Traditional House Plan with Bonus Room - Floor Plan - Main Level - Traditional

Bonus

Plan 59902ND: 4-Bed Traditional House Plan with Bonus Room - Floor Plan - Bonus - Traditional

Plan Details

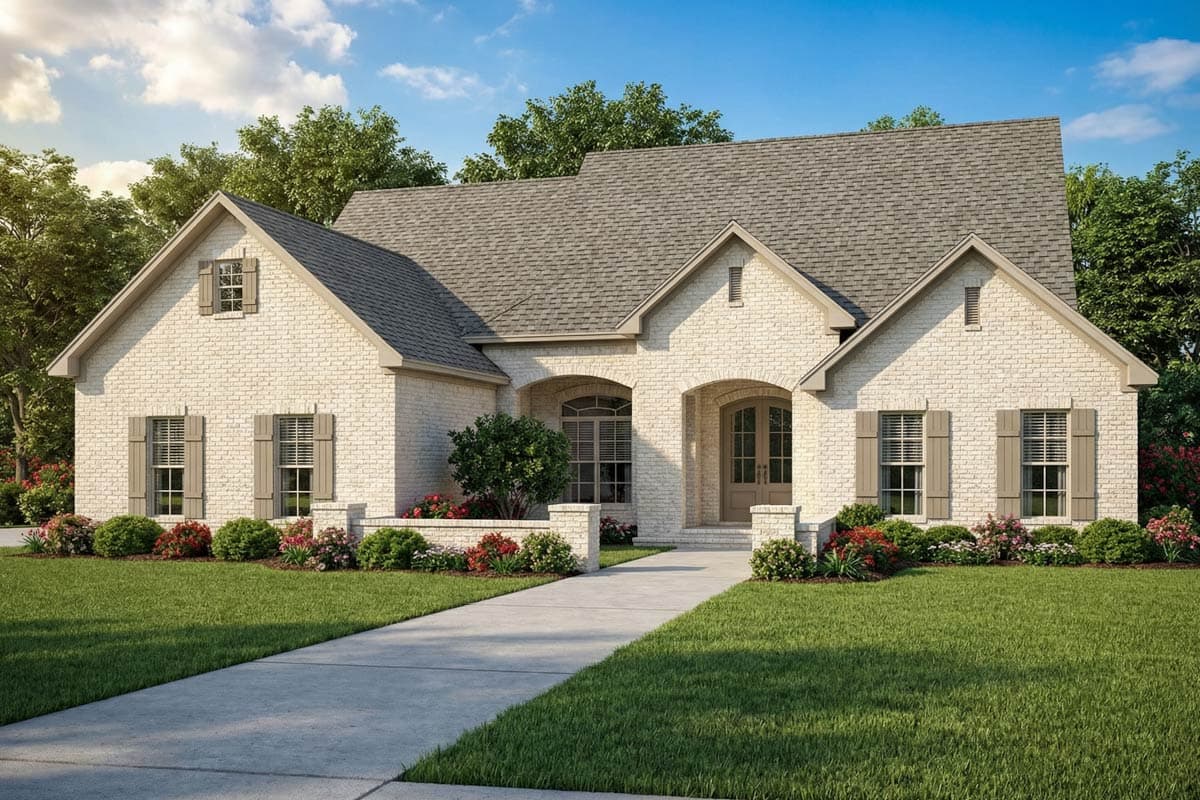

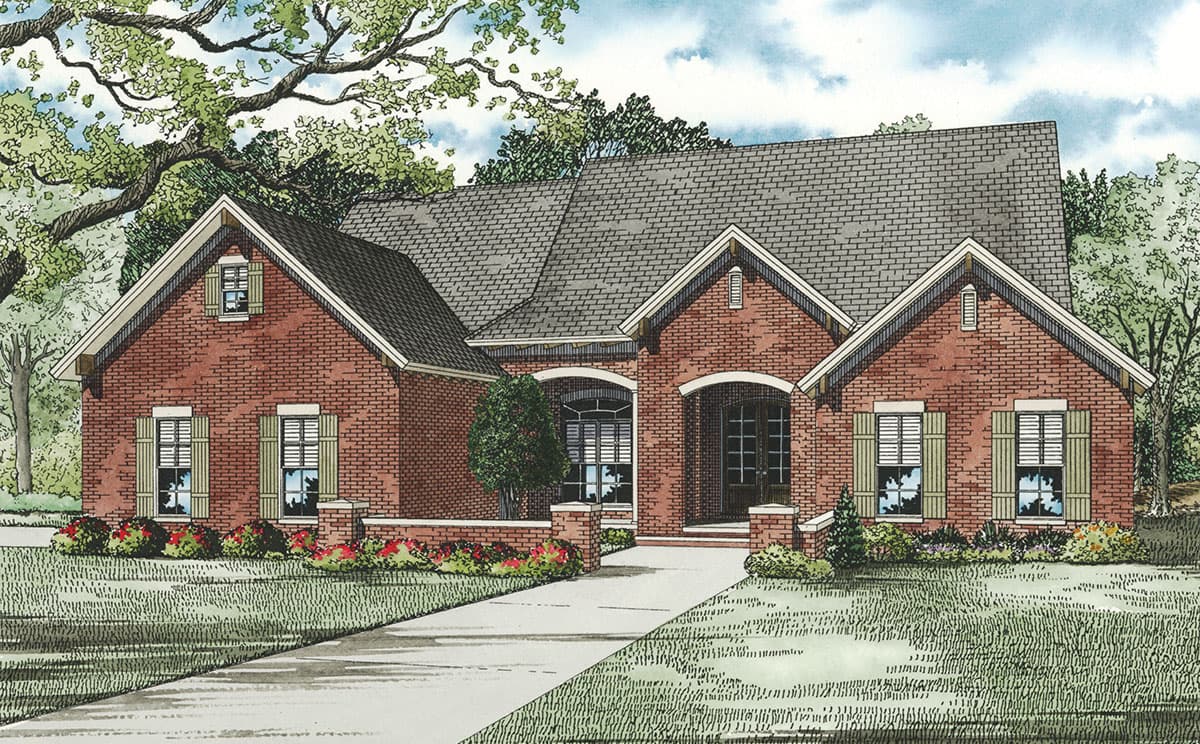

  • This 4-bed house plan has a Traditional exterior and gives you one-level living with an optional bonus room over the garage.
  • The main floor has a split bedroom layout leaving the center of the home for entertaining.
  • The great room has a fireplace with a door to the side opening to the grilling porch.
  • Related Plan: Get an alternate exterior with house plan 59852ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,135 sq. ft.

1st Floor

2,135 sq. ft.

Bonus

285 sq. ft.

Porch, Front

188 sq. ft.

Porch, Rear

300 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 4"

Depth

70' 8"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

478 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Courtyard

Master Suite - 1st Floor

Optionally Finished Bonus Room
