Plan 430145LY

4-Bed Transitional House Plan with Game Room - 4386 Sq Ft

Heated S.F.
4,386
Beds
4
Baths
4.5+
Stories
2
Cars
2

Floor Plan

Plan 430145LY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 430145LY

M-F 9am-5pm EST |

1-203-761-8500

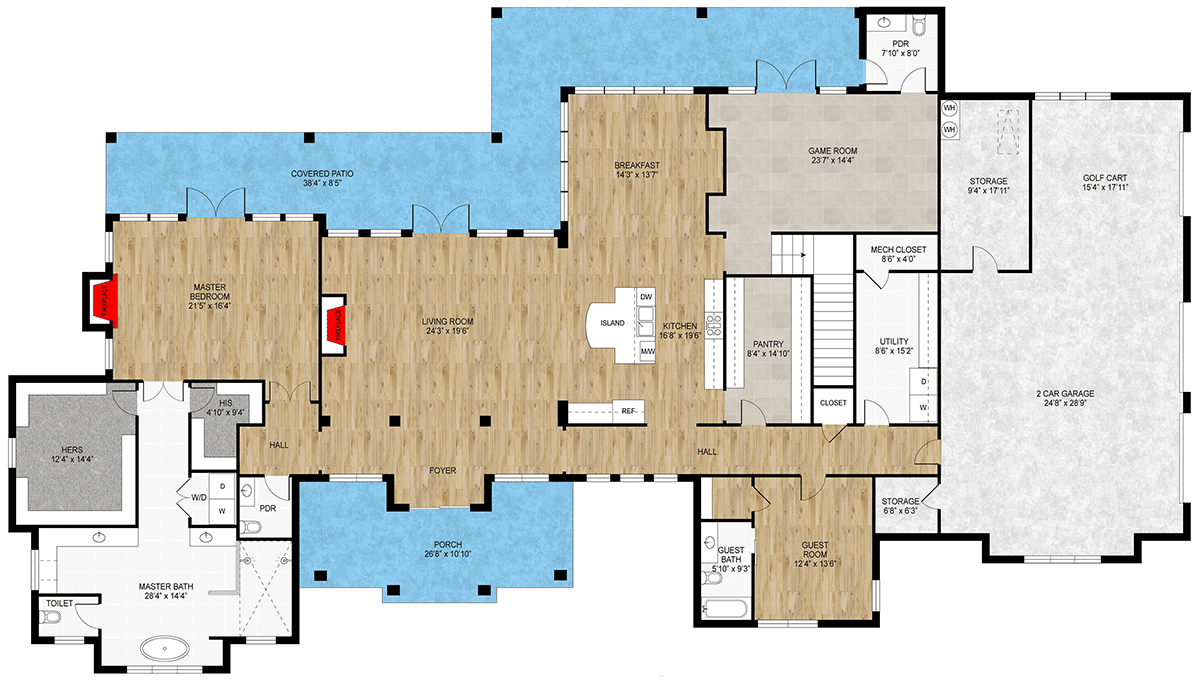

Main Level

Plan 430145LY: 4-Bed Transitional House Plan with Game Room - 4386 Sq Ft - Floor Plan - Main Level - Transitional

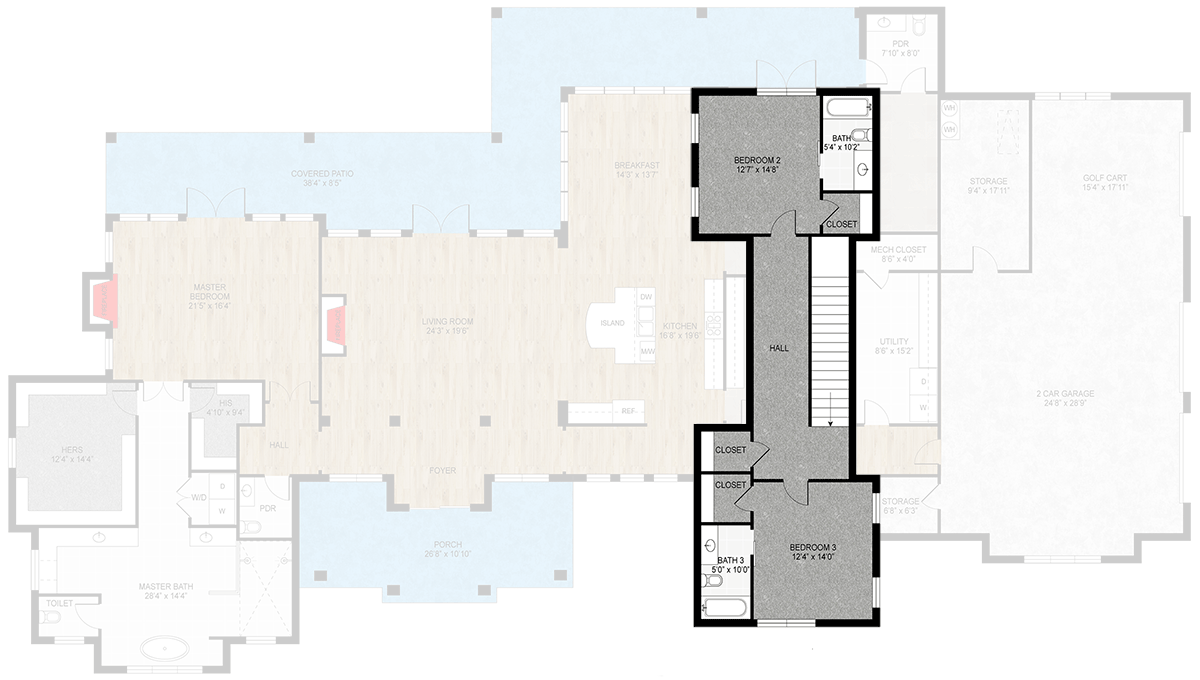

2nd Floor

Plan 430145LY: 4-Bed Transitional House Plan with Game Room - 4386 Sq Ft - Floor Plan - 2nd Floor - Transitional

Plan Details

  • This Transitional house plan offers you 4,386 square feet of heated living space with 4 beds, 4.5+ baths and a 1,163 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,386 sq. ft.

1st Floor

3,649 sq. ft.

2nd Floor

737 sq. ft.

Porch, Front

291 sq. ft.

Covered Patio

991 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

117' 8"

Depth

66' 2"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

1163 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Family Room

Vaulted

12' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Square Footage Breakdown

Total Heated Area

4,386 sq. ft.

1st Floor

3,649 sq. ft.

2nd Floor

737 sq. ft.

Porch, Front

291 sq. ft.

Covered Patio

991 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

117' 8"

Depth

66' 2"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

1163 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Family Room

Vaulted

12' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room
