4-Bed Transitional Tudor House Plan with Optionally Finished Lower Level - 3700 Sq Ft

Heated S.F.
3,694
Beds
4 - 6
Baths
4.5 - 5.5
Stories
2
Cars
3

Floor Plan

Plan 490118NAH

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 490118NAH

M-F 9am-5pm EST |

1-203-761-8500

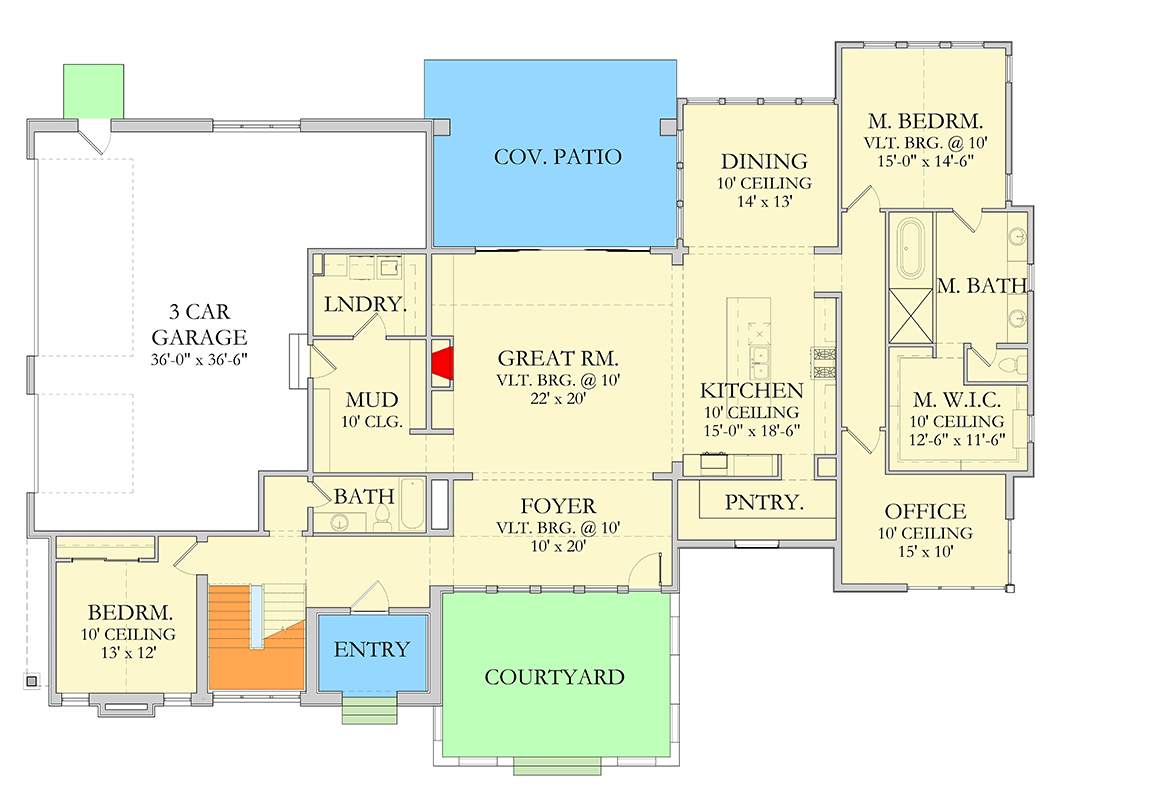

Main Level

Plan 490118NAH: 4-Bed Transitional Tudor House Plan with Optionally Finished Lower Level - 3700 Sq Ft - Floor Plan - Main Level - Modern, Transitional

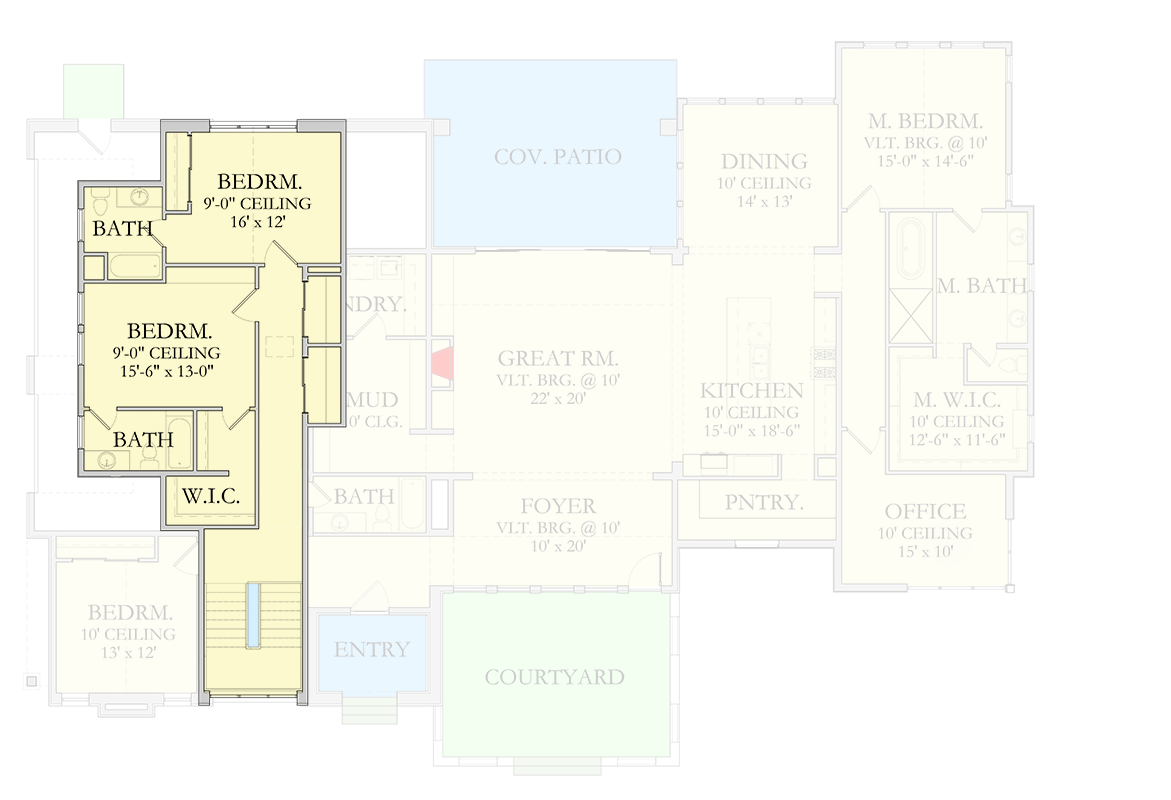

2nd Floor

Plan 490118NAH: 4-Bed Transitional Tudor House Plan with Optionally Finished Lower Level - 3700 Sq Ft - Floor Plan - 2nd Floor - Modern, Transitional

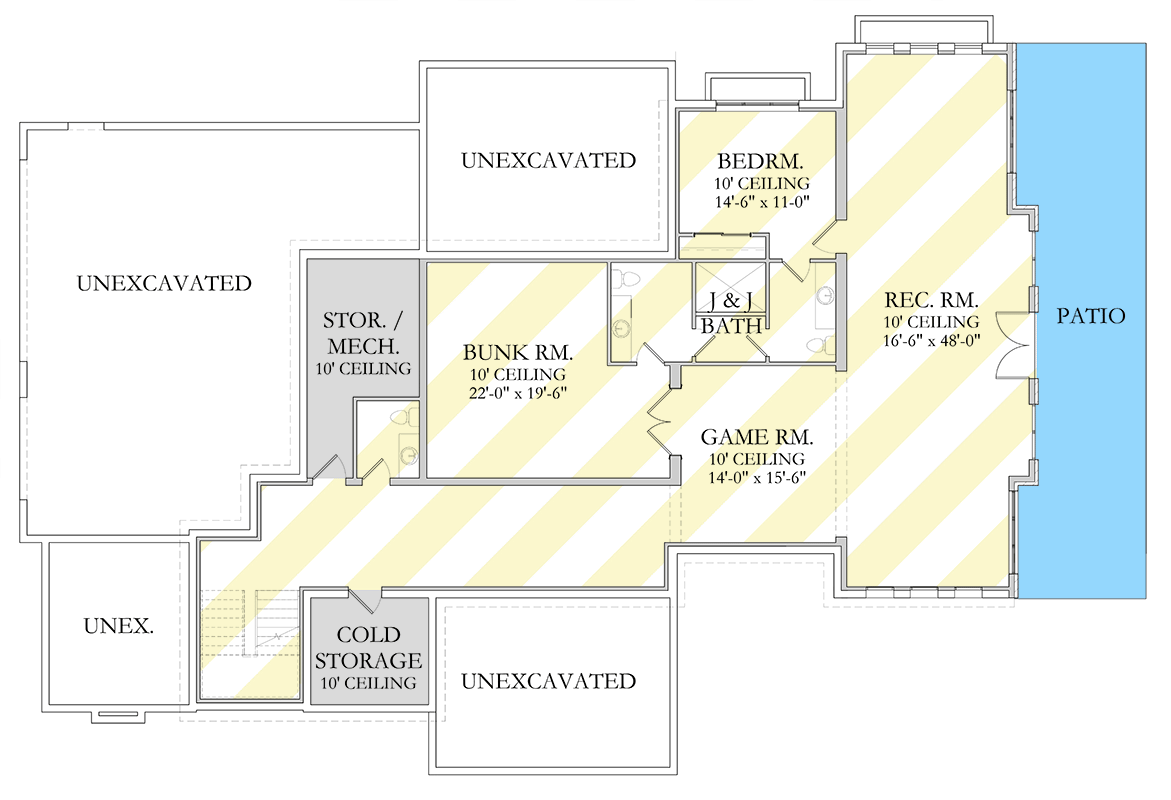

Optional Lower Level

Plan 490118NAH: 4-Bed Transitional Tudor House Plan with Optionally Finished Lower Level - 3700 Sq Ft - Floor Plan - Optional Lower Level - Modern, Transitional

Plan Details

  • This contemporary transitional-style house plan offers striking curb appeal with a perfect blend of classic and modern design. The open-concept floor plan  provides 3,694 square feet of living space, 4 bedrooms, and 4 full baths between 1.5 stories.
  • Inside, the open-concept layout connects the kitchen, dining, and living room for seamless living and entertaining.
  • The main-level primary suite features a large walk in closet, while upstairs, two additional bedrooms and two full baths. A large back patio provides an ideal space for outdoor gatherings.
  • The home also includes an optionally finished walkout basement, adding 2,401 square feet for a game room, rec. room, cold storage, and two more bedrooms connected by a jack and jill bath, making it perfect for growing families and entertaining guests.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,694 sq. ft.

1st Floor

2,849 sq. ft.

2nd Floor

845 sq. ft.

Optional Lower Level

2,401 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4 or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 0"

Depth

61' 5"

Max Ridge Height

32' 8"

Garage

Type

Attached

Area

1065 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

Modern

Transitional

Special Features

Bedrooms - Split

Courtyard

Flex Room

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wine Room

Square Footage Breakdown

Total Heated Area

3,694 sq. ft.

1st Floor

2,849 sq. ft.

2nd Floor

845 sq. ft.

Optional Lower Level

2,401 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4 or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 0"

Depth

61' 5"

Max Ridge Height

32' 8"

Garage

Type

Attached

Area

1065 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

Modern

Transitional

Special Features

Bedrooms - Split

Courtyard

Flex Room

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wine Room
