Plan 85020MS

4 Bedroom Mountain Home Plan

4,092 4 4 1 3
Pageloader

4 Bedroom Mountain Home Plan

Plan 85020MS

  • 4,092

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

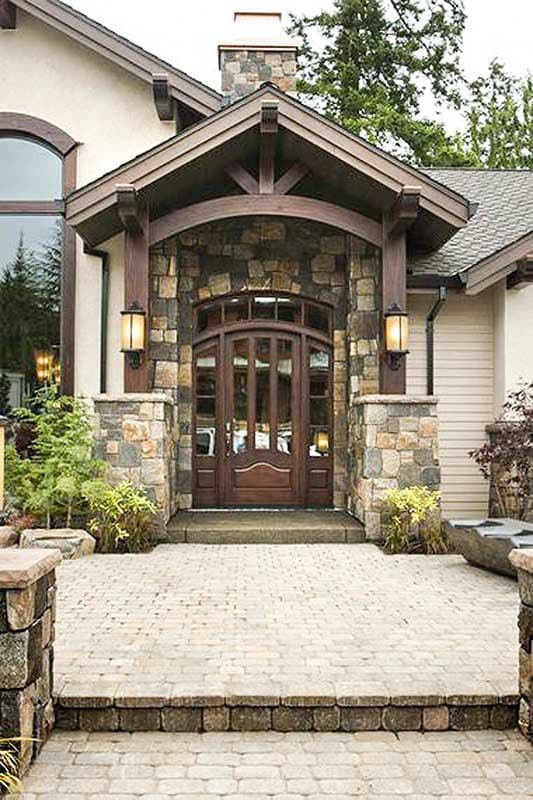

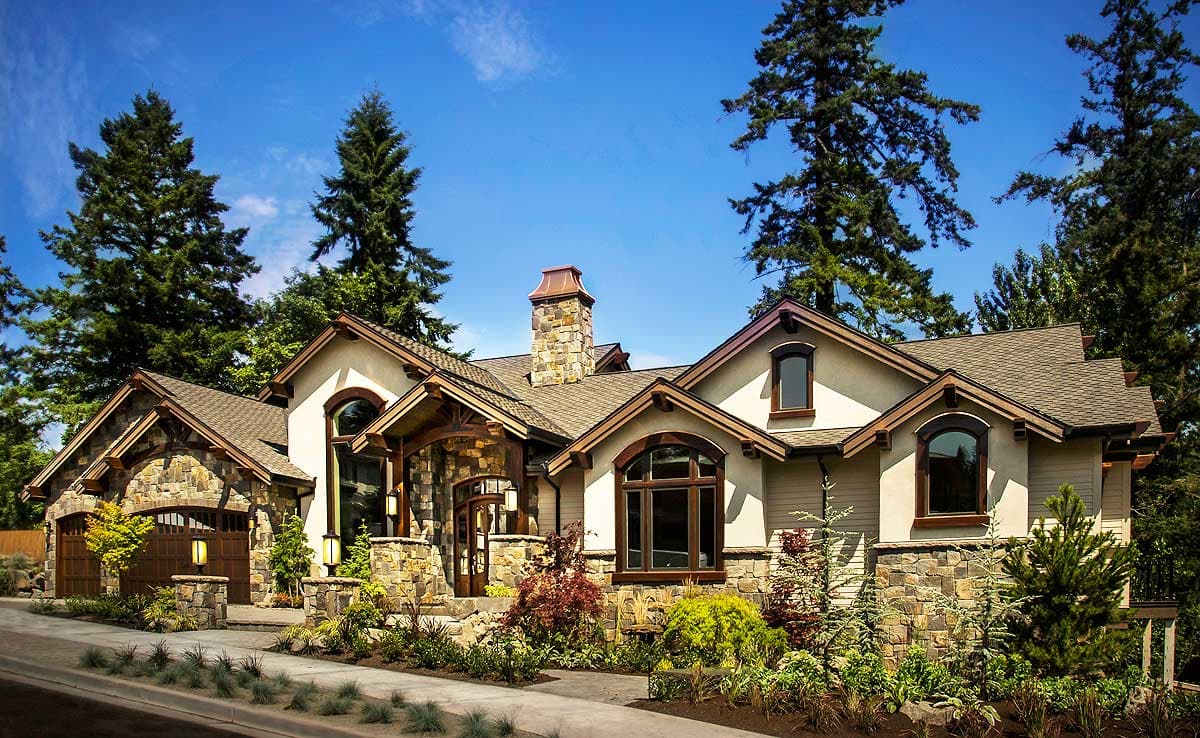

  • A magnificent exterior with beamed trim and stone veneer gives this 4 bedroom luxury home plan great curb appeal. This magnificent design is elegant, warm and extremely livable.

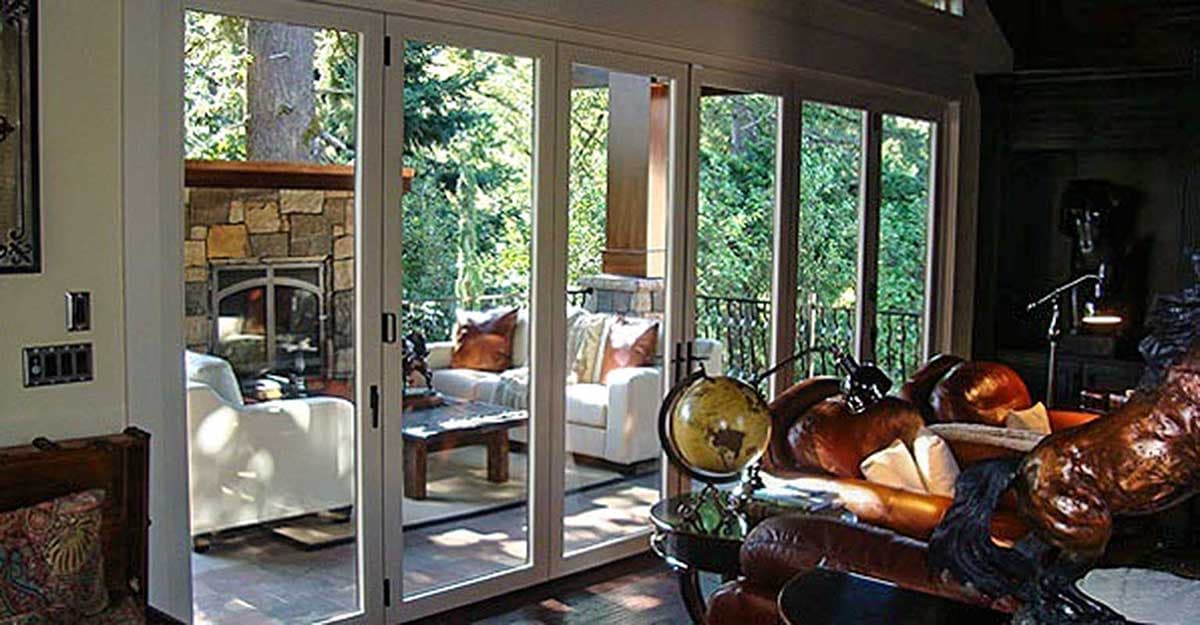

  • It features huge shared open spaces along with a unique "completely open" outdoor/indoor great room space with collapsible back wall.

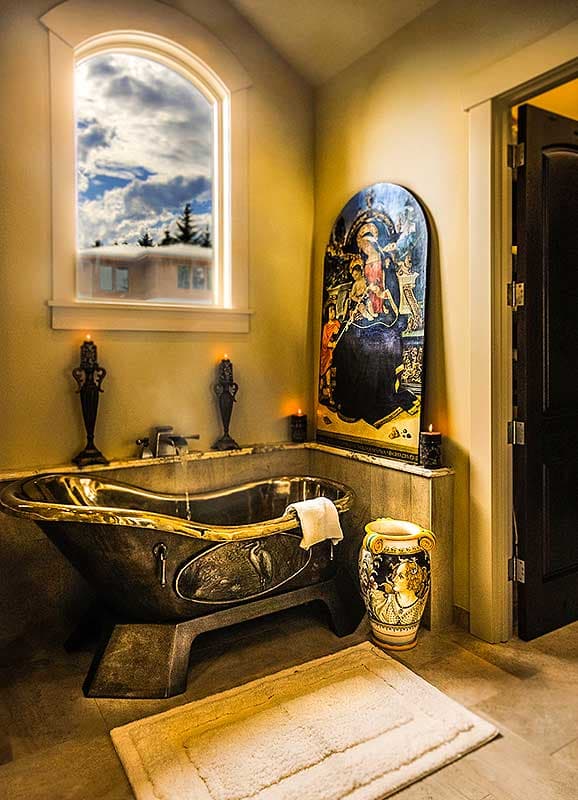

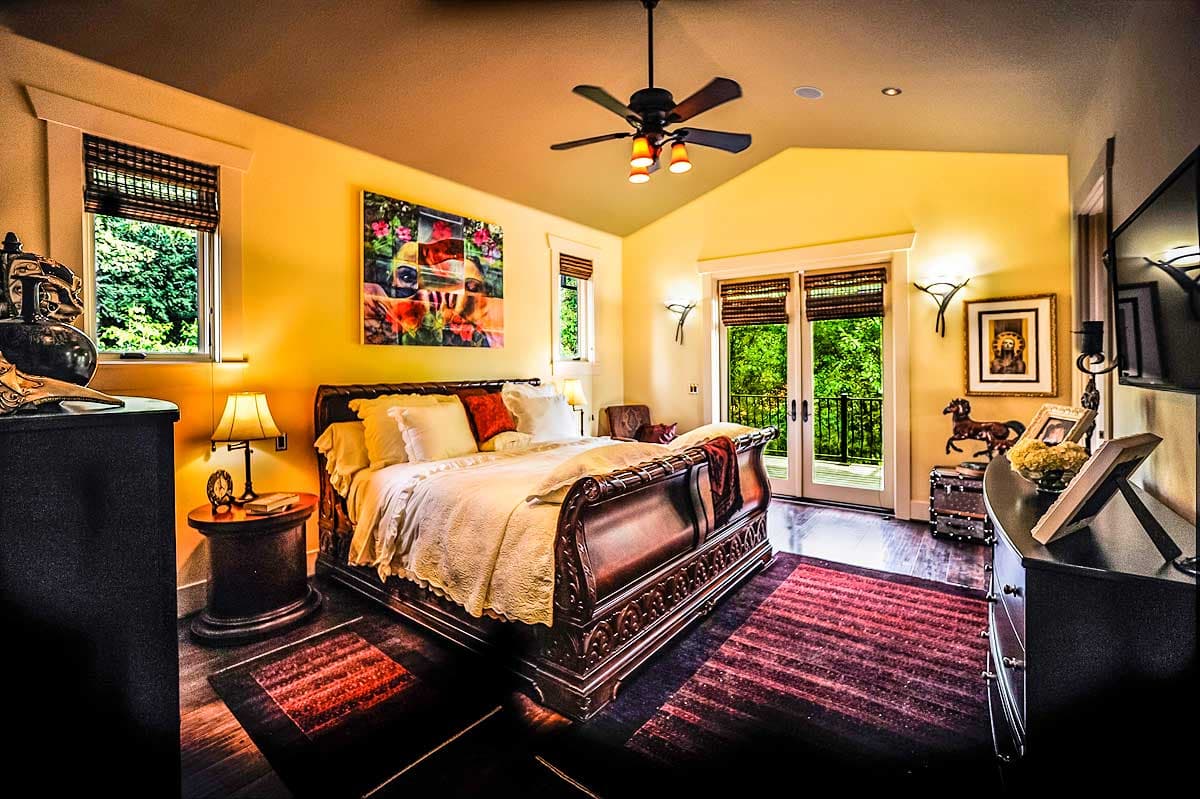

  • The main floor master suite features a luxury bathroom, view deck and gracious walk in closet.

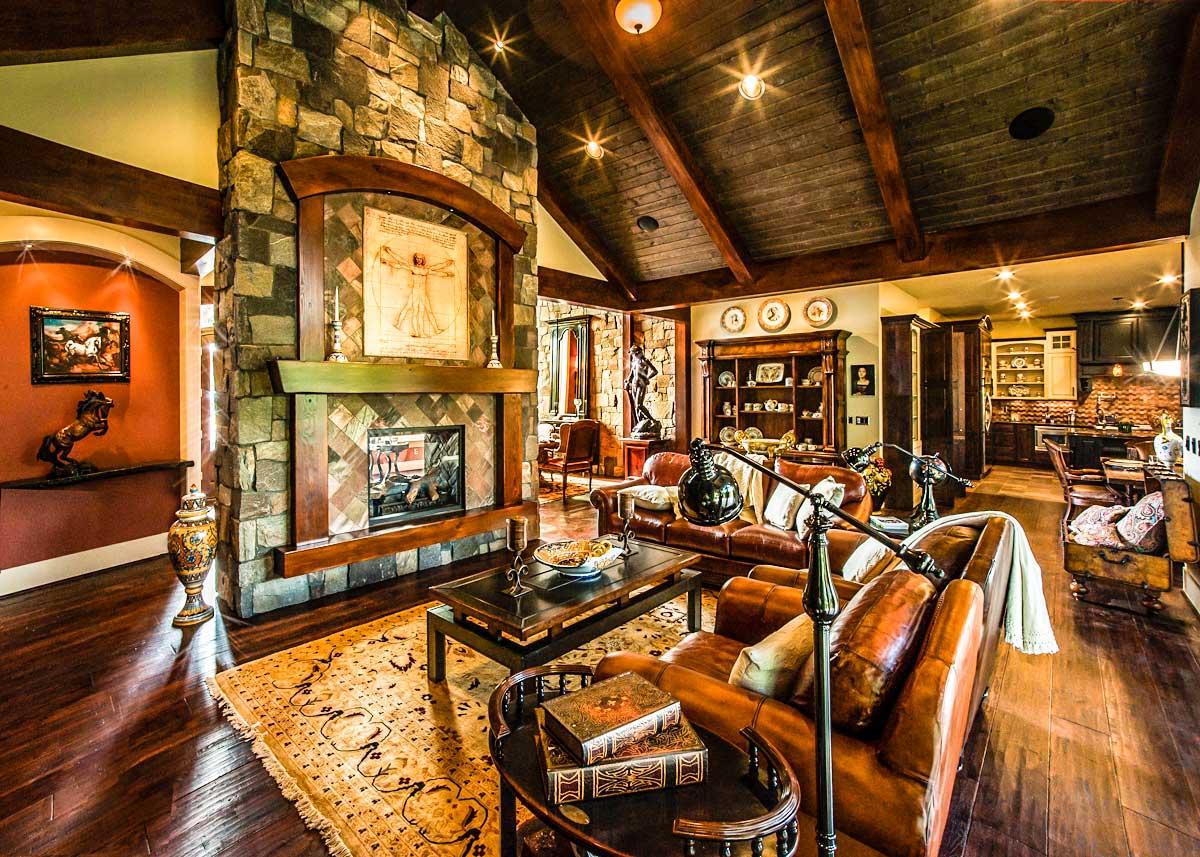

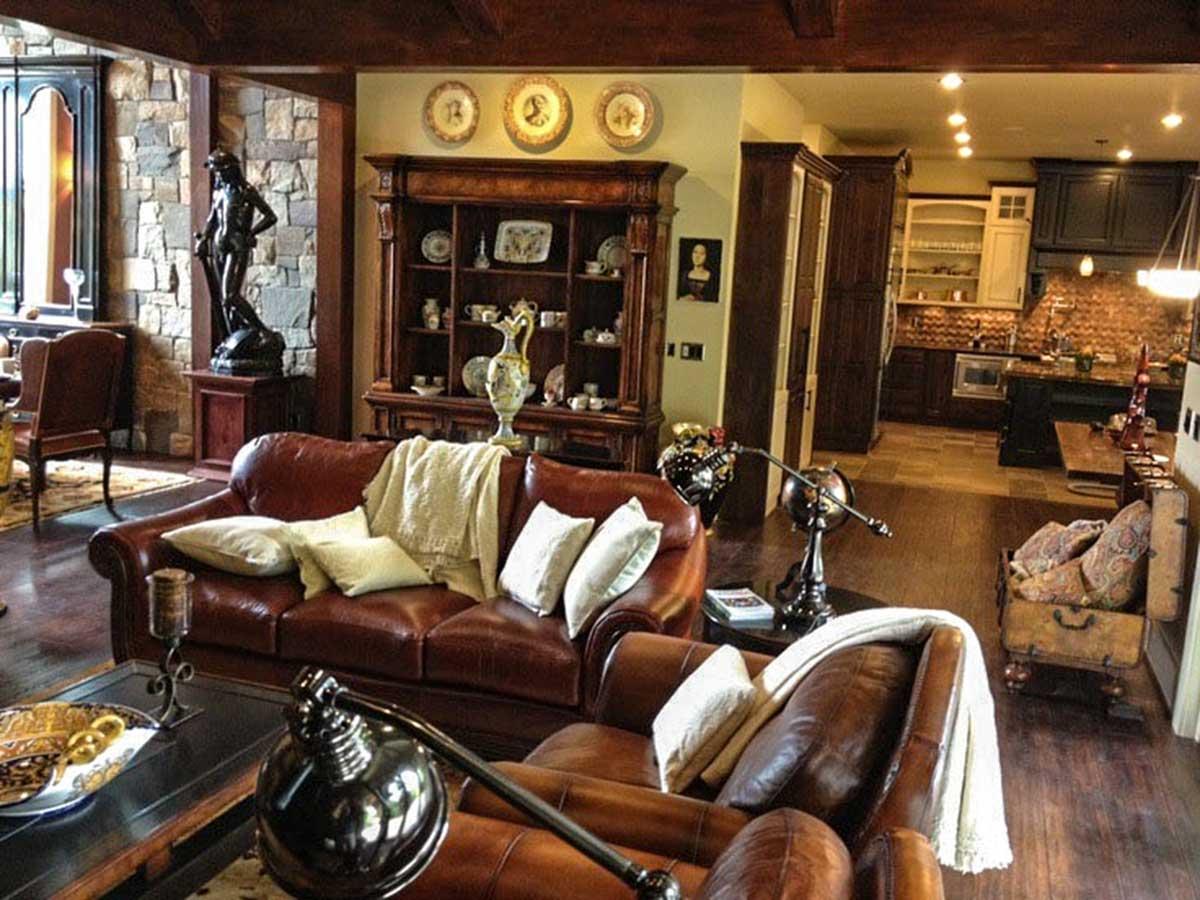

  • The open-yet-intimate vaulted great room is the hub of the home. You have glipses of it from the vaulted foyer with a 2-sided fireplace forming a visual break.

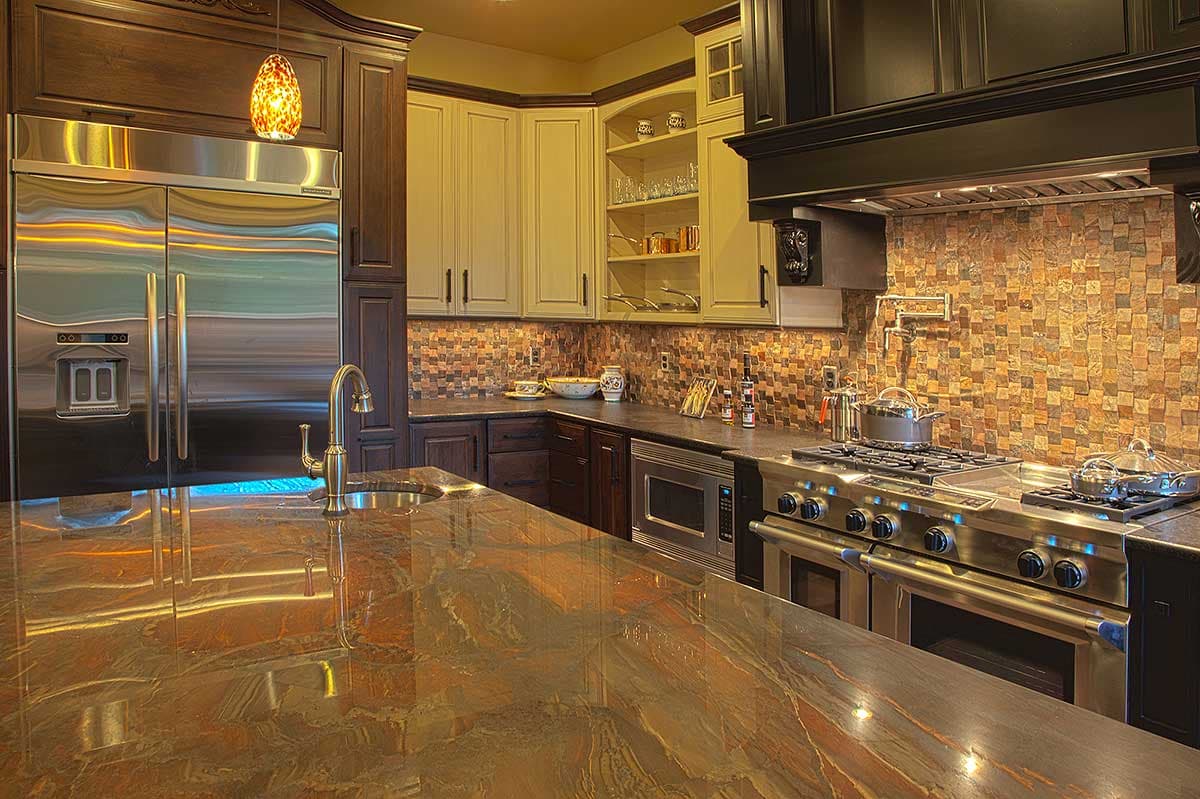

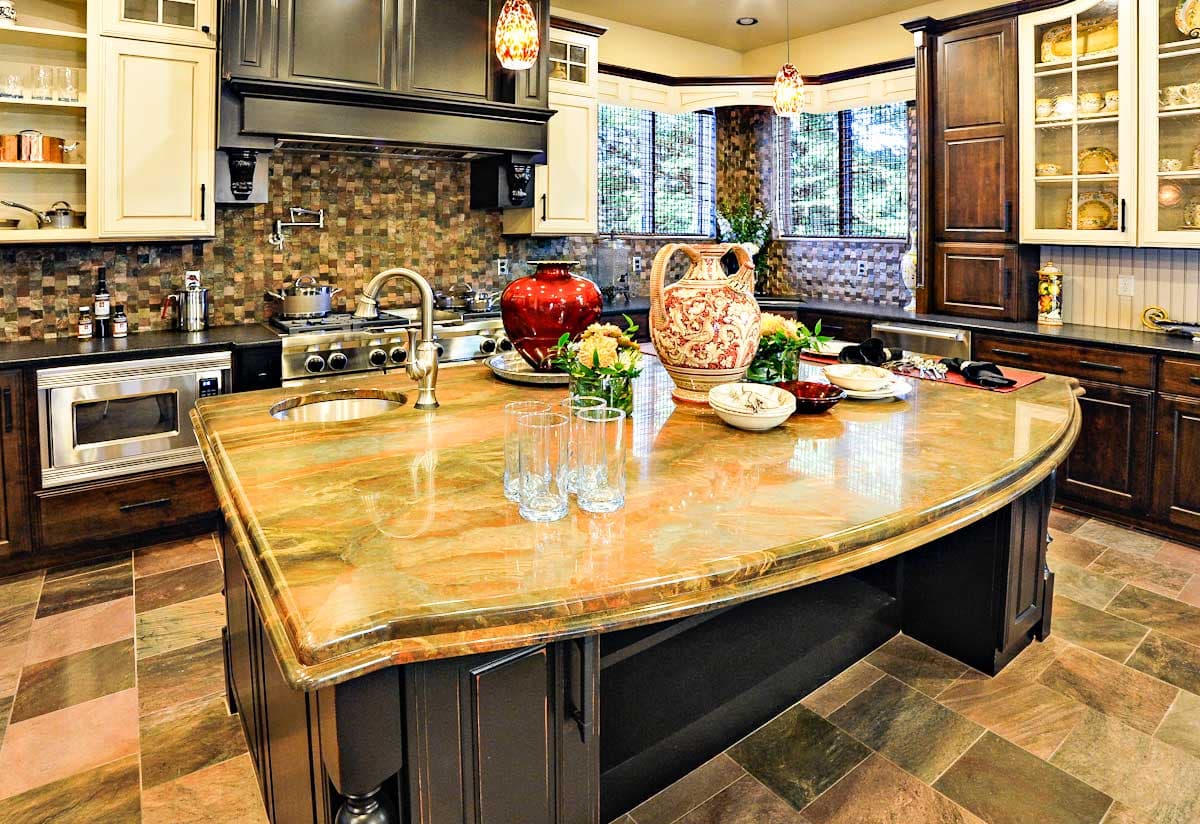

  • The gourmet kitchen has a hidden pantry and is open to both the nook with built-in bench seating and direct access to the vaulted deck with outdoor BBQ area.
  • Downstairs you will find an additional 3 bedroom suites with 2 baths as well as a craft room, huge rec room and enough indoor storage to make anyone happy. The back yard living spaces are ample and well scaled.

Each plan set is drawn to 1/4" scale and includes the following:

  • Detailed elevations
  • Foundation plan including all structural components
  • Detailed floor plans, including ceiling and floor framing information
  • Detailed roof framing plans
  • Detailed cross sections
  • All framing members called out
  • Details throughout the set of plans as appropriate for construction to current IRC code

Floor Plan

Plan details



4 Bedroom Mountain Home Plan

  • 4,092

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,250
  • 6 Sets $2,659
  • PDF - multi-use $3,050
  • CAD $4,092
  • CAD - multi-use $4,892
  • View all purchase option online

About This Plan

  • A magnificent exterior with beamed trim and stone veneer gives this 4 bedroom luxury home plan great curb appeal. This magnificent design is elegant, warm and extremely livable.
  • It features huge shared open spaces along with a unique "completely open" outdoor/indoor great room space with collapsible back wall.
  • The main floor master suite features a luxury bathroom, view deck and gracious walk in closet.
  • The open-yet-intimate vaulted great room is the hub of the home. You have glipses of it from the vaulted foyer with a 2-sided fireplace forming a visual break.
  • The gourmet kitchen has a hidden pantry and is open to both the nook with built-in bench seating and direct access to the vaulted deck with outdoor BBQ area.
  • Downstairs you will find an additional 3 bedroom suites with 2 baths as well as a craft room, huge rec room and enough indoor storage to make anyone happy. The back yard living spaces are ample and well scaled.

Floor Plans

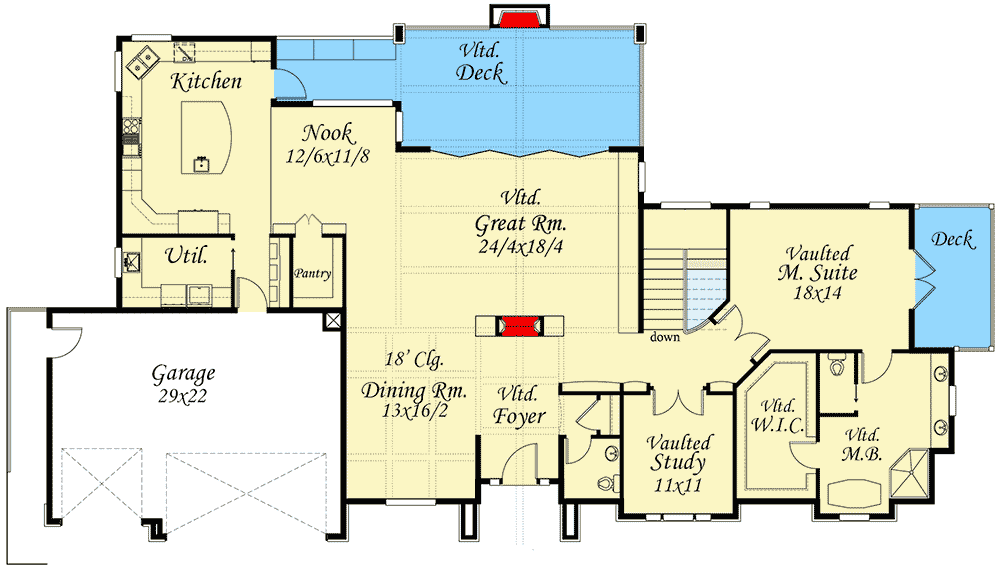

  • Main Level

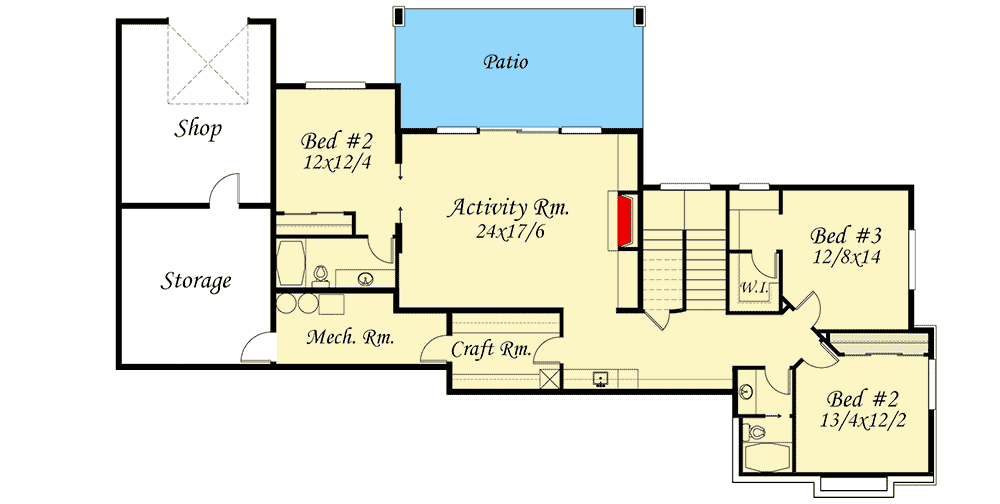

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,092 sq. ft.
  • Lower Level: 1,552 sq. ft.
  • 1st Floor: 2,540 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 89' 0"
  • Depth: 51' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 638 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front
