Plan 72746DA
4-Car Shingle Style Garage Plan
Heated S.F.
745
Beds
0
Stories
2
Cars
4
What's Included
Plan Details
  • This shingle-style garage plan can store up to 4 cars and is designed to fit on a sloped lot.
  • On the main level are two sets of garage doors that are both 10' wide and 8' tall.

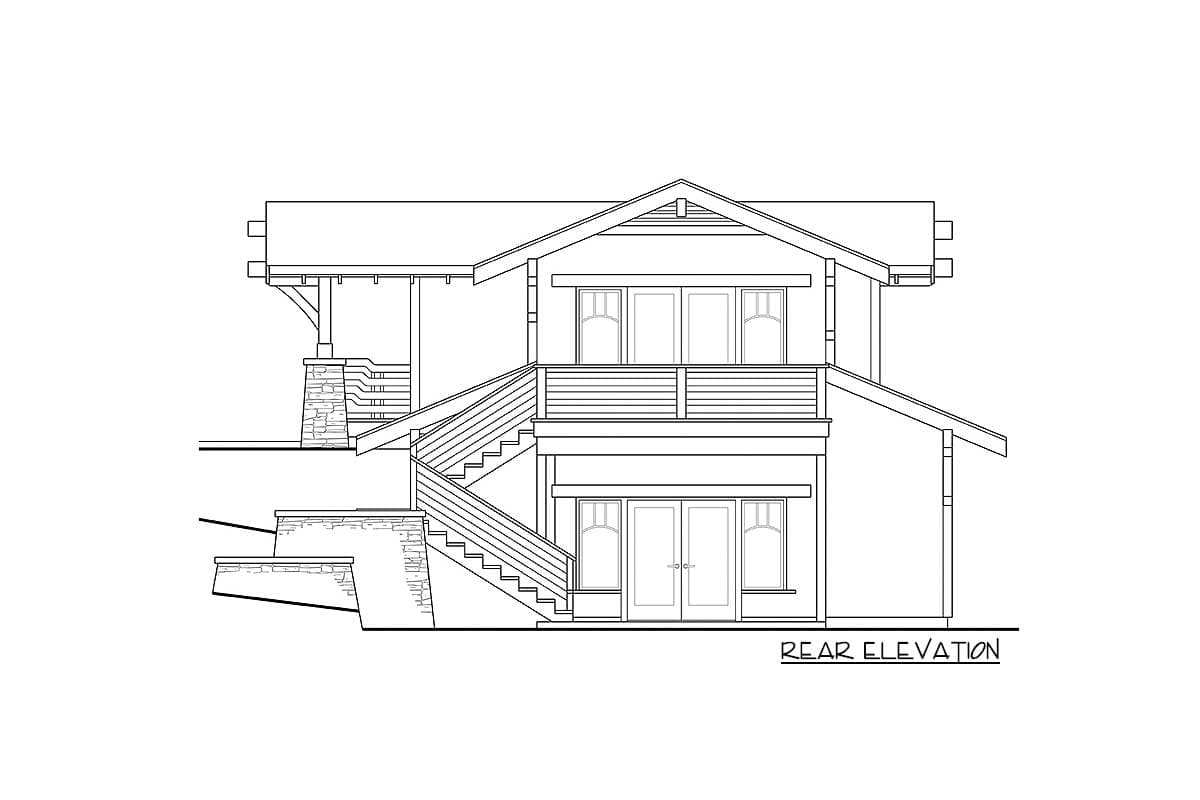

  • In the back are double doors that lead to a covered patio and a set of stairs that leads up to the recreation room above.

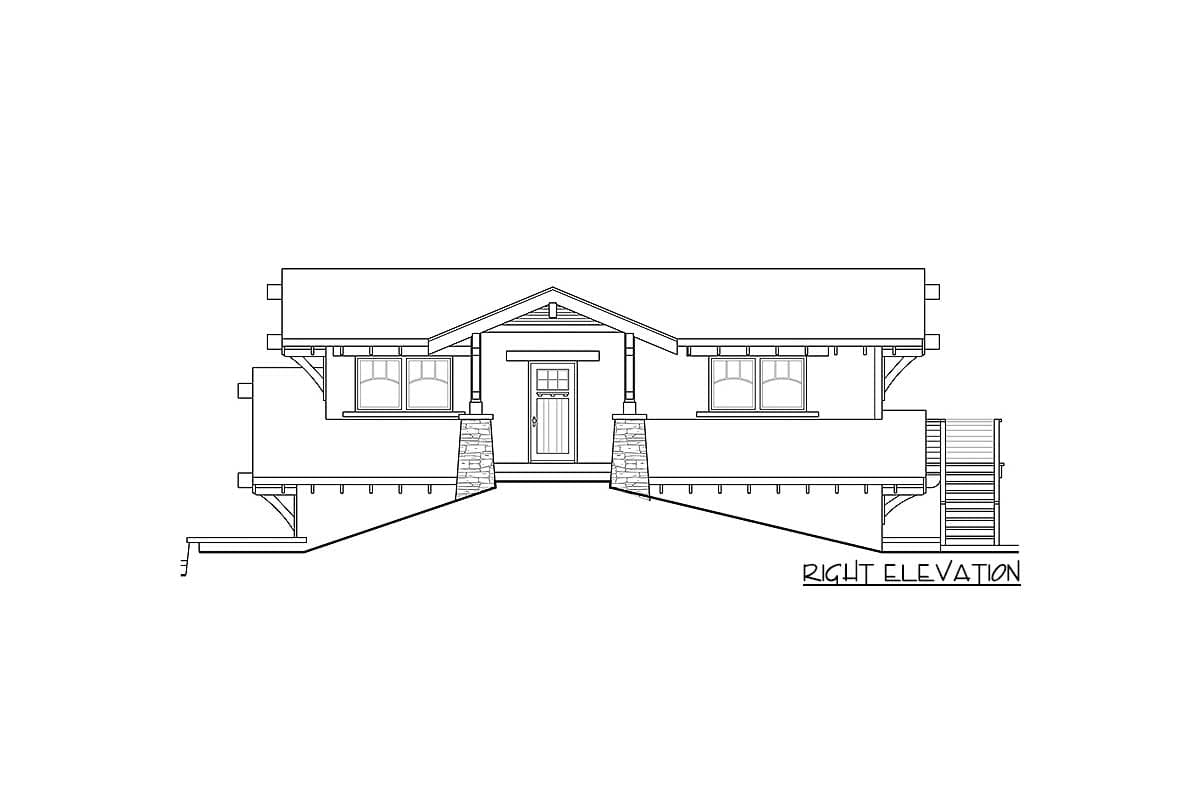

  • The recreation room has two entrances; one from a set of double doors accessed from the deck, the other from the ground level entry on the side.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

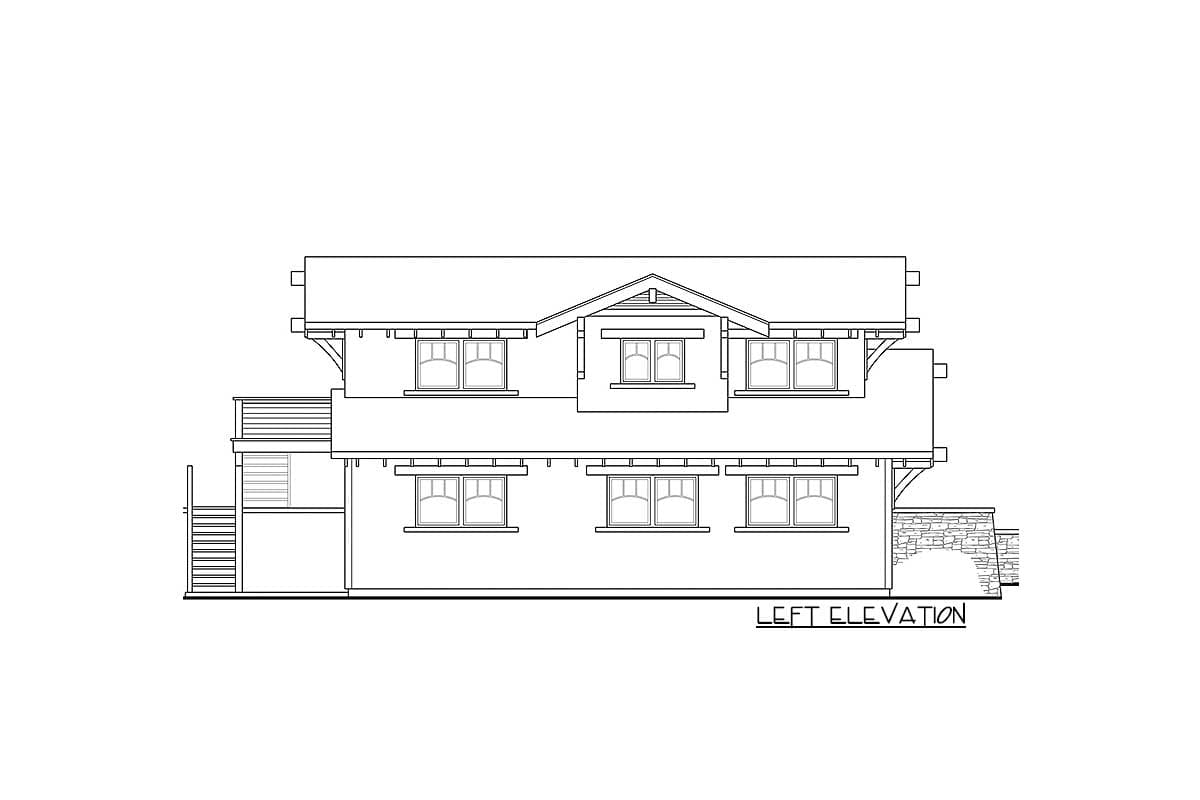

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Car Shingle Style Garage Plan

  • 745

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Lower Level

  • Upper Level

Plan Details

Square Footage Breakdown

  • Total: 745 sq. ft.
  • 1st Floor: 745 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 40' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached
  • Area: 1173 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 5 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

4-Car Shingle Style Garage Plan

  • 745

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 4

    Car garage

4-Car Shingle Style Garage Plan

  • 745

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 4

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 745 sq. ft.
  • 1st Floor: 745 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 40' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached
  • Area: 1173 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 5 on 12

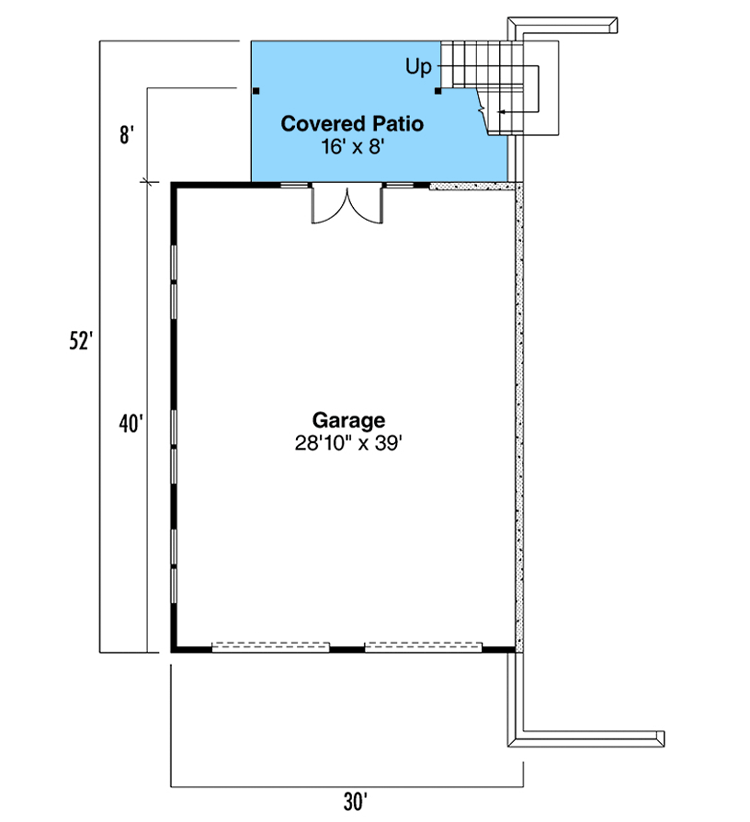

    Lower Level

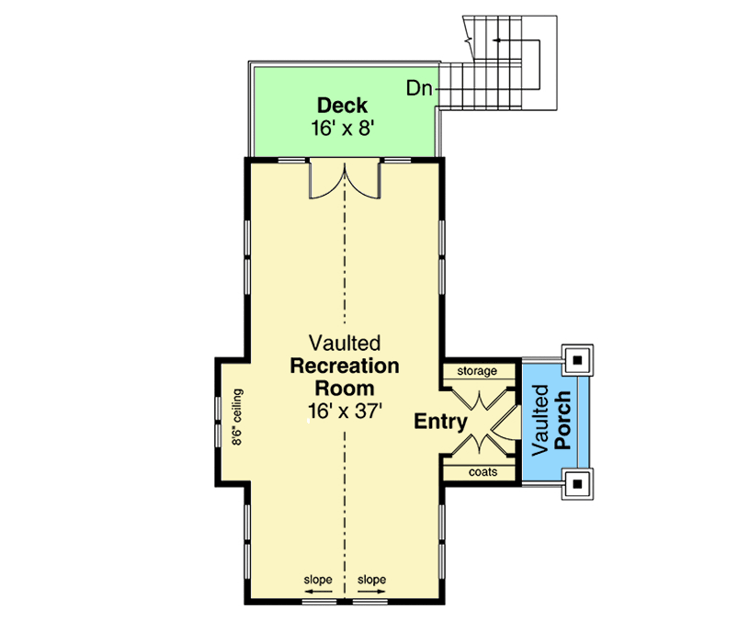

    Upper Level
