Plan 135289GRA

4-Car Traditional Detached Garage - 960 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
4

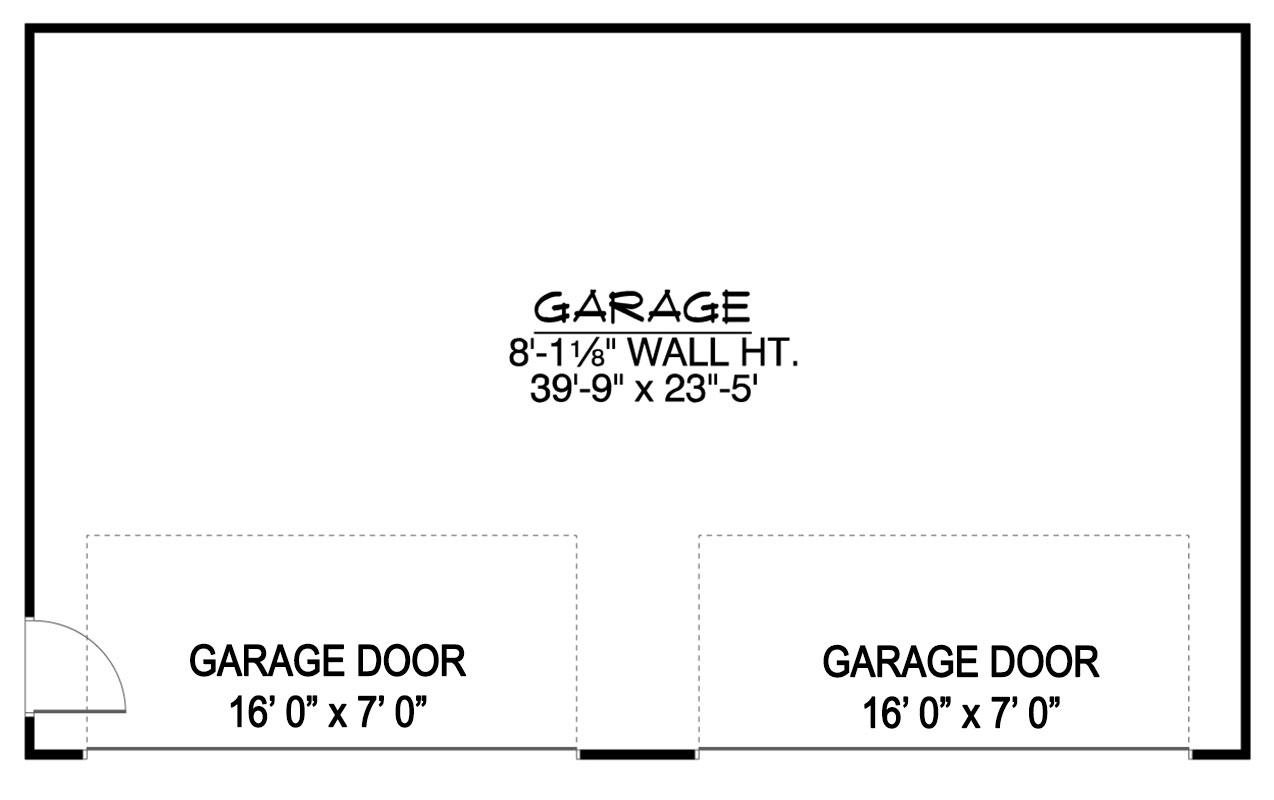

Floor Plan

Plan 135289GRA

Main Level
Main Level

Plan 135289GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

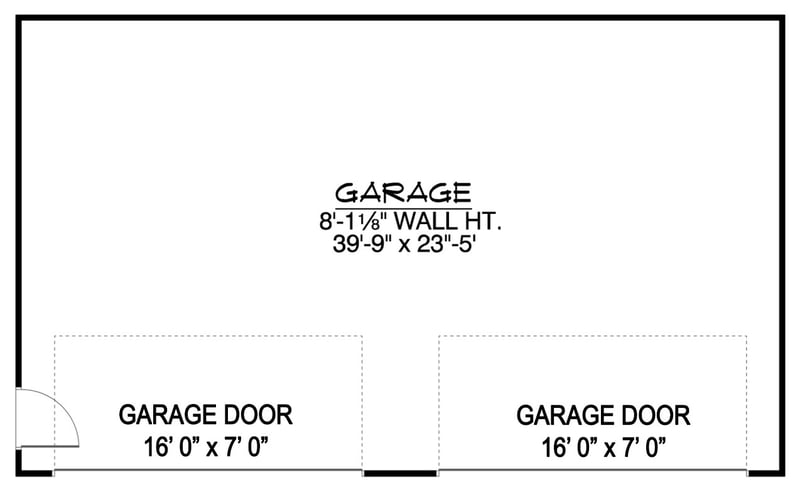

Plan 135289GRA: 4-Car Traditional Detached Garage - 960 Sq Ft - Floor Plan - Main Level - Traditional

Plan Details

  • This Traditional style detached garage plan offers a generous 960 square feet of vehicle storage, accommodating up to four cars, with no heated living area or bedrooms.
  • Upon entry through one of the two expansive 16-foot wide garage doors or the convenient side access door, you are greeted by a vast, open interior space designed for maximum utility and flexibility.
  • The 39'-9" by 23'-5" footprint provides an unobstructed environment, ideal for housing multiple vehicles, powersports equipment, or serving as a dedicated workshop.
  • With an 8-foot ceiling height and robust 2x4 exterior walls (with an optional 2x6 upgrade), this structure is perfectly suited for a comprehensive home workshop, offering ample room for tools and projects.
  • The classic gabled roof and clean lines of the exterior, complemented by a front-facing entry, present a timeless aesthetic that enhances any property while providing easy access to the spacious driveway.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

24' 0"

Max Ridge Height

12' 5"

Garage

Type

Detached

Area

960 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Traditional

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

24' 0"

Max Ridge Height

12' 5"

Garage

Type

Detached

Area

960 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Traditional
