Plan 560009TCD

400 Square Foot One Bedroom Cottage

Name: Plan 560009TCD: 400 Square Foot One Bedroom Cottage
Brand: Architectural Designs
SKU: 560009TCD
Price: 487.69 USD
Availability: InStock

Heated S.F.

400

Beds

Baths

Stories

Floor Plan

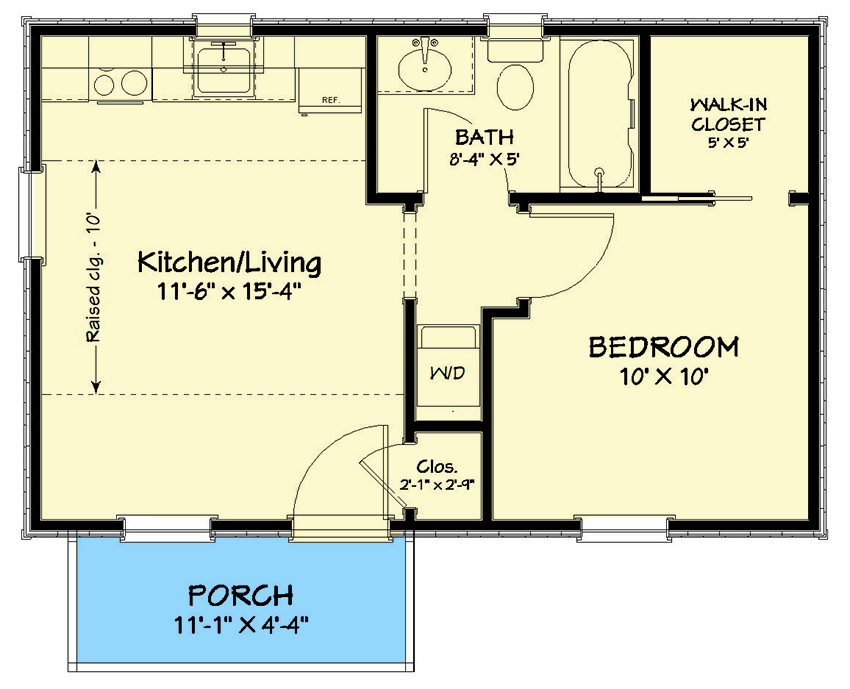

Main Level

Dollhouse View

Plan Details

This 400 square foot cottage house plan is the perfect solution for an ADU or a vacation home plan. Pare down your belongings enough and you could even make this your every day home.
Enter off the porch and step into the combined kitchen and living area. No walls separate the space front to back and the ceilings rise to 10.
The bedroom is on the right and a pocket door separates the bedroom from the walk-in closet.
The washer and dryer are tucked away in a closet between the bedroom and the open living space.

What's Included

Cover Sheet - Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.
Foundation Plan - Foundation plan in ¼" scale, 3D view, construction details and notes.
Floor Plan(s) - Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.
Ceiling & Roof Framing - 2D and 3D views of framing.
Framing Details - Generic wall, ceiling and roof framing details. Lumber and framing notes.
Elevations - Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.
Cross Sections - Cross section views with framing details.
Kitchen Plan - Kitchen and bath plans, elevations and schedule.
Electrical Plan - Electric layout plan, schedule and notes.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
