Plan 28941JJ

420 Square Foot ADU with 2-Car Garage

Heated S.F.
420
Beds
1
Baths
1
Stories
1
Cars
2

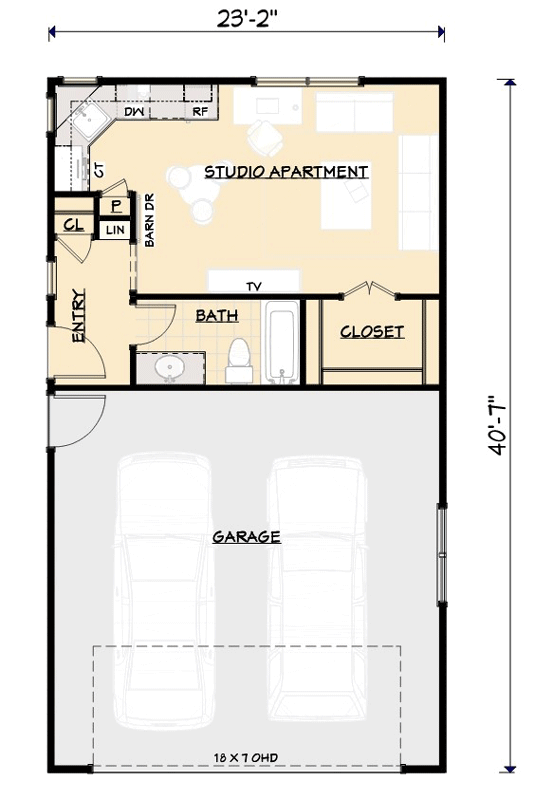

Floor Plan

Plan 28941JJ

Main Level
Main Level

Plan 28941JJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 28941JJ: 420 Square Foot ADU with 2-Car Garage - Floor Plan - Main Level - Carriage, Country, Traditional

Plan Details

  • The traditional exterior of this 420 square foot ADU makes it a great addition to any home or lot.
  • A hip and valley roof rests atop the 2-car garage and rear-attached studio apartment.

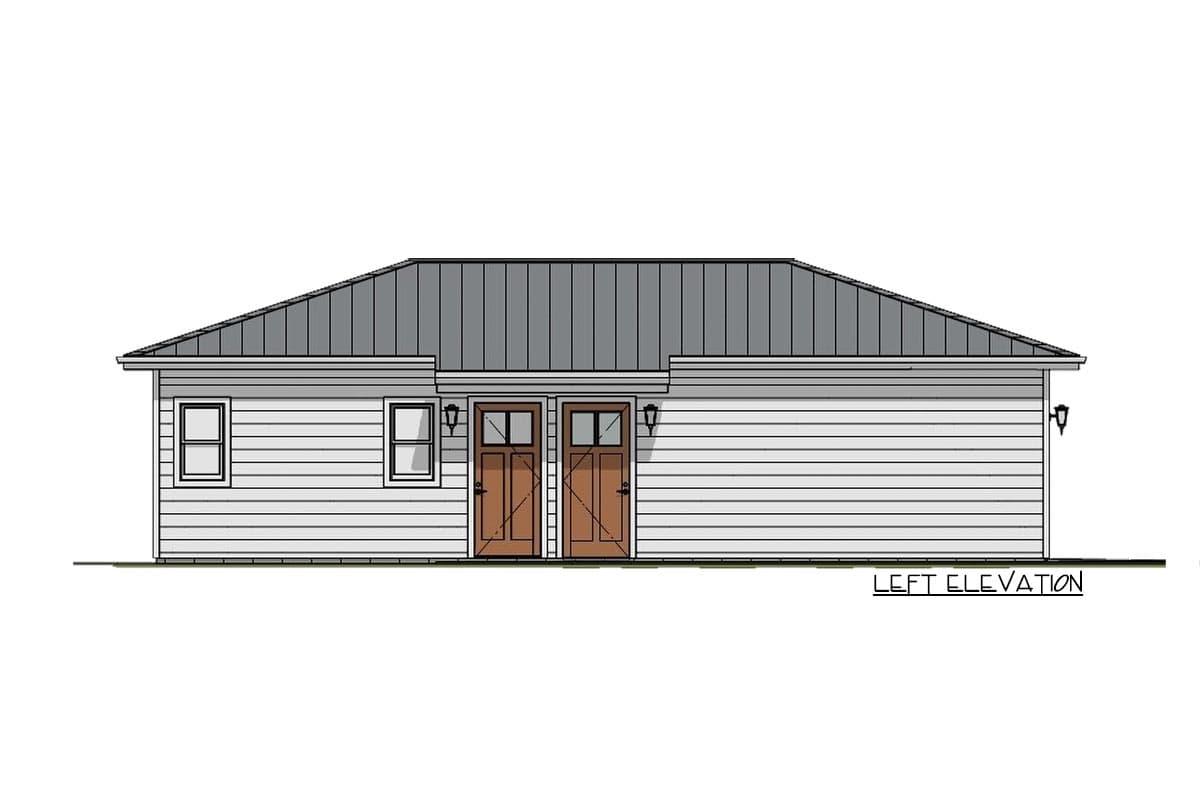

  • On the left elevation, discover 2 man doors, side by side; one provides access to the double garage, and the other leads to the studio apartment.
  • The apartment includes a total of 420 square feet of heated living space with a full bath, walk-in closet, and corner kitchen.
  • The concrete slab is on CMU frost footings.

What's Included

  • Cover Sheet
  • Fully dimensioned floor plan(s)

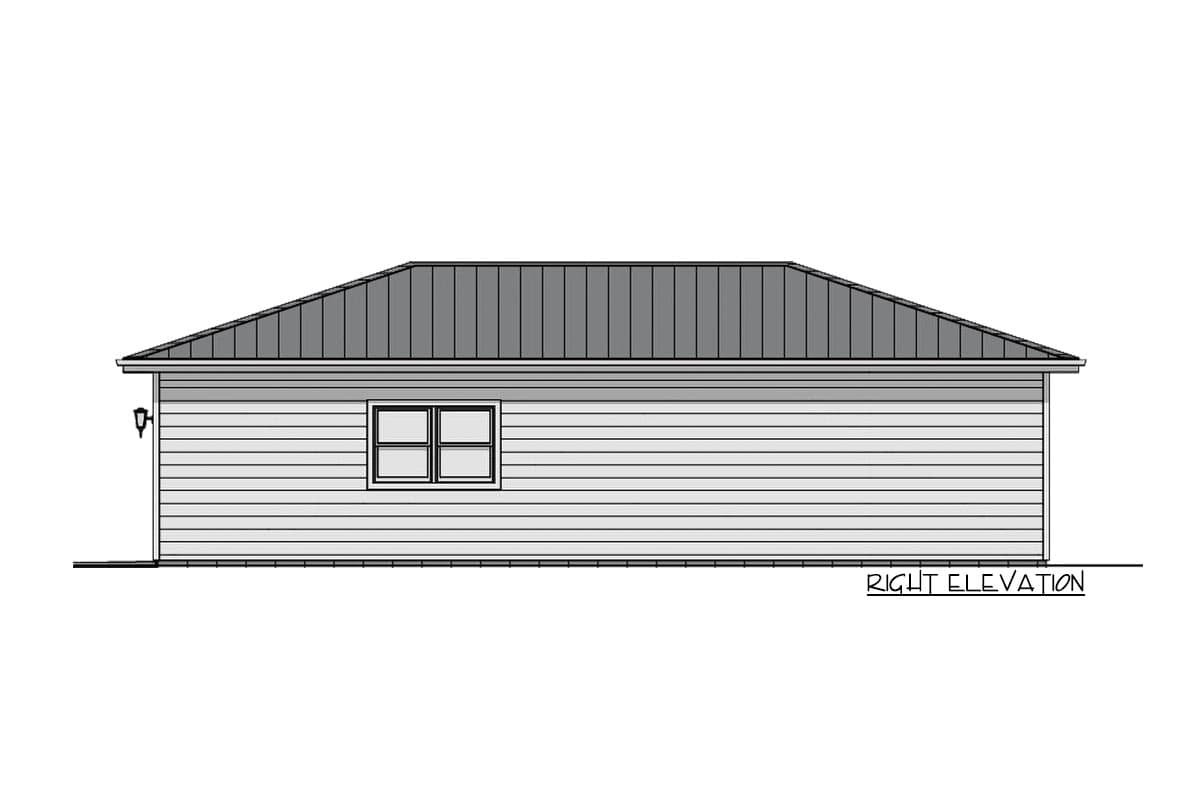

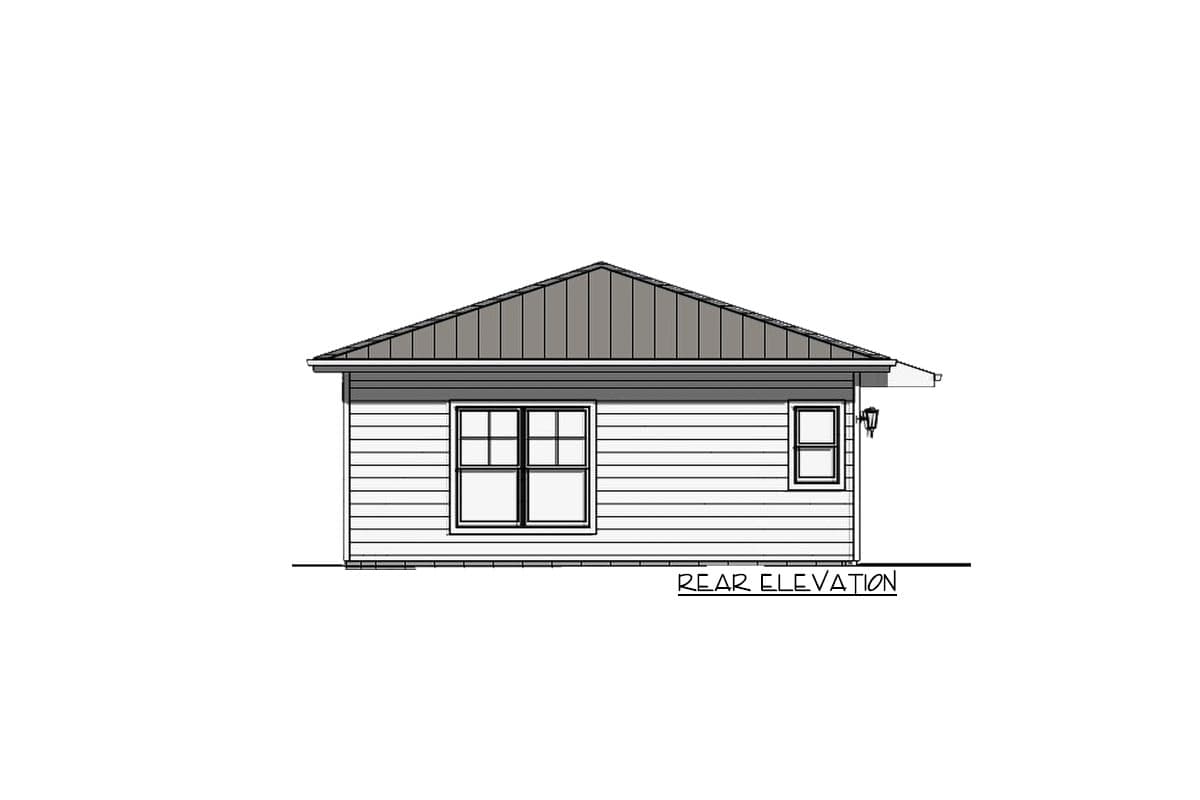

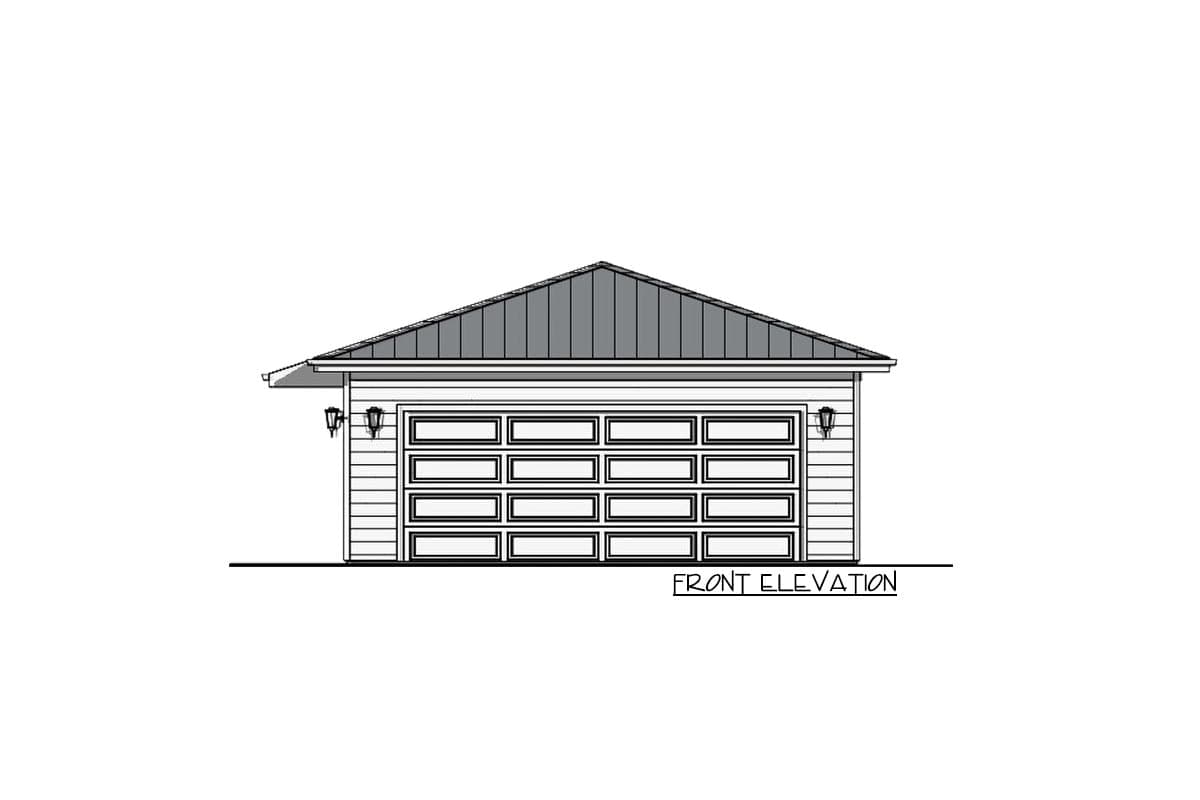

  • Elevations
  • Cross Sections/ Garage elevations when available
  • Foundation Plan
  • Roof Plan
  • Lighting layout
  • 3D Interior Drawings
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

420 sq. ft.

1st Floor

420 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

23' 2"

Depth

40' 7"

Max Ridge Height

13' 7"

Garage

Type

Detached

Area

518 sq. ft.

Count

2 Cars

Entry Location

Front, Side, Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Traditional

Special Features

Mudroom

Plan Collections

ADU
