5-Bed French Country Home Plan with Over 4,100 Square Feet of Living Space

Plan 36684TX

  • 4,182

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • Clipped gables and steep pitches crown this 5-bedroom French Country home plan that boasts a grand, castle-like exterior wrapped in stone.
  • Once inside, you will find a study and formal dining room framing the foyer. The 22' by 30' great room enjoys an 11' ceiling height with a fireplace surrounded by builtins adding to the ambiance.
  • The rectangular kitchen provides ample workspace with its prep island and corner pantry, while the rear outdoor lounge offers a cooking patio for grilling.
  • Three bedroom suites reside on the main level including the master suite, complete with a tray ceiling, 5-fixture bath, and walk-in wardrobe.
  • Two identical bedrooms upstairs share a Jack-and-Jill bathroom. Across the hall, a sizable game room includes a charming window seat, and a bonus room is perfect for a theater or media room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

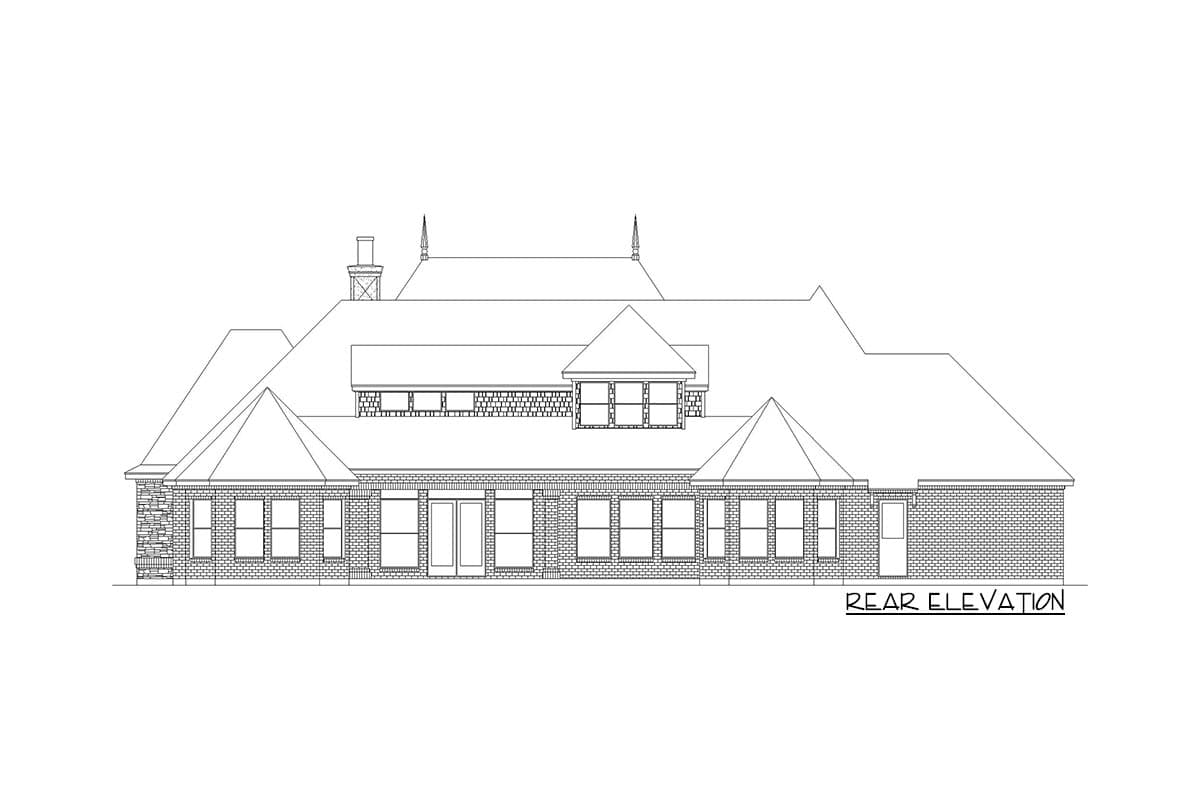

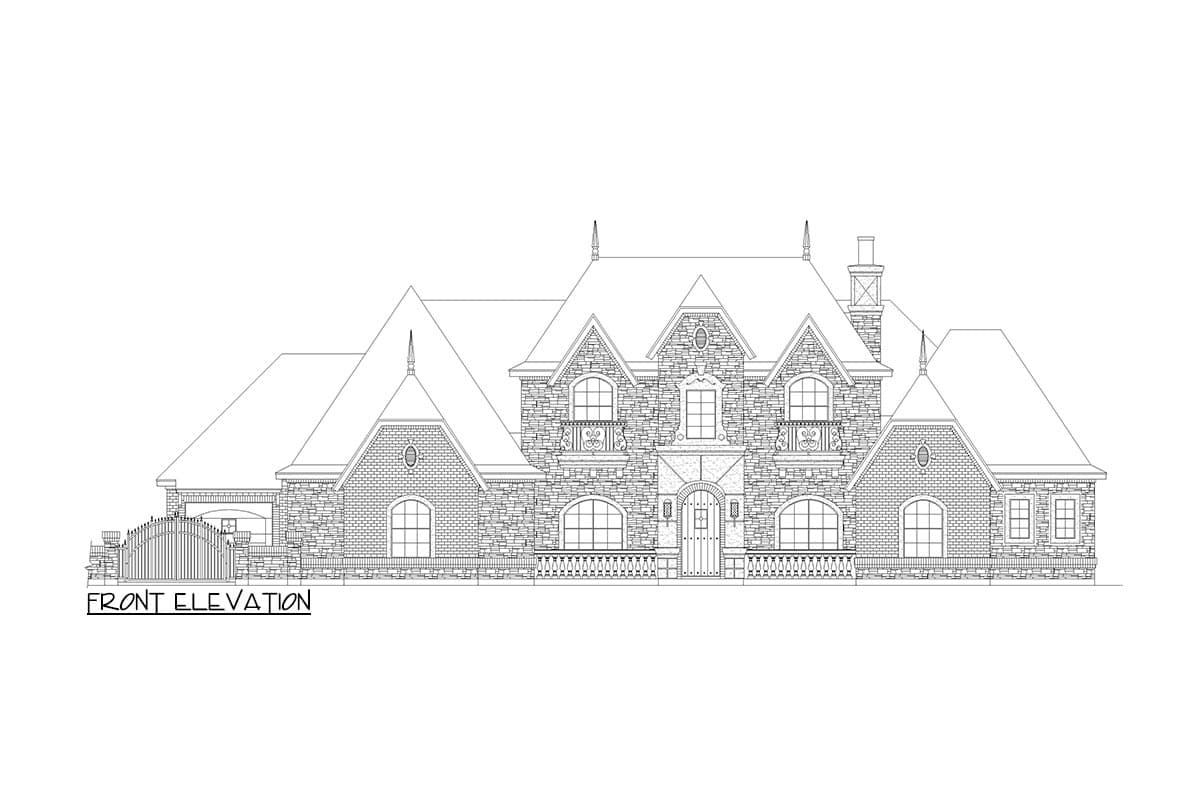

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

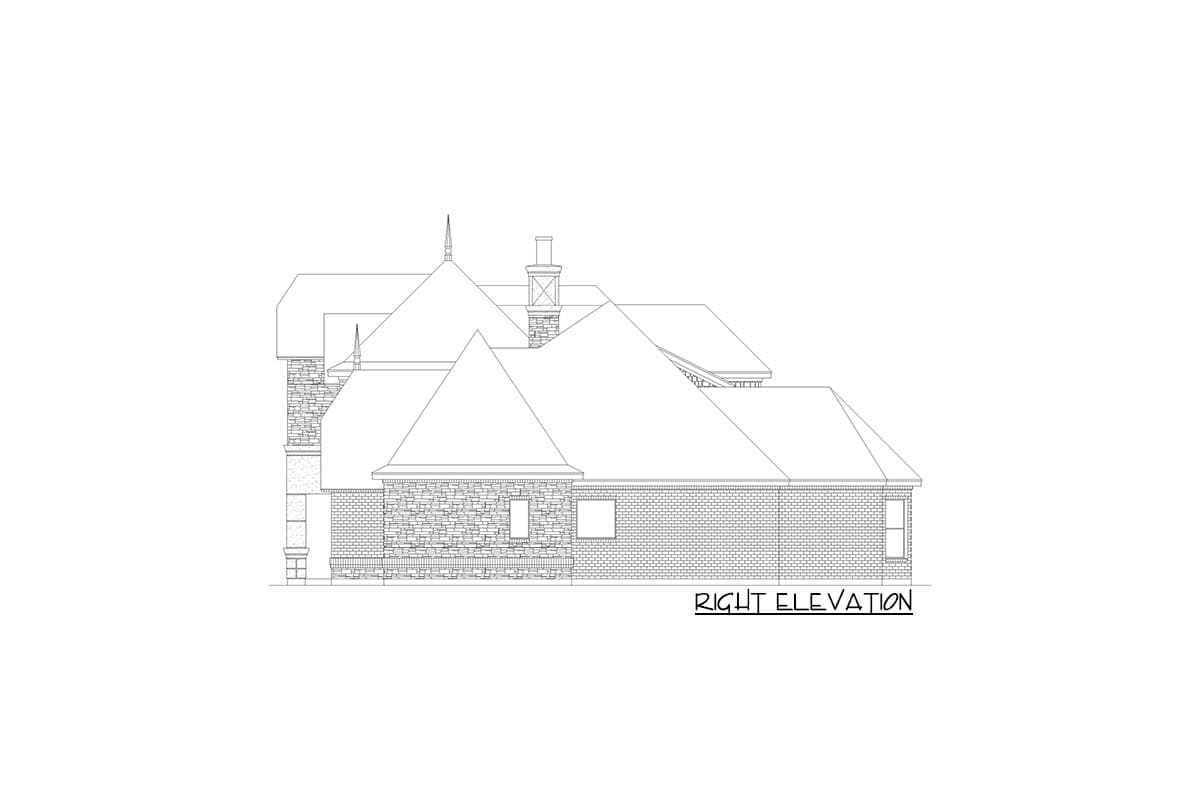

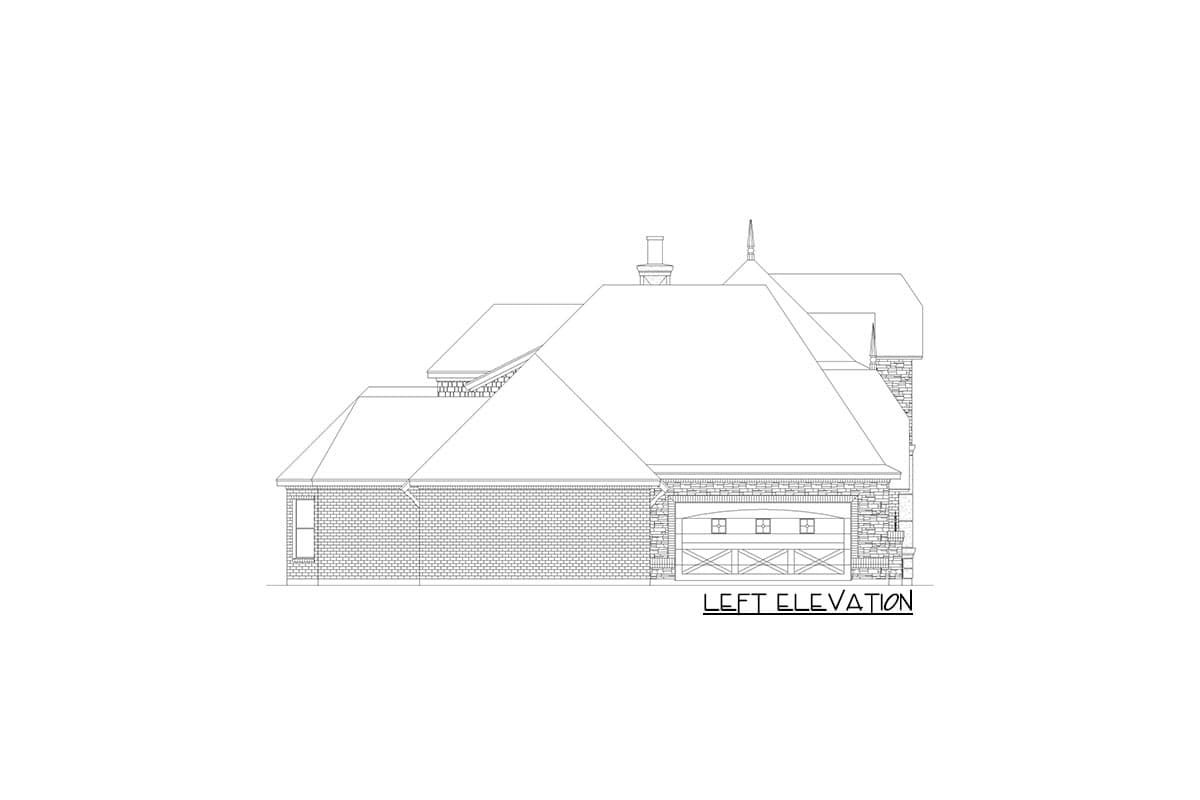

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

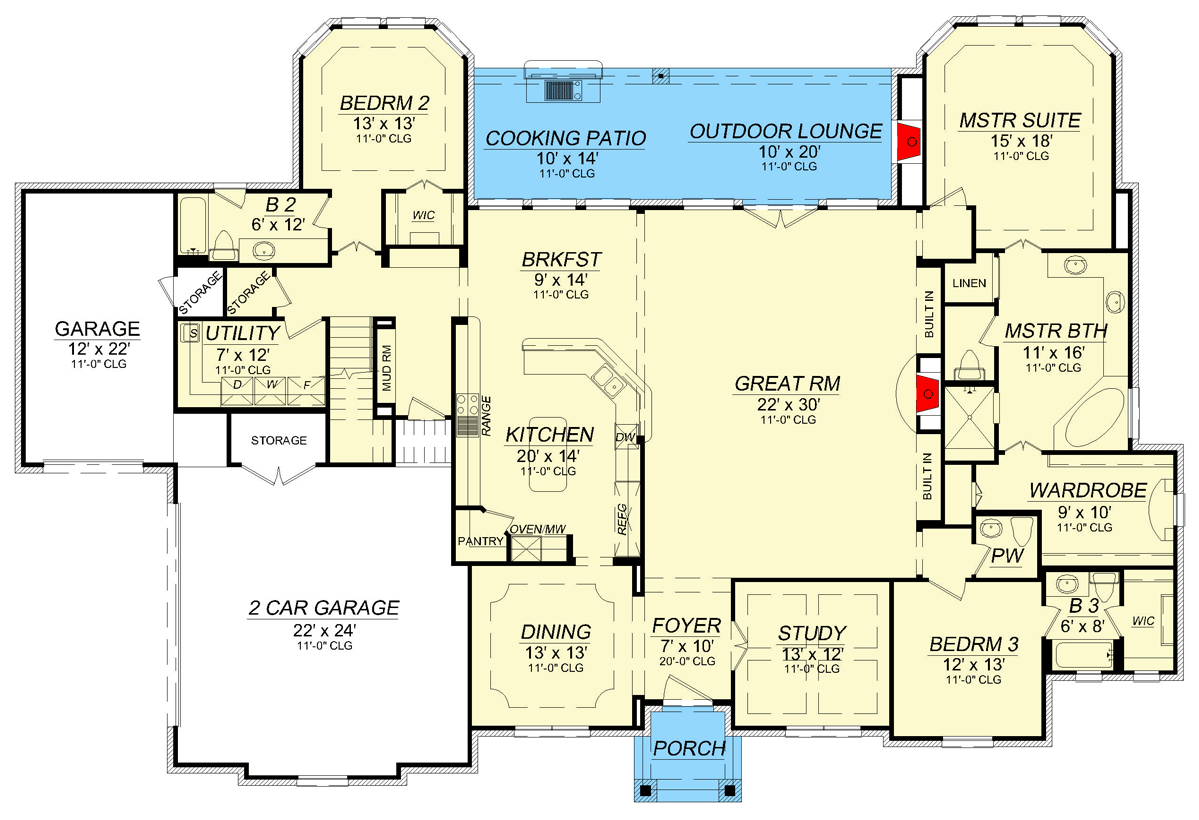

5-Bed French Country Home Plan with Over 4,100 Square Feet of Living Space - 36684TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

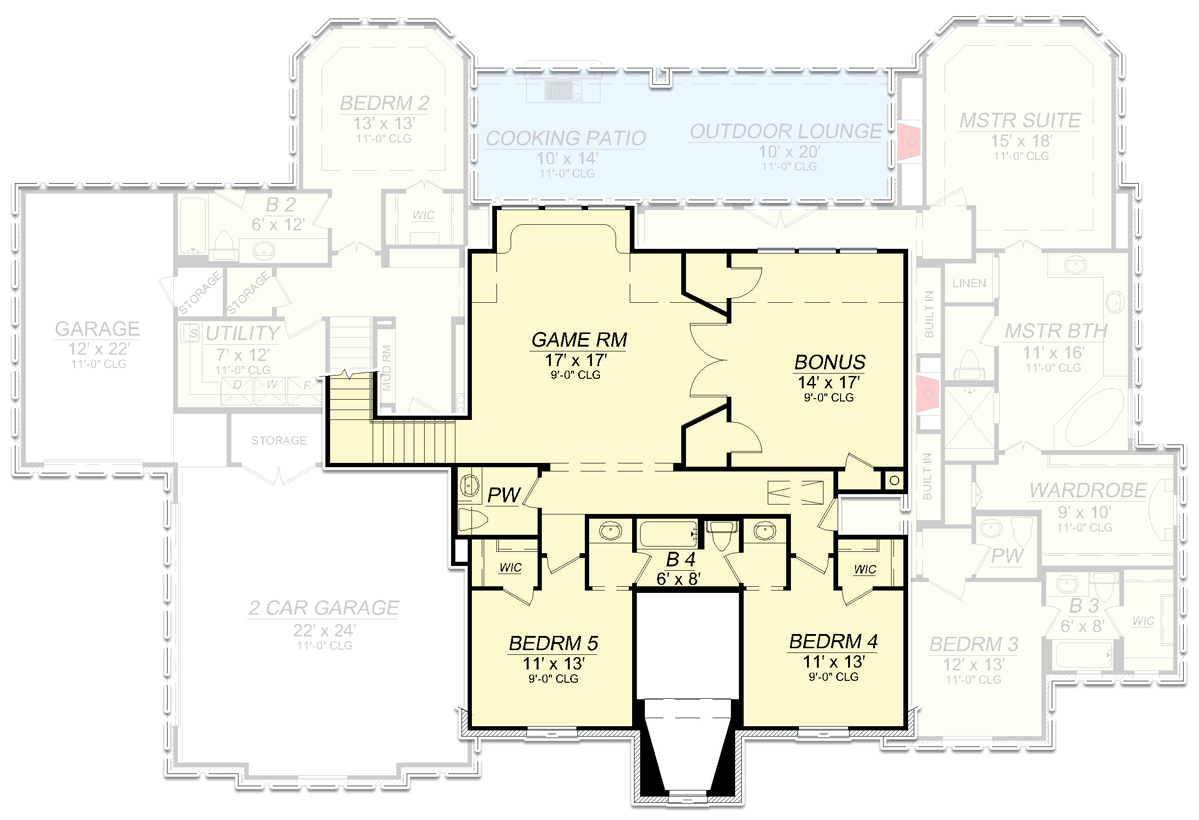

5-Bed French Country Home Plan with Over 4,100 Square Feet of Living Space - 36684TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,182 sq. ft.
  • 1st Floor: 3,181 sq. ft.
  • 2nd Floor: 1,001 sq. ft.
  • Bonus: 335 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 95' 0"
  • Depth: 64' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 941 sq. ft.
  • Count: 3 Cars

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 2' 0"

Architectural Style

Special features

Plan Collections

5-Bed French Country Home Plan with Over 4,100 Square Feet of Living Space

  • 4,182

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,515
  • 5 Sets $1,715
  • CAD + PDF - Single Build $2,275
  • View all purchase option online

About This Plan

  • Clipped gables and steep pitches crown this 5-bedroom French Country home plan that boasts a grand, castle-like exterior wrapped in stone.
  • Once inside, you will find a study and formal dining room framing the foyer. The 22' by 30' great room enjoys an 11' ceiling height with a fireplace surrounded by builtins adding to the ambiance.
  • The rectangular kitchen provides ample workspace with its prep island and corner pantry, while the rear outdoor lounge offers a cooking patio for grilling.
  • Three bedroom suites reside on the main level including the master suite, complete with a tray ceiling, 5-fixture bath, and walk-in wardrobe.
  • Two identical bedrooms upstairs share a Jack-and-Jill bathroom. Across the hall, a sizable game room includes a charming window seat, and a bonus room is perfect for a theater or media room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,182 sq. ft.
  • 1st Floor: 3,181 sq. ft.
  • 2nd Floor: 1,001 sq. ft.
  • Bonus: 335 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 95' 0"
  • Depth: 64' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 941 sq. ft.
  • Count: 3 Cars

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 2' 0"
Plan 36684TX
