5-Bed House Plan with 2-Sided Fireplace

Plan 710005BTZ

  • 4,036

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 5-bed house plan gives you a main floor master suite and has great space on the second floor for the kids.
  • A see-through fireplace unites the grand and keeping rooms, adding warmth and ambiance to both. Access the covered porch and rear deck here.
  • The nearby master suite impresses with an elegant vaulted ceiling and a sitting room boasting a brilliant rear view. The well-appointed guest suite is sure to please.
  • The second floor houses three secondary bedrooms, two full baths, and a spacious children's retreat and has attic storage as well.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

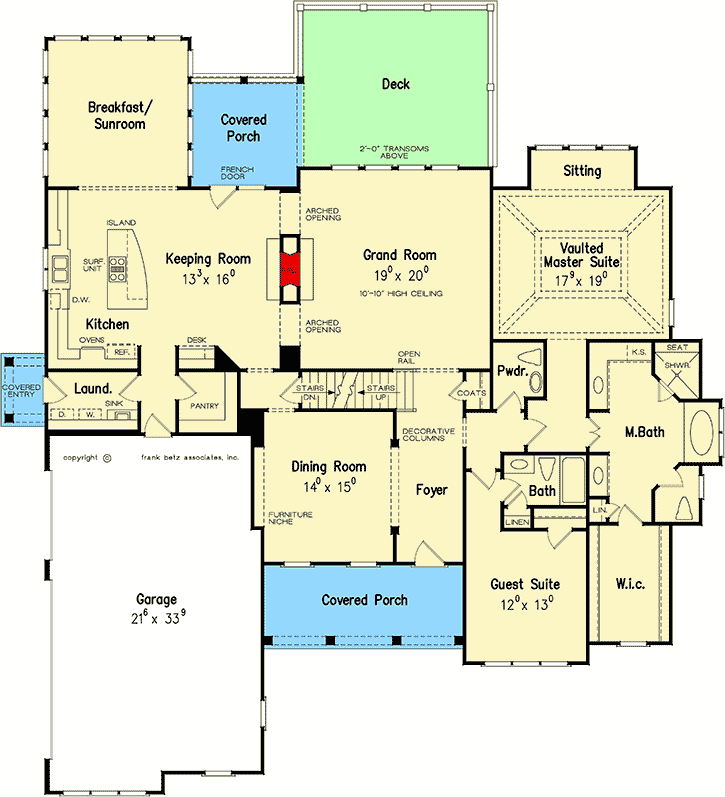

5-Bed House Plan with 2-Sided Fireplace - 710005BTZ floor plan - Main Floor

Second Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

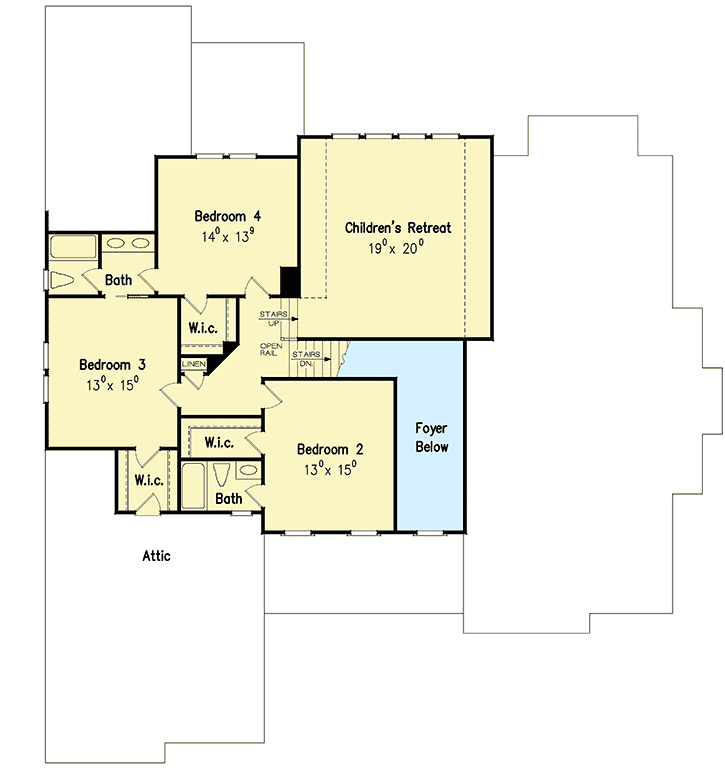

5-Bed House Plan with 2-Sided Fireplace - 710005BTZ floor plan - Second Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,036 sq. ft.
  • 1st Floor: 2,687 sq. ft.
  • 2nd Floor: 1,349 sq. ft.
  • Basement Unfinished: 2,687 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 72' 0"
  • Depth: 76' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 759 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

5-Bed House Plan with 2-Sided Fireplace

  • 4,036

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • This 5-bed house plan gives you a main floor master suite and has great space on the second floor for the kids.
  • A see-through fireplace unites the grand and keeping rooms, adding warmth and ambiance to both. Access the covered porch and rear deck here.
  • The nearby master suite impresses with an elegant vaulted ceiling and a sitting room boasting a brilliant rear view. The well-appointed guest suite is sure to please.
  • The second floor houses three secondary bedrooms, two full baths, and a spacious children's retreat and has attic storage as well.

Floor Plans

  • Main Floor

  • Second Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,036 sq. ft.
  • 1st Floor: 2,687 sq. ft.
  • 2nd Floor: 1,349 sq. ft.
  • Basement Unfinished: 2,687 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 72' 0"
  • Depth: 76' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 759 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
