Plan 710087BTZ
5-Bed House Plan with 2nd Story Overlook
Heated S.F.
2,885
Beds
5
Baths
4
Stories
2
Cars
2
What's Included
Plan Details
  • Original and thoughtful design went into every detail of this 4-bed house plan with a stone and board and batten exterior.
  • The kitchen is complete with a cook-top island and double ovens and overlooks a breakfast area and keeping room, giving the family and its company a casual place to visit.
  • A window seat creates the back wall of the keeping room, adding charm and comfort to the room. It shares a two-sided fireplace with the neighboring two-story great room. A bowed wall of windows makes this room bright and cheery.
  • The master suite is on the main floor and has a tray vaulted ceiling and a window seat. Bed 5, also on the main floor, could be converted for use as a study.
  • Upstairs, three bedrooms share two baths and an overlook at the top of the stairs gives the upstairs a dramatic flair.
What's Included
The plans include the following:
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5-Bed House Plan with 2nd Story Overlook

  • 2,885

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

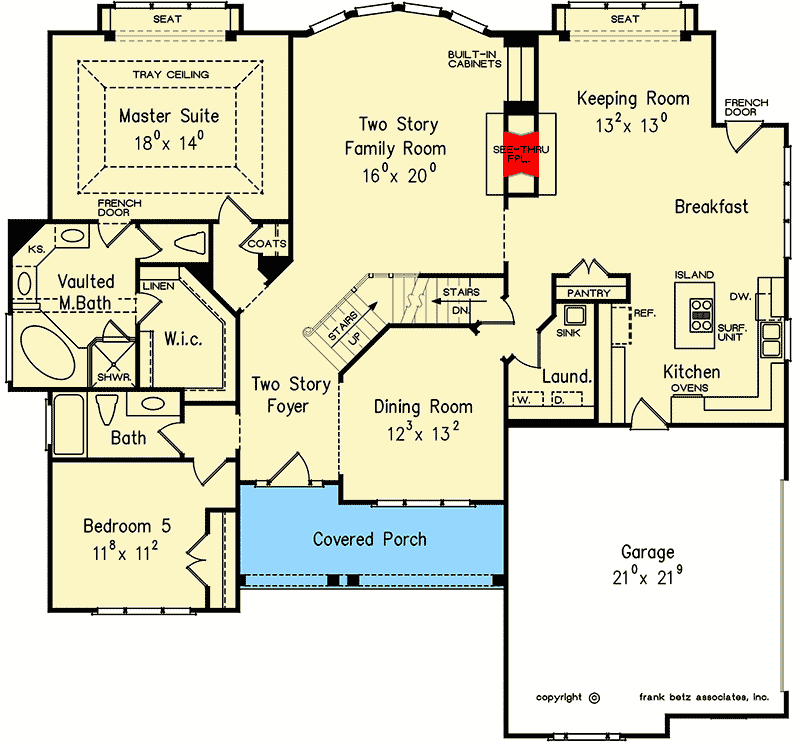

  • Main Level

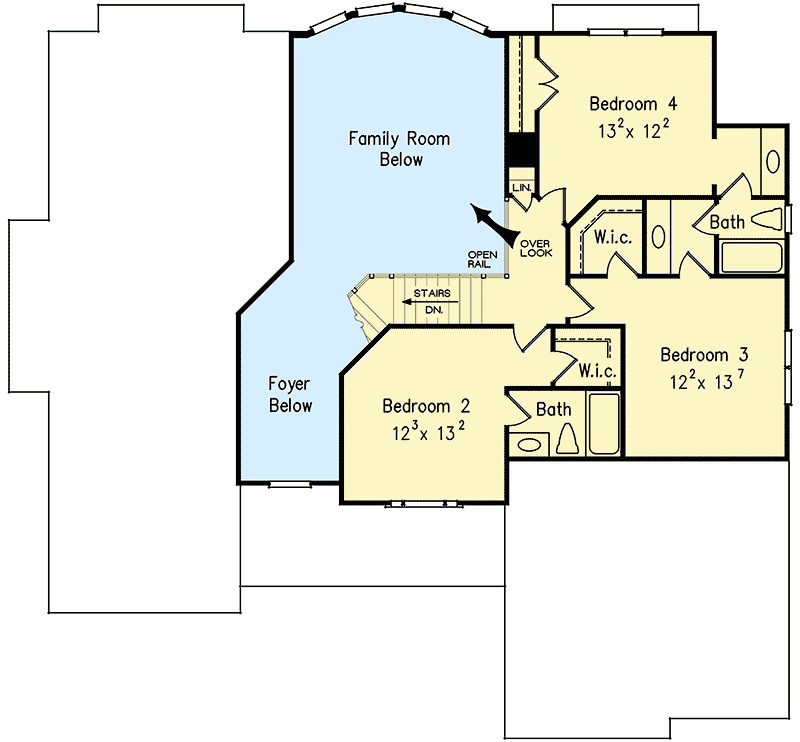

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,885 sq. ft.
  • 1st Floor: 2,052 sq. ft.
  • 2nd Floor: 833 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 55' 6"
  • Max ridge height: 32' 10"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 490 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

5-Bed House Plan with 2nd Story Overlook

  • 2,885

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

5-Bed House Plan with 2nd Story Overlook

  • 2,885

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,885 sq. ft.
  • 1st Floor: 2,052 sq. ft.
  • 2nd Floor: 833 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 55' 6"
  • Max ridge height: 32' 10"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 490 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
Plan 710087BTZ
