5-Bed Modern Farmhouse Plan with Vaulted Living Spaces
Heated S.F.
5,094
Beds
5
Baths
5
Stories
2
Cars
4
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

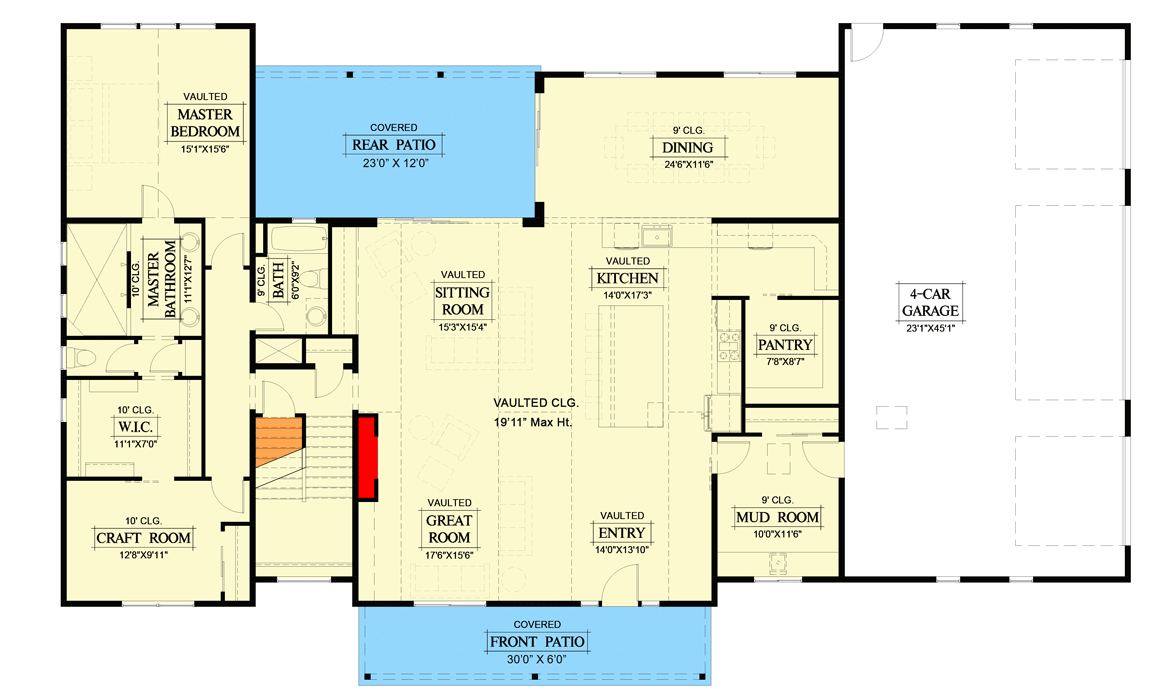

5-Bed Modern Farmhouse Plan with Vaulted Living Spaces - 365017PED floor plan - Main Level
2nd Level
Reverse Floor Plan

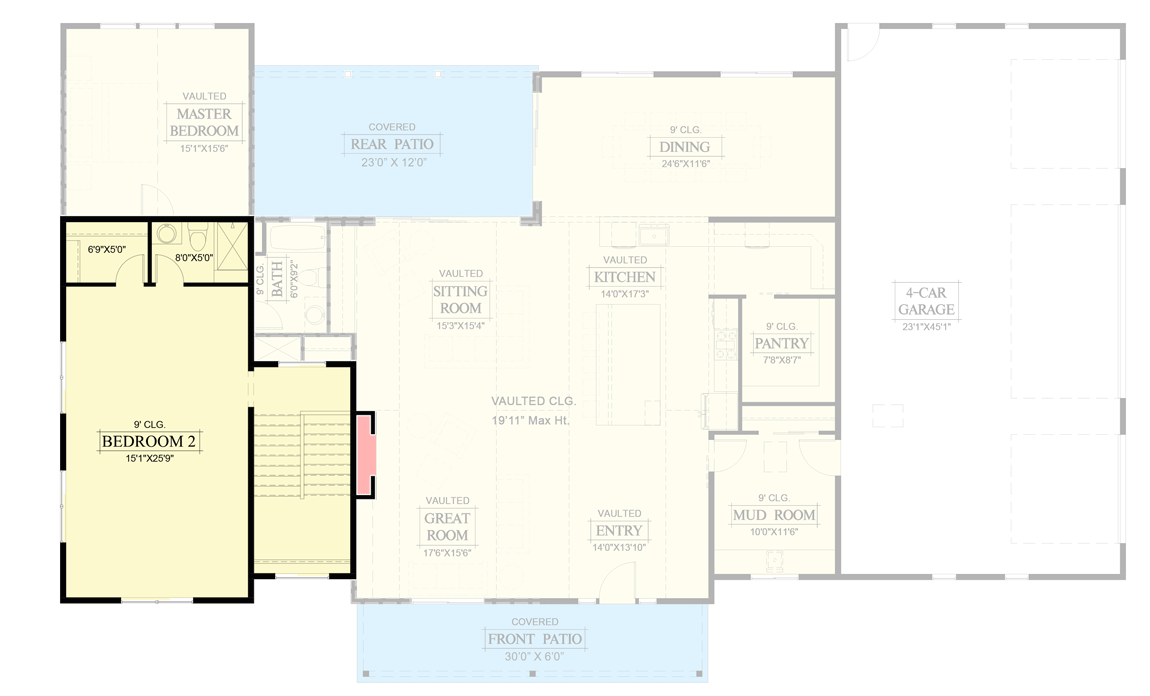

5-Bed Modern Farmhouse Plan with Vaulted Living Spaces - 365017PED floor plan - 2nd Level
Finished Lower Level
Reverse Floor Plan

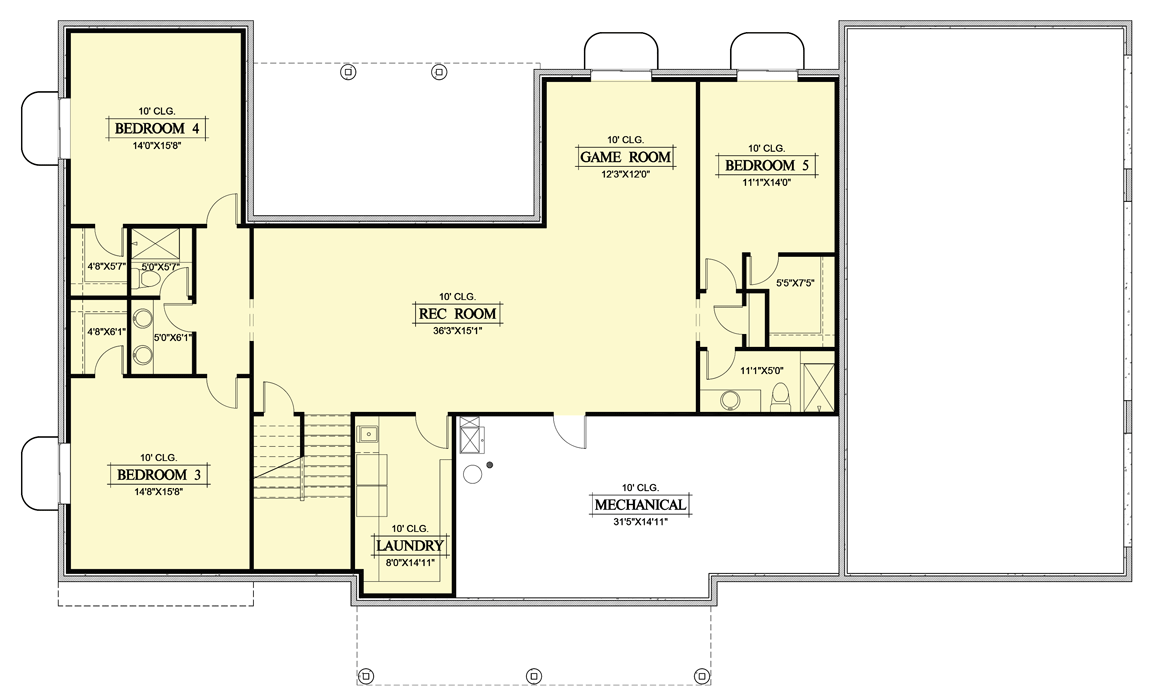

5-Bed Modern Farmhouse Plan with Vaulted Living Spaces - 365017PED floor plan - Finished Lower Level
Plan Details
  • This exclusive Modern Farmhouse plan presents an open living space in the center of the home, topped by a vaulted ceiling and warmed by a fireplace.
  • Sliding glass doors from the dining and great rooms open onto a covered patio, great for entertainment flow, and plenty of counter and storage space in the kitchen help when hosting large gatherings.
  • The master bedroom shares the left side of the main level with a craft room, that is accessible from the master closet. The master bathroom spoils the homeowner with its walk-thru shower and dual-sink vanity.
  • Three large bedrooms can be found downstairs surrounding a generous recreation room, along with a laundry room with built-in storage.
  • Enter from the 4-car garage to find a spacious mudroom with a coat closet and utility sink.

What's Included
  • Cover sheet with general information
  • Detailed floor plans for each floor

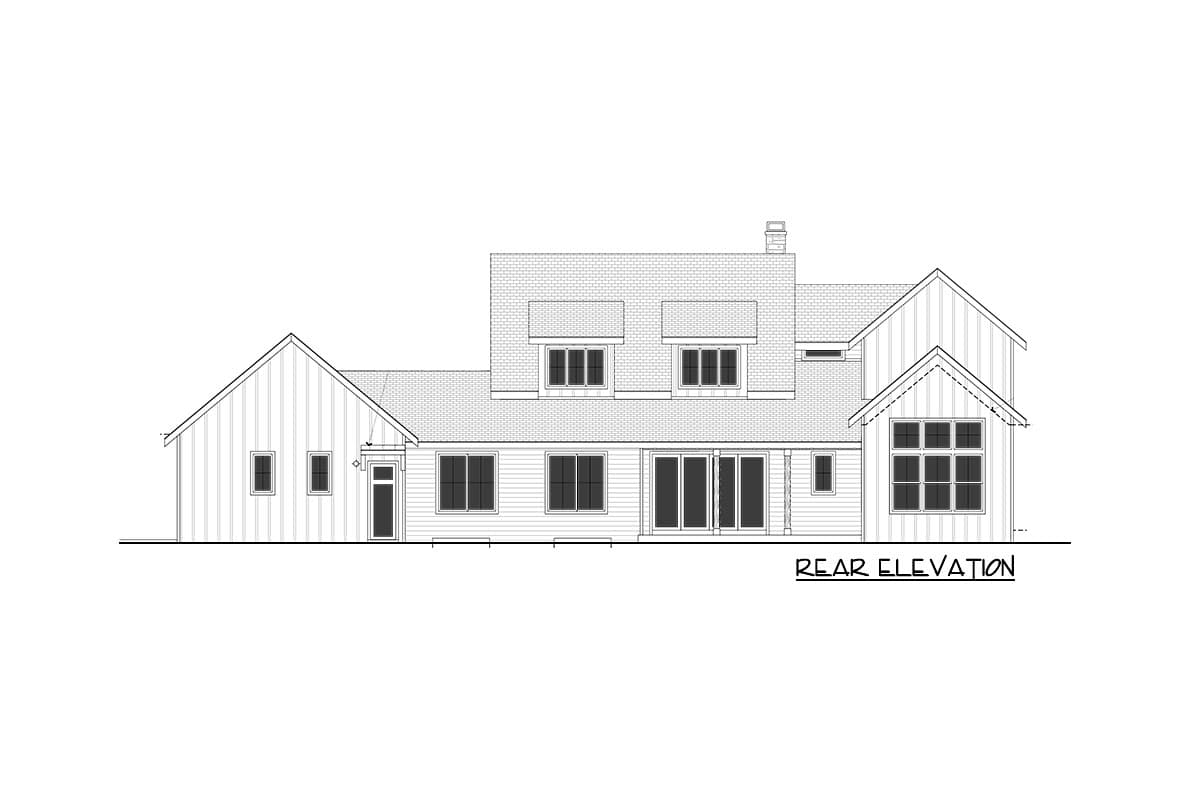

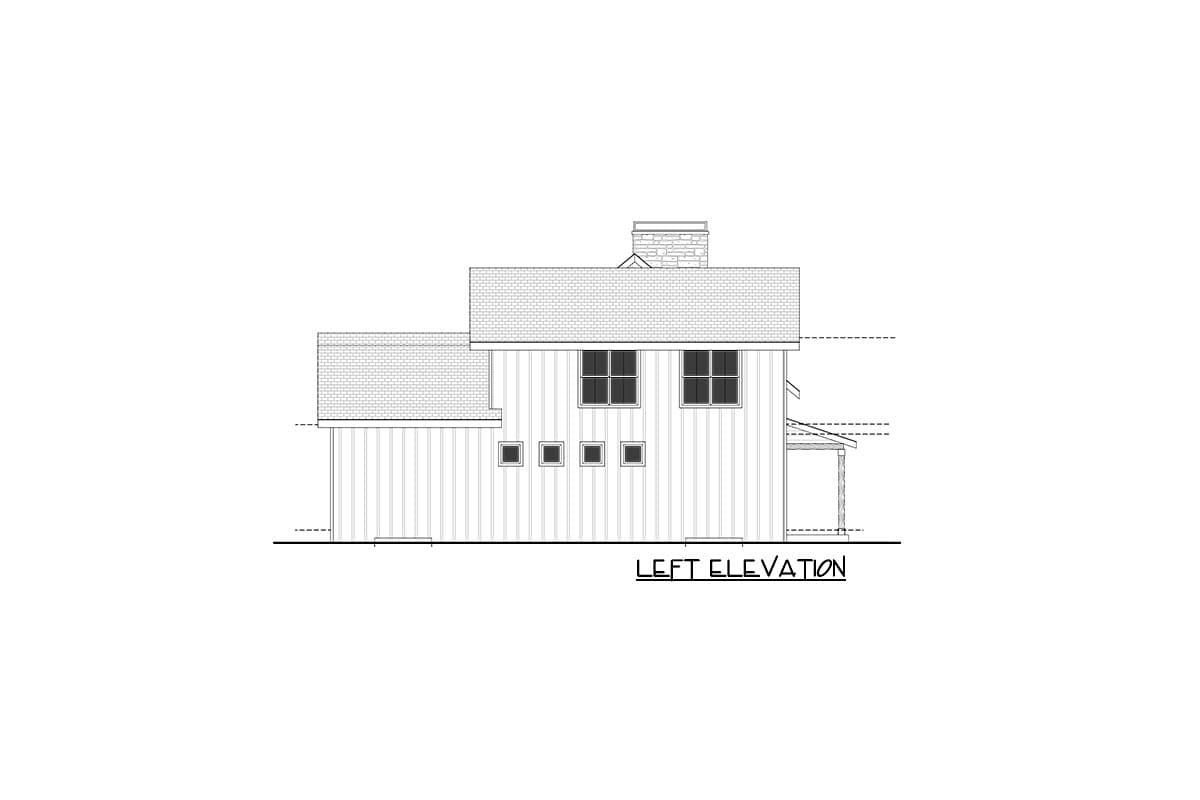

  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
