Plan 36525TX

5 Bed Modern Mediterranean Colonial House Plan

Heated S.F.
4,873
Beds
4
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 36525TX

Main Level
Main Level
2nd Floor
2nd Floor

Plan 36525TX

M-F 9am-5pm EST |

1-203-761-8500

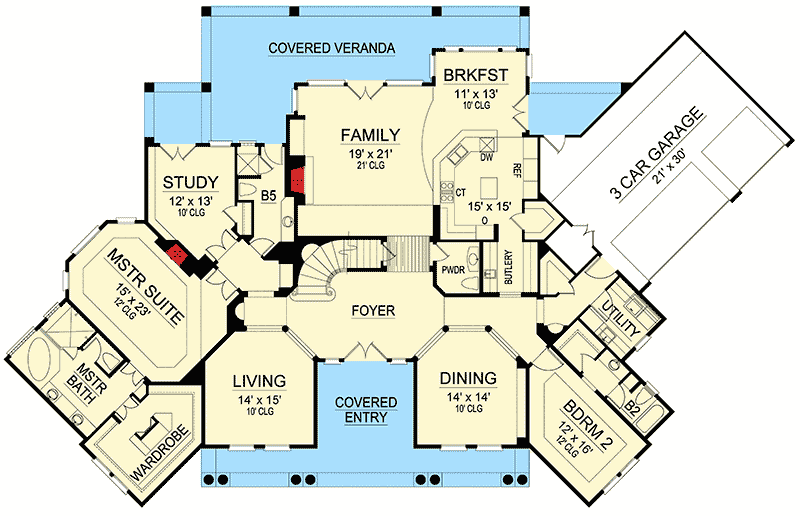

Main Level

Plan 36525TX: 5 Bed Modern Mediterranean Colonial House Plan - Floor Plan - Main Level

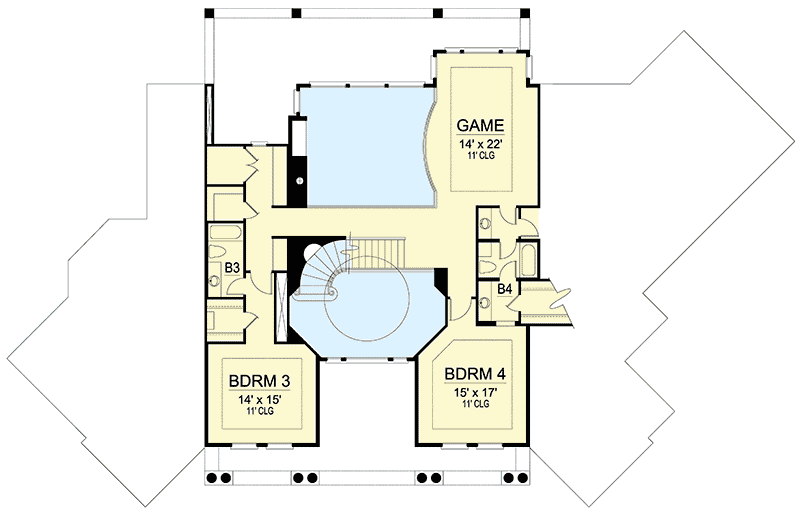

2nd Floor

Plan 36525TX: 5 Bed Modern Mediterranean Colonial House Plan - Floor Plan - 2nd Floor

Plan Details

  • Eight columns support the 2-story covered entry on this luxury Mediterranean colonial house plan. Inside, a 2-story foyer and a cured stair greets you
  • The dining room is to the right of the foyer and is set off by large columns and arched entranceways. To the left is the formal living room.
  • The family room has a 2-story ceiling, a wall of windows, fireplace and built-ins, and access to the covered veranda. It opens to the bright breakfast room and the gourmet kitchen. A butlery off the kitchen is adjacent to the dining room for ease in serving family and guests.
  • The right wing of the home plan includes a family bedroom with trey ceiling, full private bath, and walk-in closet with built-ins and a large utility room. A quiet study and full bath have access to the covered veranda and could double as a guest room or in-law suite.
  • The left wing boasts the master suite with curved sitting area, warming fireplace, trey ceiling and luxurious master bath with his and hers vanities. The wardrobe with built-ins is accessed through double French doors.
  • Upstairs, two family bedrooms, each with trey ceilings, full baths, and walk-in closets, share space with a game room and storage rooms. A catwalk between the two family bedrooms upstairs offers views to below.
  • In back, columns rise to the cornices and fans give comfort.
  • The 3-car garage has a work area and rear door that leads to the outdoors.

What's Included

  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

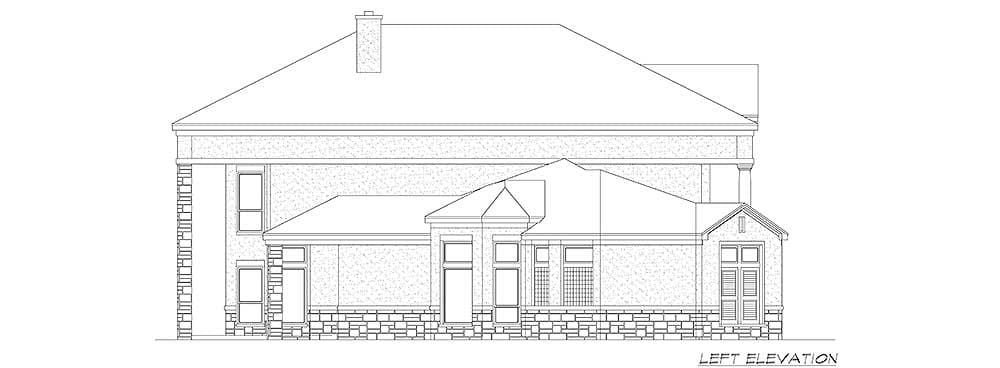

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,873 sq. ft.

1st Floor

3,543 sq. ft.

2nd Floor

1,330 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

111' 0"

Depth

71' 0"

Max Ridge Height

38' 0"

Garage

Type

Attached

Area

810 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Family Room

21' 0''

Master Bedroom

Tray

10' 0''

Bedroom 2

Tray

10' 0''

Bedroom 3

Tray

10' 0''

Special Features

Game/Rec Room

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

4,873 sq. ft.

1st Floor

3,543 sq. ft.

2nd Floor

1,330 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

111' 0"

Depth

71' 0"

Max Ridge Height

38' 0"

Garage

Type

Attached

Area

810 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Family Room

21' 0''

Master Bedroom

Tray

10' 0''

Bedroom 2

Tray

10' 0''

Bedroom 3

Tray

10' 0''

Special Features

Game/Rec Room

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Luxury

Photo Gallery

Premium Collection
