5 Bed Traditional House Plan Under 3100 Square Feet with Two Story Foyer and Great Room
Heated S.F.
3,084
Beds
5
Baths
4
Stories
2
Cars
2
What's Included
Plan Details
  • Symmetrical gables, arched keystones and a large metal roof combine in this two-story house plan to create an attractive façade to this 5 bed, 4 bath 3,084 square foot traditional house plan. Step in off the 6'6"-deep front porch and you are greeted with 18'1" ceilings in the foyer.

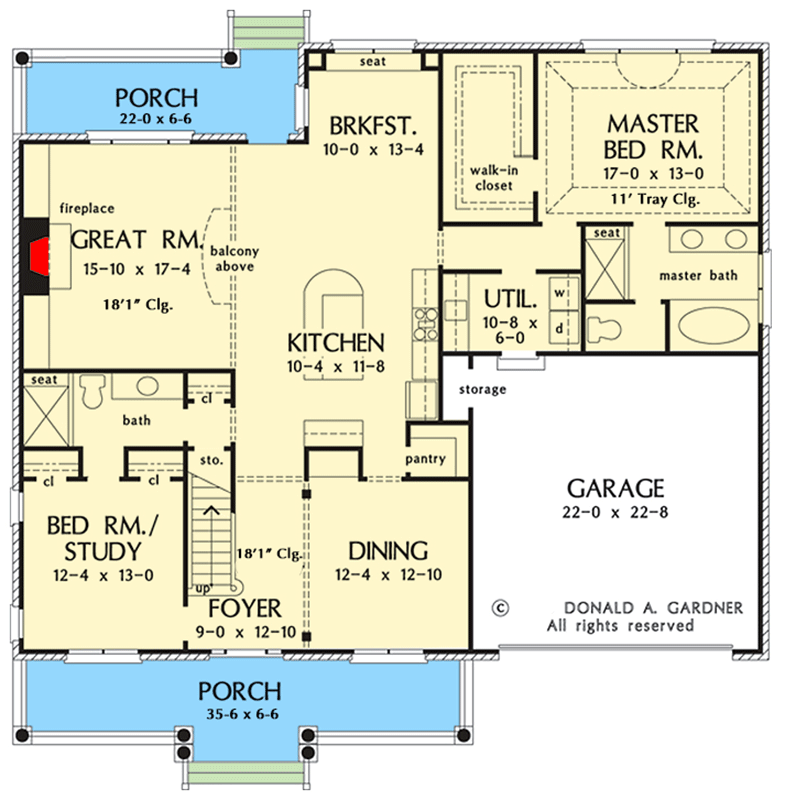

  • The master-on-main assures that all of your personal living needs remain on one floor for years to come. With an 11' tray ceiling, separate tub, shower and twin vanities, the master suite is designed to pamper.
  • In this floor plan, the kitchen, breakfast, and great room with18'1" ceiling are all open to one another, which makes a seamless transition to relax after meals.
  • The flexible study/bedroom includes a full bath and would serve well as a guest suite.

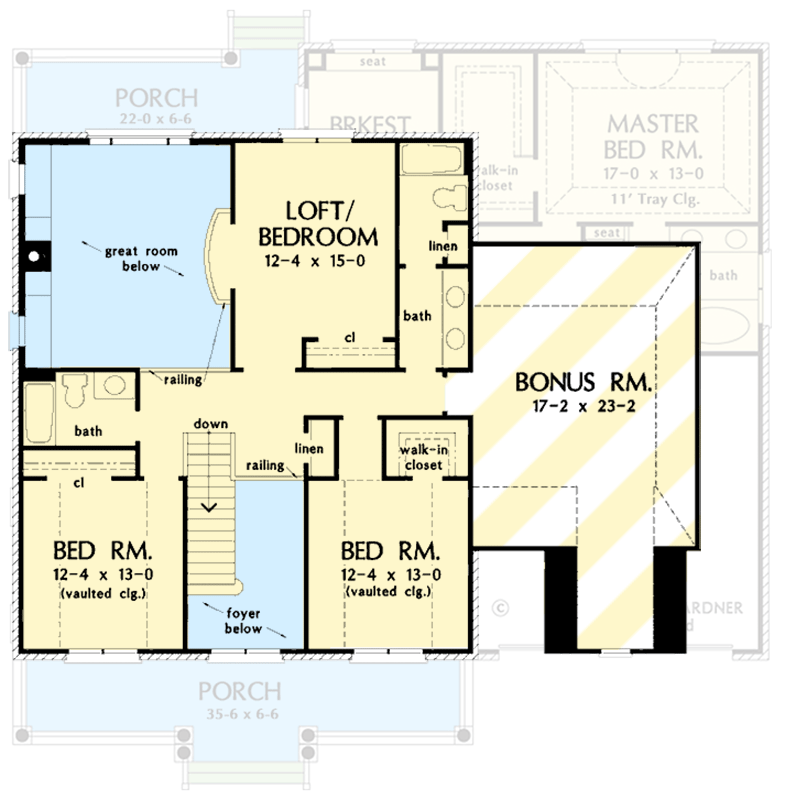

  • Upstairs, the home plan offers are three secondary bedrooms and a bonus room. Perfect for families looking to expand or those with several children, the upstairs becomes a complete child's domain.
  • Please allow 20 to 25 days for delivery if it includes the basement foundation option.
  • Please allow 15 to 20 days for delivery if it includes the slab foundation option or 2x6 exterior wall conversion.
  • Please allow 10 to 15 days for delivery if it includes readable reverse.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
