Plan 818169JSS

5-Bed Transitional House Plan with Walkout Lower Level

Heated S.F.
5,070
Beds
5
Baths
5.5
Stories
1
Cars
3

Floor Plan

Plan 818169JSS

Main Level
Main Level
Lower Level
Lower Level

Plan 818169JSS

M-F 9am-5pm EST |

1-203-761-8500

Main Level

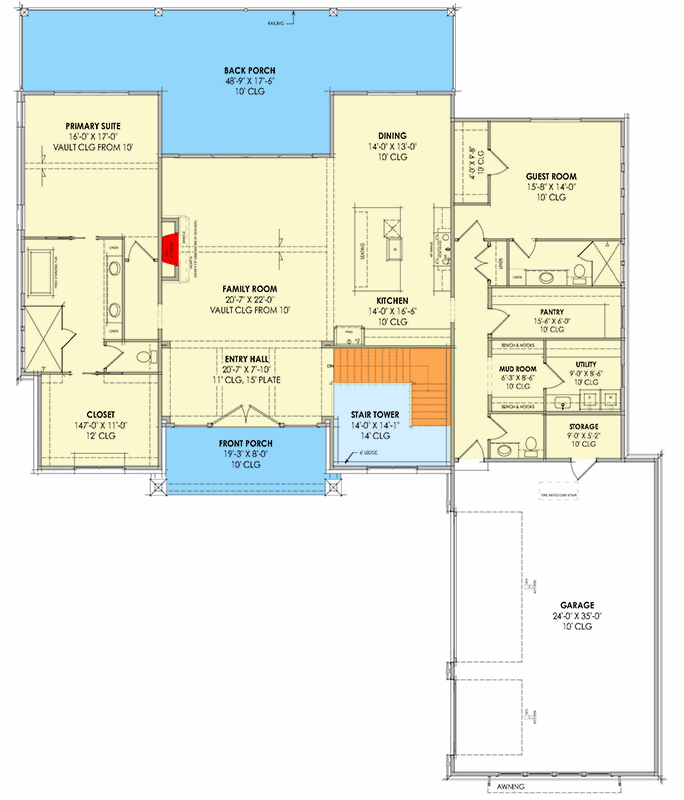

Plan 818169JSS: 5-Bed Transitional House Plan with Walkout Lower Level - Floor Plan - Main Level - Transitional

Lower Level

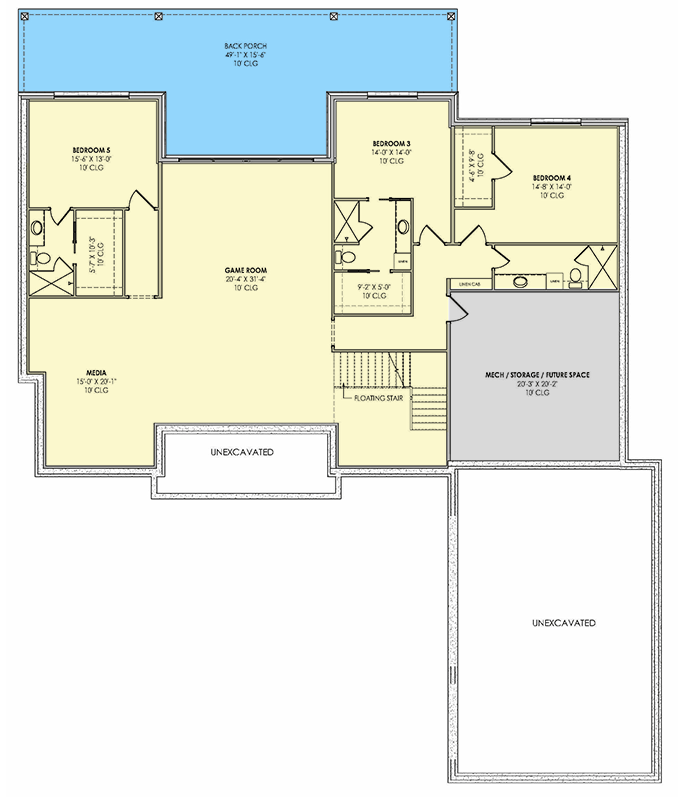

Plan 818169JSS: 5-Bed Transitional House Plan with Walkout Lower Level - Floor Plan - Lower Level - Transitional

Plan Details

  • This 5,070 sq. ft. transitional home offers 5 bedrooms, 5.5 baths, and a 993 sq. ft. 3-car garage, ideal for spacious living.
  • Enter through the courtyard into a grand entry hall leading to a vaulted family room, creating a welcoming ambiance.
  • The main floor features a seamless flow from the kitchen with a butler walk-in pantry to dining areas, opening onto a large rear porch.
  • The first-floor master suite offers privacy, with a vaulted ceiling, large closet, and convenient laundry access.
  • The lower level includes a media room and game room, along with additional bedrooms, perfect for entertaining or guests.
  • Outdoor spaces are highlighted by expansive front and rear porches, providing excellent options for relaxation and gatherings.

What's Included

  • Foundation plan
  • Detailed floorplans
  • Roof plan
  • Exterior elevations
  • Electrical schematic
  • Cross section(s)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,070 sq. ft.

Lower Level

2,404 sq. ft.

1st Floor

2,666 sq. ft.

Porch, Front

172 sq. ft.

Porch, Rear

696 sq. ft.

Porch, Combined

868 sq. ft.

Deck

674 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 6"

Depth

92' 1"

Max Ridge Height

29' 8"

Garage

Type

Attached, Standard

Area

993 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Transitional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Walk-in Pantry

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

5,070 sq. ft.

Lower Level

2,404 sq. ft.

1st Floor

2,666 sq. ft.

Porch, Front

172 sq. ft.

Porch, Rear

696 sq. ft.

Porch, Combined

868 sq. ft.

Deck

674 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 6"

Depth

92' 1"

Max Ridge Height

29' 8"

Garage

Type

Attached, Standard

Area

993 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Transitional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Walk-in Pantry

Plan Collections

Sloping Lot
